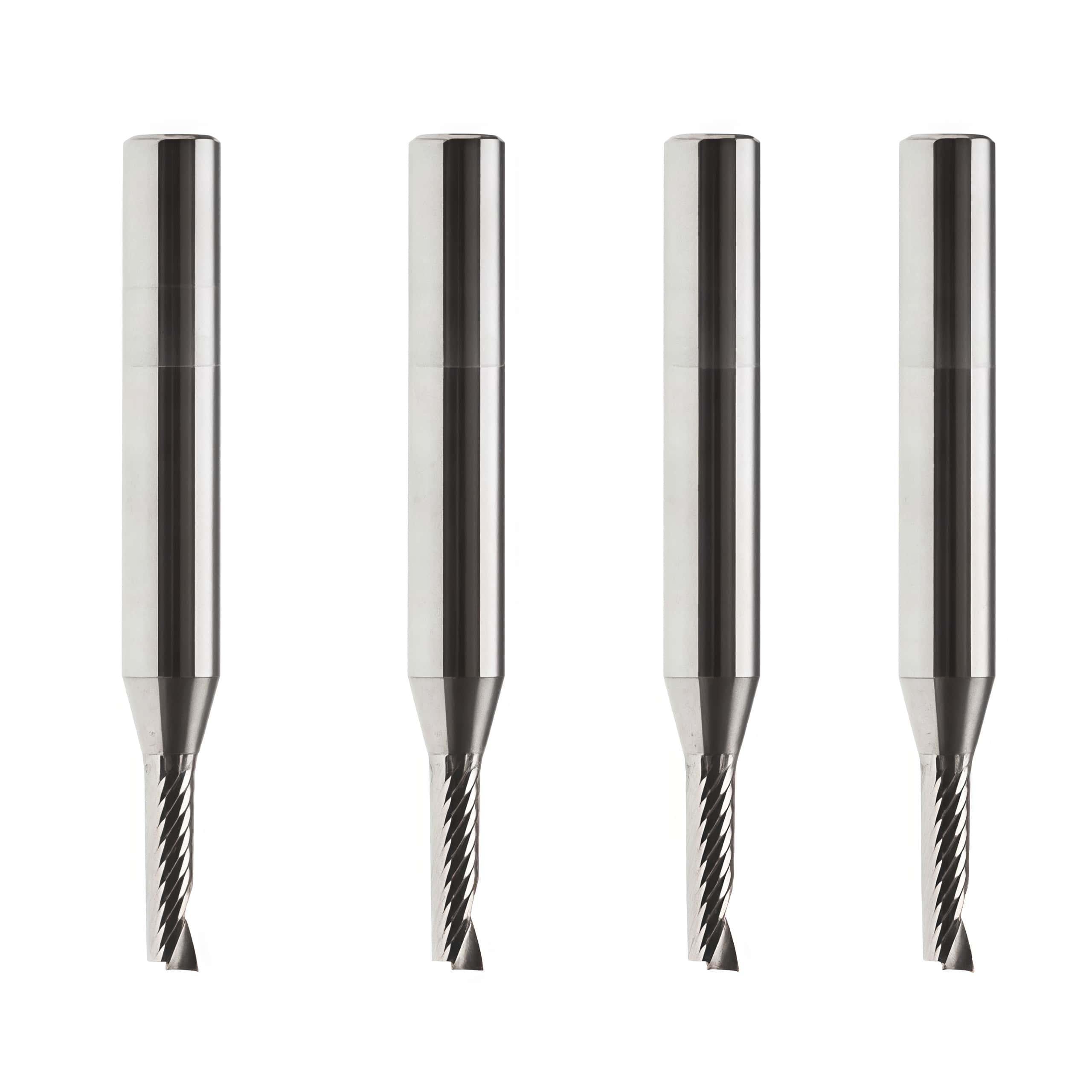

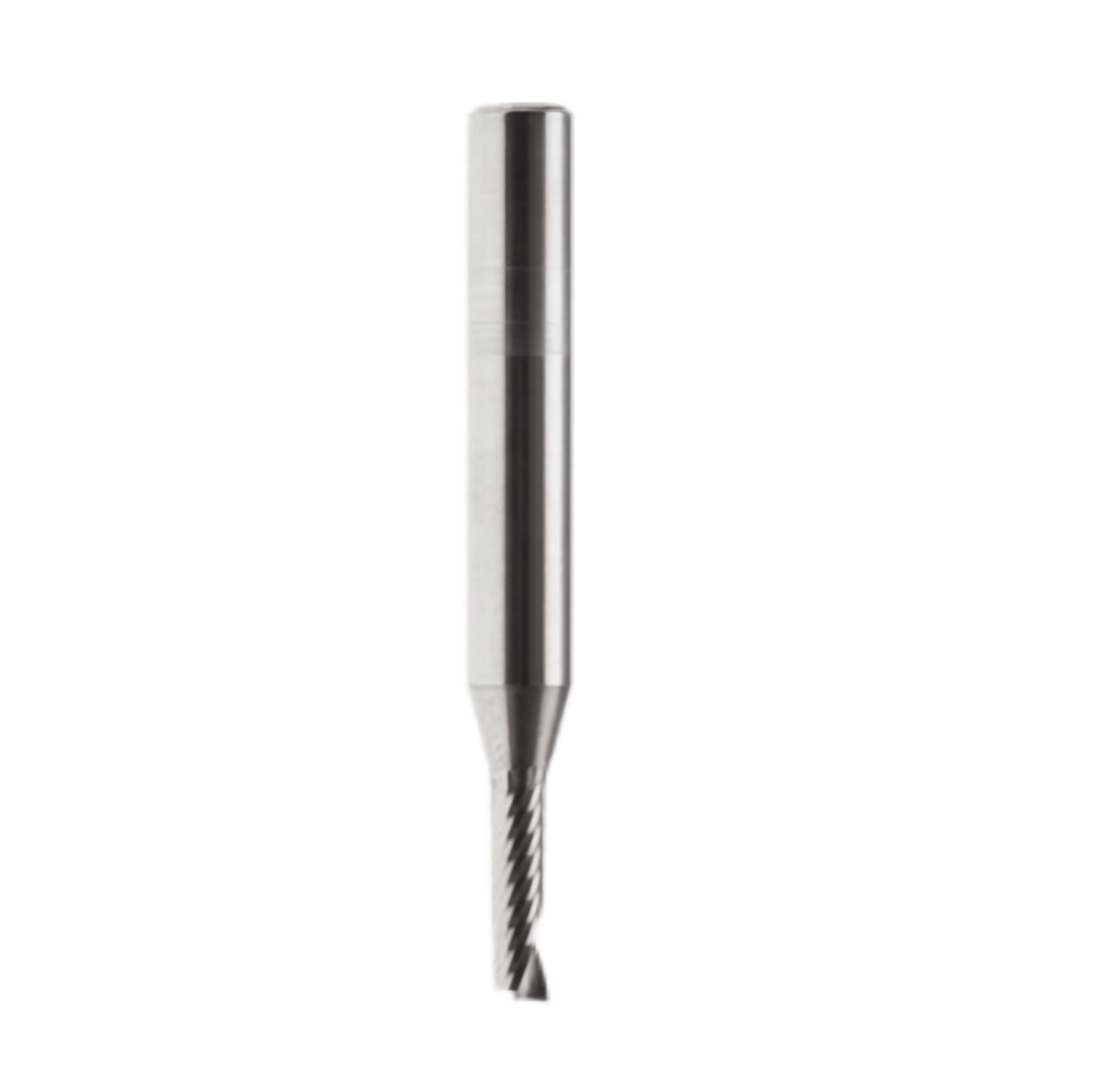

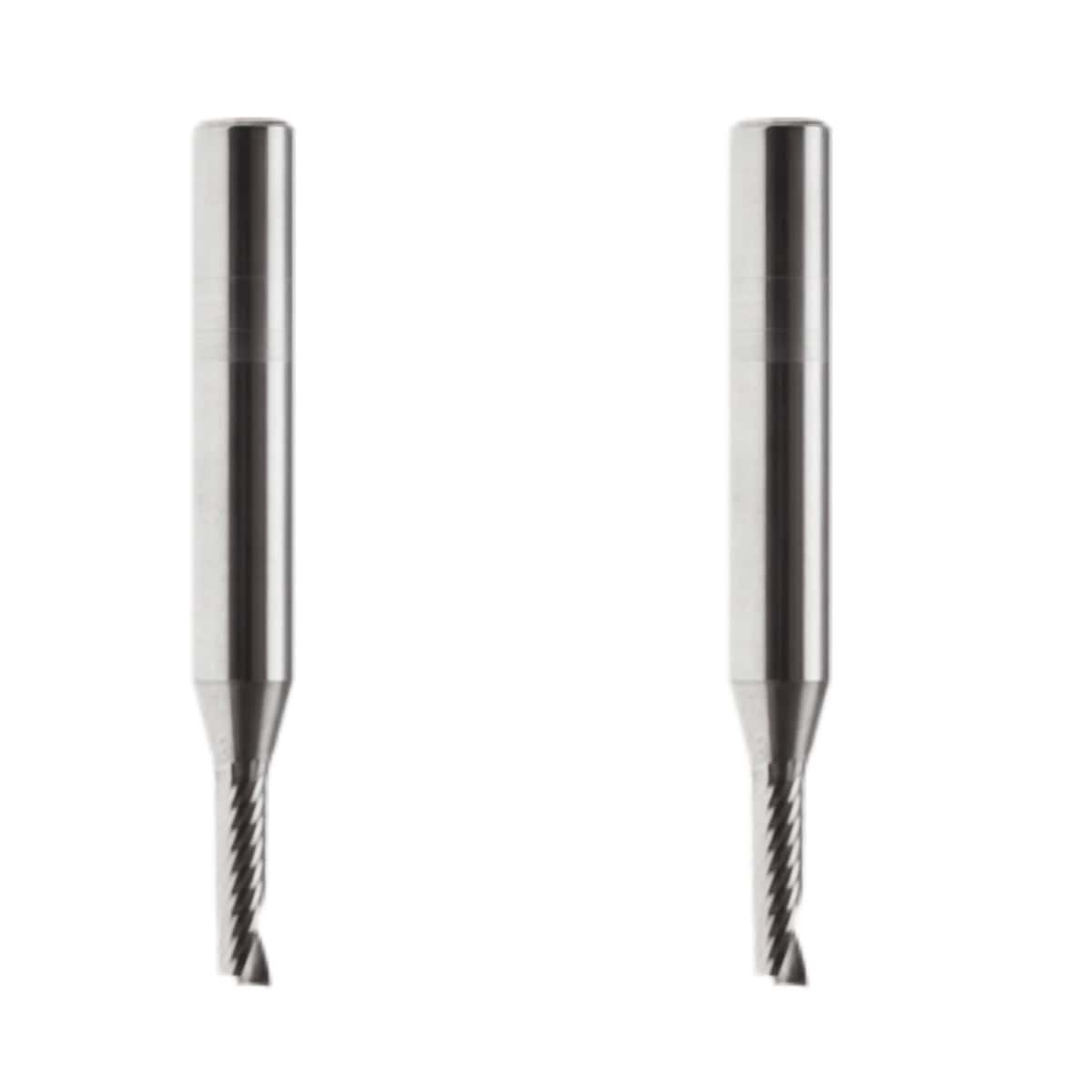

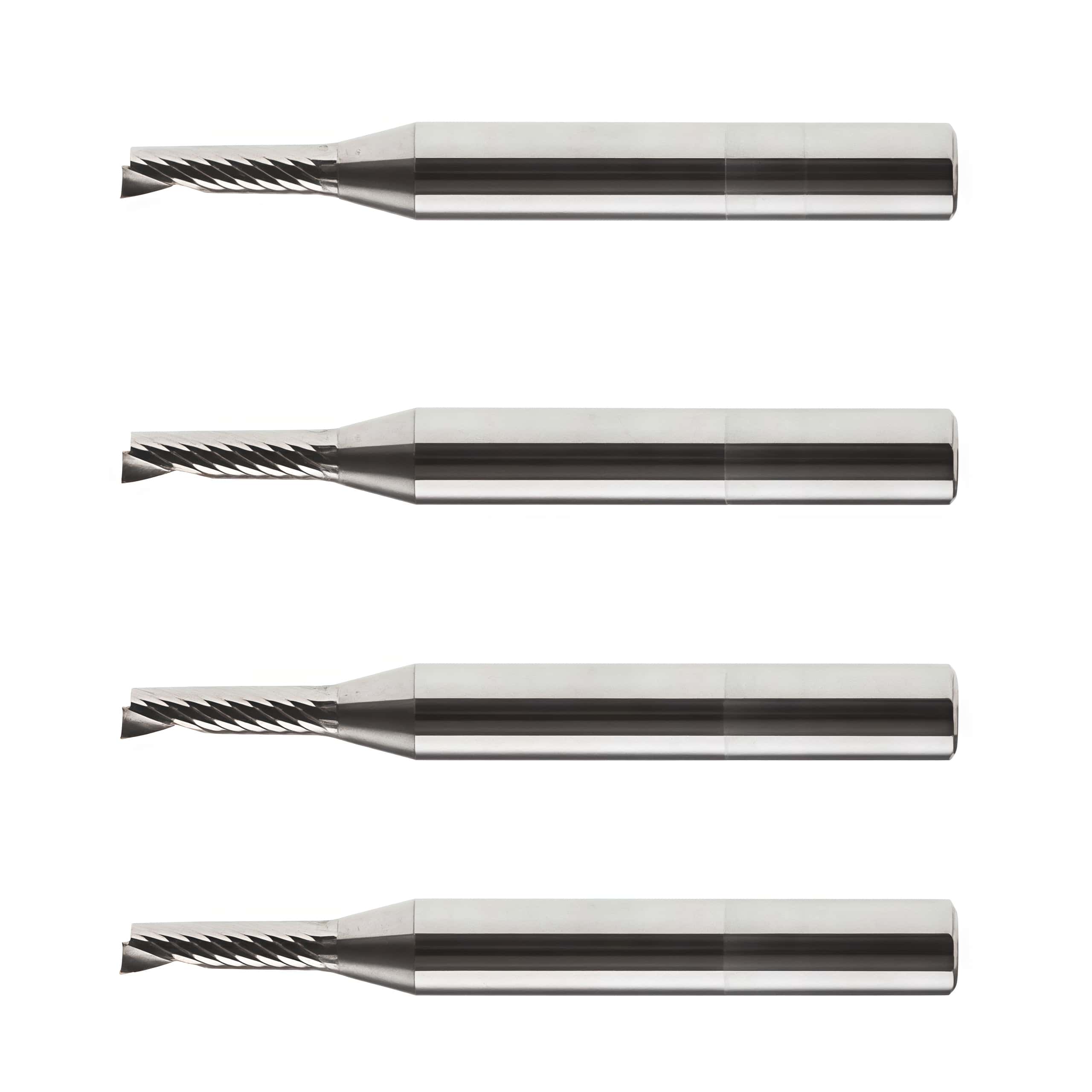

Esko Kongsberg Bit-Mus06-3512-50 G42443556 Milling Bit For Digital Flatbed Cutters

Esko Kongsberg BIT-MUS06-3512-50 (Part Number: G42443556) is a single-flute, up-cut multi-purpose milling bit designed for digital flatbed cutters. It is optimized for standard 6mm tool heads like the High-Power Milling Unit (HPMU) Enquire now

Description

Esko Kongsberg Bit-Mus06-3512-50 G42443556 Milling Bit For Digital Flatbed Cutters

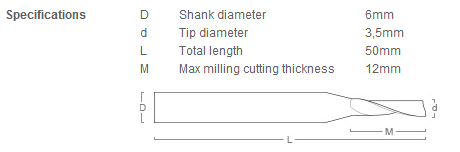

Technical Specifications

Part Number: G42443556
Bit Code: BIT-MUS06-3512-50
Shank Diameter: 6.0 mm
Cutting Diameter: 3.5 mm
Flute Length: 12.0 mm
Total Length: 50.0 mm
Geometry: Single Flute (Z1), Up-Cut
Material: Solid Tungsten Carbide

Compatible Hardware

This bit fits perfectly into Esko Kongsberg 6mm tool heads, including:

High-Power Milling Unit (HPMU)
MultiCUT-HP (High Power)
MultiCUT

Target Materials

Rigid Plastics: Acrylic (PMMA), Polycarbonate, PETG, and ABS.
Foam Boards: Foamed PVC (Sintra, Forex), Gatorfoam, and Kappa.
Wood Composites: MDF, plywood, and softwoods.
