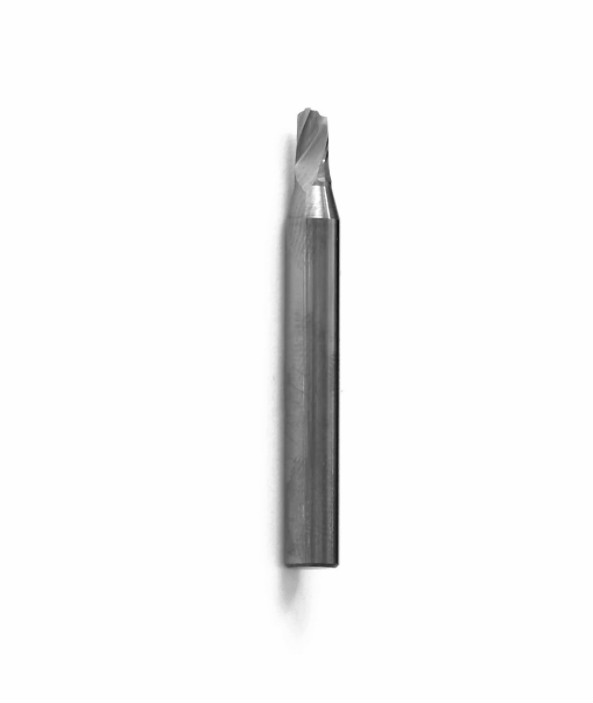

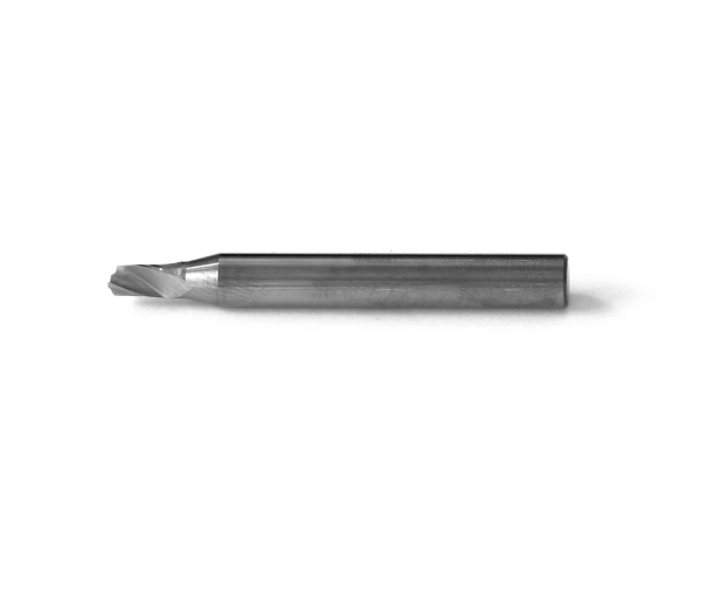

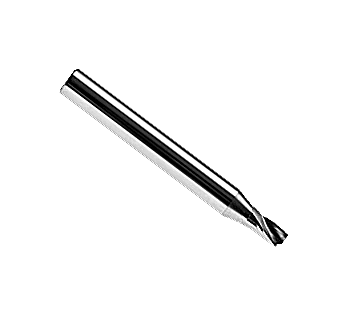

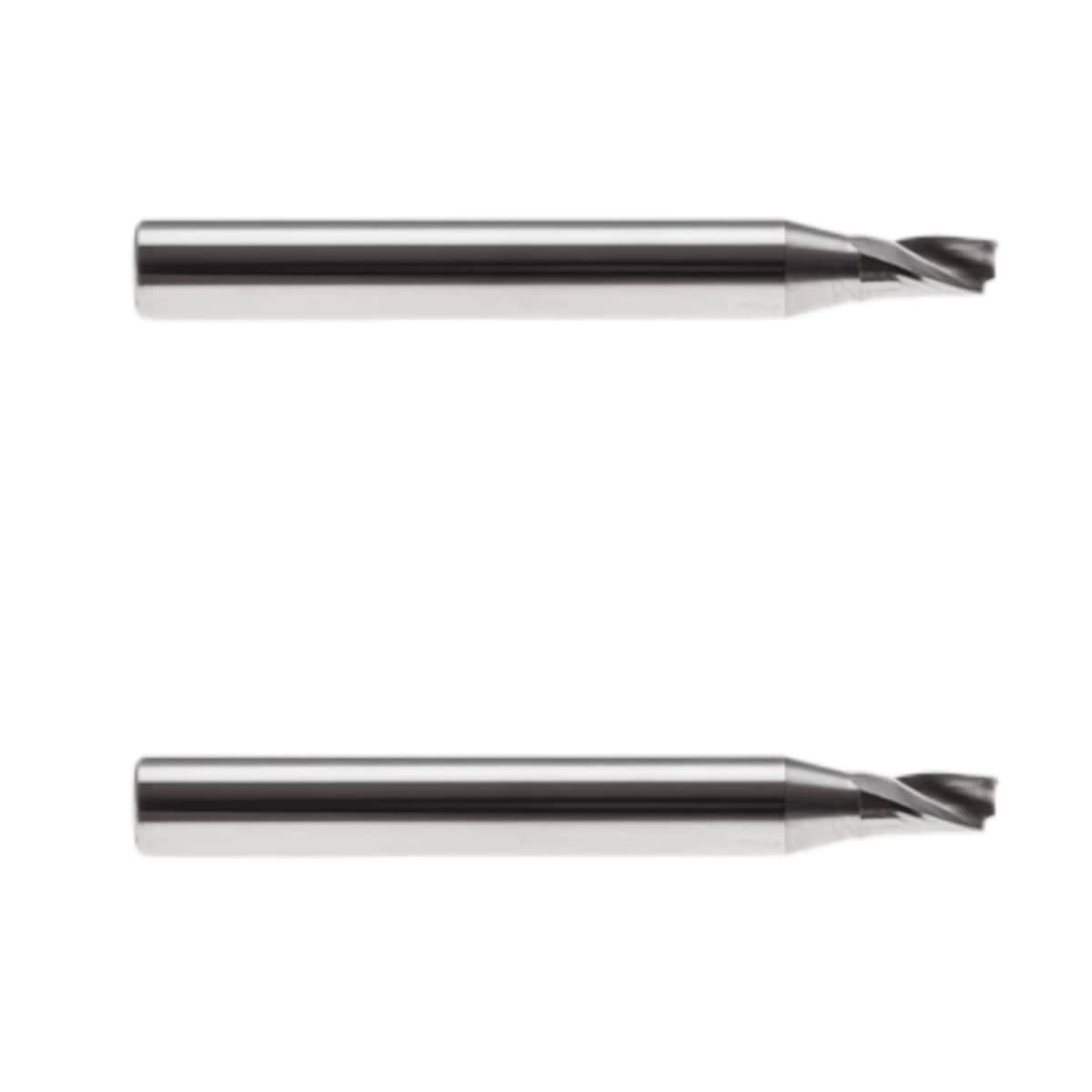

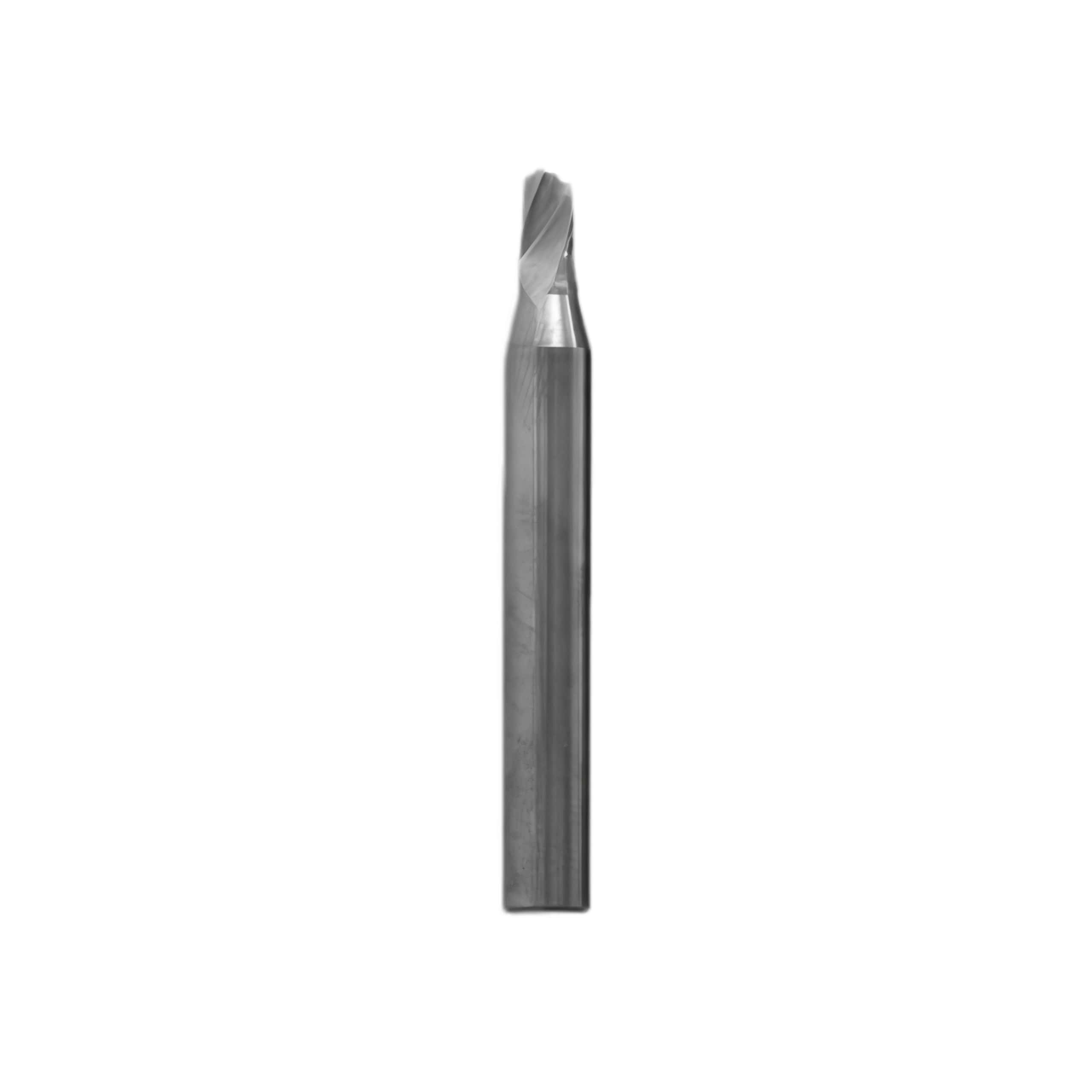

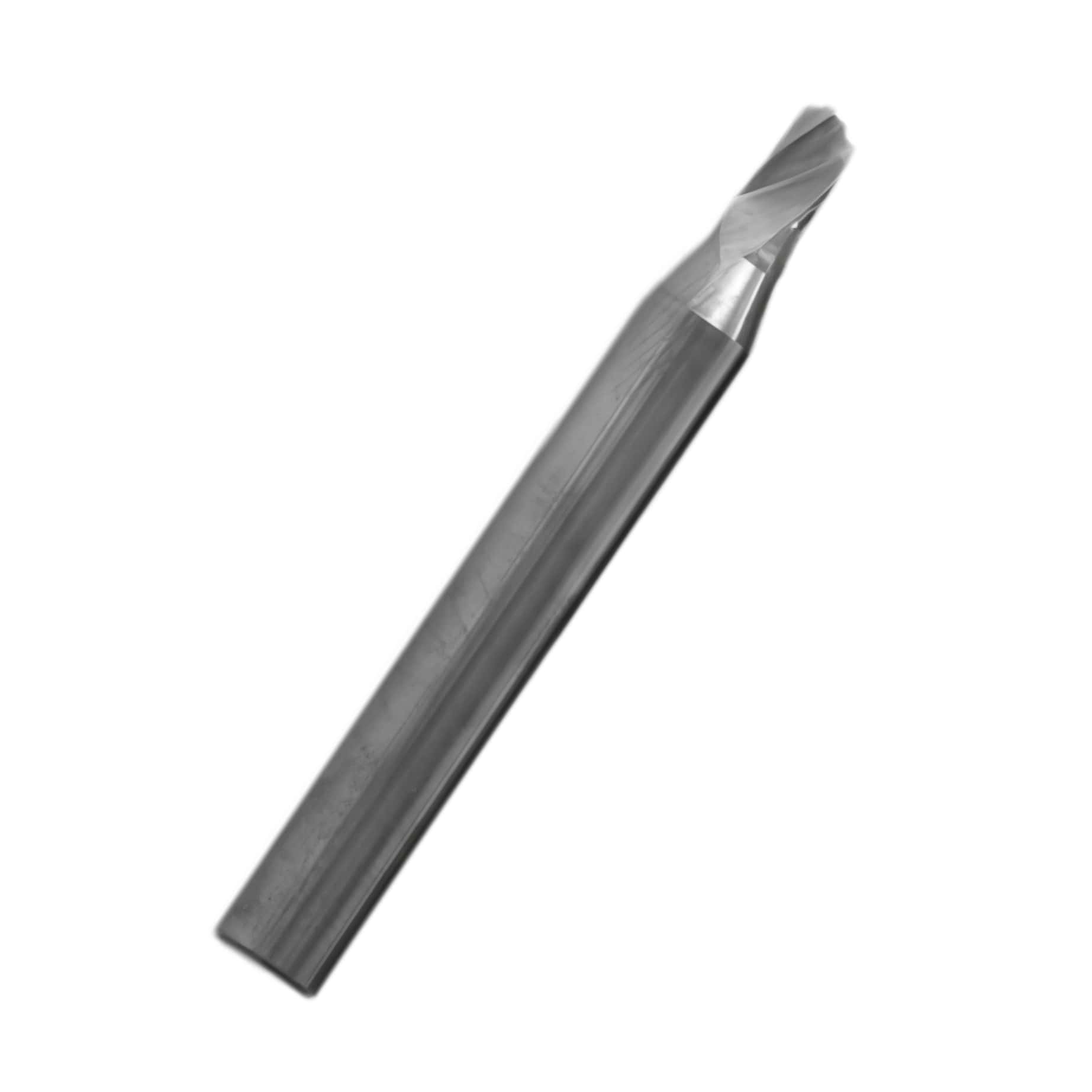

Esko Kongsberg Bit-Mus06-4006-50 G42443564 Router Bit For Digital Flatbed Cutters

Esko Kongsberg BIT-MUS06-4006-50 (G42443564) is a premium, single-flute solid tungsten carbide router bit optimized for digital flatbed cutters. This specific tooling profile is highly popular for precise, shallow milling paths and fast chip evacuation on standard 6mm tool heads like the High-Power … Enquire now

Description

Esko Kongsberg Bit-Mus06-4006-50 G42443564 Router Bit For Digital Flatbed Cutters

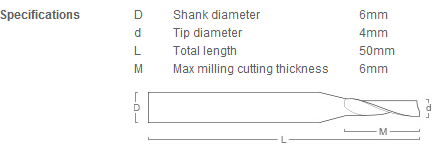

Technical Specifications

Part Number: G42443564
Bit Code: BIT-MUS06-4006-50
Shank Diameter: 6.0 mm
Cutting Diameter: 4.0 mm
Flute Length: 6.0 mm
Total Length: 50.0 mm
Geometry: Single Flute (Z1), Up-Cut
Material: Solid Tungsten Carbide

Compatible Hardware

This bit is fully compatible with standard Kongsberg 6mm collets and tool heads, including:

High-Power Milling Unit (HPMU)
MultiCUT-HP (High Power)
MultiCUT

Target Materials & Benefits

Aluminum Composites: Ideal for Dibond and ACM because the short flute minimizes vibrations.
Rigid Plastics: Perfect for acrylic, polycarbonate, and PETG under 6mm thick.
Wood & Composites: Excellent for engraving, pocketing, or cutting thin MDF and plywood.
