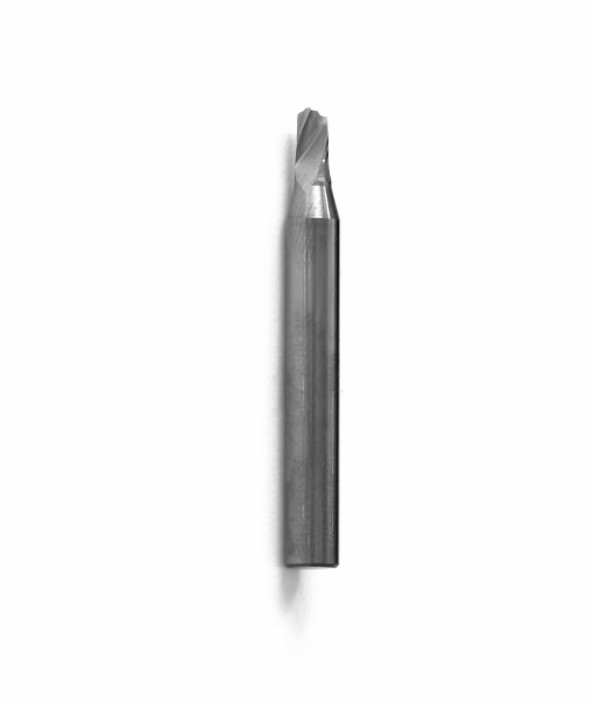

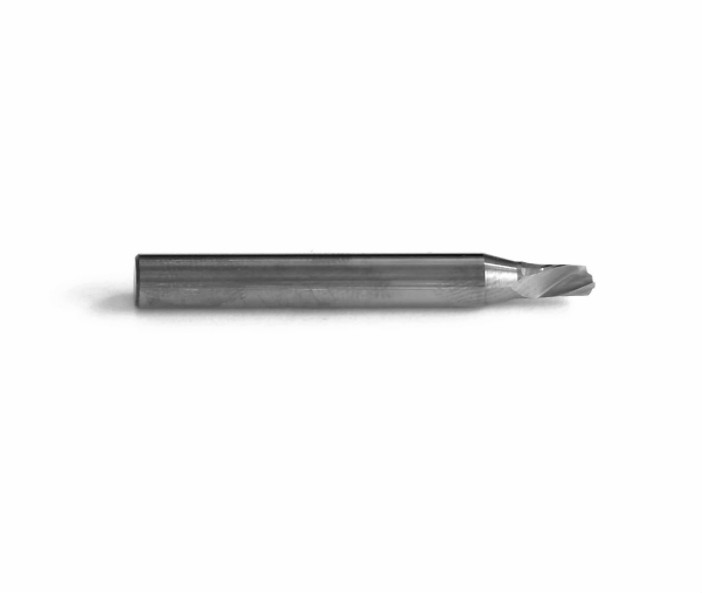

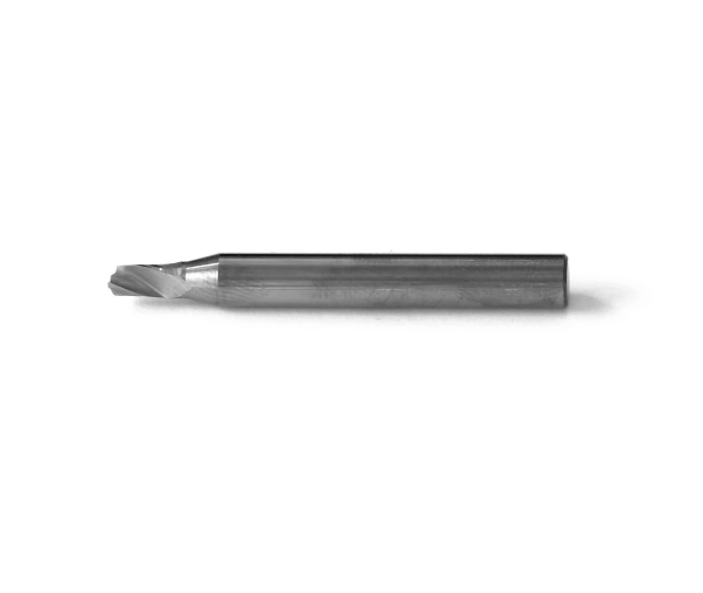

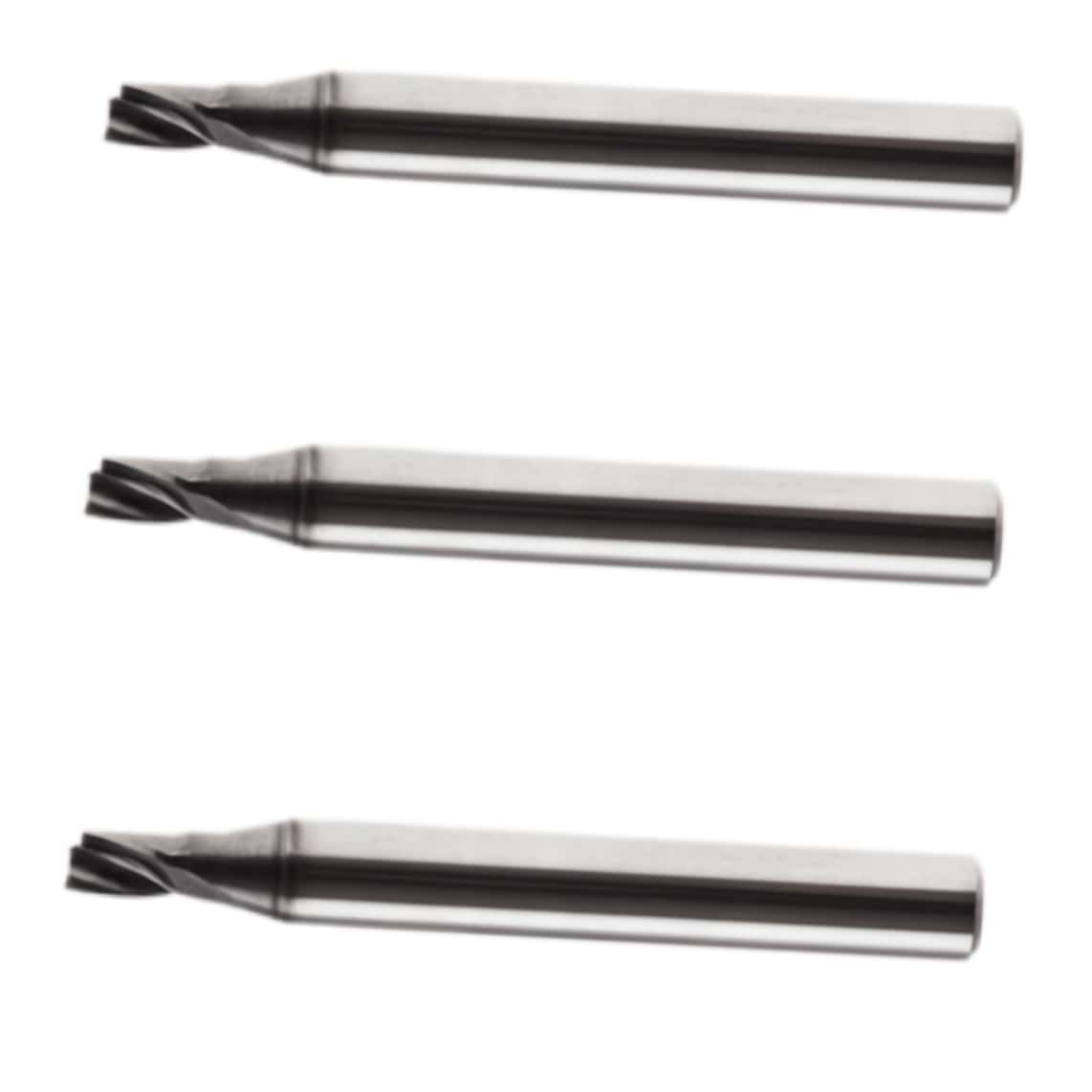

Esko Kongsberg Bit-Mus06-4006-50c1 G42451112 Coated Milling And Router Bit

Esko Kongsberg BIT-MUS06-4006-50C1 (G42451112) is a professional, high-performance coated solid tungsten carbide milling and router bit. It shares the identical structural architecture as the standard 4006-50 profile but introduces a specialized C1 surface coating designed to vastly improve tool lon… Enquire now

Description

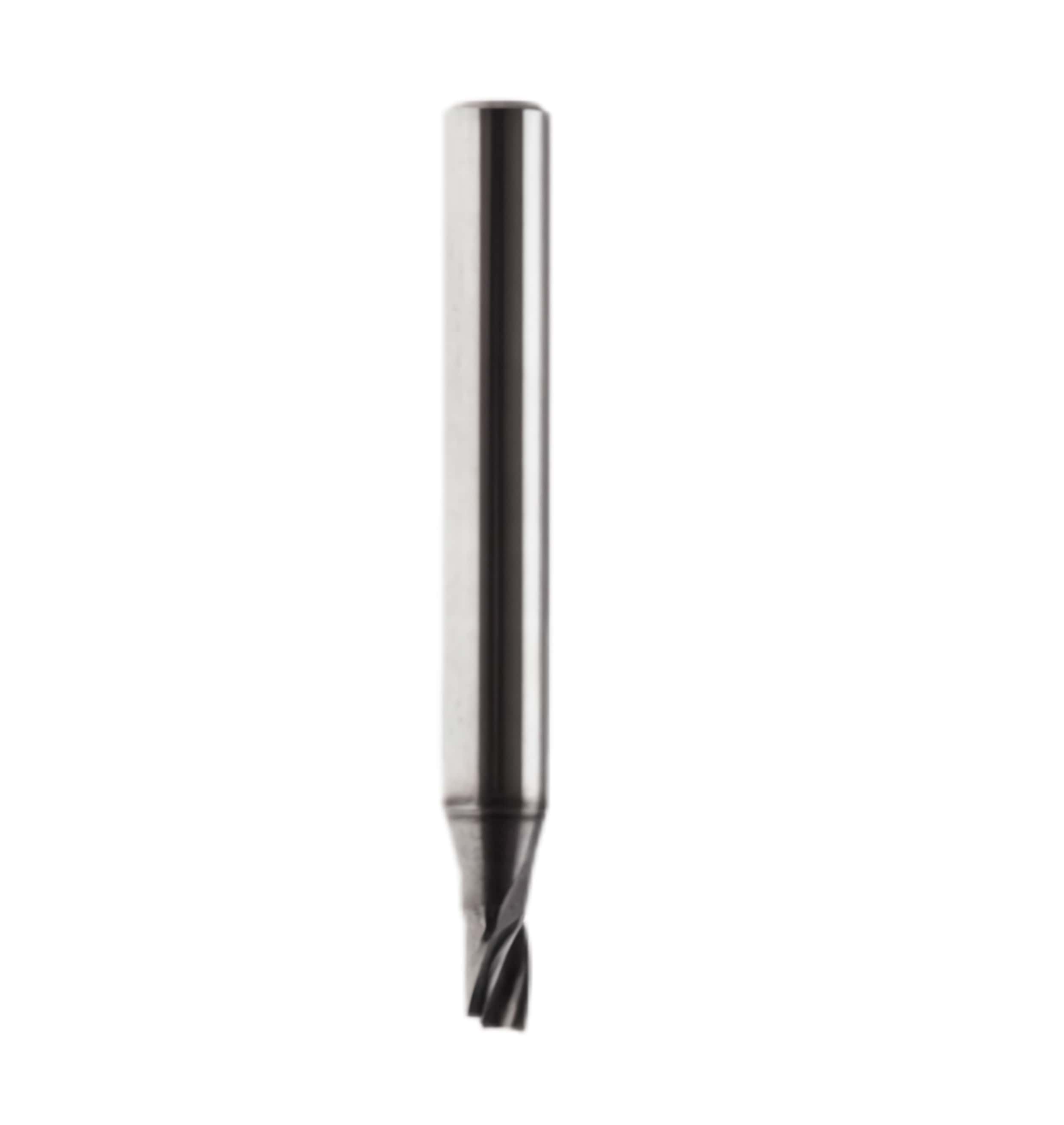

Esko Kongsberg Bit-Mus06-4006-50c1 G42451112 Coated Solid Tungsten Carbide Milling And Router Bit

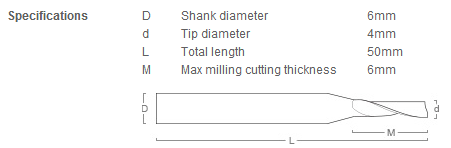

Technical Specifications

Part Number: G42451112
Bit Code: BIT-MUS06-4006-50C1
Shank Diameter: 6.0 mm
Cutting Diameter: 4.0 mm
Flute Length (Max Cut Depth): 6.0 mm
Total Length: 50.0 mm
Geometry: Single Flute (Z1), Up-Cut
Material: Solid Tungsten Carbide (TC) with C1 Performance Coating

Compatible Hardware

This bit is fully compatible with Esko Kongsberg 6mm collets and specialized high-speed tool heads, such as:

High-Power Milling Unit (HPMU)
MultiCUT-HP (High Power)
MultiCUT

Benefits of the C1 Coating

Thermal Barrier: Reduces heat transfer to the bit, preventing material melting and gumming.
Low Friction: Lowers tool wear and resists material welding (especially with aluminum and acrylics).
Extreme Longevity: Outlasts standard uncoated bits (like the G42443564) when cutting high-wear substrates.
High Rigidity: The short 6.0 mm flute length maximizes stability and eliminates tool deflection.

Primary Applications

Aluminum Composites (ACM): Exceptional for Dibond and Alucobond routing.
Non-Ferrous Metals: Thin solid aluminum sheets.
Hard Plastics: Acrylic (PMMA), Polycarbonate, and dense engineering polymers.
