Esko Kongsberg Bit-Mus06-4012-50 G42437863 Multi-Purpose Up-Cut Router Bit

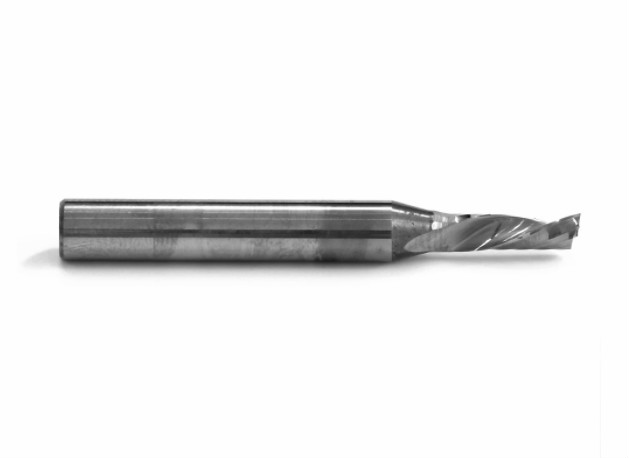

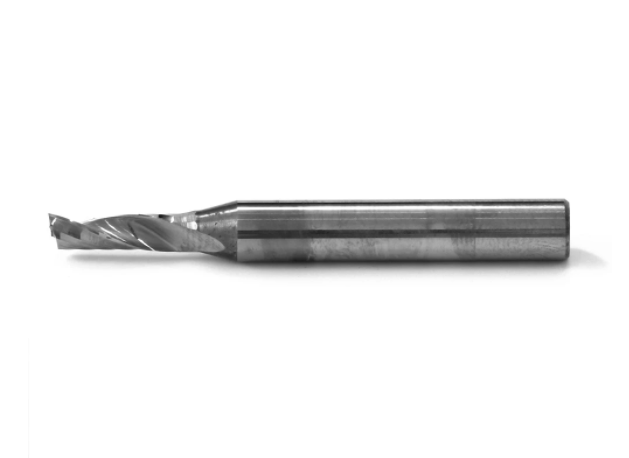

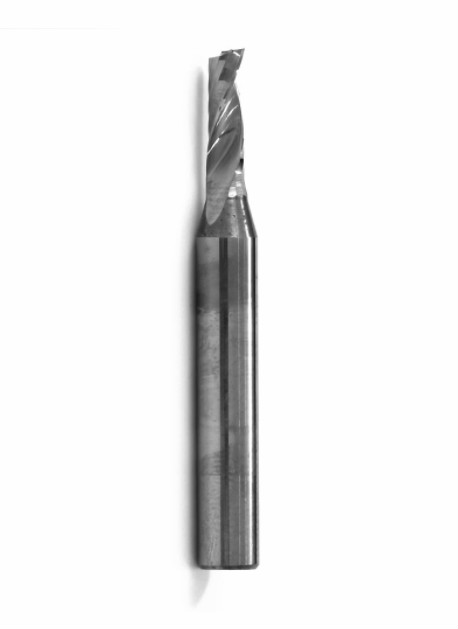

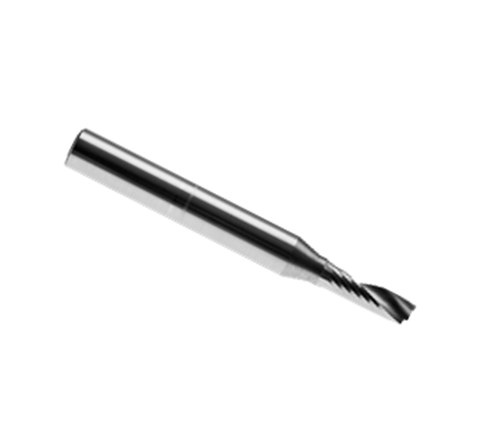

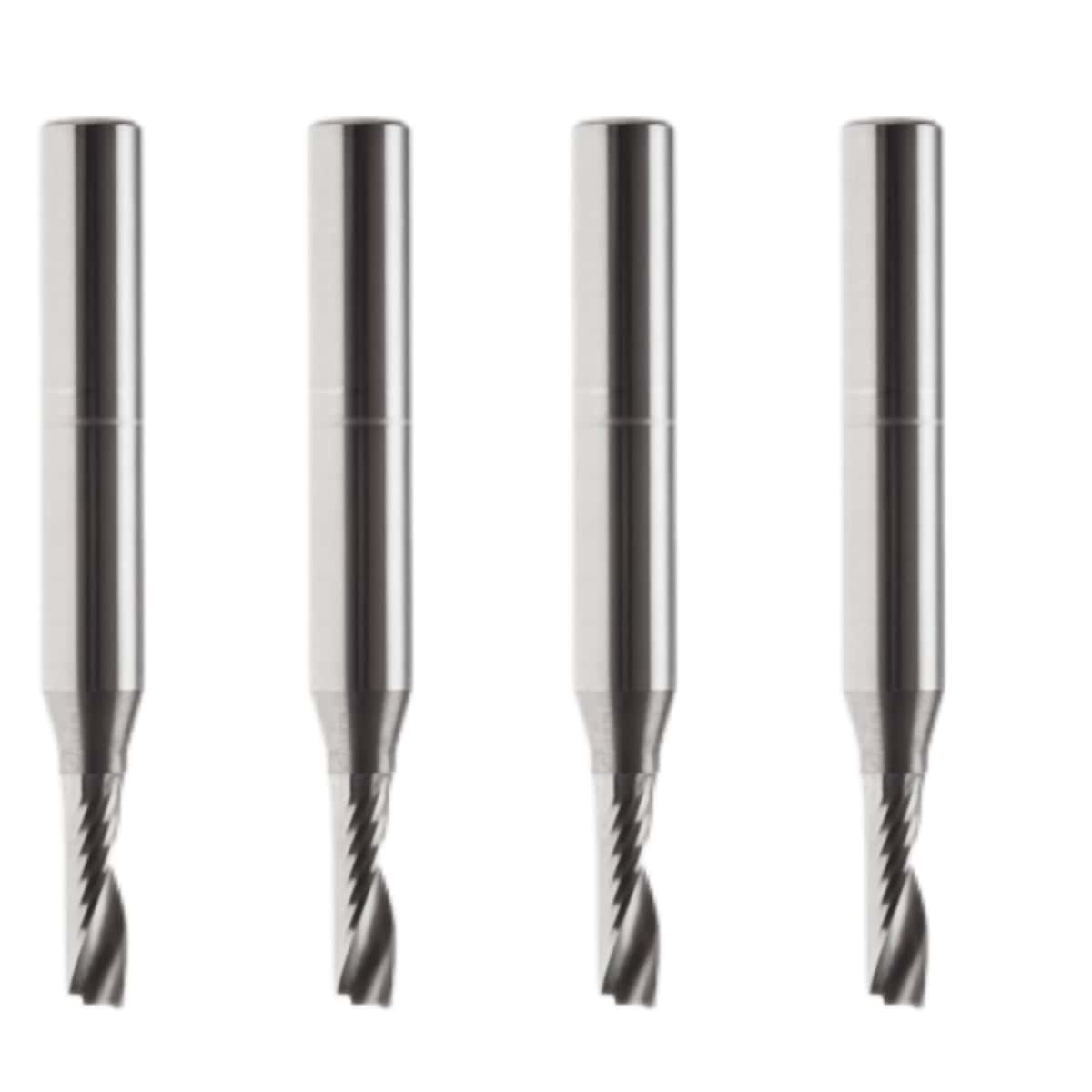

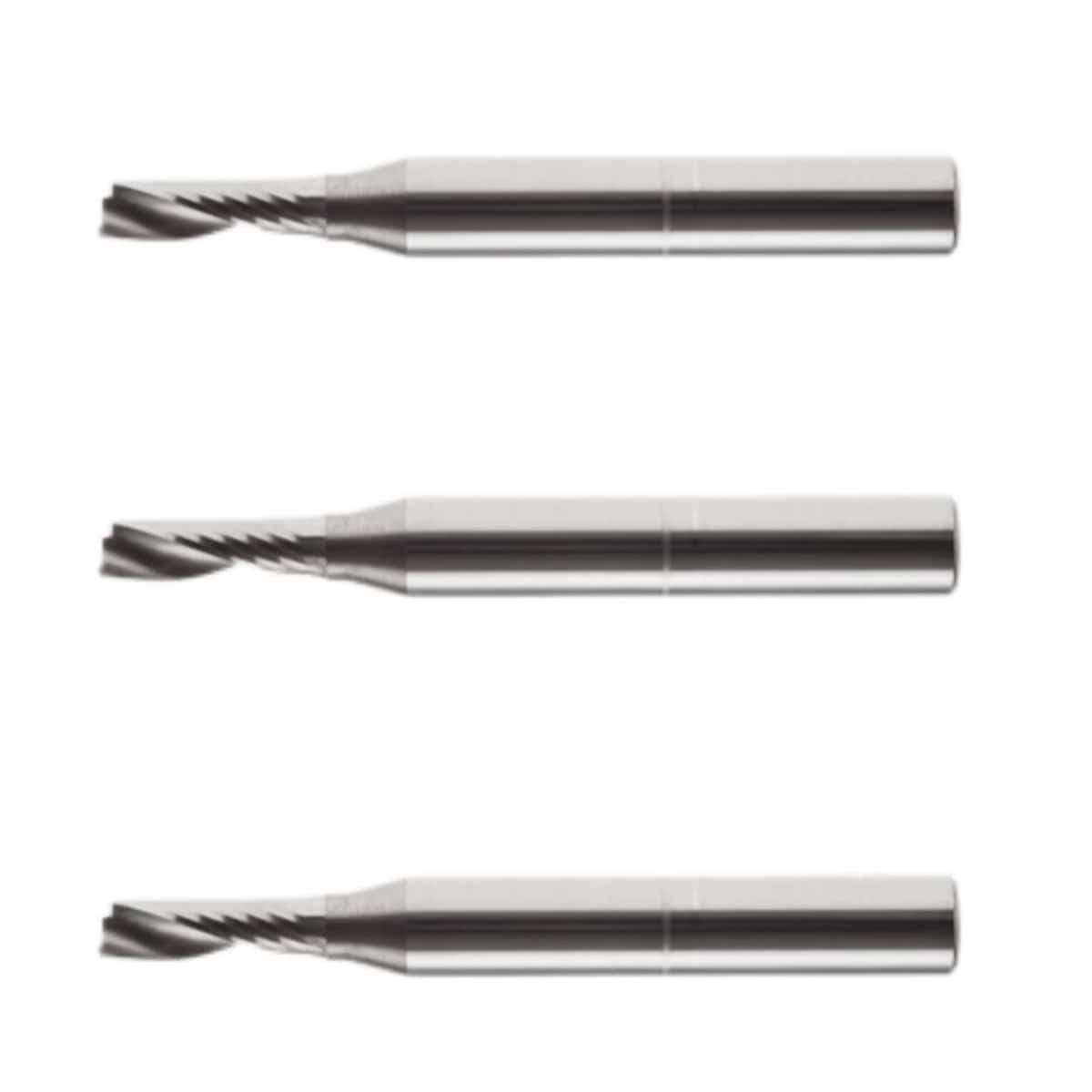

Esko Kongsberg BIT-MUS06-4012-50 (G42437863) is an original, solid tungsten carbide multi-purpose up-cut single-flute router bit. It is specifically engineered for use with Kongsberg digital flatbed cutting tables equipped with the High-Power Milling Unit (HPMU) or MultiCUT-HP tool heads. Enquire now

Description

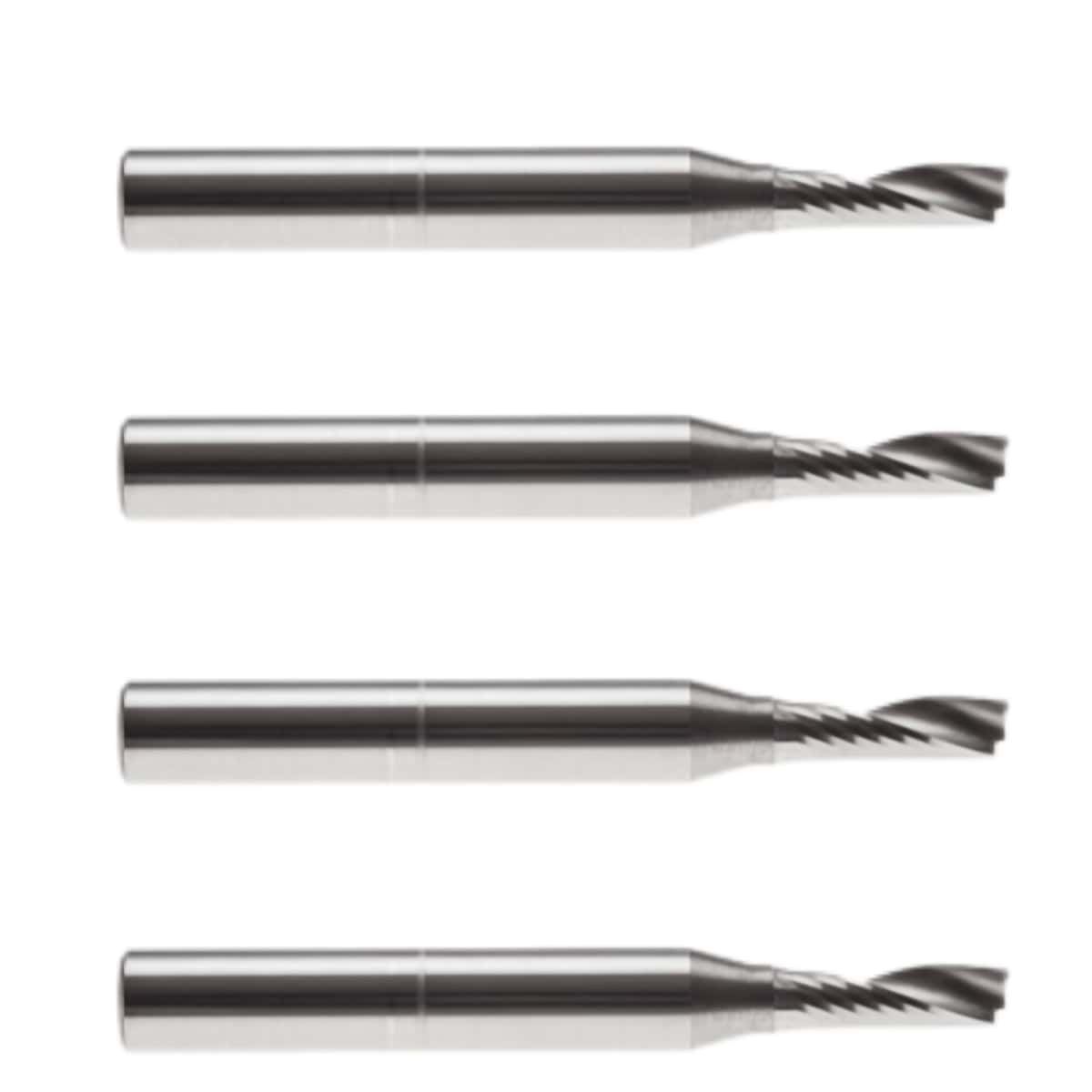

Esko Kongsberg Bit-Mus06-4012-50 G42437863 Multi-Purpose Up-Cut Single-Flute Router Bit

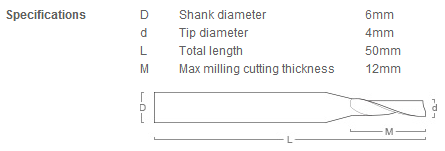

Key Tool Specifications

Type: Multi-purpose up-cut spiral (O-flute geometry).
Shank Diameter: 6.0 mm
Cutting Diameter: 4.0 mm
Cutting Depth: 12.0 mm to 14.0 mm (depending on OEM or aftermarket version).
Total Length: 50.0 mm
Material: Solid tungsten carbide for high wear resistance.

Primary Material Compatibility

The up-cut spiral design forces chips upward, preventing clogging when milling dense or melting-prone materials:

Metals: Aluminum and Aluminum Composite Materials (ACM, Dibond).
Plastics: Acrylic (Plexiglas), Polycarbonate (Lexan), PVC, PET, and Polystyrene.
Wood: MDF, HDF, plywood, and solid softwoods/hardwoods.
Foams: High-density foamed PVC (Forex, Sintra).

Ordering and Alternatives

Aftermarket Equivalents: High-quality replacements with identical dimensions are manufactured by specialized tooling brands like Shenzhen Oyea Machinery Co., Ltd.
