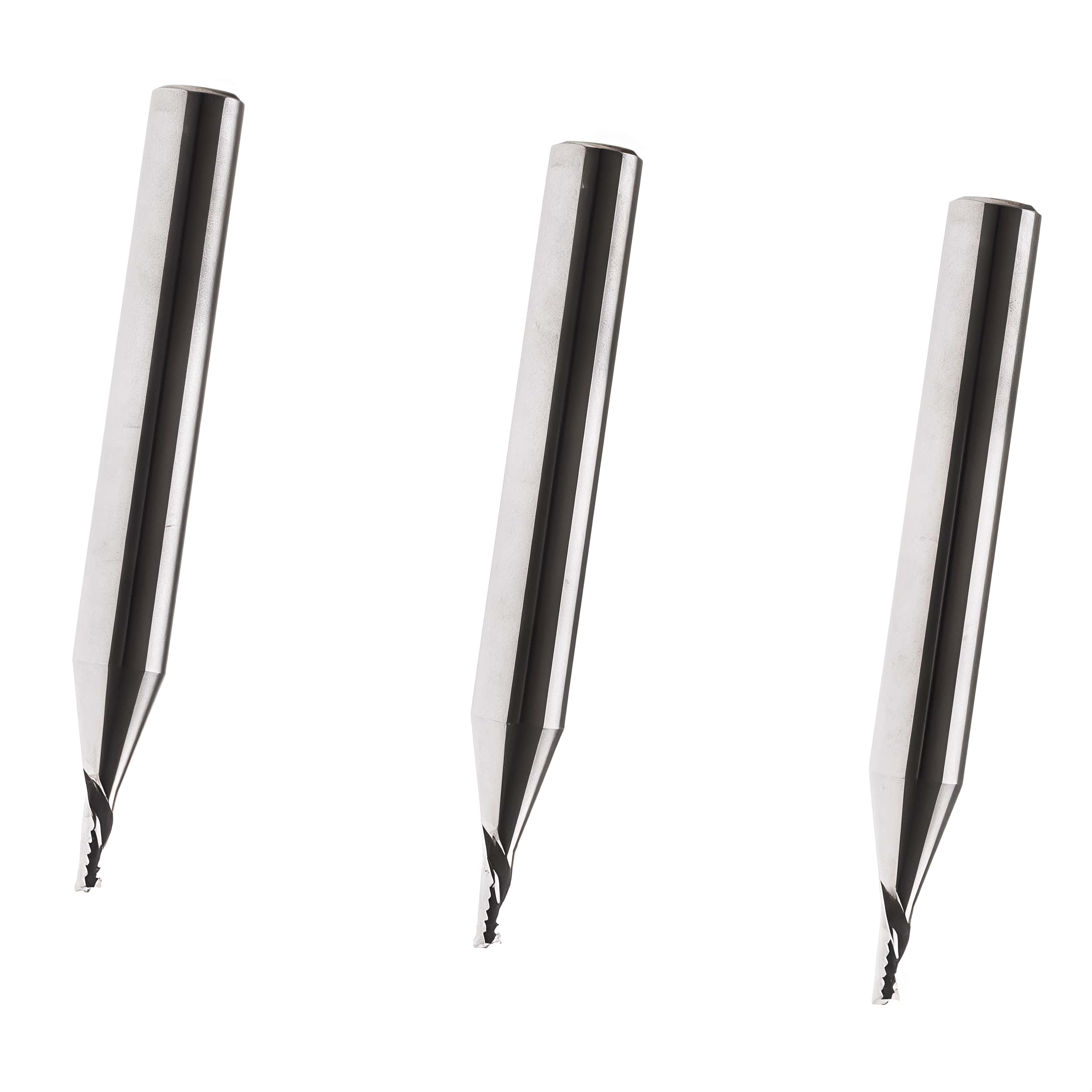

Esko Kongsberg Bit-Mds06-2004-50 Carbide Milling And Router Bit For Kongsberg Cutters G42449355

Esko Kongsberg BIT-MDS06-2004-50 (G42449355) is a precision carbide down-cut milling and router bit optimized for Kongsberg Systems flatbed cutters. This 6 mm shank tool is designed specifically for single-flute, down-cut execution on medium-depth cuts requiring highly defined detail. Enquire now

Description

Esko Kongsberg Bit-Mds06-2004-50 Carbide Down-Cut Milling And Router Bit For Kongsberg Systems Flatbed Cutters G42449355

Esko Kongsberg BIT-MDS06-2004-50 (Part Number G42449355) is a precision carbide down-cut milling and router bit optimized for Kongsberg Systems flatbed cutters. This 6 mm shank tool is designed specifically for single-flute, down-cut execution on medium-depth cuts requiring highly defined detail.

Key Specifications & Geometry

Shank Diameter (D): 6 mm
Tip/Cutting Diameter (d): 2.0 mm
Flute / Cutting Length: 4 mm
Total Length (L): 50 mm
Maximum Cutting Thickness (M): 3 mm
Flute Style: Single flute, Down-Cut (MDS)
Composition: Solid Tungsten Carbide

Material & Tooling Compatibility

The down-cut action pushes chips and material downward, protecting the top surface from fraying or lifting. It yields excellent edge quality on specific substrates: [

Primary Materials: Best for thin wood, engineering plastics, acrylics, and foamed PVC/PS sheets (under 5 mm thickness).
Soft Composites: High-density protective foams up to 20 mm.
Tool Head Compatibility: Fits standard 6 mm collets on Kongsberg MultiCUT, HPMU, HSMU, and Ibag high-speed milling spindles.

Esko Kongsberg Bit-Mds06-2004-50 Carbide Milling And Router Bit For Kongsberg Cutters G42449355
