Esko Kongsberg Milling & Router Bits BIT-MDS06-6030-64(G42458422)

Esko/Kongsberg BIT-MDS06-6030-64 is a 6 mm solid-carbide milling/router bit with part number G42458422. It’s listed as a multi-purpose up-cut bit, and one source gives the cutting diameter as 6.0 mm, flute length as 30 mm, and total length as 64 mm Enquire now

Description

Esko/Kongsberg Milling & Router Bits BIT-MDS06-6030-64(G42458422)

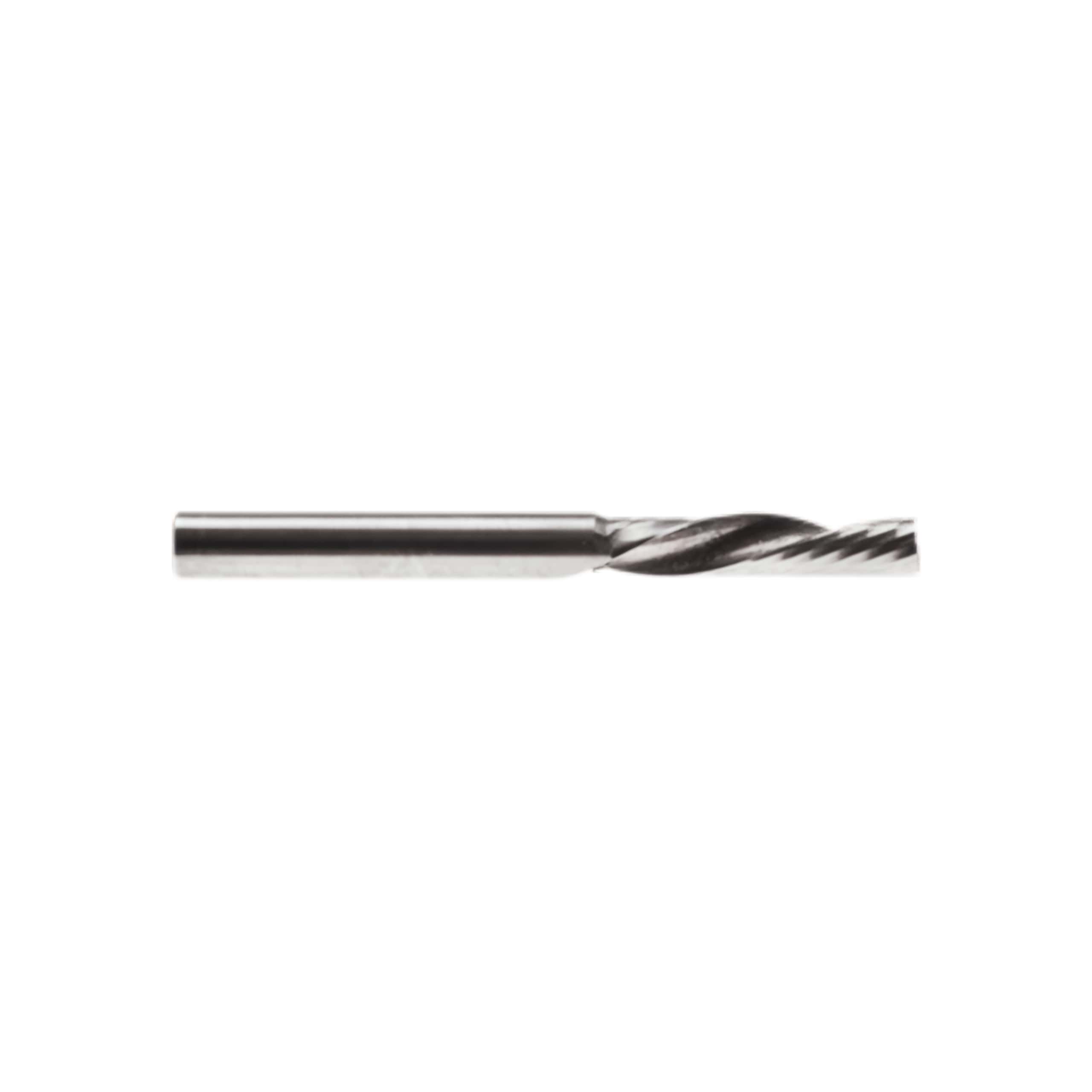

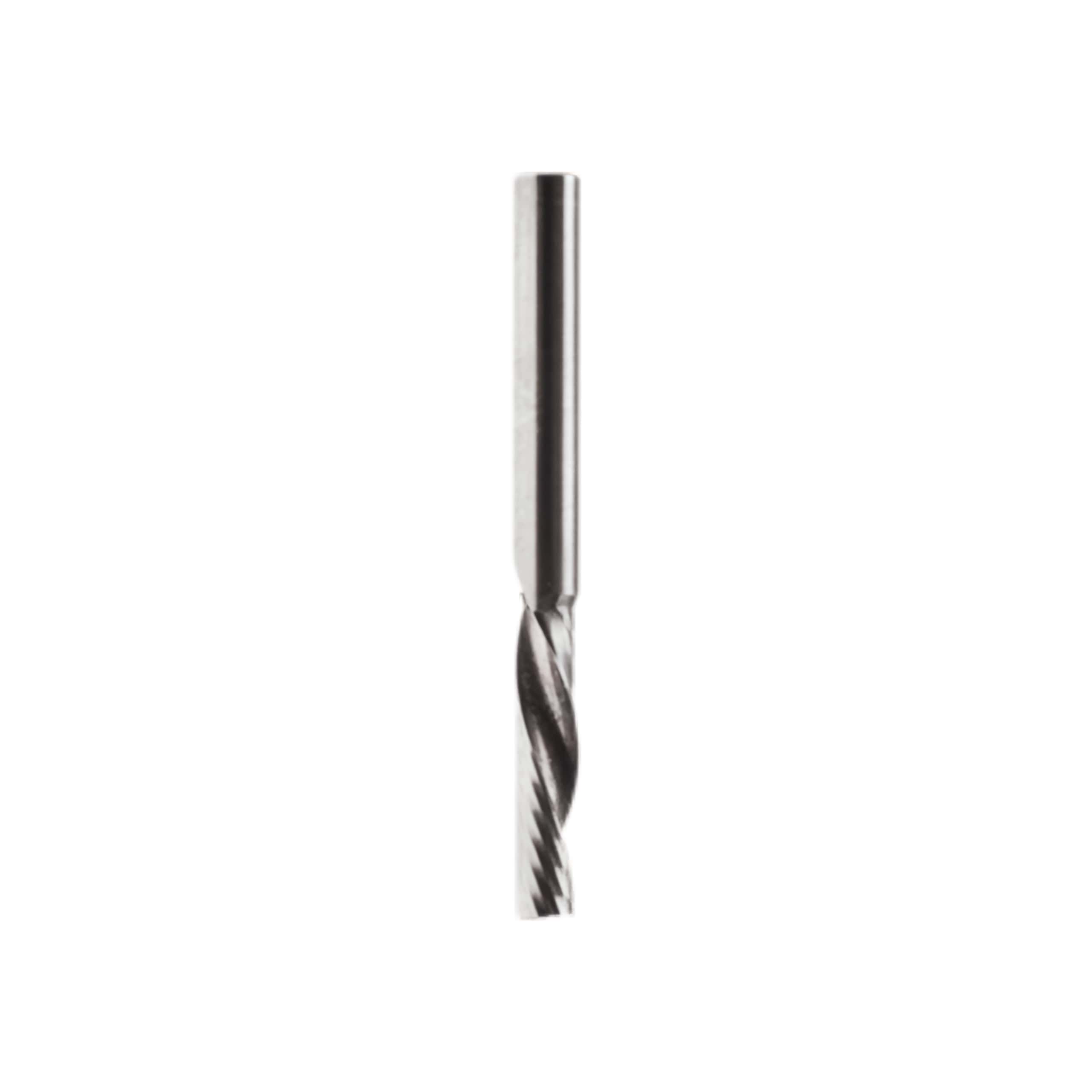

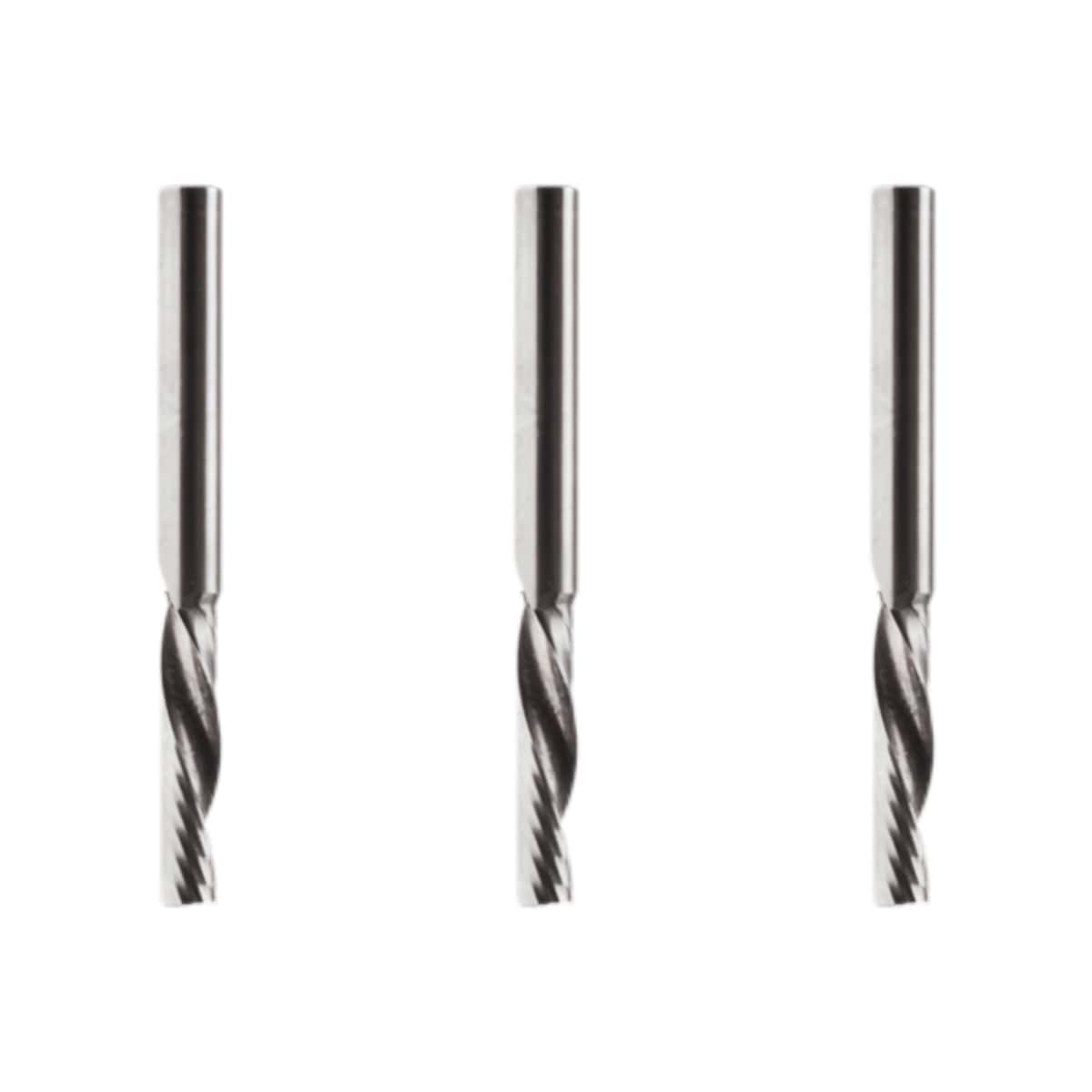

Esko/Kongsberg BIT-MDS06-6030-64(Part number: G42458422) is a multi-purpose climb milling/down-cut single-flute solid carbide end mill/engraving tool designed specifically for digital milling machines (such as Kongsberg XE, C, XL, XN, XP, V series).It is mainly used for high-precision cutting and hollowing of medium-thickness hard and soft plastics and composite materials.

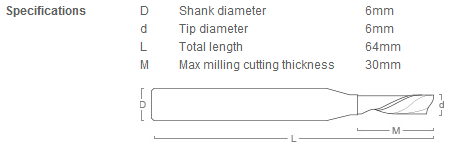

Core Technical Parameters

Shank Diameter : 6.0 mm
Cutting Edge Diameter : 6.0 mm
Flute/Cutting Length : 30 mm
Total Length : 64 mm
Maximum cutting depth : 30 mm (actual safe machining depth is approximately 22 mm - 28 mm).
Flute : Polished Single O-Flute
Cutting Direction : Down-cut – Physically pushes the chips downwards, effectively clamping the sheet metal and ensuring a smooth, burr-free top surface .
Material : High-hardness tungsten carbide (HRA 89~92.5).

This tool is ideal for precision milling, cutouts and engraving at high speeds (up to 50,000 RPM), and performs exceptionally well when working with materials that have printed or laminated surfaces (the cutting force prevents the surface from peeling off).

Various types of plastics : foamed PVC (Sintra), styrene, acrylic, polycarbonate, and polypropylene (PP).
Composite material : Aluminum composite panel (Dibond / ACM).
Wood-based panels : Medium-density fiberboard (MDF).

Cross-brand compatibility and alternative models

If you encounter a shortage when sourcing genuine parts, this blade is interchangeable with standard blades from the following well-known flatbed cutting machine brands:

Zund: Can be used as a direct replacement for Zund R126 (part numbers: 3910748/3910750 and similar undercut specifications).
Colex : Can replace Colex Downcut models T00501 or T00499 .
