Esko Kongsberg Bit-Ads06-3011-50 Tungsten Carbide End Mill (Milling & Router Bit) G42443358

Esko Kongsberg BIT-ADS06-3011-50(part number/order number: G42443358 ) is a high-end, high-precision solid carbide/tungsten carbide single-flute down-Cut super sharp bit developed specifically for Kongsberg digital plotter milling systems Enquire now

Description

Esko Kongsberg Bit-Ads06-3011-50 Tungsten Carbide End Mill (Milling & Router Bit) G42443358

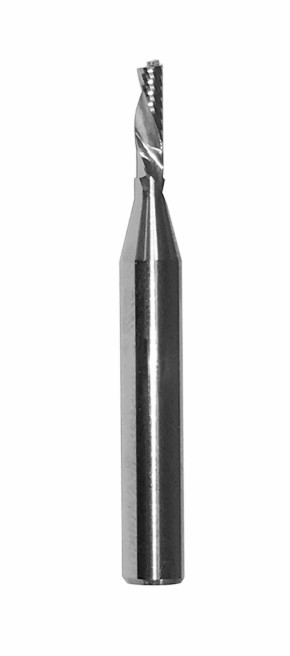

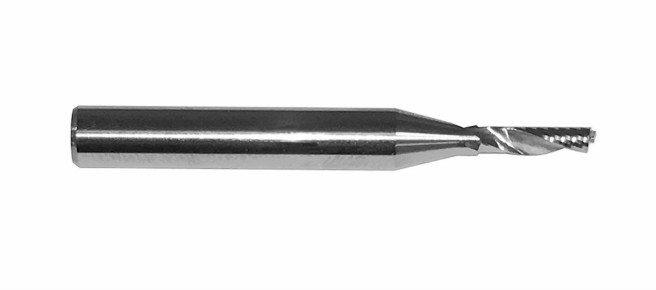

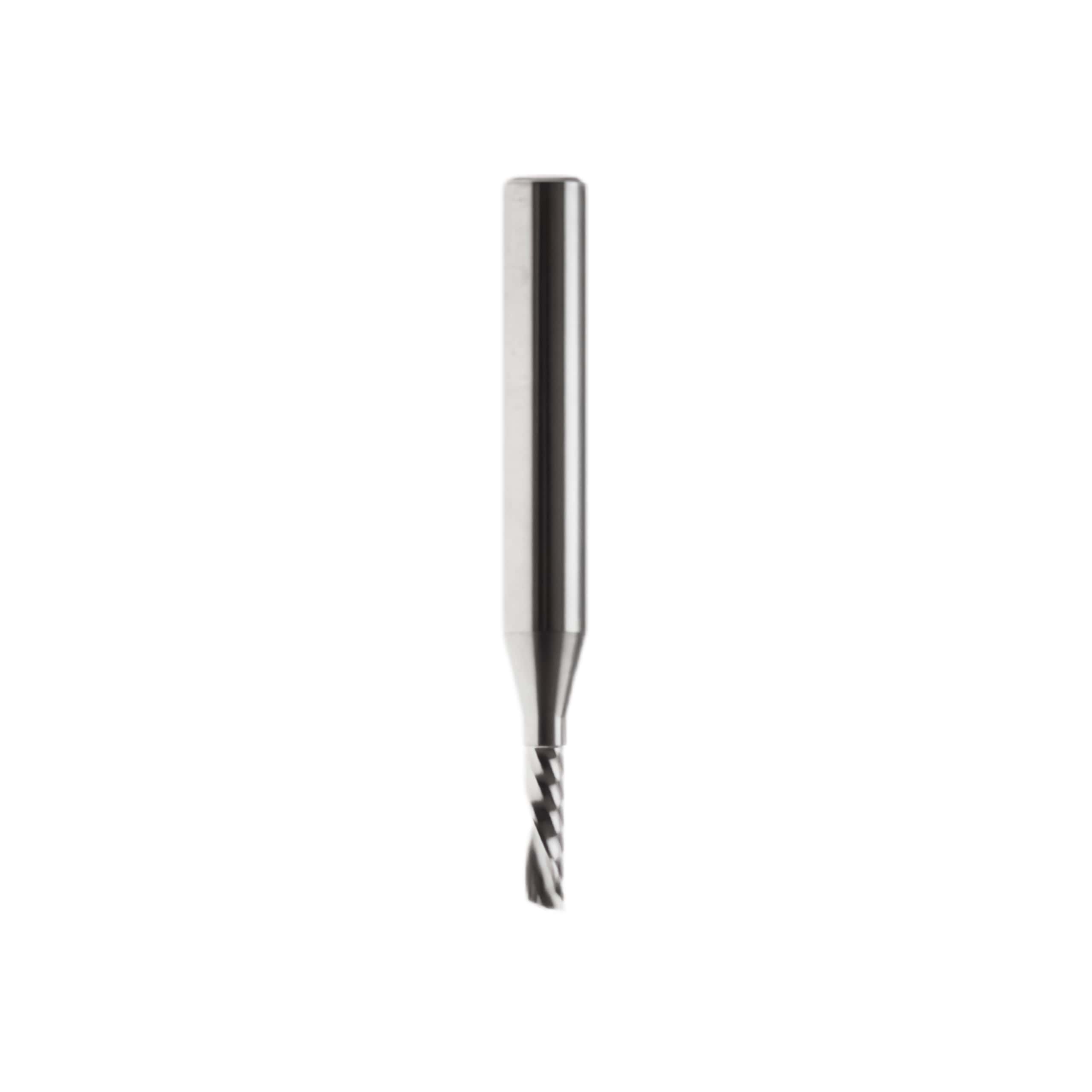

Esko Kongsberg BIT-ADS06-3011-50(Official part number: G42443358)This is a high-precision carbide (tungsten carbide) single-flute downcutting end mill (Milling & Router Bit) designed specifically for Kongsberg digital flatbed cutting/engraving machine systems.It is not only a static cutting blade, but also a professional engraving tool capable of withstanding high-speed rotation of up to 60,000 RPM.

Based on its official coding rules and technical parameters, the core specifications and industrial applications of this model are detailed below:

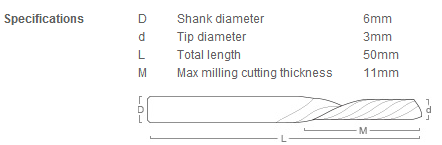

Breakdown of core technical parameters( BIT-ADS06-3011-50)

The geometry represented by its code is highly precise for tool design:

BIT stands for rotary CNC milling cutter/engraving tool.
ADS : Represents Acrylic Super Sharp . It is a single-flute, down-cut design .
06 : This indicates that the shank diameter is 6.0 mm .
30 : This indicates that the tip diameter is 3.0 mm .
11 : This indicates that the maximum depth of cut/effective cutting length (Flute Length / Max Depth) is 11 mm (some official catalogs specify it as safe cutting within 10 mm).
50 : This indicates that the total length of the tool is 50 mm .
G42443358 : The globally unified Esko part number.

Applicable Materials and Design Advantages

This tool is specifically designed for high-value-added advertising displays and industrial signage panels with stringent aesthetic requirements.

The ingenious use of the down-cut design : The single-blade down-cut design applies downward pressure (towards the worktable pad) to the chips and cutting force during rotation . This means it can effectively prevent ultra-thin sheets from bouncing or peeling upwards during cutting, ensuring that the material surface and coating remain intact, leaving an extremely flat top edge.
Acrylic high-gloss mirror polishing : As part of the "ADS" series, its carbide surface undergoes extremely fine special polishing. Under high-speed rotation, it can produce a "scratching" high-gloss effect. When processing acrylic (PMMA/plexiglass) and polycarbonate (PC board), the cut edges are usually transparent and high-gloss, eliminating the tedious process of manual polishing later.
Main applicable materials :
- Acrylic sheets (PMMA, Plexigrass, Perspex)
- High-density protective foam board (< 20mm)
- Rigid engineering plastics, PVC foam board, MDF and solid wood miniature fine carving

Hardware compatibility and tool head configuration

To use this 6mm shank end mill safely and reliably on Kongsberg equipment, you will need to pair it with a professional milling power head (Spindle) that supports high-speed rotation.

MultiCUT / MultiCUT-HP (1kW/3kW power head) : Requires the installation of a corresponding 6mm pneumatic elastic chuck or air-cooled spindle chuck (common compatible chuck codes such as 42444067 or 42454728).
HPMU / HSMU (High Parameter/High Speed Milling Unit) : It can smoothly support the extreme working speed of 60,000 RPM, achieving h
