Esko Kongsberg Milling & Router BIT-ADS06-4008-50 G42445940

Kongsberg BIT-ADS06-4008-50,Kongsberg G42445940,Esko BIT-ADS06-4008-50,Esko G42445940,Esko Router Bits,Esko Bits,Kongsberg Router Bits,KonG42458422gsberg Bits,Kongsberg Milling Bits,Esko Milling Bits Enquire now

Description

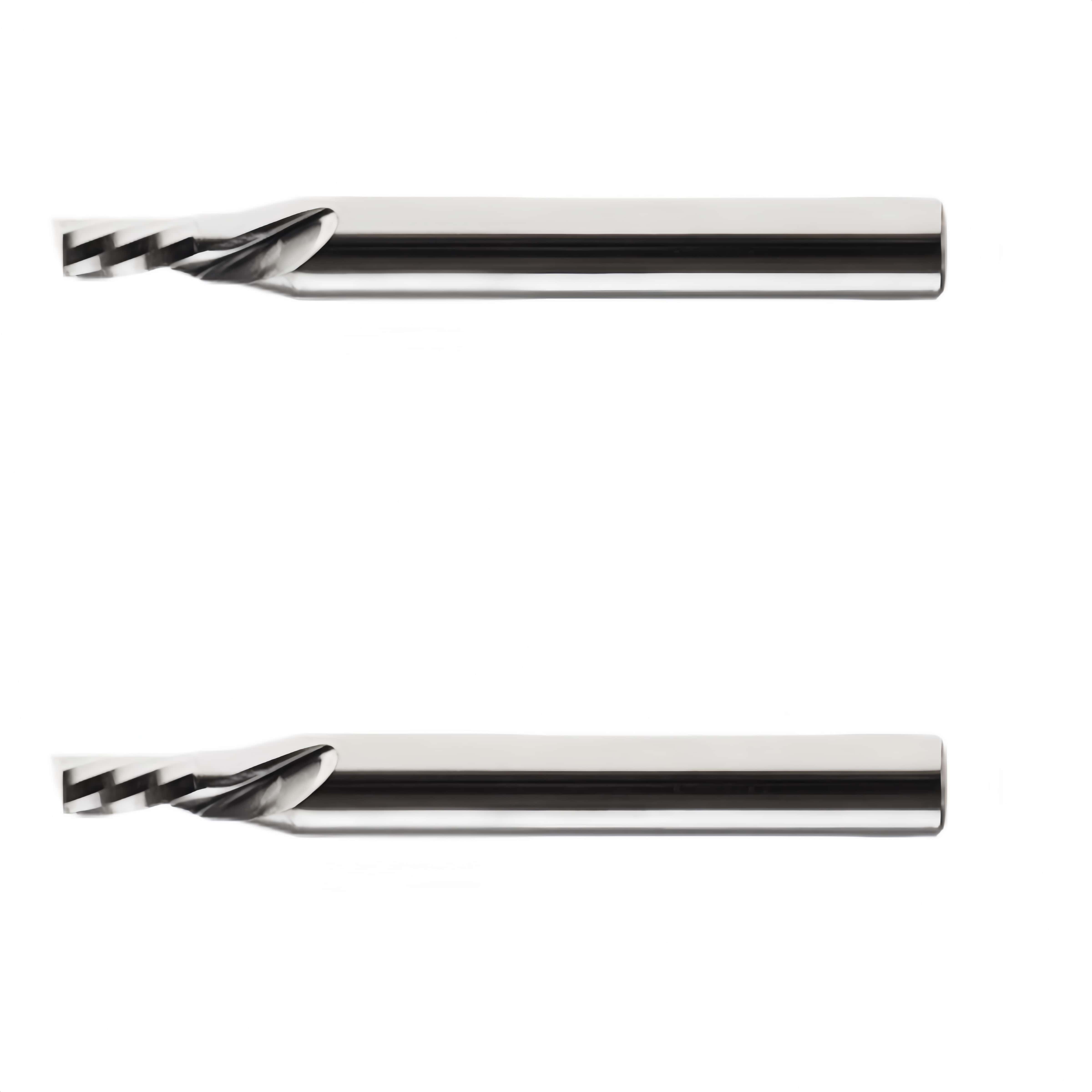

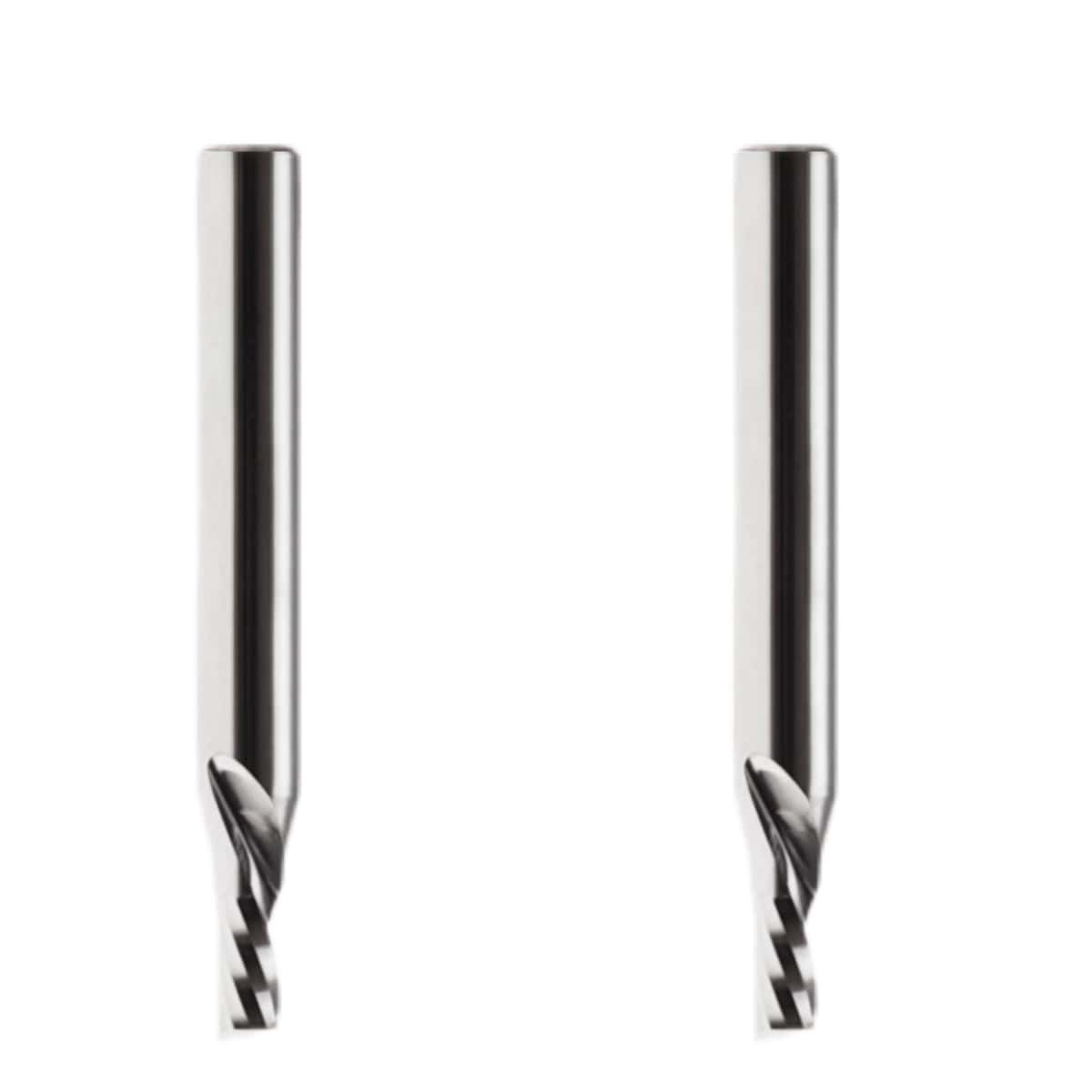

Esko Kongsberg Milling & Router BIT-ADS06-4008-50 G42445940

The BIT-ADS06-4008-50 (Part Number: G42445940) is a specialized milling and router bit designed for Esko Kongsberg cutting tables. It is part of the "Super Sharp" series, primarily used for precision routing of materials like acrylic and other rigid plastics where a high-quality edge finish is required.

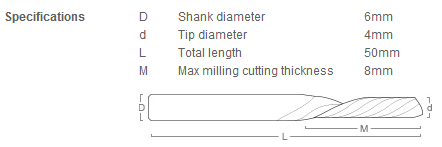

Key Specifications
The code follows a standard Kongsberg naming convention that details its dimensions and cut type:
Shank Diameter (D): 6 mm
Cutting/Tip Diameter (d): 4 mm
Max Cutting Thickness (M): 8 mm (indicated by the '08' in the part number)
Total Length (L): 50 mm
Cut Type: Down-cut, single flute spiral
Material: Solid tungsten carbide for maximum durability

Applications and Performance
Surface Finish: The down-cut design is specifically engineered to push chips downward and press the material into the cutting bed. This prevents "tear-out" or fraying on the top surface, making it ideal for thin or delicate top layers.
Recommended Materials: It is most effective for acrylic, polycarbonate, and expanded PVC.
Compatibility: This bit is compatible with Kongsberg RM (Rigid Material) and MultiCUT tools used on X, V, C, and XP series tables.
