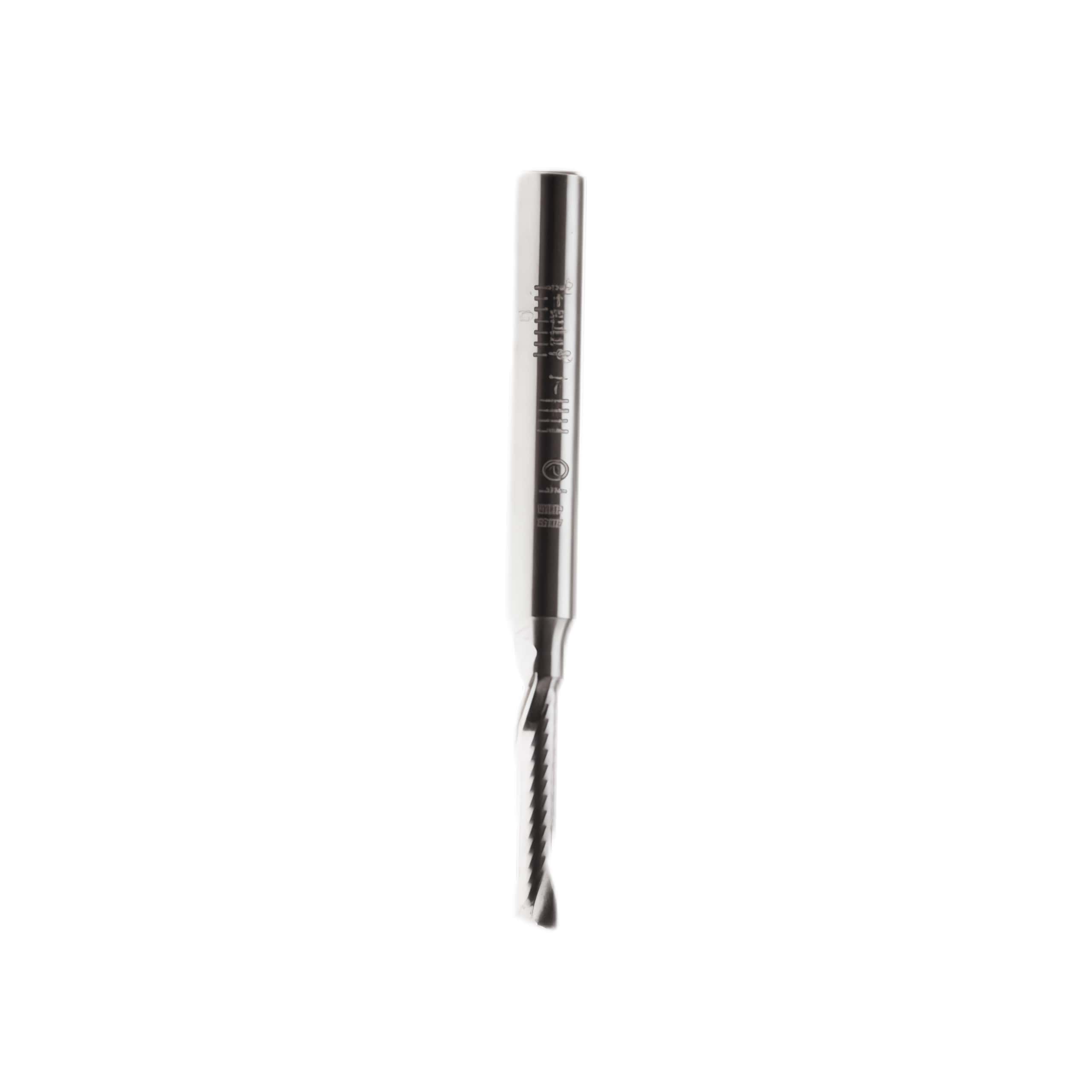

Esko Kongsberg Bit-Sus06-4020-64 Digital Cutting Machine Milling/Router Bits I-3924 G42458471
Esko Kongsberg BIT-SUS06-4020-64 (part numbers G42458471 and i-3924) is a specialized milling/router bit designed for Kongsberg digital cutting tables equipped with CNC milling heads Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Esko Kongsberg Bit-Sus06-4020-64 Digital Cutting Machine Milling/Router Bits I-3924 G42458471
Esko Kongsberg Bit-Sus06-4020-64 Digital Cutting Machine Milling/Router Bits I-3924 G42458471

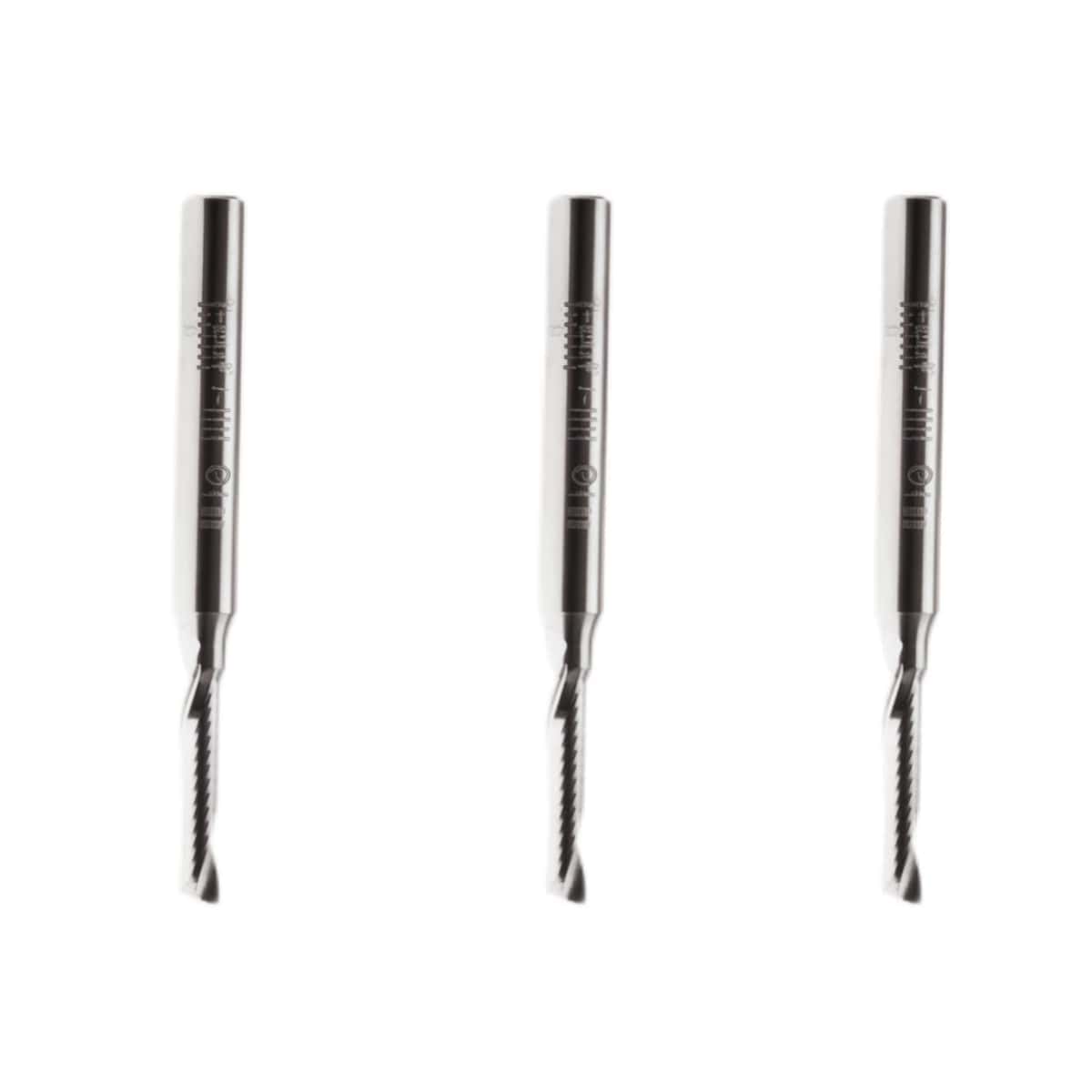

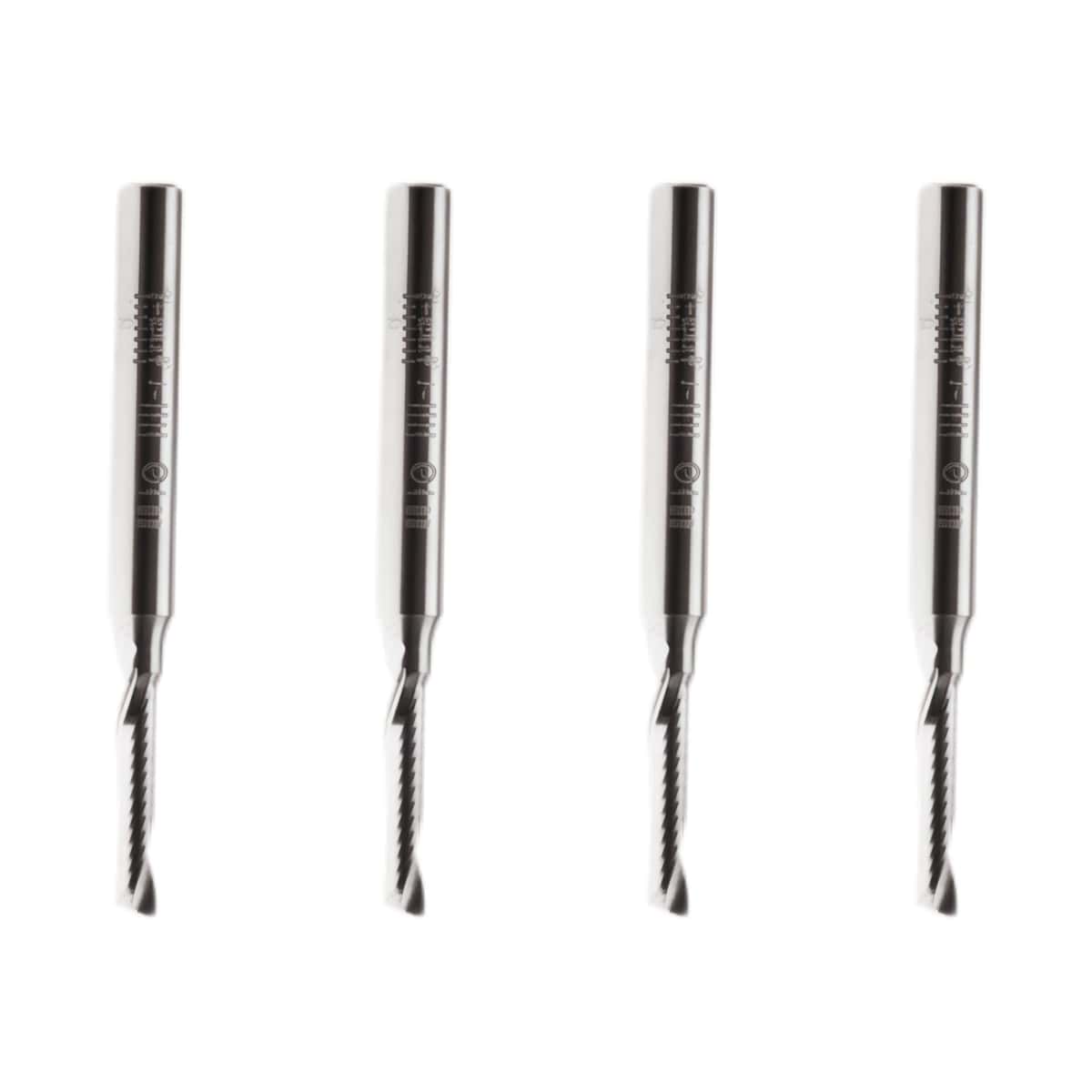

Esko Kongsberg BIT-SUS06-4020-64(G42458471 , old code i-3924 ) is a high-performance single-flute solid carbide up-cut bit designed specifically for industrial digital flatbed cutting machines (such as Kongsberg X, C, XP, and V series) . It is primarily used for high-speed digital cutting of medium-thickness, high-hardness plates on equipment equipped with a router module/multi-cut.

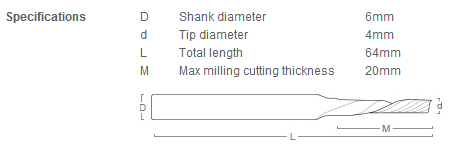

Core Physical Specifications
The coding of this milling cutter directly corresponds to its precise machining geometry:
Shank Diameter : 6.0 mm (represented by the code 06).
Cutting Diameter : 4.0 mm (represented by the code 40).
Effective cutting length/maximum depth of cut : 20 mm (represented by the code 20, suitable for deep hole or thick plate machining).
Total Length : 64 mm (represented by the code 64).
Material : Solid tungsten carbide with high particle size , which has extremely high wear resistance and fracture resistance.

Advantages in process design and technology
Single Flute Up-Cut : The large chip groove design can carry chips "up" out of the machining area at an extremely high speed. This not only effectively reduces the cutting heat at the tool tip, but also prevents thermoplastic materials (such as acrylic and PVC) from melting again and sticking to the tool at high temperatures .
Polished Flute : Its chip removal grooves are precision polished to a mirror finish, which greatly reduces chip removal resistance and makes the cutting edge smoother and more delicate, even achieving a physical edge effect that is close to no polishing required.

Recommended processing materials
this series (SUS) stands for Soft Metals / Multi-Purpose .
Soft metals : aluminum plates , aluminum composite plates (ACM / Dibond), copper plates, brass.
Industrial rigid plastics : rigid acrylic/plexiglass (Acrylic/PMMA), polycarbonate (PC), engineering PVC, nylon, etc.
Composite materials and advertising boards : high-density foam board, MDF medium fiberboard, thick foamed PVC board
