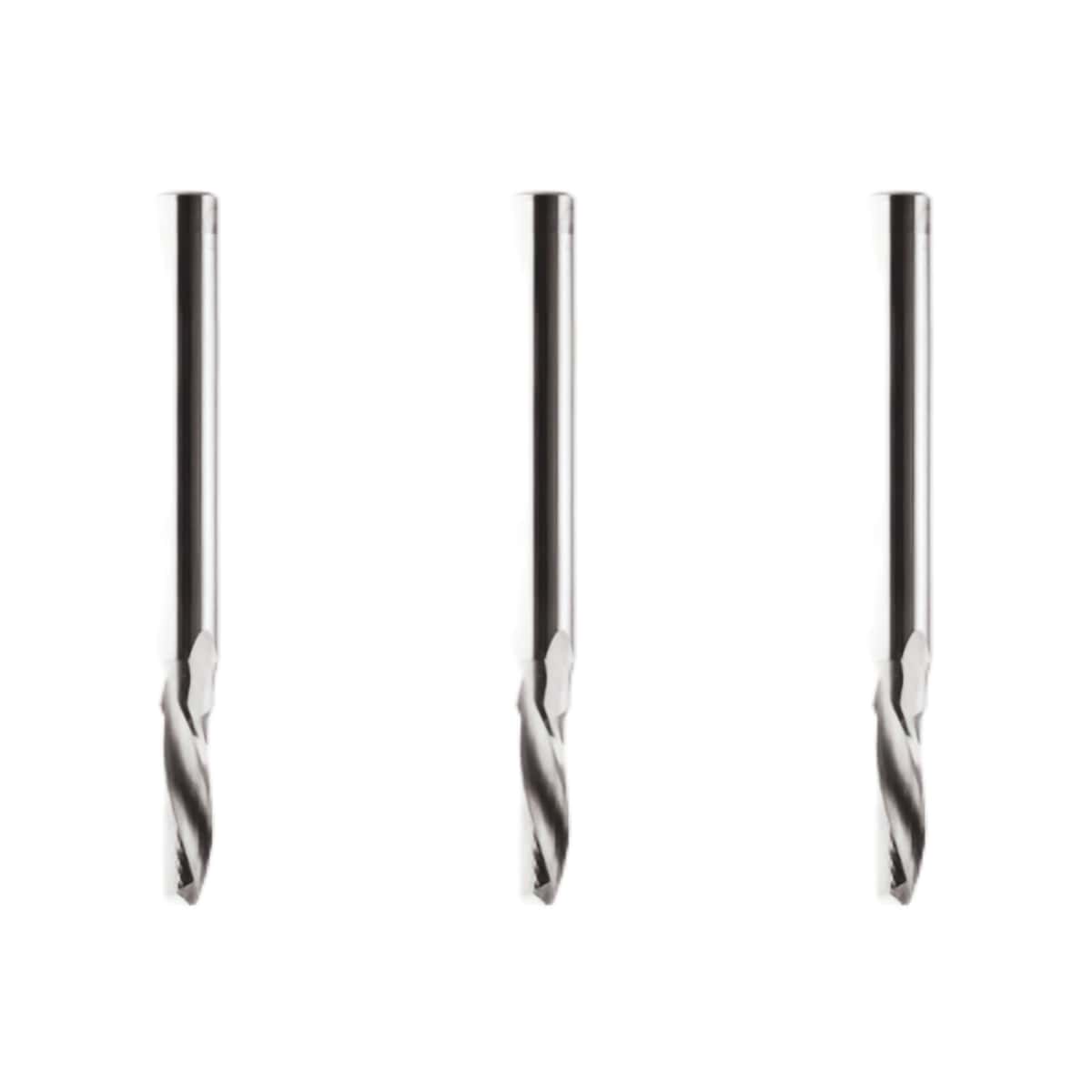

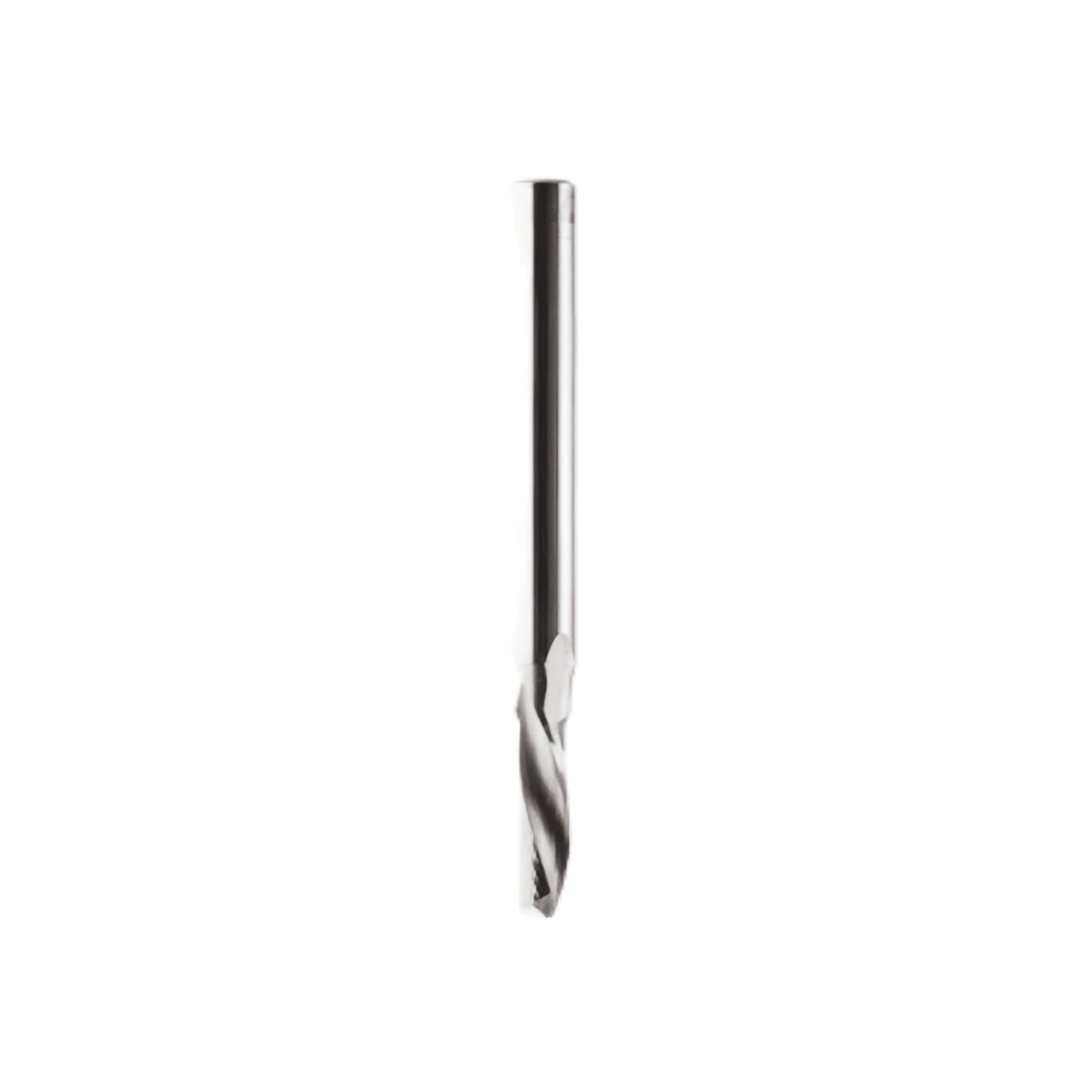

Esko Kongsberg Bit-Sds06-5016-64 Digital Plotters Solid Tungsten Carbide End Mill I-2930 G42458455
Esko Kongsberg BIT-SDS06-5016-64 (i-2930,G42458455 ) isA high-end, high-efficiency solid carbide/tungsten carbide single-flute down-cut end mill designed specifically for Kongsberg digital plotters Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Esko Kongsberg Bit-Sds06-5016-64 Digital Plotters Solid Tungsten Carbide End Mill I-2930 G42458455
Esko Kongsberg Bit-Sds06-5016-64 Digital Plotters Solid Tungsten Carbide End Mill I-2930 G42458455
Esko Kongsberg BIT-SDS06-5016-64(Old part number: i-2930 , part number: G42458455 ) is A high-precision, high-hardness solid carbide/tungsten carbide single-flute down-cutting end mill specifically designed for Kongsberg digital plotters/graphs.The following is a comprehensive technical analysis of this professional-grade cutting tool:

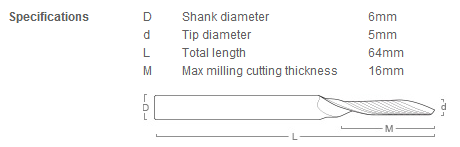

Core Dimensions and Naming Conventions
  • SDS series : Single Flute / Down -cut / Solid Carbide.
  • 06 (Handle diameter) : 6.0 mm.
  • 50 (blade diameter/tip diameter) : 5.0 mm.
  • 16 (maximum milling depth) : 16 mm (approximately 5/8 inch).
  • 64 (Total tool length) : 64 mm.
Applicable Materials and Processing Advantages
This tool is specifically optimized for high-strength hard substrates and composite materials:
  • Recommended processing materials : Mainly used for cutting aluminum/aluminum alloys, aluminum composite panels (ACM), and hard laminates with printed surfaces or multi-layer coatings .
  • Down-cut chip removal advantages : During processing, the physical cutting force is downward, which can discharge chips downward and firmly press the sheet metal onto the cutting machine pad. This feature can perfectly protect the material surface and prevent edge chipping, burrs, or delamination of the top fine printing surface, high gloss coating, or surface layer .
Spindle operation and maximum speed (Max RPM)
Depending on the model of the Kongsberg milling head/spindle equipped with the equipment, the permissible machining speed limit for this tool is as follows:
  • When paired with HPMU / MC HP (3kW high-power spindle) : the maximum recommended speed is up to 60,000 RPM .
  • With HSMU / MC Ibag (1kW standard spindle) : maximum recommended speed is 50,000 RPM .
  • Note: If operating on a Kongsberg V series model, the maximum speed limit must be reduced to 45,000 RPM
Esko Kongsberg Bit-Sds06-5016-64 Digital Plotters Solid Tungsten Carbide End Mill I-2930 G42458455
