EskoKongsberg Milling & Router BIT-WUD06-6025-64 (i-5212)(G42458752)
Kongsberg BIT-WUD06-6025-64,Kongsberg G42458752,Esko BIT-WUD06-6025-64,Esko G42458752,Esko Router Bits,Esko Bits,Kongsberg Router Bits,Kongsberg Milling Bits,Esko Milling Bits
Enquire now
Esko Kongsberg Milling & Router BIT-WUD06-6025-64 (i-5212)(G42458752)
***Esko/Kongsberg Knives
***Esko/Kongsberg Conveyor belts/Cutting Underlay

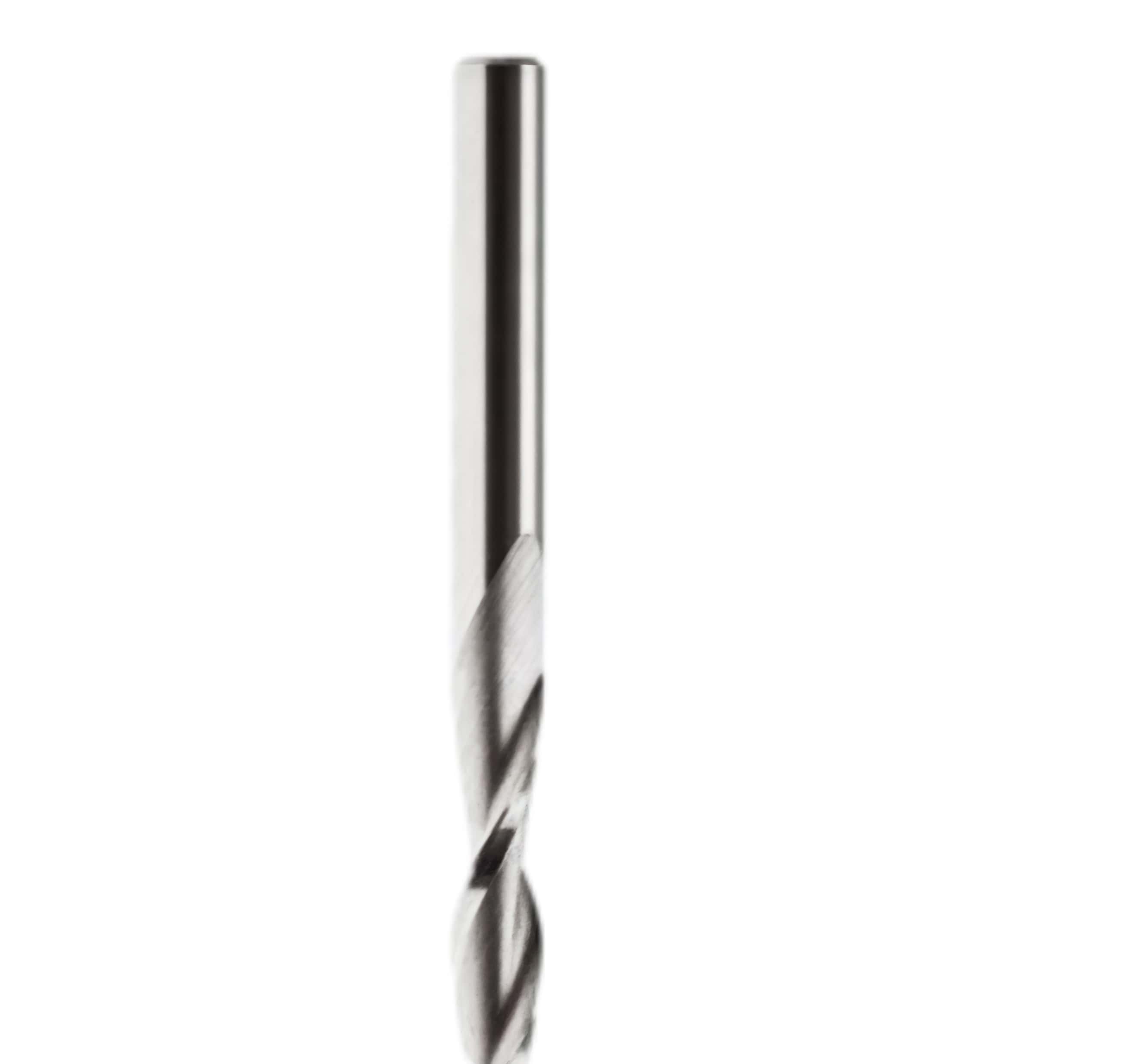

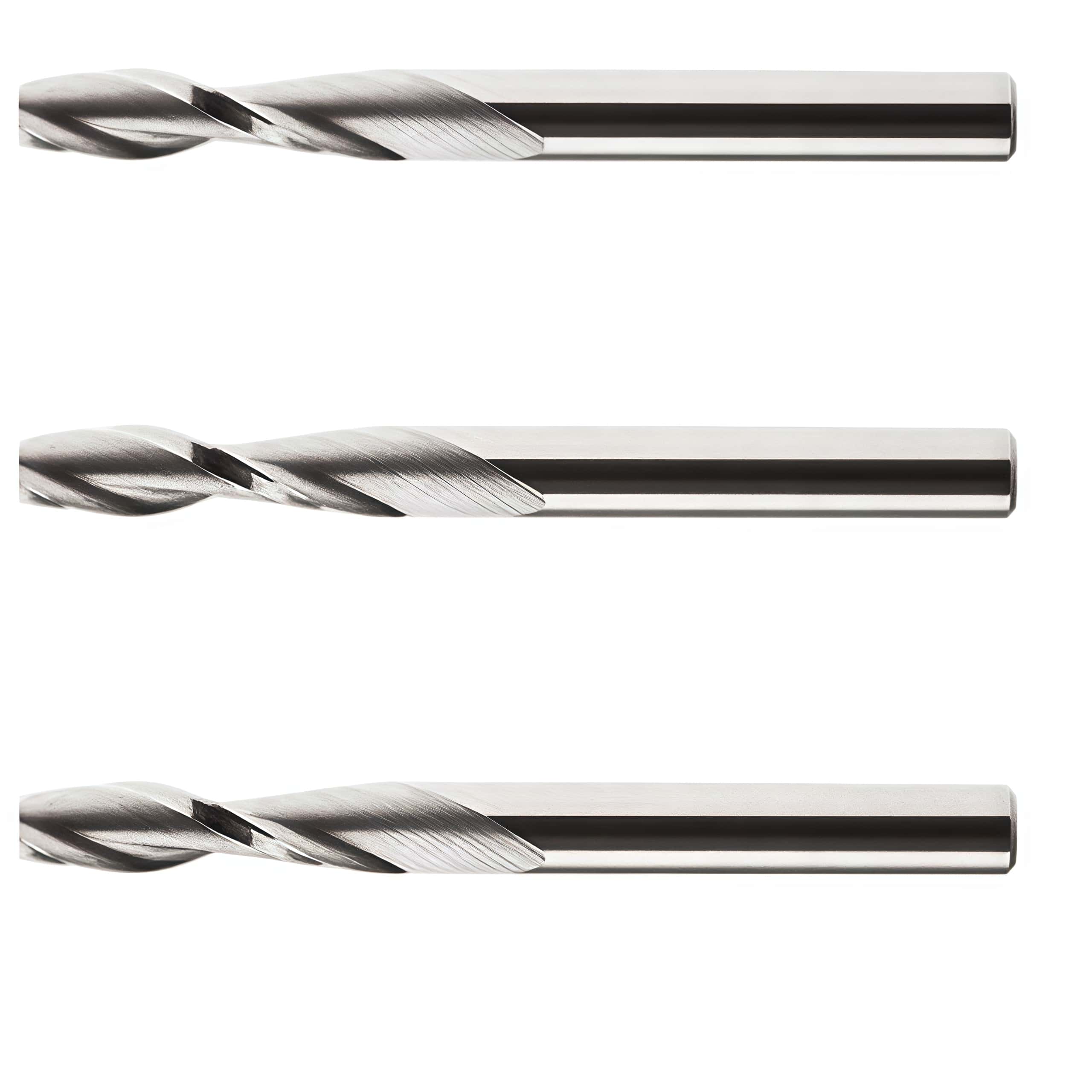

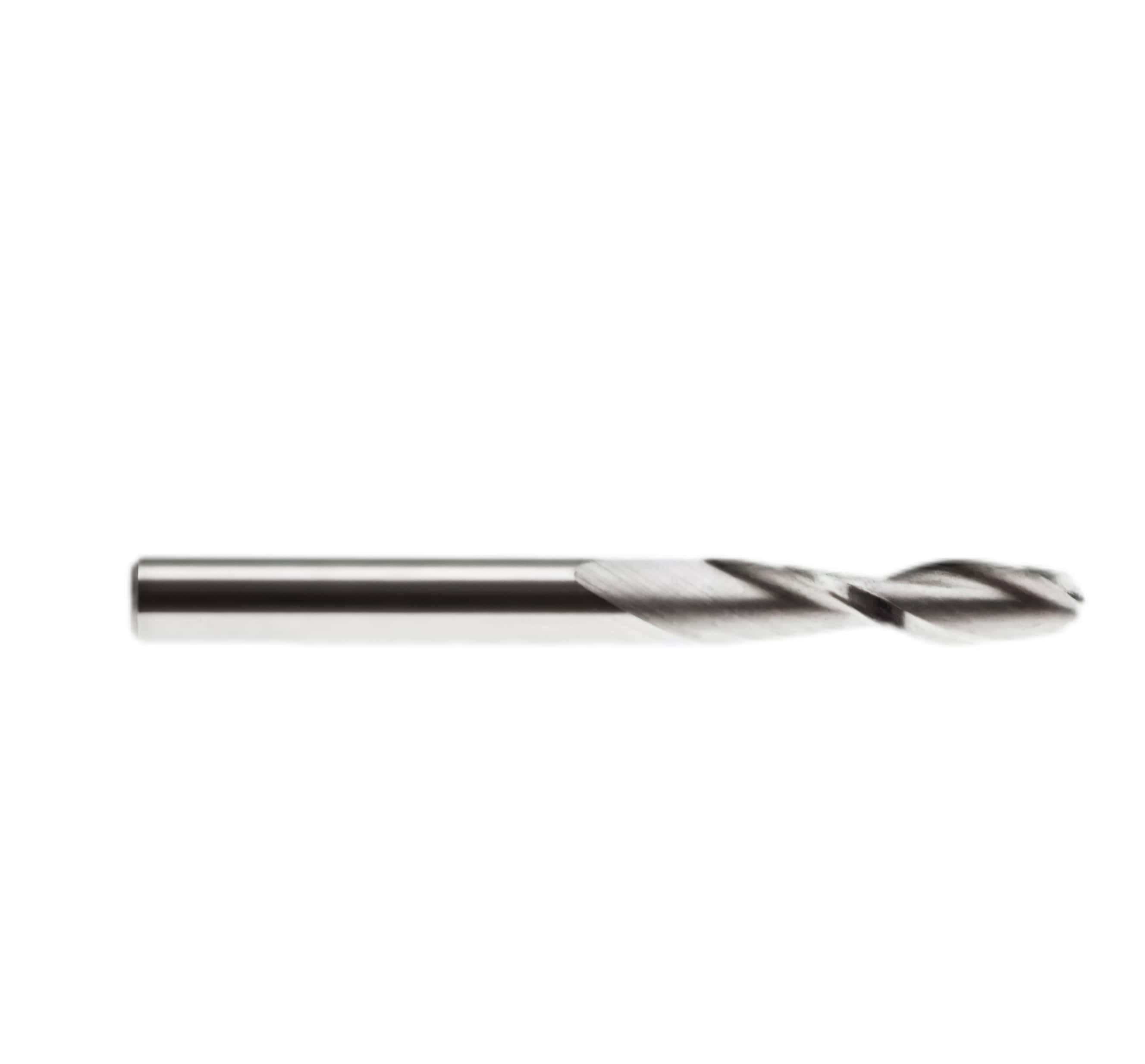

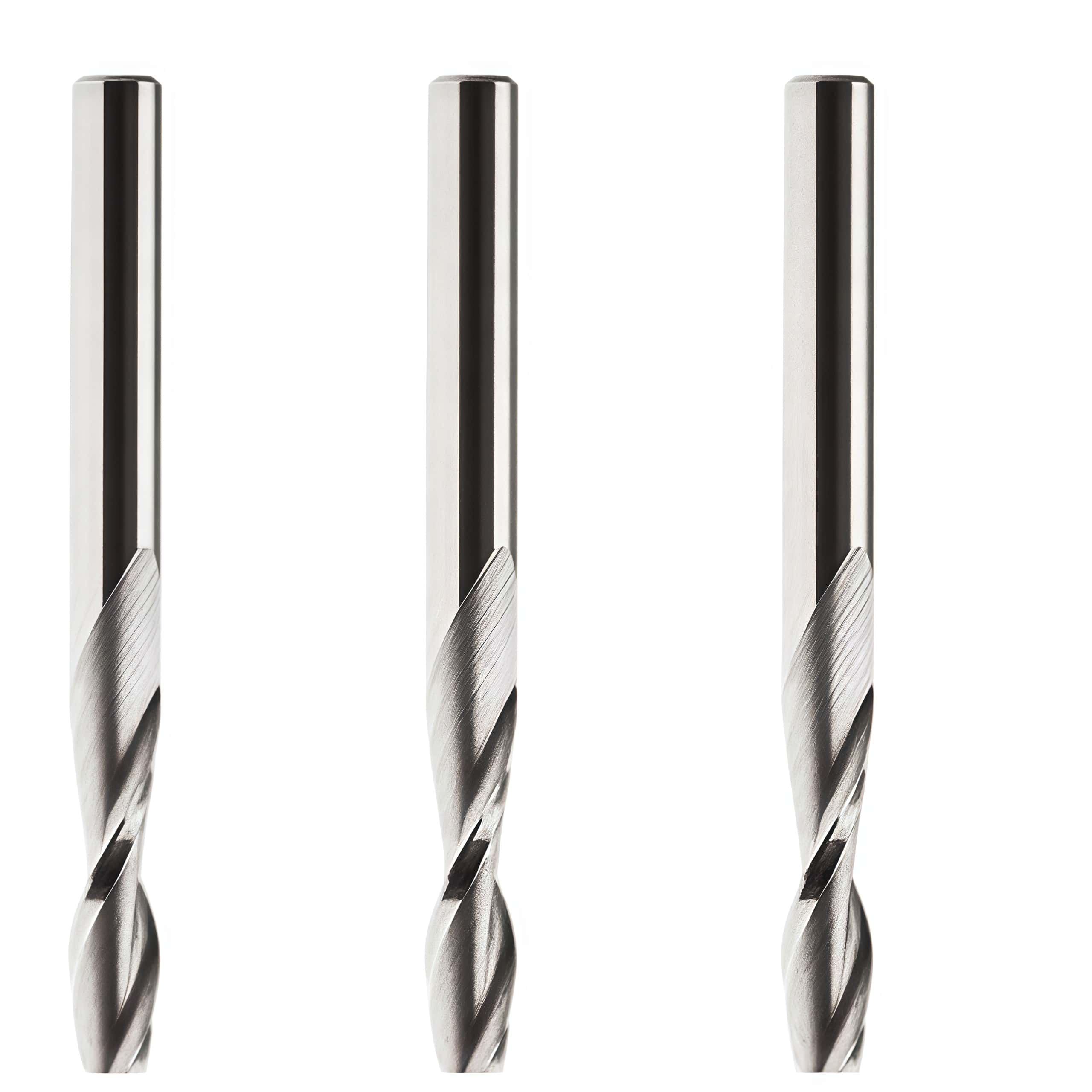

The Esko Kongsberg BIT-WUD06-6025-64 (identified by part number G42458752 and technical ID i-5212) is a professional-grade, double-flute milling bit specifically designed for cutting wood-based materials on Kongsberg digital cutting table.

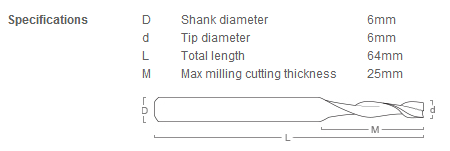

Key Technical Specifications
This bit is a polished, up-cut spiral tool designed for high-performance routing.
Shank Diameter: 6 mm
Milling/Tip Diameter: 6 mm
Max Milling Depth: 25 mm (though some listings suggest a recommended thickness up to 23 mm for optimal performance)
Total Length: 64 mm
Flute Design: Double-flute (Z2), Up-cut spiral
Applications and Material Compatibility
This bit is optimized for substrates that require efficient chip removal (achieved by the up-cut spiral) and a clean finish.
Primary Materials: Soft and hard composite wood, including those with top-print laminates.
Secondary Materials: MDF, thin plywood, and certain rigid display materials like foamed PVC (Forex/Sintra).
Compatible Equipment: It is used with Esko Kongsberg tables equipped with a High-Power Milling Unit or MultiCUT-HP tool head.
Key Technical Specifications
This bit is a polished, up-cut spiral tool designed for high-performance routing.
Shank Diameter: 6 mm
Milling/Tip Diameter: 6 mm
Max Milling Depth: 25 mm (though some listings suggest a recommended thickness up to 23 mm for optimal performance)
Total Length: 64 mm
Flute Design: Double-flute (Z2), Up-cut spiral
Applications and Material Compatibility
This bit is optimized for substrates that require efficient chip removal (achieved by the up-cut spiral) and a clean finish.
Primary Materials: Soft and hard composite wood, including those with top-print laminates.
Secondary Materials: MDF, thin plywood, and certain rigid display materials like foamed PVC (Forex/Sintra).
Compatible Equipment: It is used with Esko Kongsberg tables equipped with a High-Power Milling Unit or MultiCUT-HP tool head.
OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Tel:+86-0769-88014625
Phone Number:+86-18823852826
Email: info@china-oyea.com
1659590865@qq.com
Web: www.china-oyea.com
We warmly welcome every customer to send us drawings for making customized product. Contact with us ,you will get more than what you can !
