Esko Kongsberg Bit-Braille06-1503-50 Digital Plotters Drilling Bit G42455477
Esko Kongsberg BIT-BRAILLE06-1503-50 (part number: G42455477 ) is a high-precision carbide drill bit specifically designed for creating Braille signs on Kongsberg digital plotters. Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis

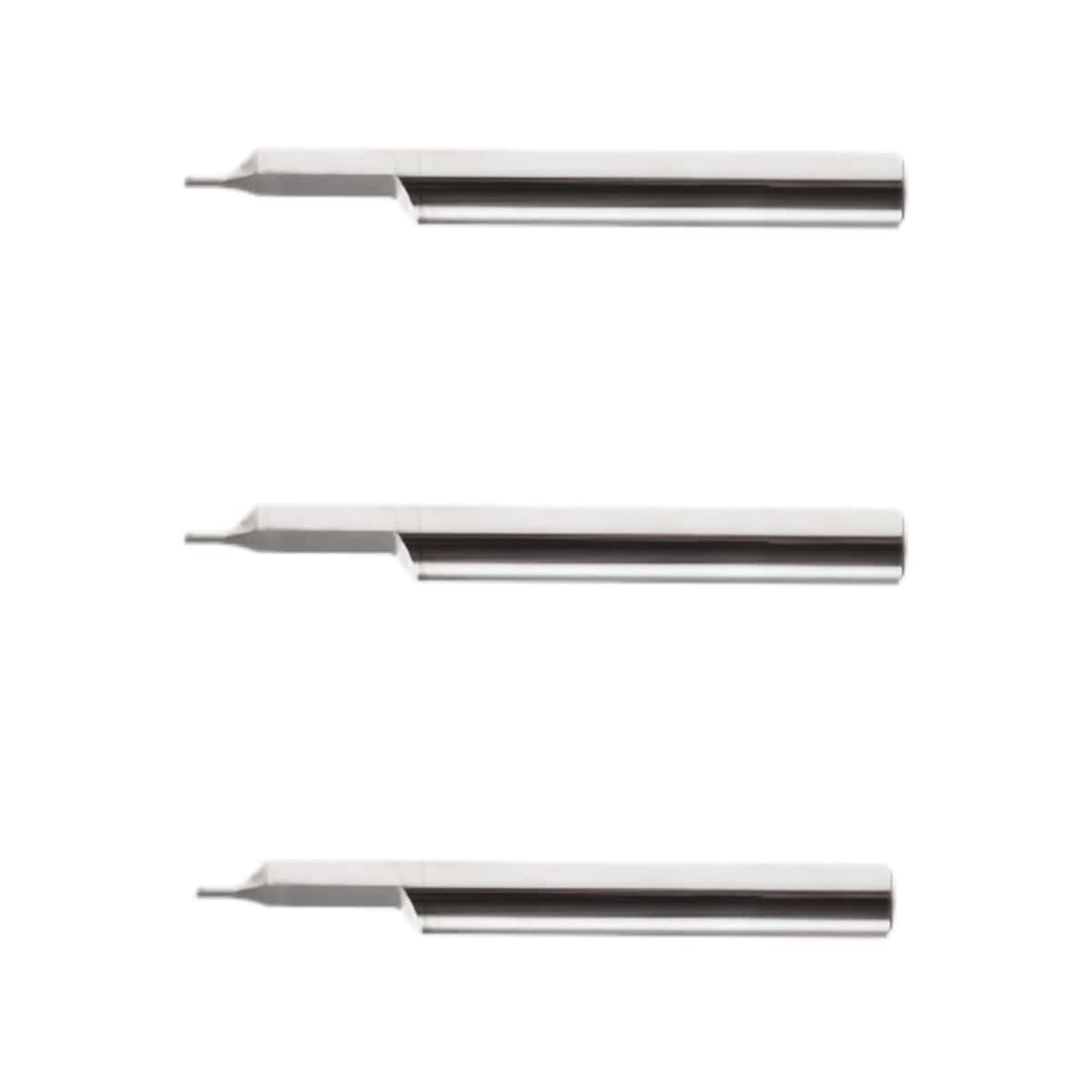

Esko Kongsberg Bit-Braille 06-1503-50 Digital Plotters Drilling Bit G42455477

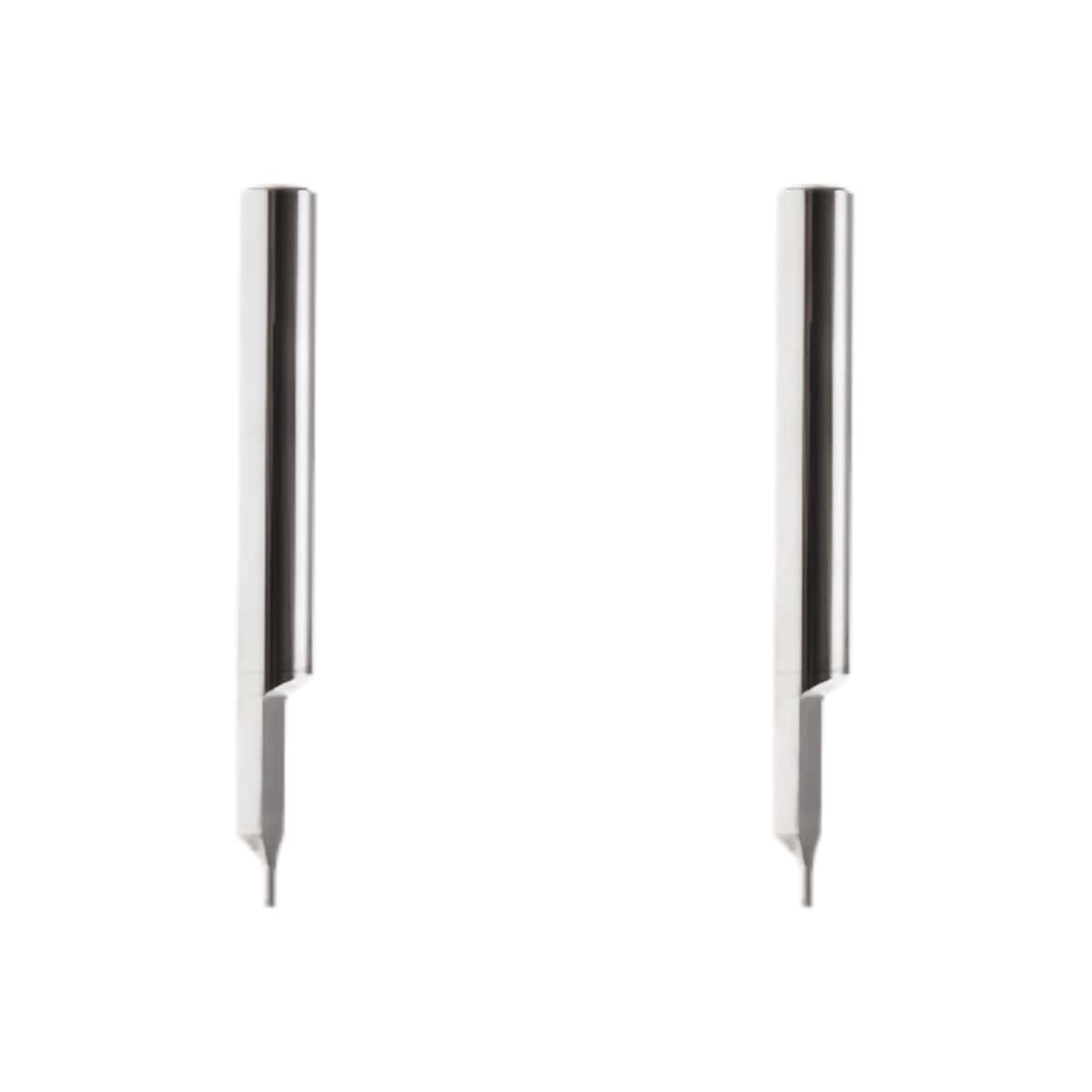

Esko Kongsberg Bit-Braille06-1503-50 Digital Plotters Drilling Bit G42455477
Esko Kongsberg BIT-BRAILLE06-1503-50(part number: G42455477 ) is  high-precision professional drilling bit specifically designed for creating Braille signs on digital plotters .This tool is not a milling cutter for regular contour cutting, but a special carbide drill bit designed to work in conjunction with Kongsberg's "Braille Tool".
Core Physical Parameters and Dimensions (Specifications)
  • D (Shank Diameter) : 6.0 mm
  • d (Tip Diameter) : 1.56 mm (approximately 0.0615 inches). This size is specifically designed to fit standard industrial-grade Braille spheres.
  • L (Total Length of Tool) : 50 mm
  • M (Max Drilling Thickness) : 3 mm (1/8 inch)
Applicable Materials and Core Process Positioning
This model (G42455477 / 1503-50) and its sister models have clear differences in substrate materials for application:
  • Designed for rigid composite signage : This design is for precisely drilling blind holes in hard metals or metal composite materials such as aluminum sheets and aluminum composite panels (ACM/ACP). Its cutting edge geometry is reinforced to resist wear during metal processing and maintain high machining consistency.
  • Difference from the plastic version : The sister model in the same series (part number: 42460238/ 1403-50) has a blade tip diameter of 1.55 mm and is usually used for plastic signage materials such as **acrylic** and rigid PVC (Sintra / Forex).

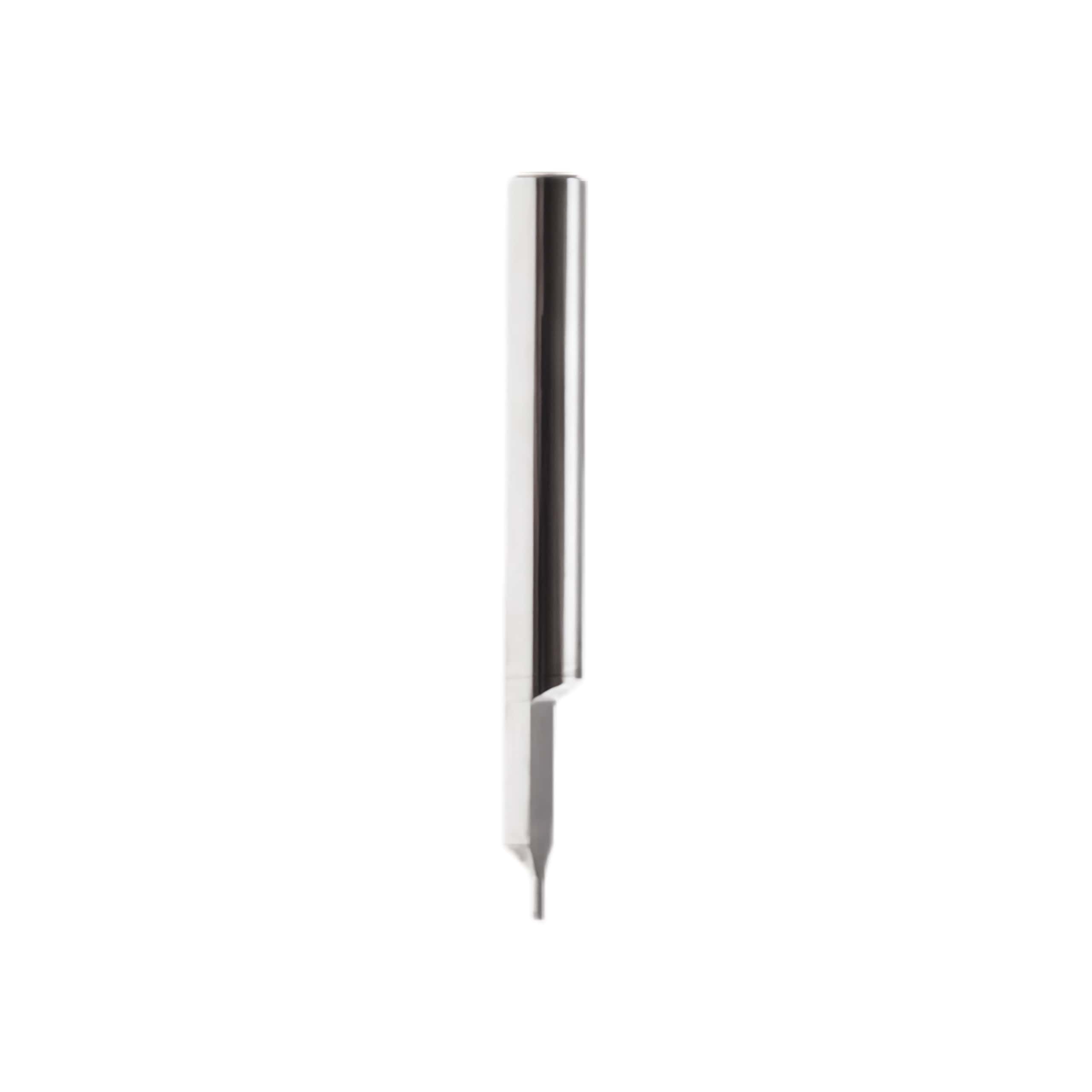

Esko Kongsberg Bit-Braille06-1503-50 Digital Plotters Drilling Bit G42455477
OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.


If you have more questions to know ,please contact us .
Tel:+86-0769-88014625
Phone Number:+86-18823852826
Email:  info@china-oyea.com
             1659590865@qq.com
Web: www.china-oyea.com
We warmly welcome every customer to send us drawings for making customized product.
Contact with us ,you will get more than what you can !
