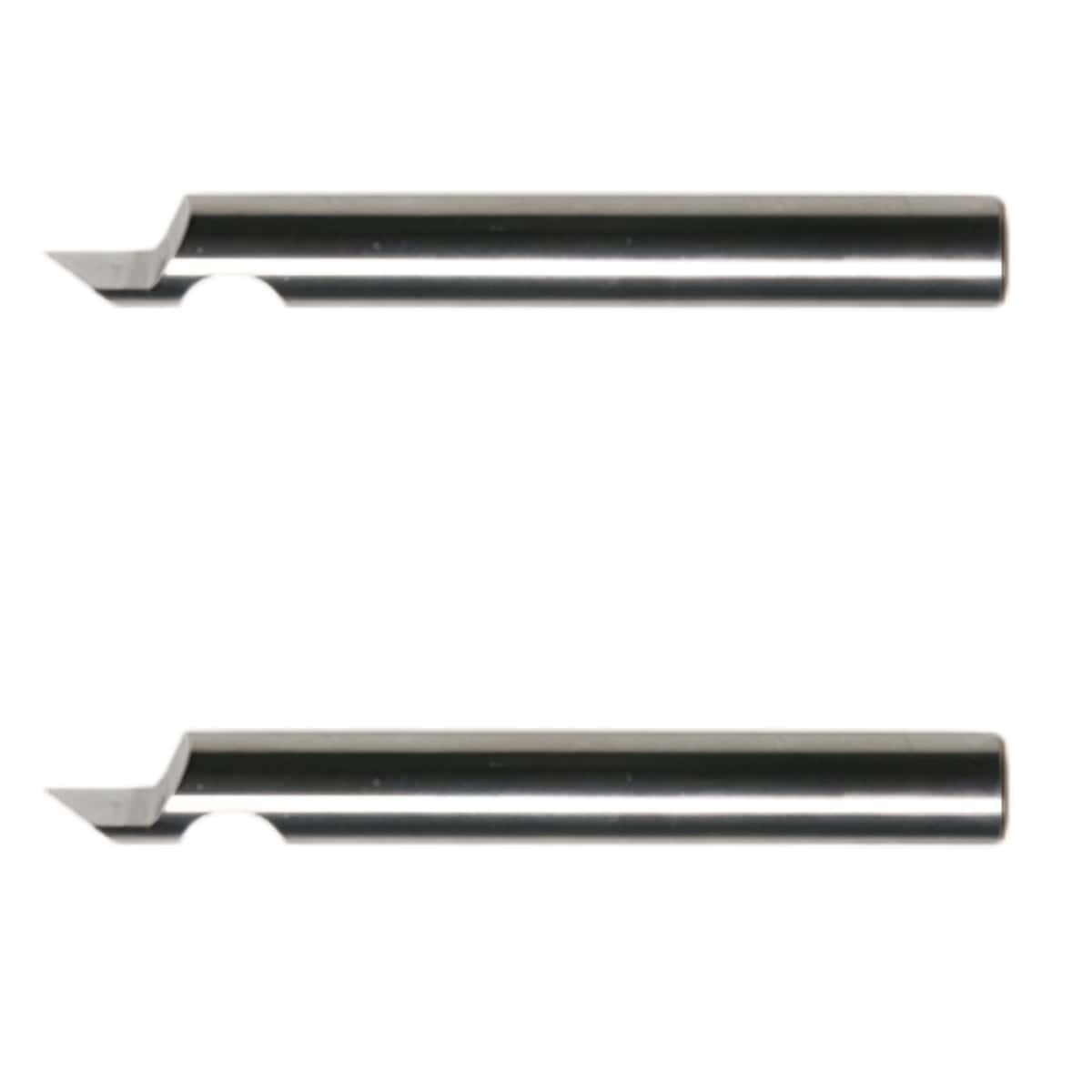

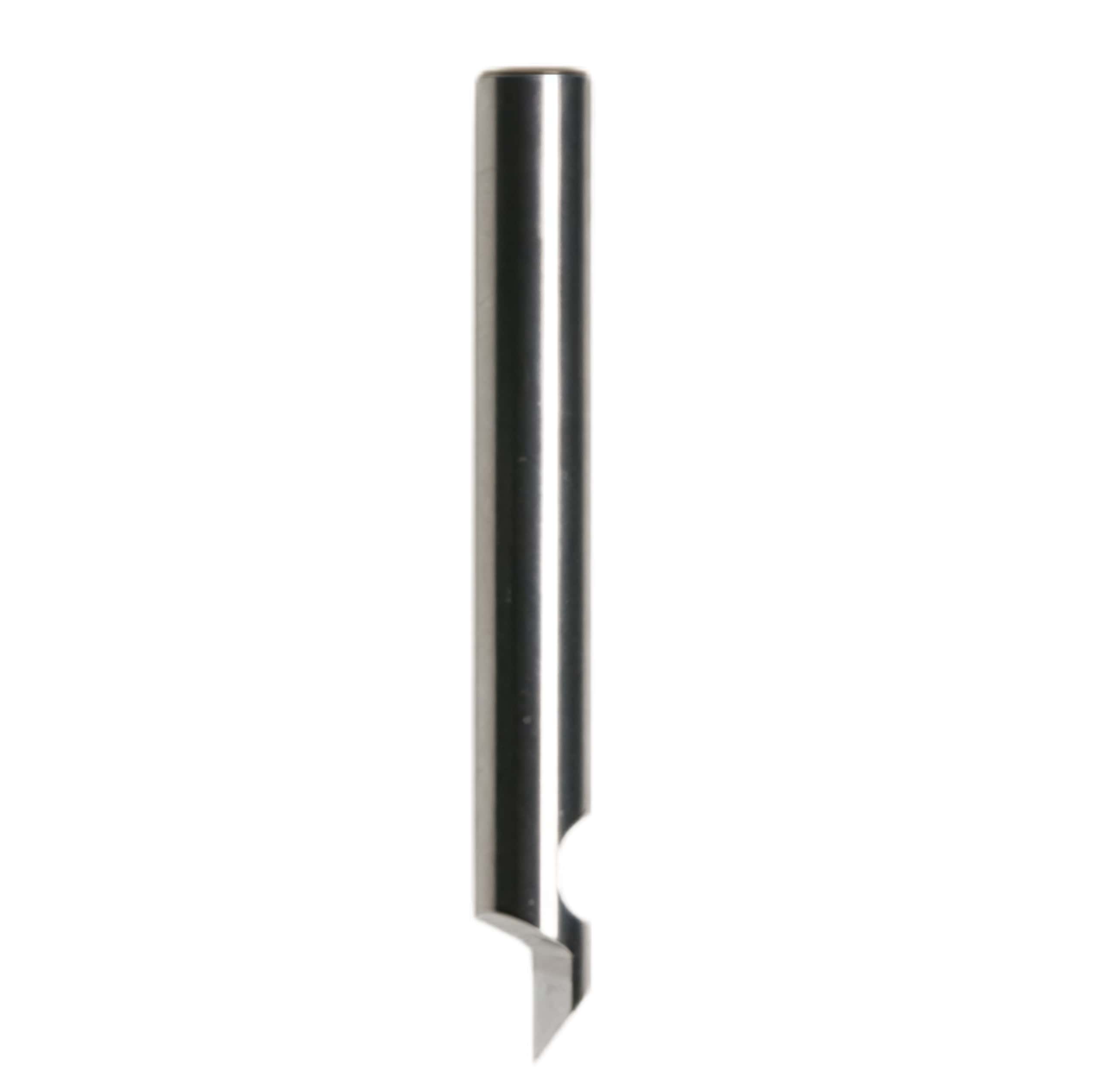

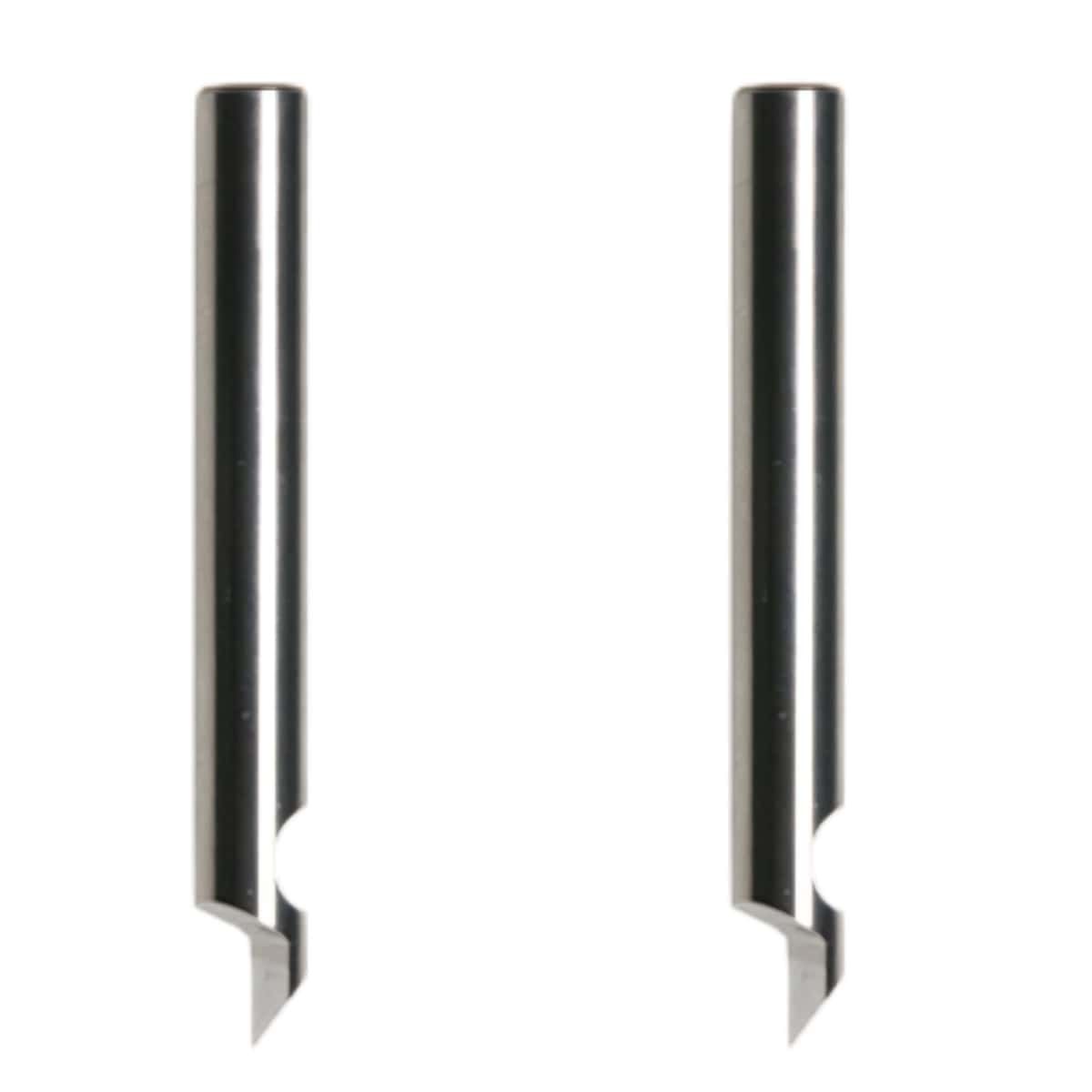

Esko Kongsberg Bit-Ebv06-46 G42444992 Carbide Engraving V-Notch Router Bit

Esko Kongsberg BIT-EBV06-46 (G42444992) is an OEM solid carbide engraving V-notch router bit designed for use on Kongsberg Precision Cutting Systems digital finishing tables Enquire now

Description

Esko Kongsberg Bit-Ebv06-46 G42444992 Carbide Engraving V-Notch Router Bit

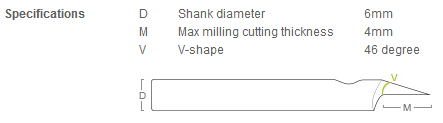

Technical Specifications

Part Number: G42444992
Model ID: BIT-EBV06-46
Material Composition: Solid Carbide
Shank Diameter: 6 mm
Cutting Angle: 46° V-shape
Maximum Cutting Depth: 4 mm (5/32")
Total Length: 50 mm (5 cm)

Primary Applications

This specialized milling bit is engineered for precision engraving, chamfering, and creating V-grooves. It is optimized for processing the following materials:

Acrylics and PMMA
Hardwoods and softwoods
Synthetic sheets and rigid plastics
Composite display cartons

Compatible Tool Heads

The 6mm round shank fits standard Kongsberg high-speed milling spindles. It seamlessly integrates with the MultiCUT and High-Frequency Milling units used across the Kongsberg X Series, C Series, and XP cutting platforms.
