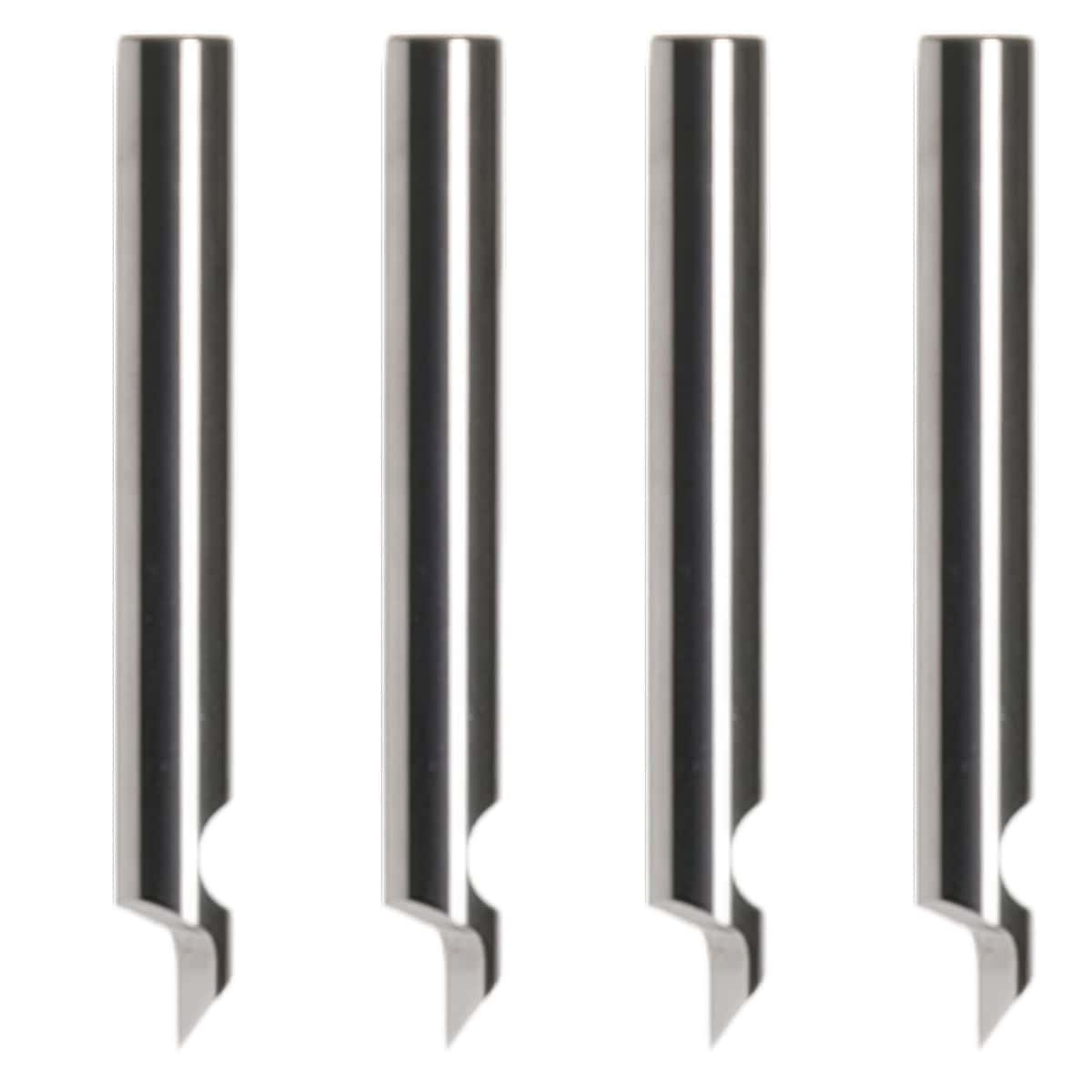

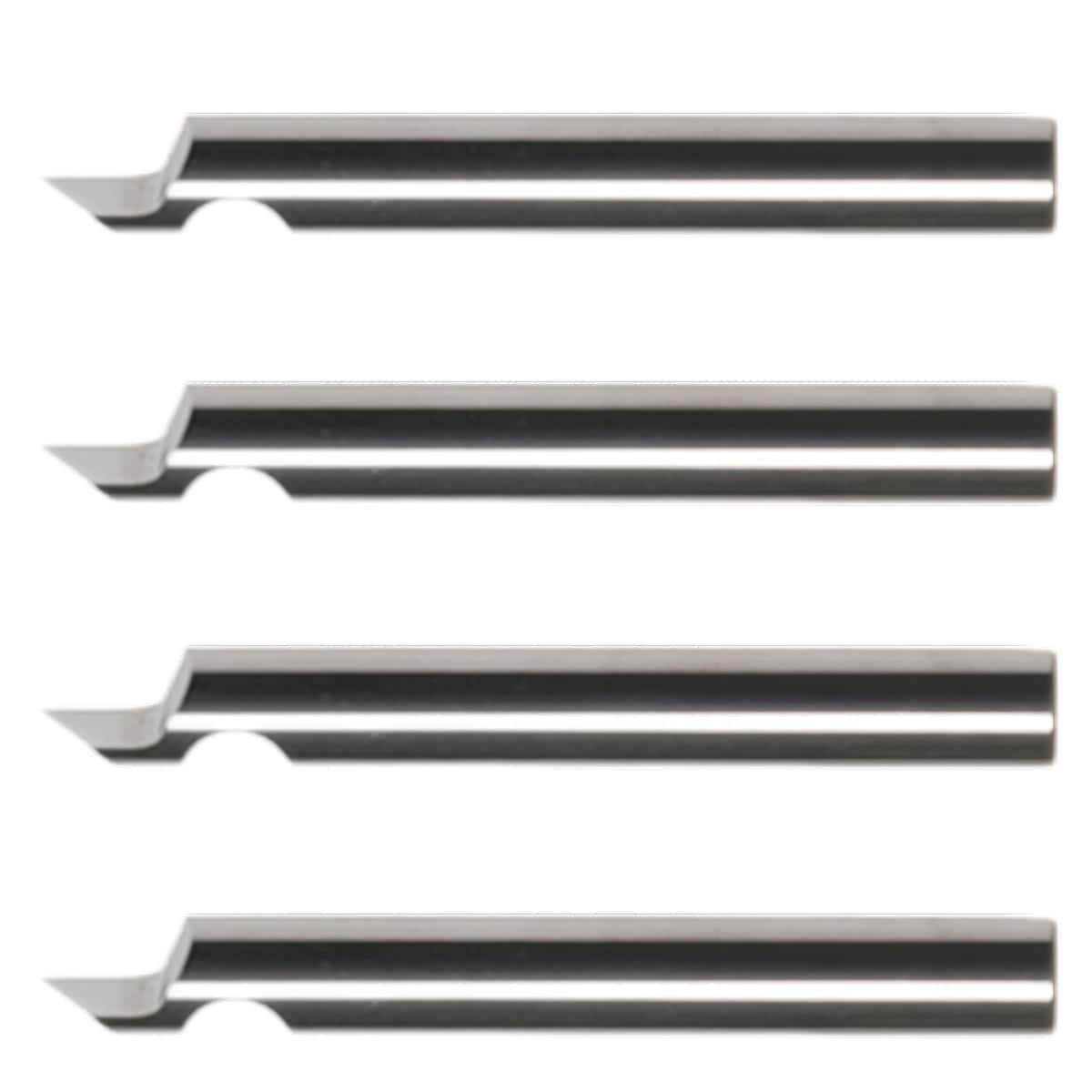

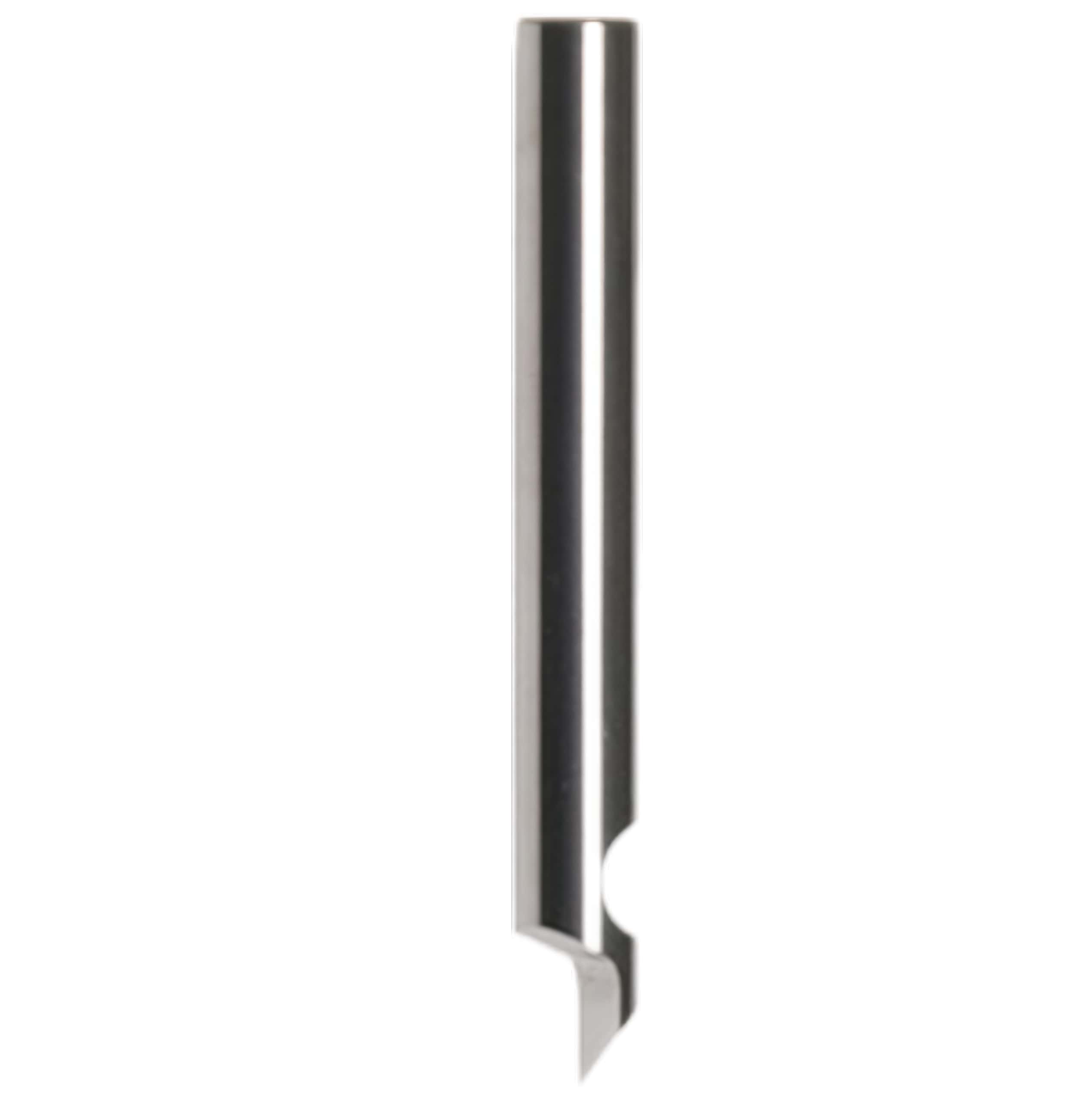

Esko Kongsberg Bit-Ebv06-73 G42444380 Carbide Milling And Engraving Router Bit

Esko Kongsberg BIT-EBV06-73 G42444380 is a high-precision, solid carbide milling and engraving router bit. It is manufactured by Esko Graphics GmbH for use on Kongsberg Precision Cutting Systems digital finishing tabl Enquire now

Description

Esko Kongsberg Bit-Ebv06-73 G42444380 Carbide Milling And Engraving Router Bit

Key Technical Specifications

Part Number: G42444380
Blade/Bit Model: BIT-EBV06-73
Material Composition: Solid Tungsten Carbide
Shank Diameter: 6 mm
Cutting Angle: 73° V-shape
Maximum Cutting Depth: 3 mm (1/8")
Geometry: Single flute V-engraving bit

Primary Applications & Materials

The unique 73-degree geometry allows clean material displacement and distinct edge profiling. It is highly optimized for:

Engraving: Producing crisp lettering, signage graphics, and structural grooves in acrylics, plexiglass, and various synthetic engineering plastics.
High-Speed Folding Lines: Creating accurate V-grooves for clean fold geometric lines in Aluminum Composite Materials (ACM / Dibond), rigid plastics, and heavy display cartons.
Woodworking: Detailing and grooving on soft woods, MDF, and composite wood laminates.

Compatible Systems

This special-purpose bit fits into standard 6mm collets and chucks used across Kongsberg X Series, C Series, XL, and XN digital finishing tables. It is managed via specialized workflow software, such as the i-cut Production Console, to accurately regulate speed, pass depth, and vacuum table hold-down balance.
