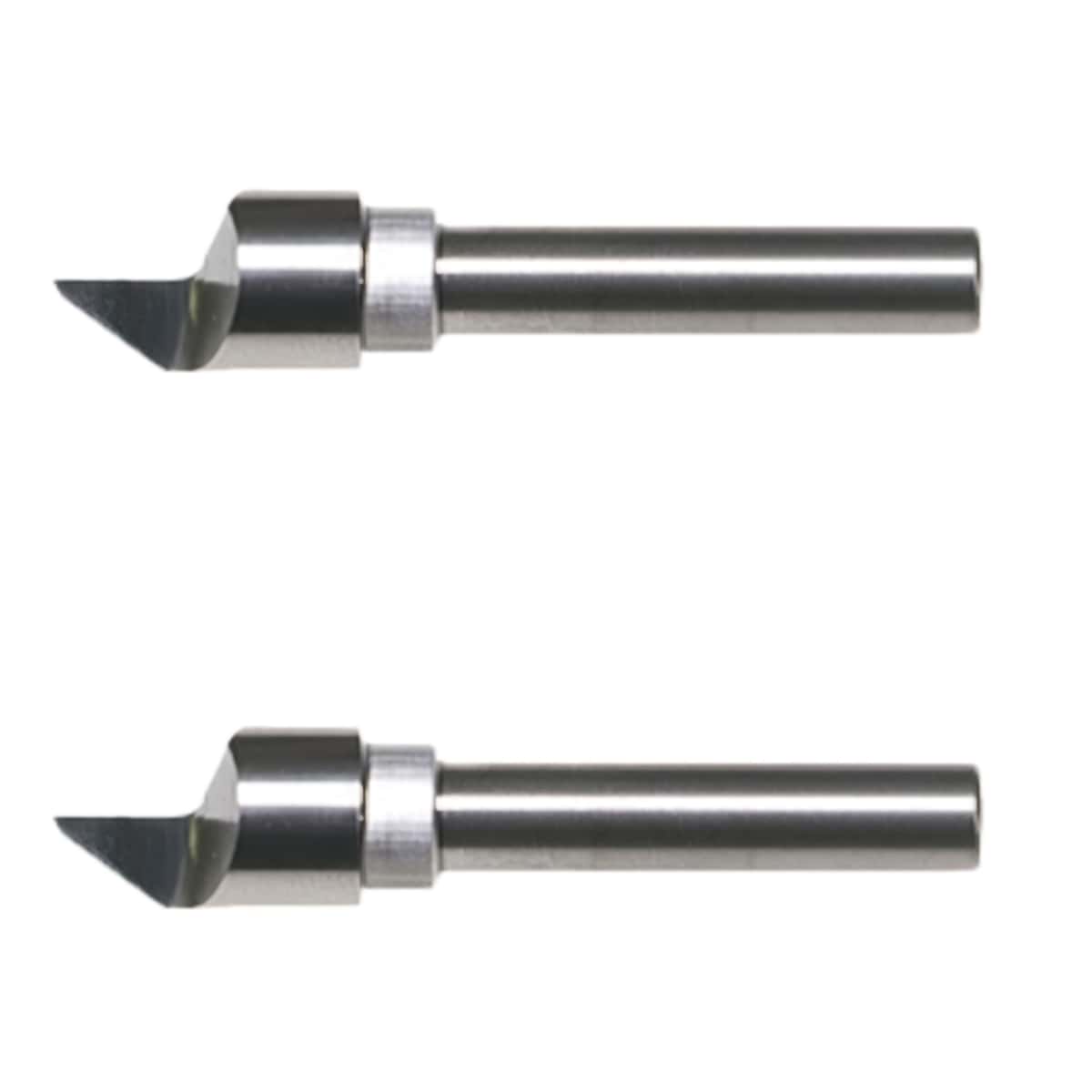

Esko Kongsberg Bit-Ebv06-94 G02731628 V-Shape Engraving And Milling Router Bit

Esko Kongsberg BIT-EBV06-94 G02731628 is a specialized, solid carbide V-shape engraving and milling router bit manufactured for high-precision CNC digital cutting systems. It is primarily engineered for the Esko Kongsberg Precision Cutting Systems platforms to execute precise 90-degree grooving, cha… Enquire now

Description

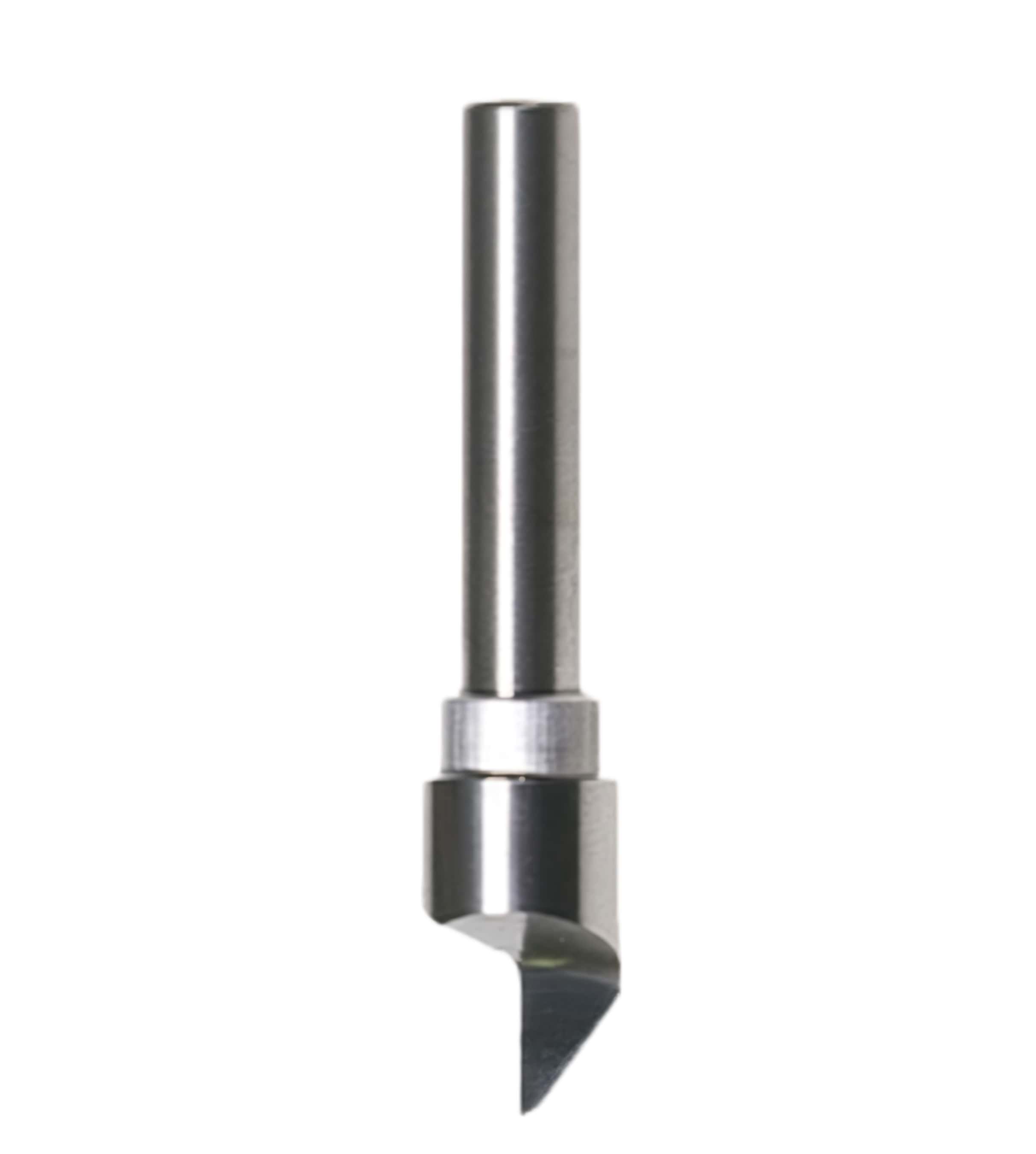

Esko Kongsberg Bit-Ebv06-94 G02731628 Carbide V-Shape Engraving And Milling Router Bit

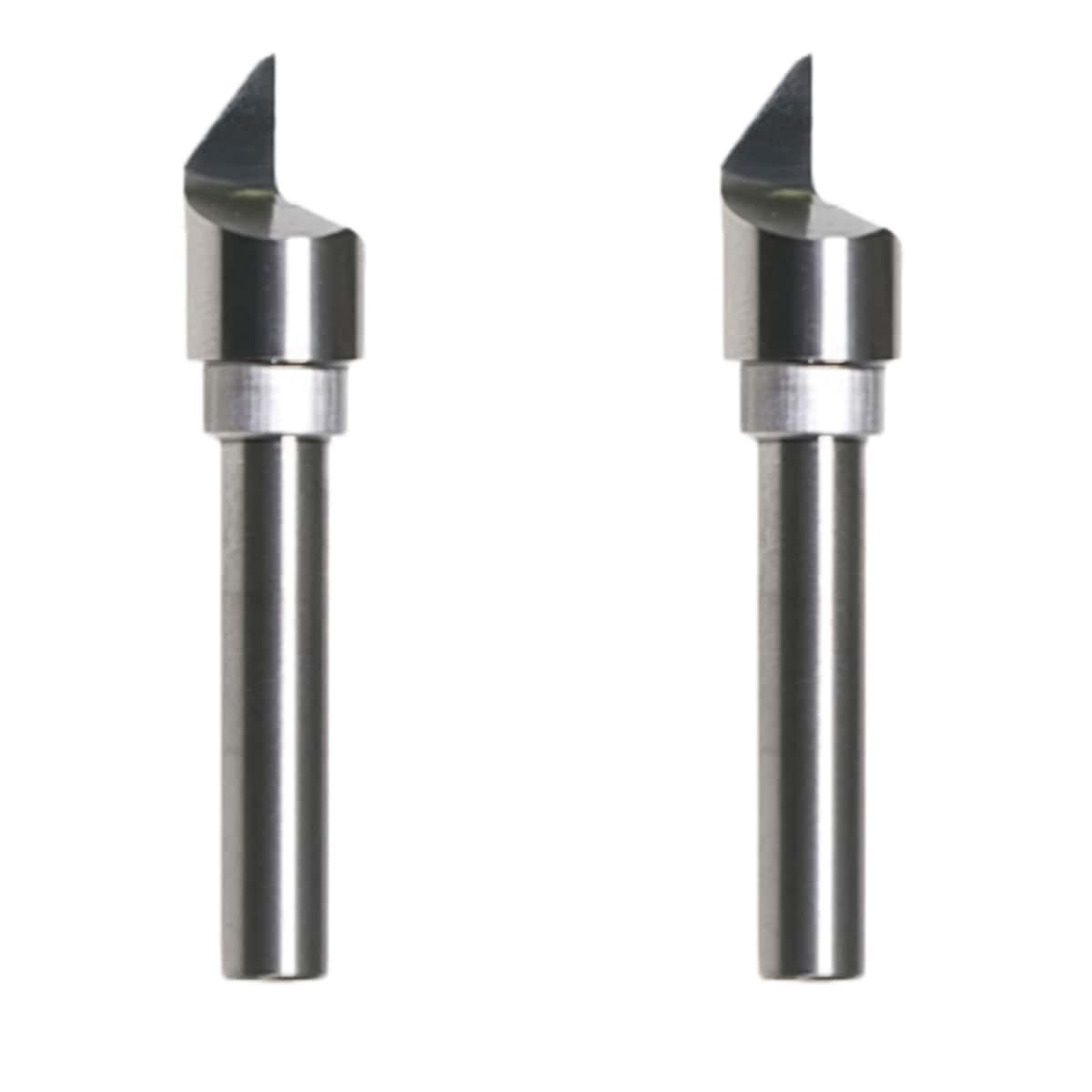

Esko Kongsberg Bit-Ebv06-94 G02731628 V-Shape Engraving And Milling Router Bit

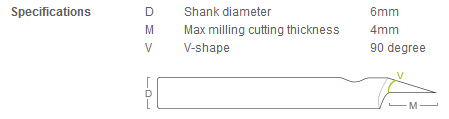

Technical Specifications

Angle & Geometry: 90-degree V-shape with a 0.9mm tip width, producing a 1.8mm flat-bottom groove.
Shank Diameter: 6.0 mm.
Maximum Cutting Depth: 4.0 mm .
Total Length: 45 mm to 50 mm (depending on the aftermarket or OEM supplier).
Material Composition: Premium solid tungsten carbide for wear resistance and long tool life.

Primary Applications

ACM/Dibond Folding: Cuts a precise 90-degree channel into the back of Aluminum Composite Materials (ACM), leaving a small flat bottom to allow clean, burr-free folding of clean corners.
Diverse Substrates: Highly efficient for milling and signmaking engraving on plastics, acrylics, wood, and MDF panels.

Cross-Compatibility & Equivalents

This routing tool matches several OEM and aftermarket product lines:

Zund Equivalent: Directly corresponds to the Zund R140 (Part Number: 3910760).
Alternate Part Identifiers: Frequently cataloged under industry trade codes i-3772 or KMLEV-06.94
