Esko Kongsberg Bit-Ebv06-120-2f G42458141 V-Shape Engraving And Routing Bit

Esko Kongsberg BIT-EBV06-120-2F (Part Number: G42458141) is an OEM-standard, 6mm shank 120-degree V-shape engraving and routing bit designed for precise V-grooving and folding operations. Manufactured to fit Kongsberg Precision Cutting Systems CNC tables, this specialty tool features a dual-flute ge… Enquire now

Description

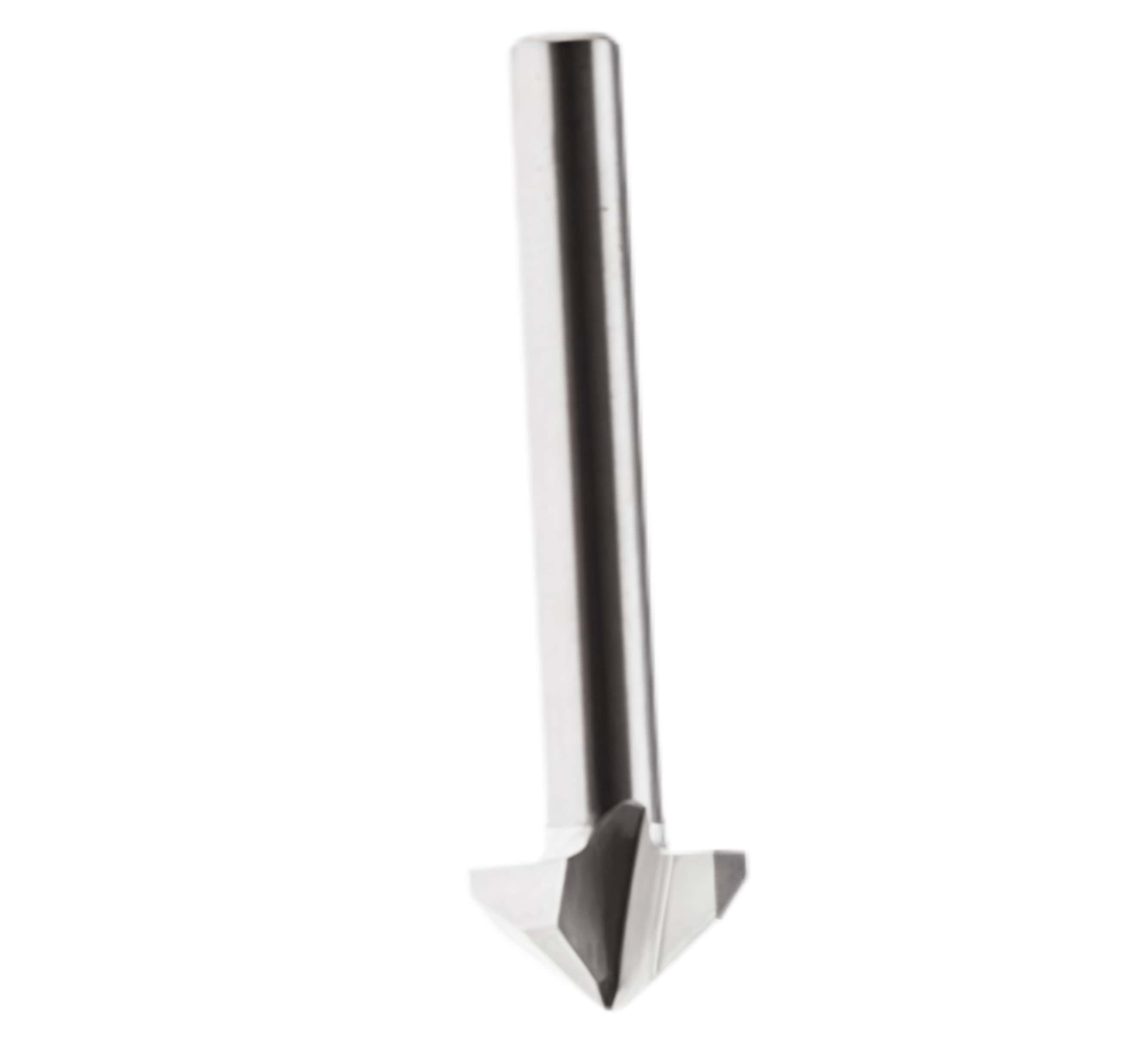

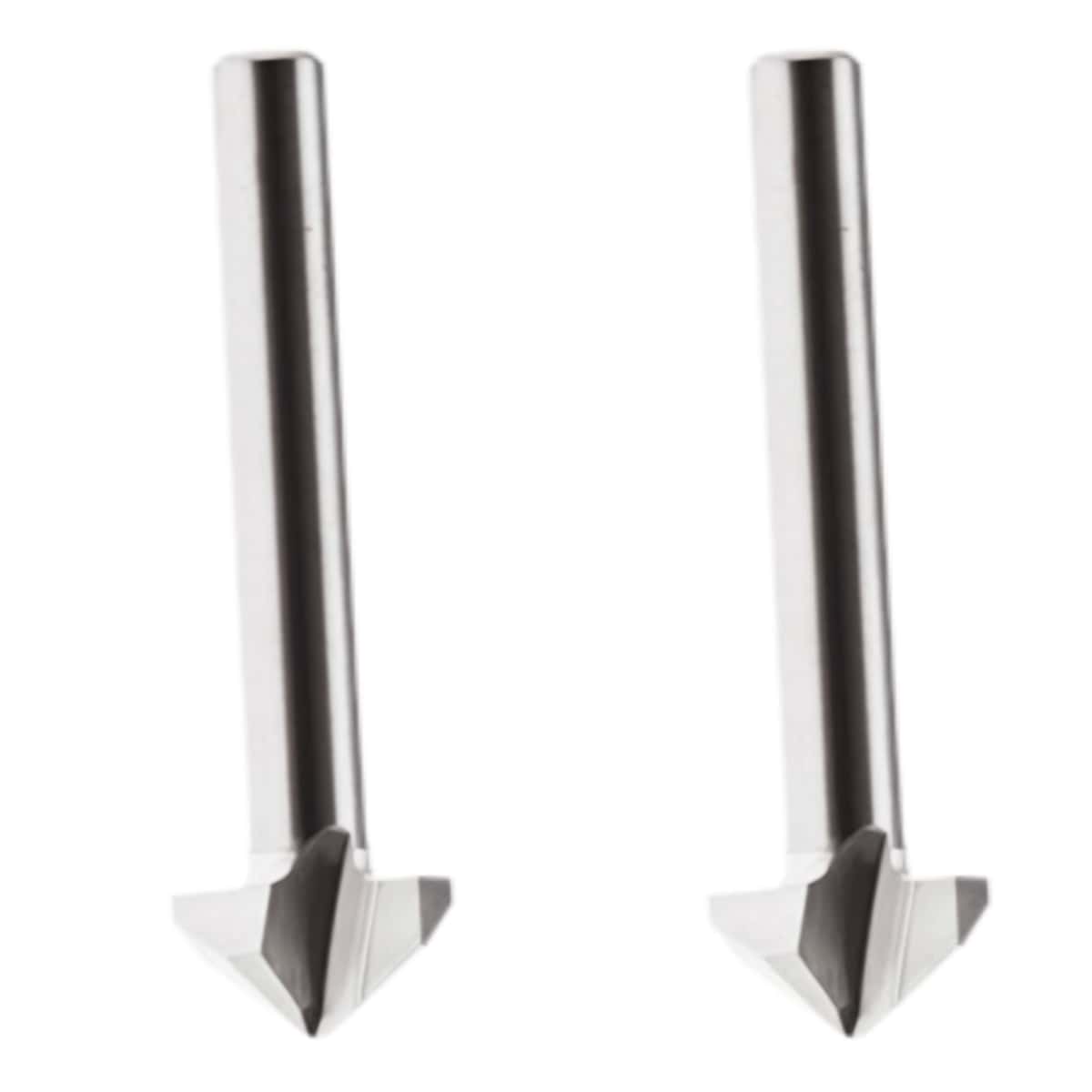

Esko Kongsberg Bit-Ebv06-120-2f G42458141 V-Shape Engraving And Routing Bit

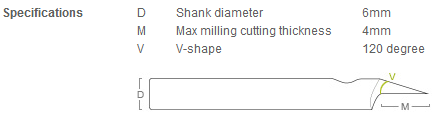

Technical Specifications

Model Code: BIT-EBV06-120-2F
OEM Part Number: G42458141
Geometry: 120° V-Shape profile
Flute Count: 2 Flutes (balanced chip clearance)
Material Composition: Ultra-grade Solid Tungsten Carbide
Shank Diameter: 6 mm standard
Maximum Cutting Depth: 4 mm (5/32")
Tip Configuration: Ball-nose tip with a 1.8 mm diameter

Material Compatibility

This specialized engraving bit is engineered to process rigid and semi-rigid industrial materials cleanly:

Aluminum Composite Material (ACM): Optimized for high-speed folding grooves without tearing the aluminum skin (e.g., Dibond, Alucobond).
Milled Wood & MDF: Excellent for shallow 3D radius profiling, custom beveling, and text engraving.
Engraved Acrylic & Plastics: Ensures clean cuts with zero melting along the v-notch paths.

Performance Characteristics

High Structural Stability: The heavy-duty solid carbide core resists deflection during complex lateral high-feed routing cycles.
Extended Wear Life: Specially treated tungsten steel withstands high-temperature abrasive friction.
Strict Coaxiality: Manufactured with minimum dimensional deviations to eradicate spindle vibrations.
