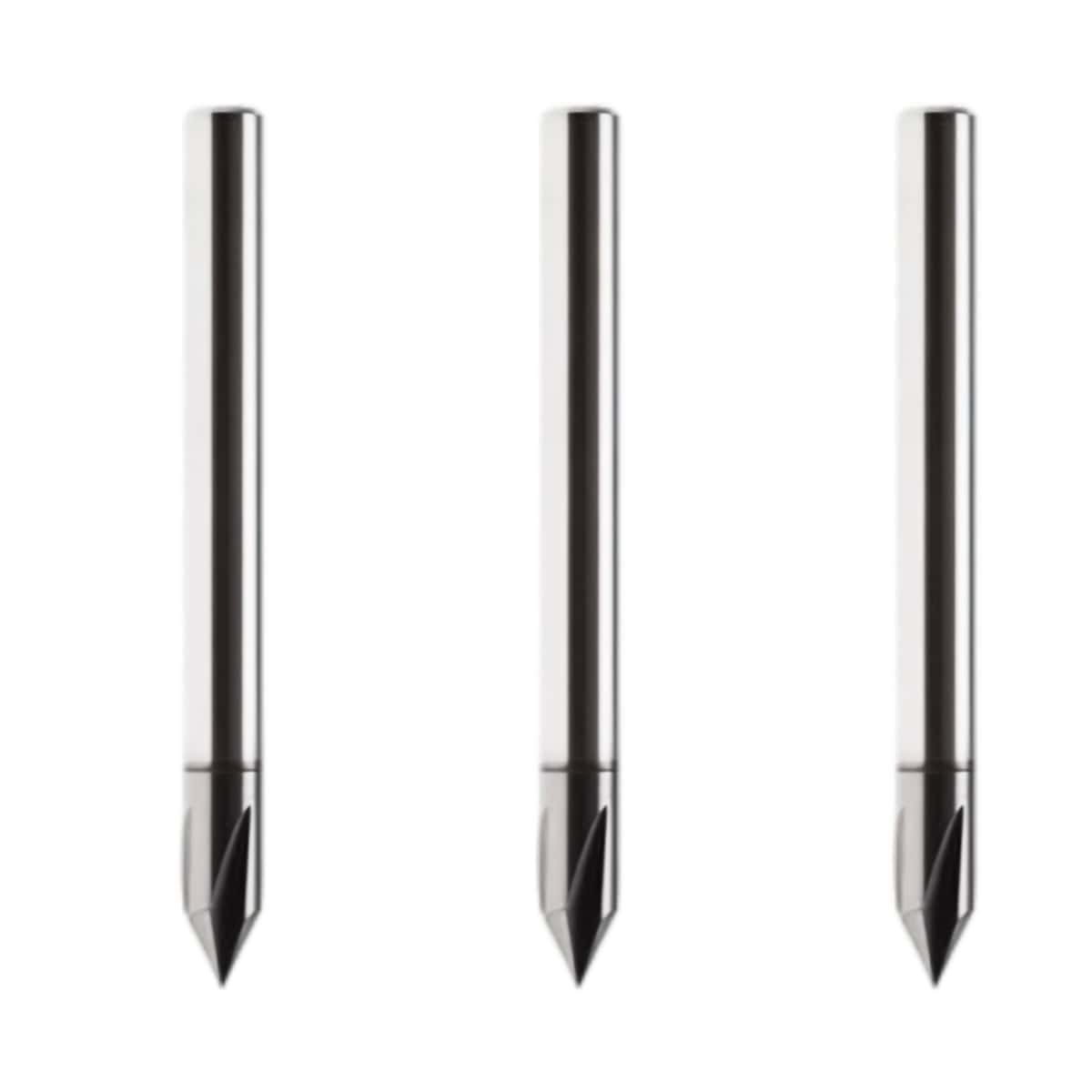

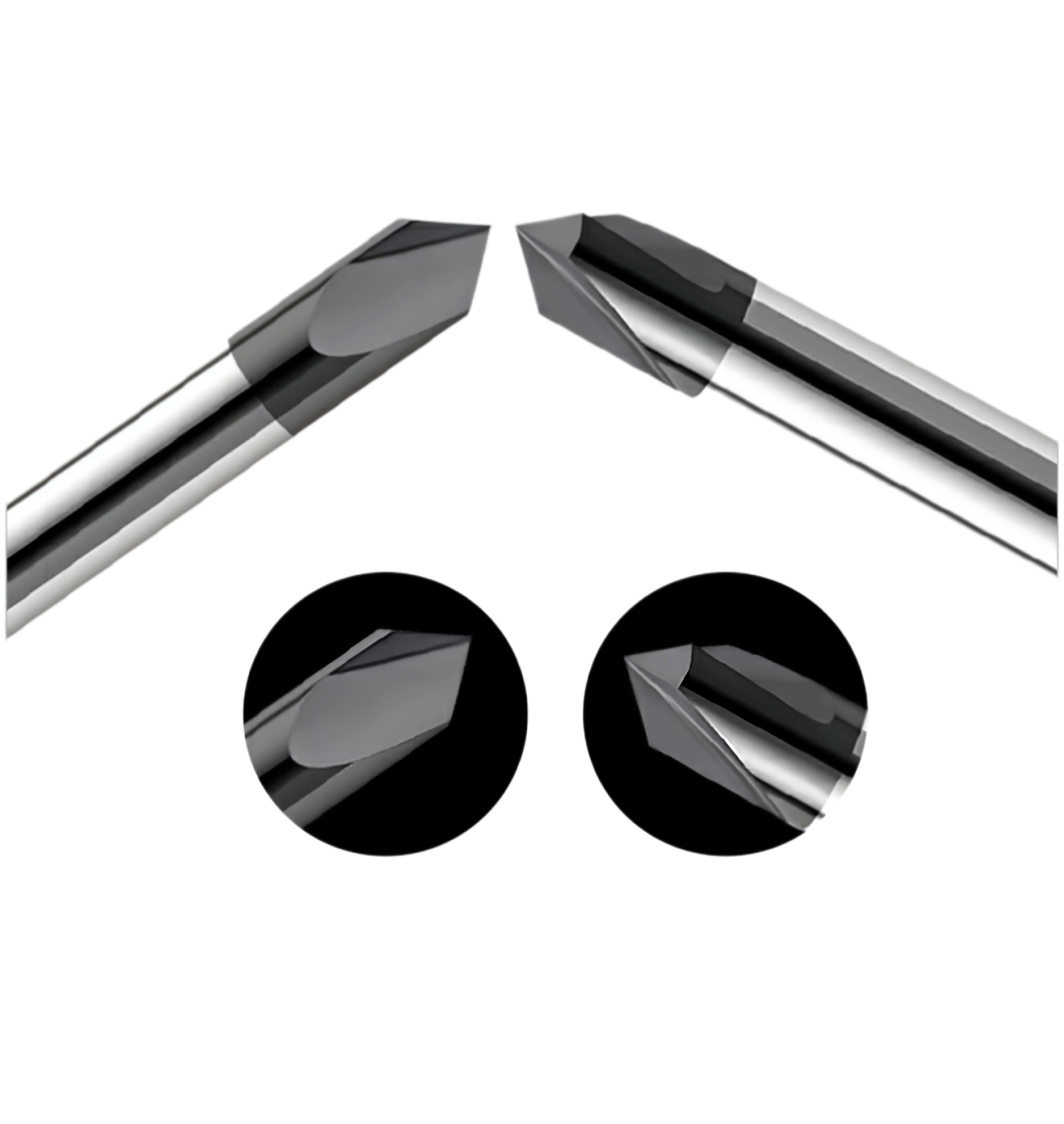

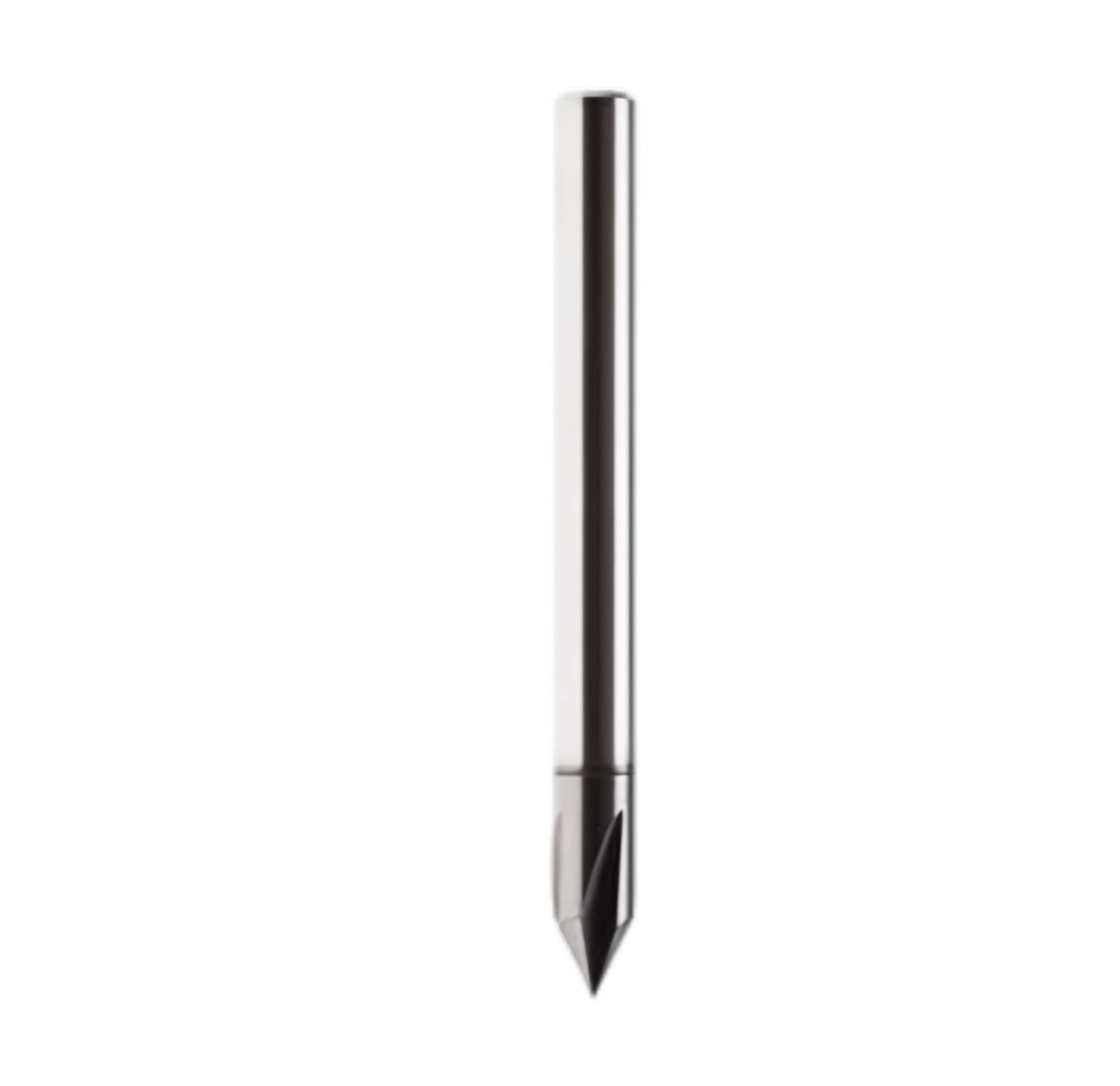

Esko Kongsberg Bit-Ebv06-60-4f G42459719 Special-Purpose V-Shape Engraving And Milling Bit

Esko Kongsberg BIT-EBV06-60-4F (Part Number: 42459719 or G42459719) is an official, solid carbide special-purpose V-shape engraving and milling bit designed for Kongsberg Precision Cutting Systems CNC tables Enquire now

Description

Esko Kongsberg Bit-Ebv06-60-4f G42459719 Special-Purpose V-Shape Engraving And Milling Bit

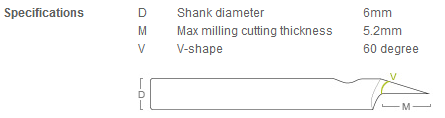

Key Technical Specifications

Shank Diameter: 6 mm

Cutting Diameter: 6 mm

Max Cutting/Milling Depth: 5.2 mm

V-Cut Angle: 60° inclusive (engineered via 4 flutes with 30° angles)

Flute Count: 4 Flutes (4F)

Material Composition: Premium Solid Tungsten Carbide (often aftermarket optimized with multi-element coatings)

Material & Tool Applications

The bit is classified under Kongsberg's 6 mm special purpose routing category. It is primarily engineered for:

Engraving & Detailing: Fine line carving and V-notching in hard materials.

Compatible Substrates: Ideal for acrylic, wood, MDF, hardboard, flooring, and Aluminium Composite Materials (ACM).

Clean Beveling: The 4-flute design distributes heat evenly, maximizing tool life and edge finish quality during high-speed folding or chamfering.
