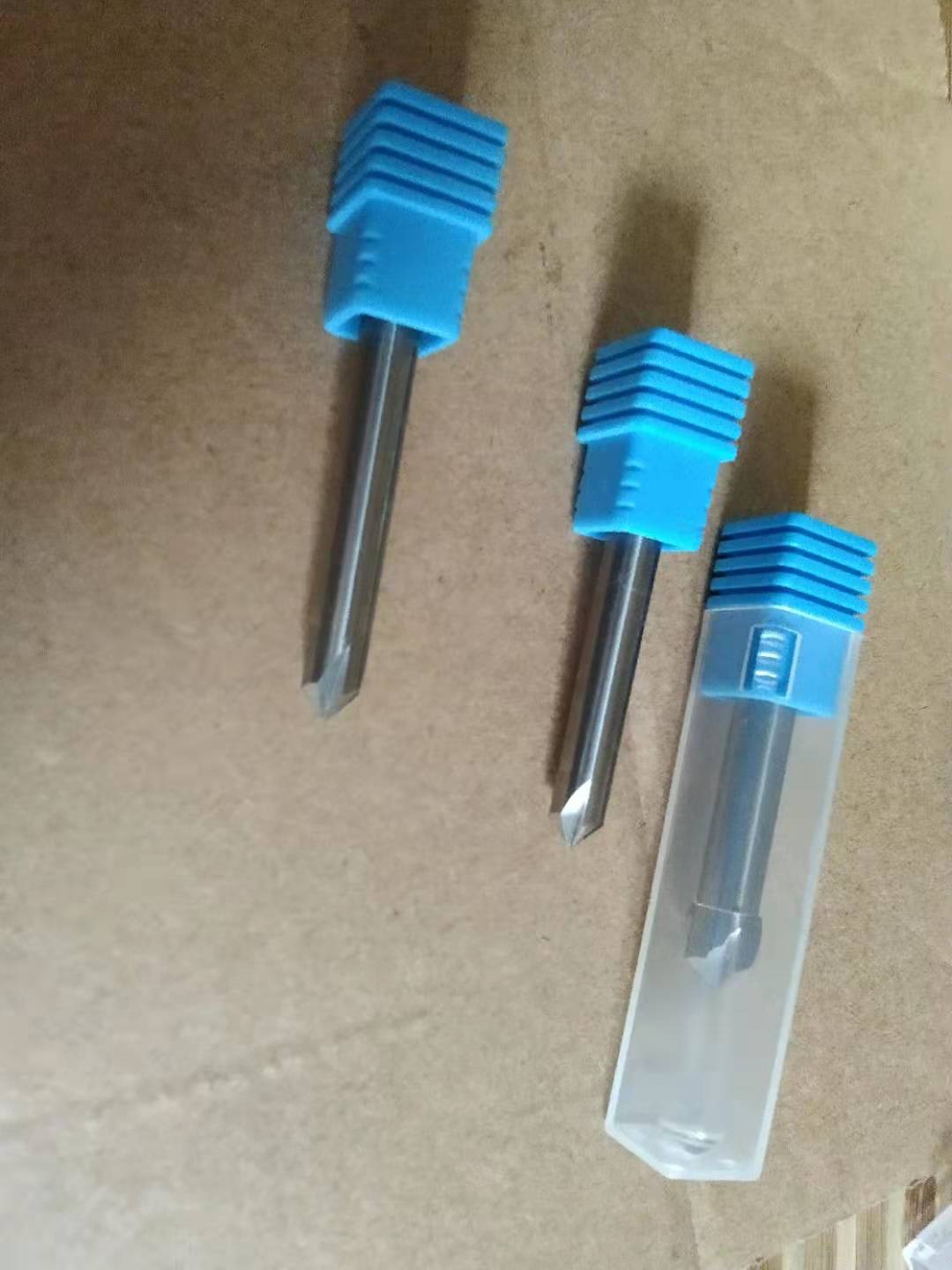

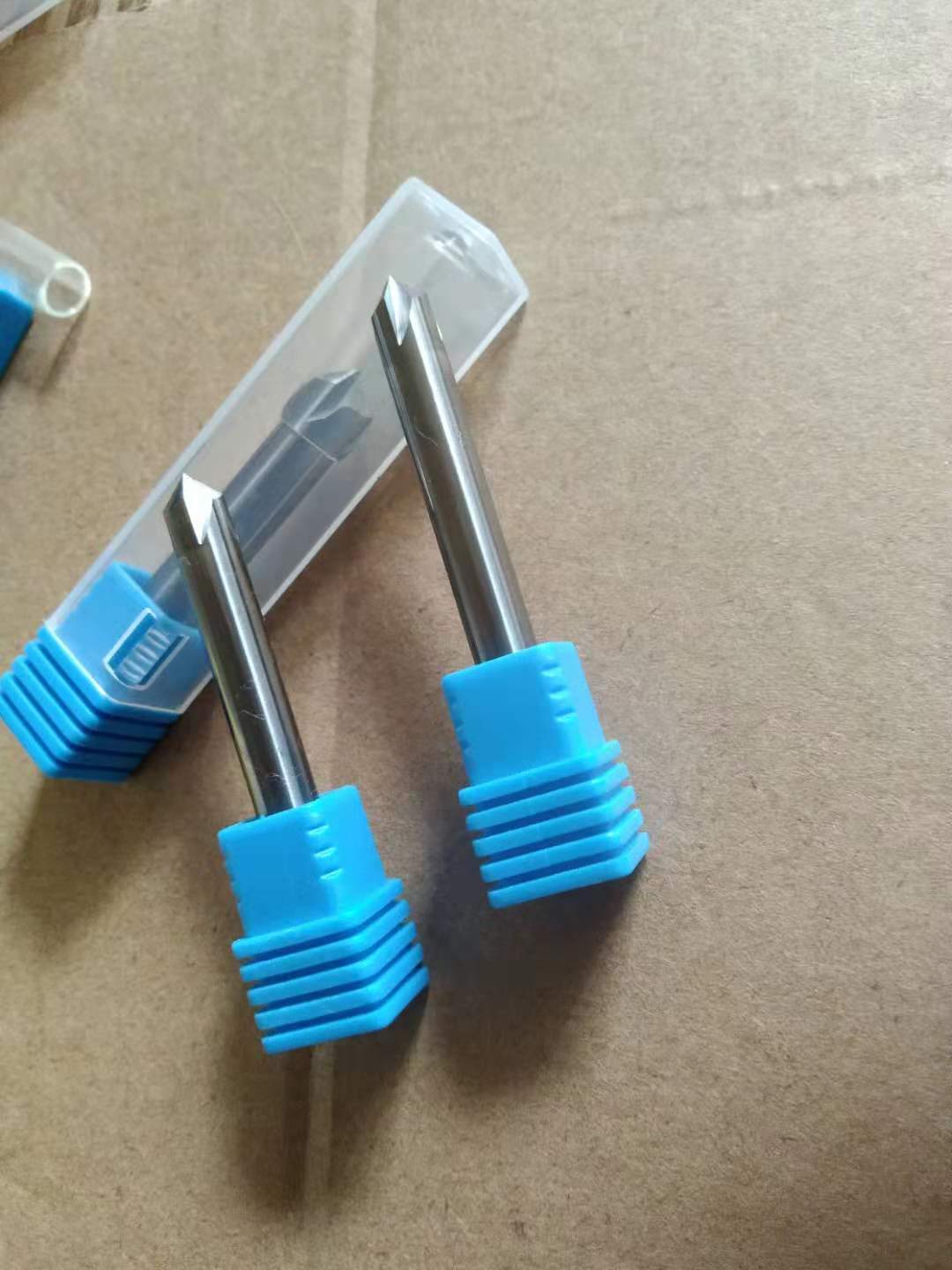

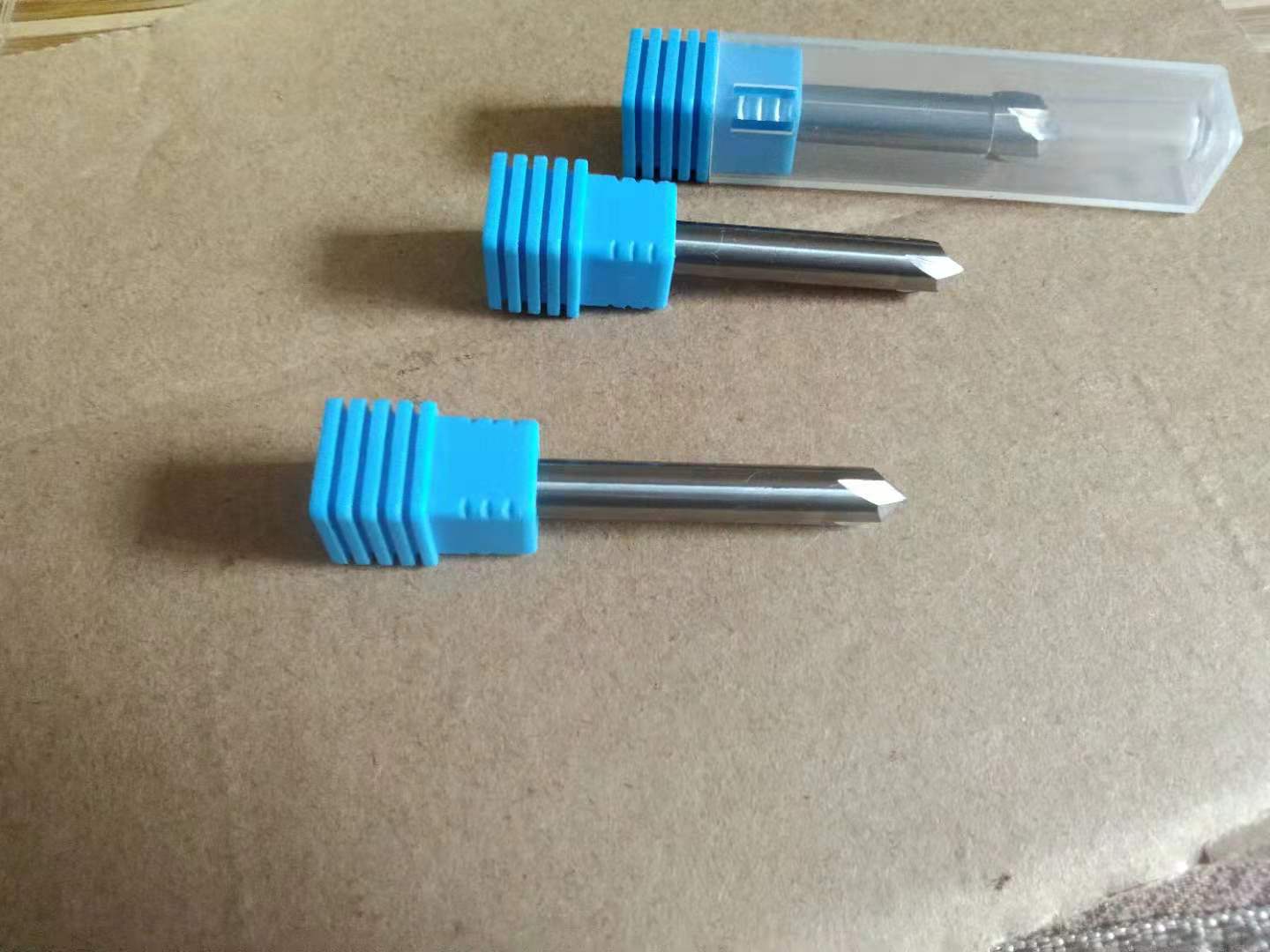

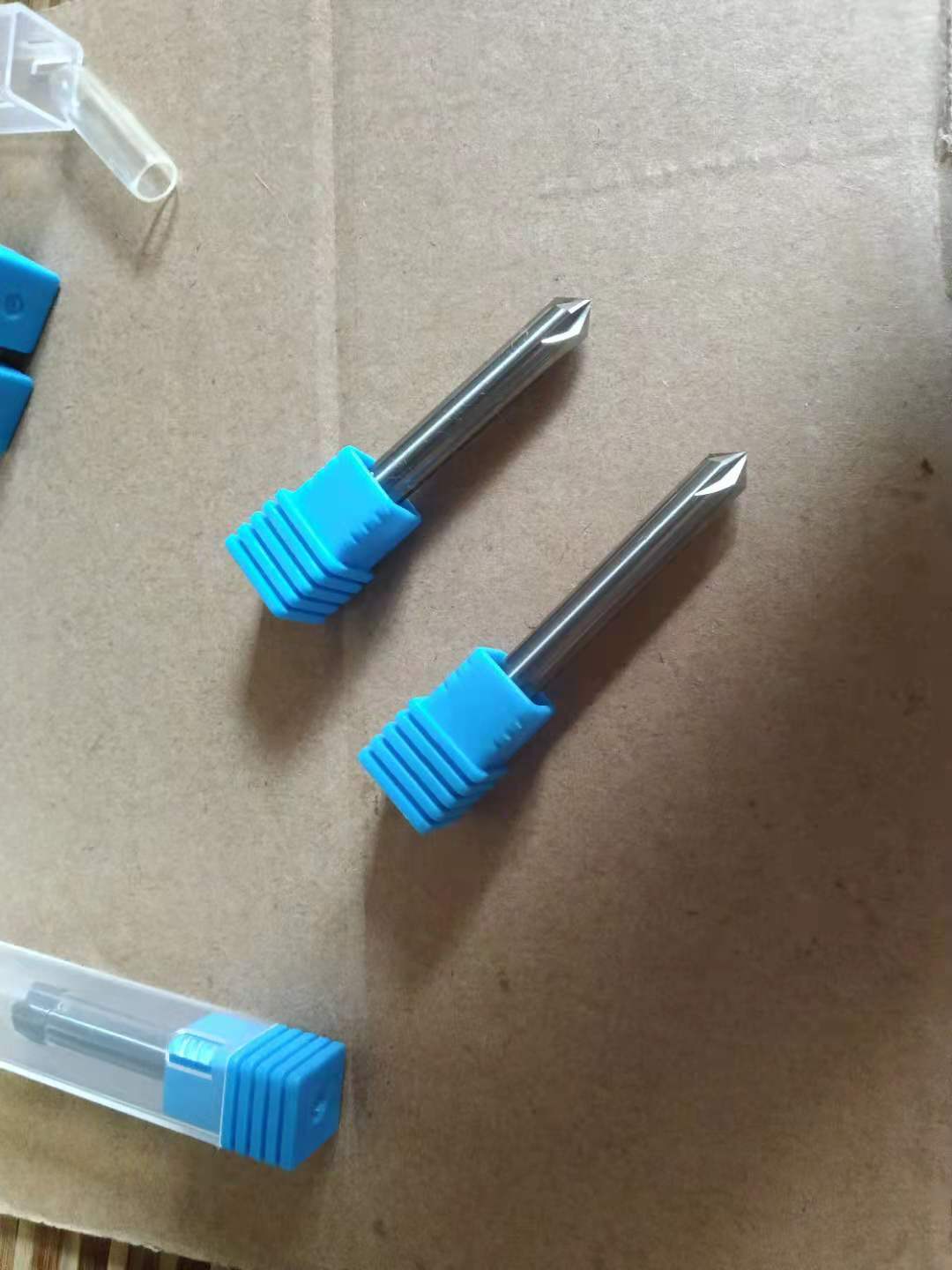

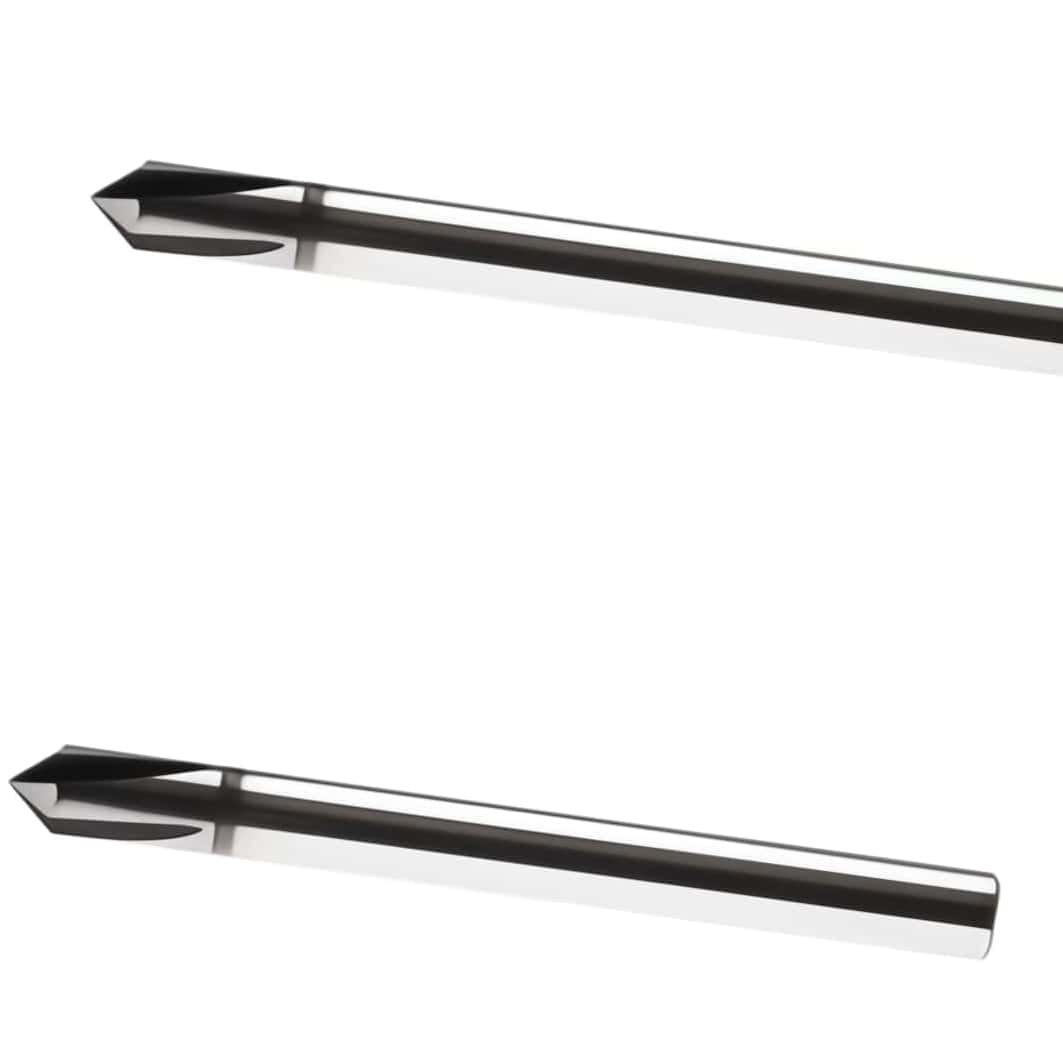

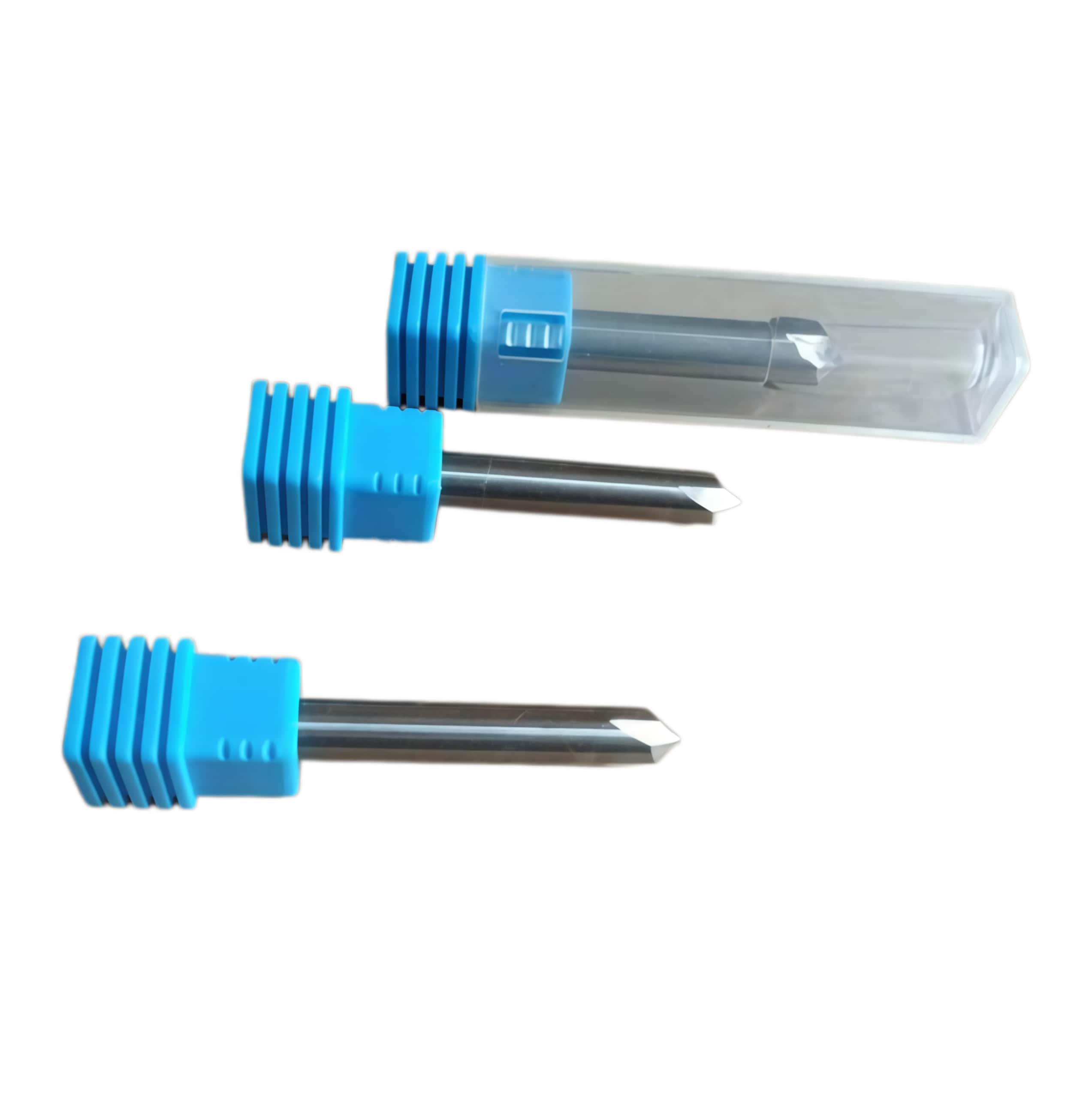

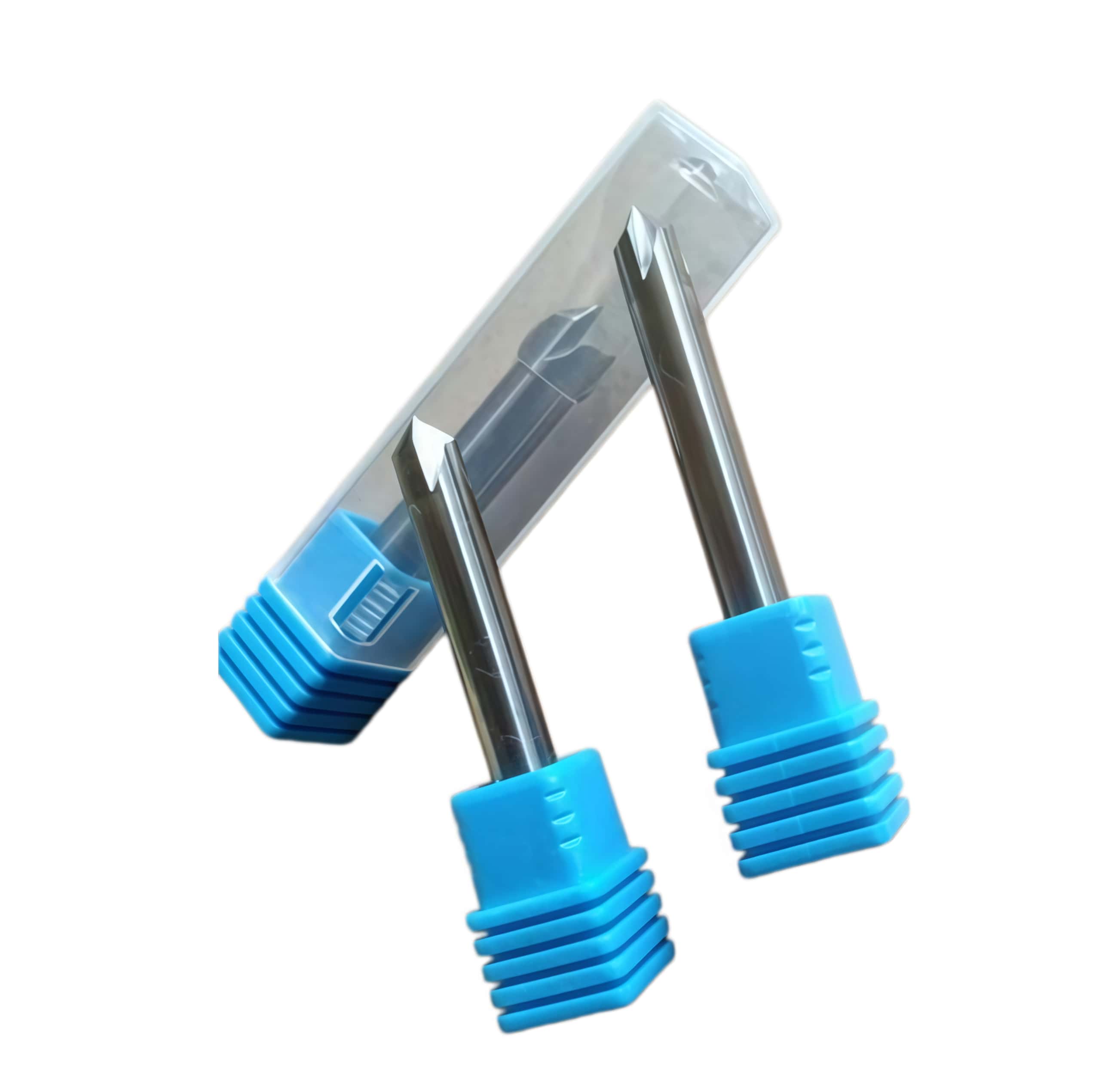

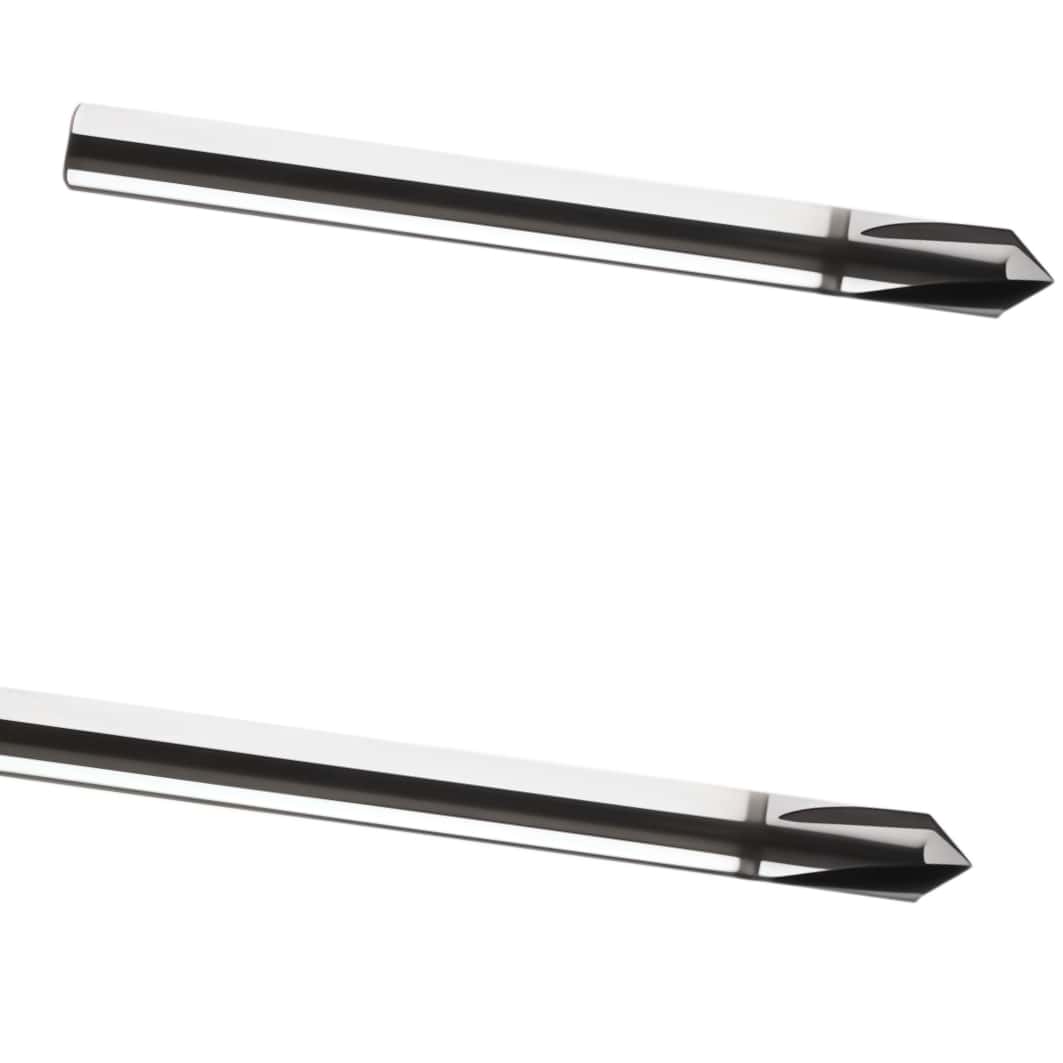

Esko Kongsberg Bit-Ebv06-90-4f G42459727 V-Groove Routing Bit

Esko Kongsberg BIT-EBV06-90-4F (Part Number: G42459727) is a premium, specialized carbide V-groove routing bit engineered exclusively for high-speed folding and precise milling applications on Kongsberg Precision Cutting Systems Enquire now

Description

Esko Kongsberg Bit-Ebv06-90-4f G42459727 V-Groove Routing Bit

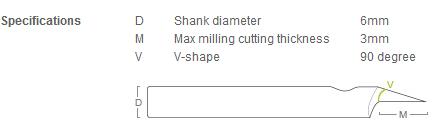

Technical Specifications
Part Number (ID): G42459727 / 42459727
Bit Model: BIT-EBV06-90-4F
Cutting V-Angle: 90° (45°* 2)
Flute Count: 4 Flutes (4F)
Shank Diameter: 6 mm
Cutting Edge Diameter: 6 mm
Maximum Milling Depth: 3 mm (0.118 inches)
Material Composition: Solid "Super" Carbide Steel Alloy

Key Features & Application
V-Fold Geometry: Built specifically to route flawless 90-degree creases. This geometry facilitates crisp folding lines in rigid materials.
Multi-Flute Design: Features 4 balanced flutes. The higher flute count yields superior material removal rates, minimises vibration, and ensures smooth edges.
Long Tool Life: Solid carbide composition delivers high heat resistance. The material maintains edge sharpness over extended production runs.
Target Materials: Optimised for processing aluminum composite materials (ACM), acrylics, rigid plastics, MDF, composite woods, and sign boards.
