Esko Kongsberg Milling & Router BIT-EBV06-120-4F(G42459735)

Kongsberg BIT-EBV06-120-4F,Kongsberg G42459735,Esko BIT-EBV06-120-4F,Esko G42459735,Esko Router Bits,Esko Bits,Kongsberg Router Bits,Kongsberg Milling Bits,Esko Milling Bits Enquire now

Description

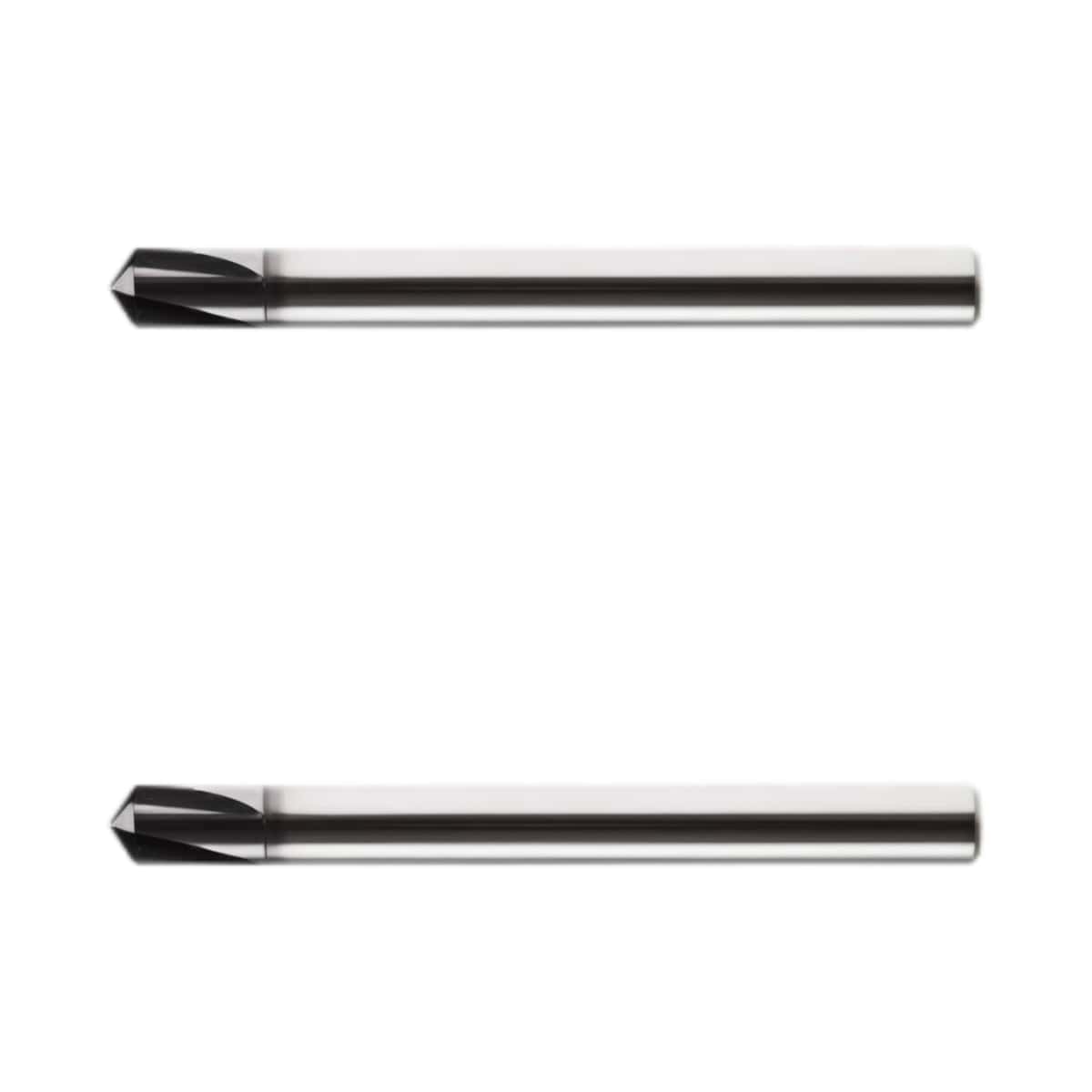

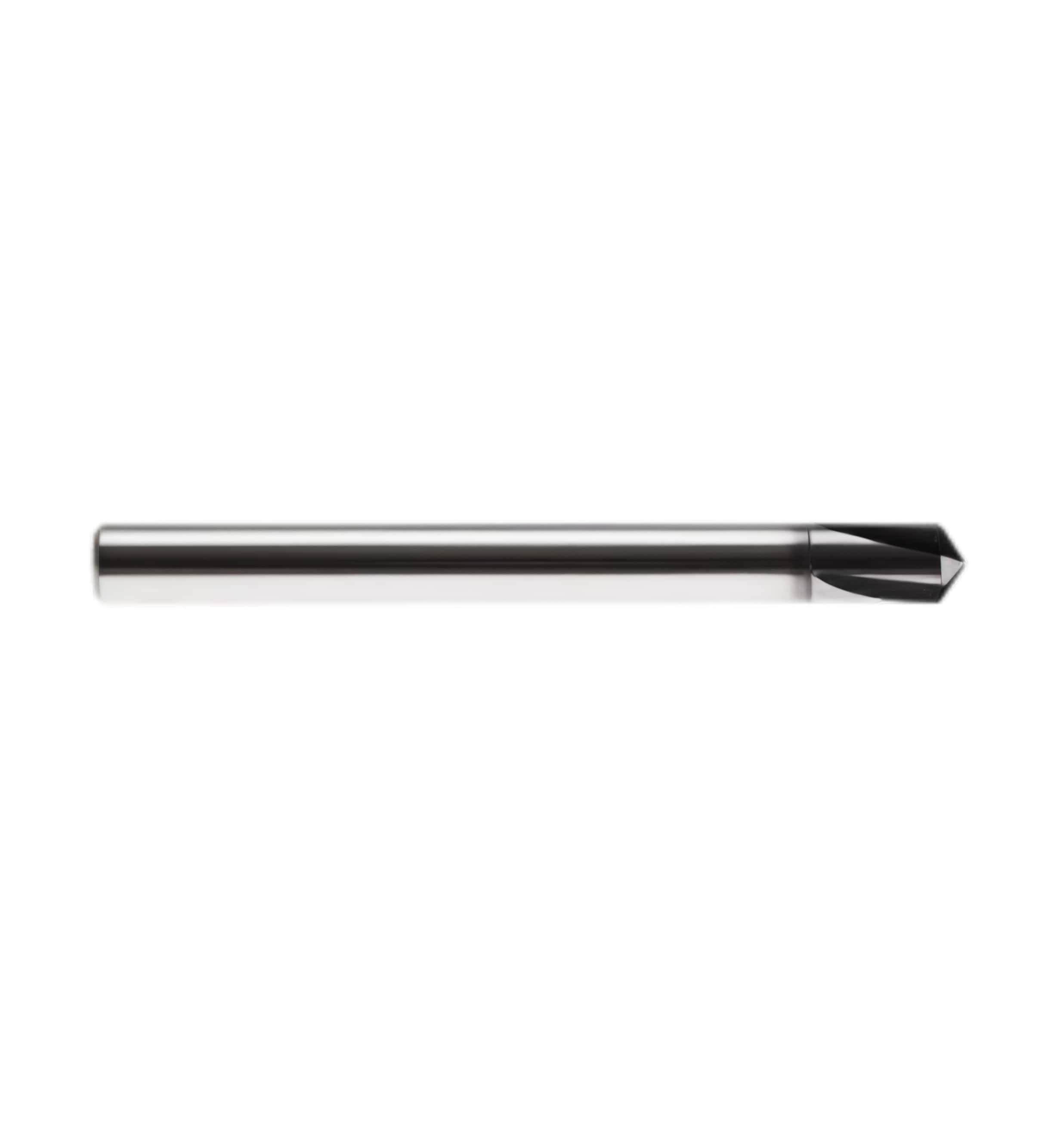

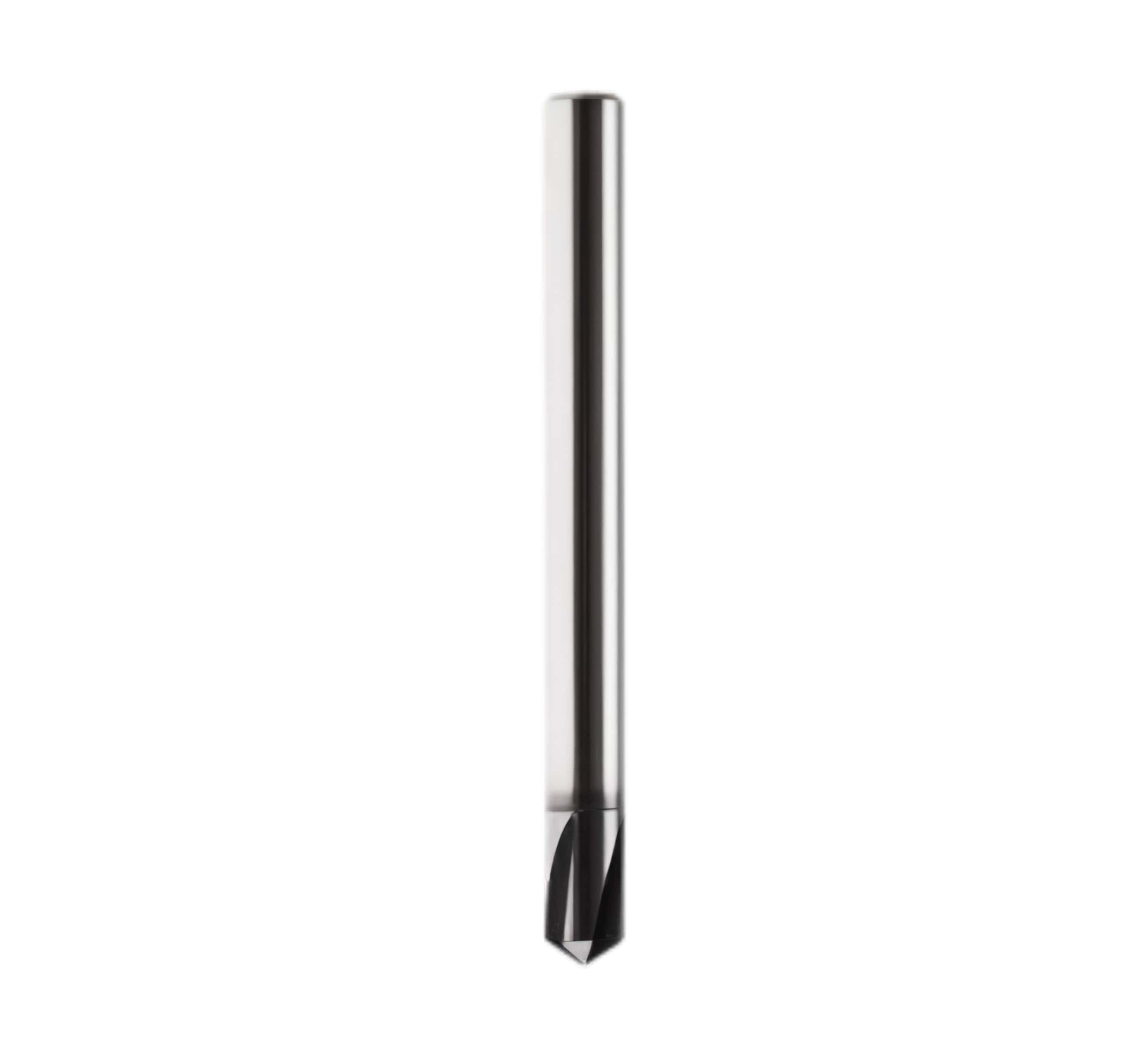

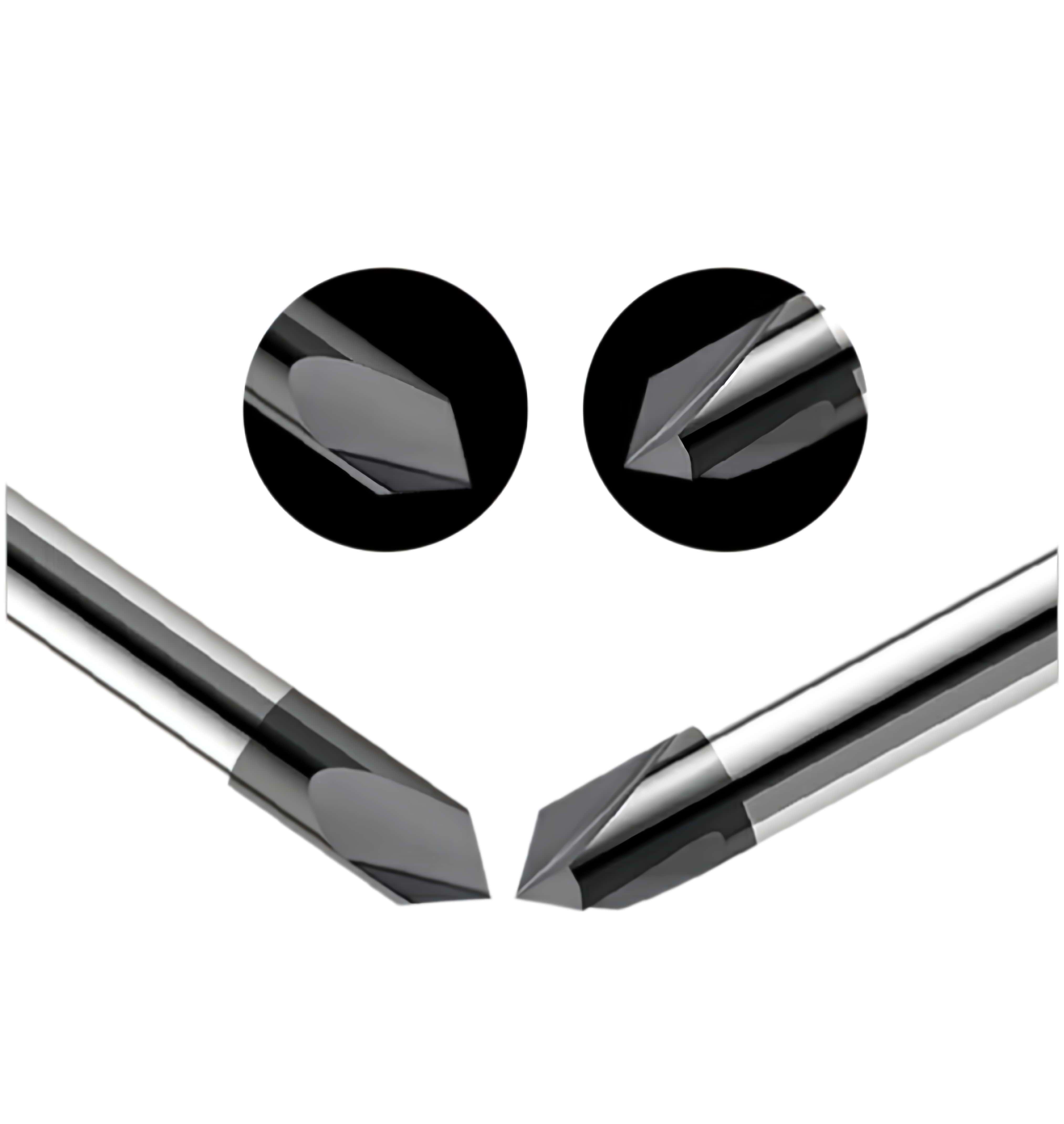

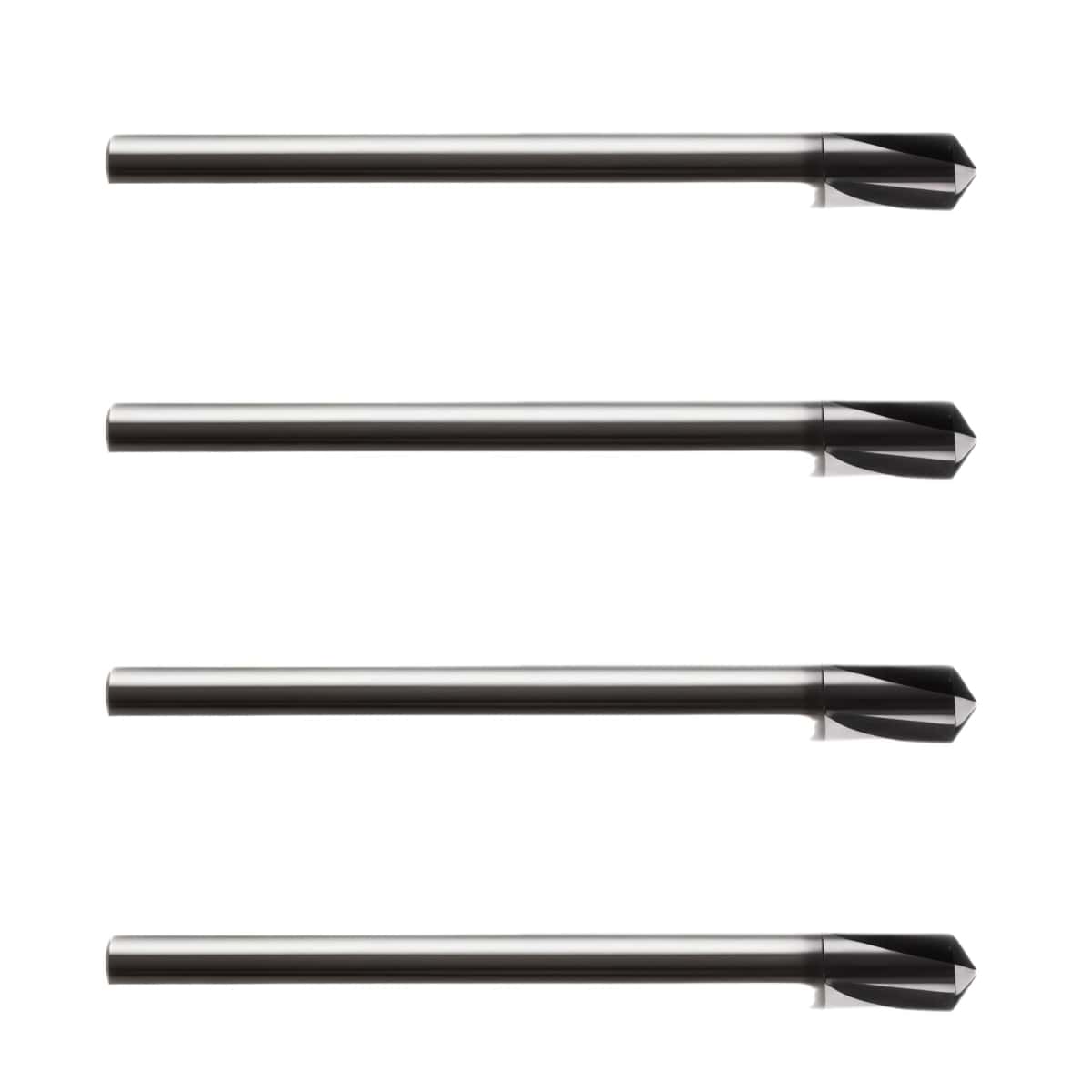

Esko/Kongsberg Milling & Router BIT-EBV06-120-4F(G42459735)

The BIT-EBV06-120-4F (Part Number: G42459735) is a high-speed, four-flute special purpose milling bit designed for Esko Kongsberg precision cutting systems. It is primarily used as a folding tool for creating precise 120-degree grooves in materials like grey board and similar substrates.

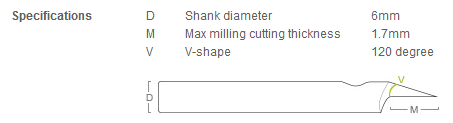

Key Specifications
V-Shape Angle: 120 degrees.
Number of Flutes: 4 (High-speed configuration).
Shank Diameter: 6.0 mm.
Max Milling/Cutting Thickness: 1.7 mm.
Material: Solid Tungsten Carbide for durability and wear resistance.
Total Length: 40 mm (Standard) or 65 mm in some Esko configurations.

Typical Applications
This bit is specifically engineered for:
Folding Grooves: Creating a 120° V-notch in grey board to allow for clean, precise folds in packaging and displays.
Engraving: Suitable for radius details and engraving tasks on materials such as acrylic and aluminum composite material (ACM).

Dimensions

0.6 x 0.6 x 6.5 cm

Weight

0.02 kg
