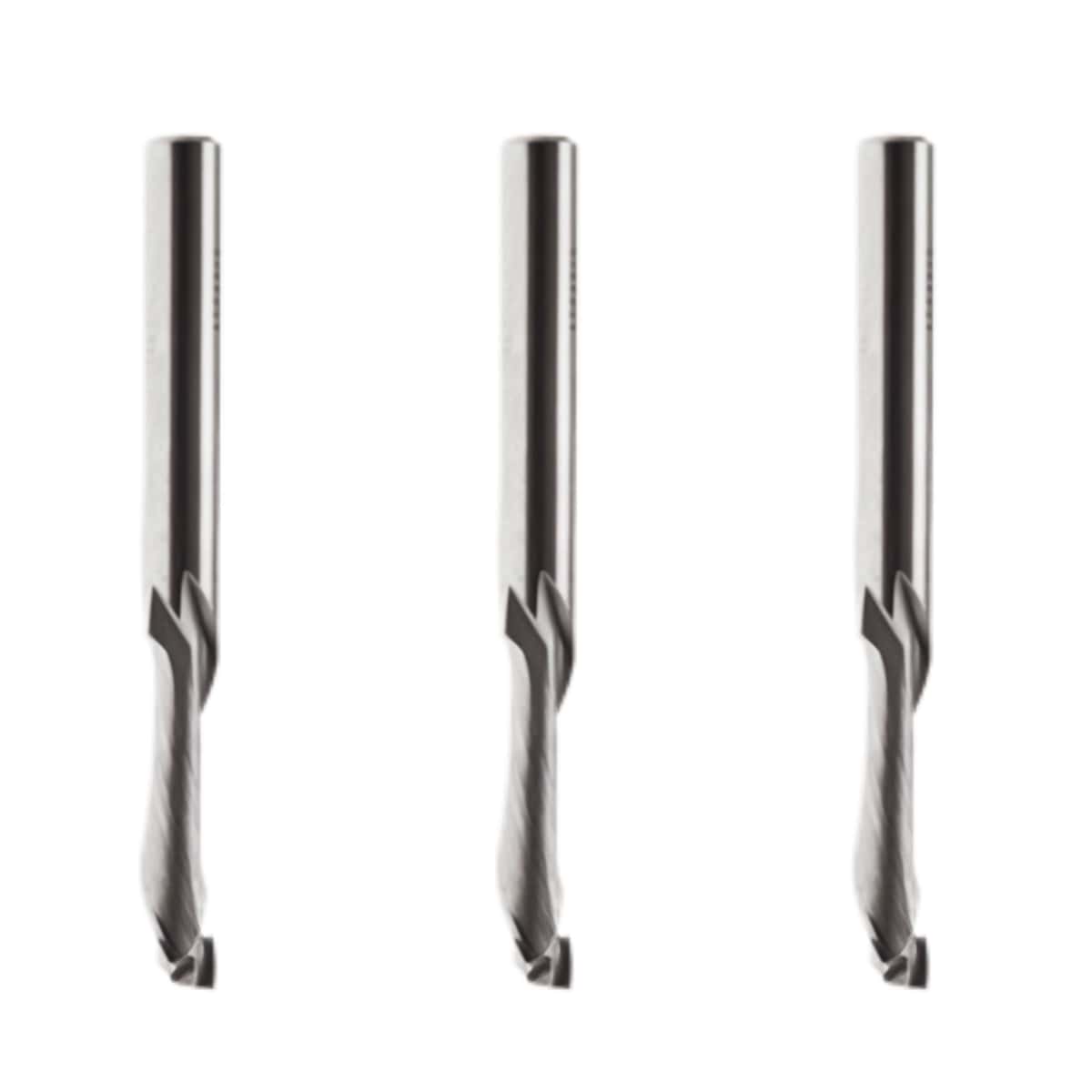

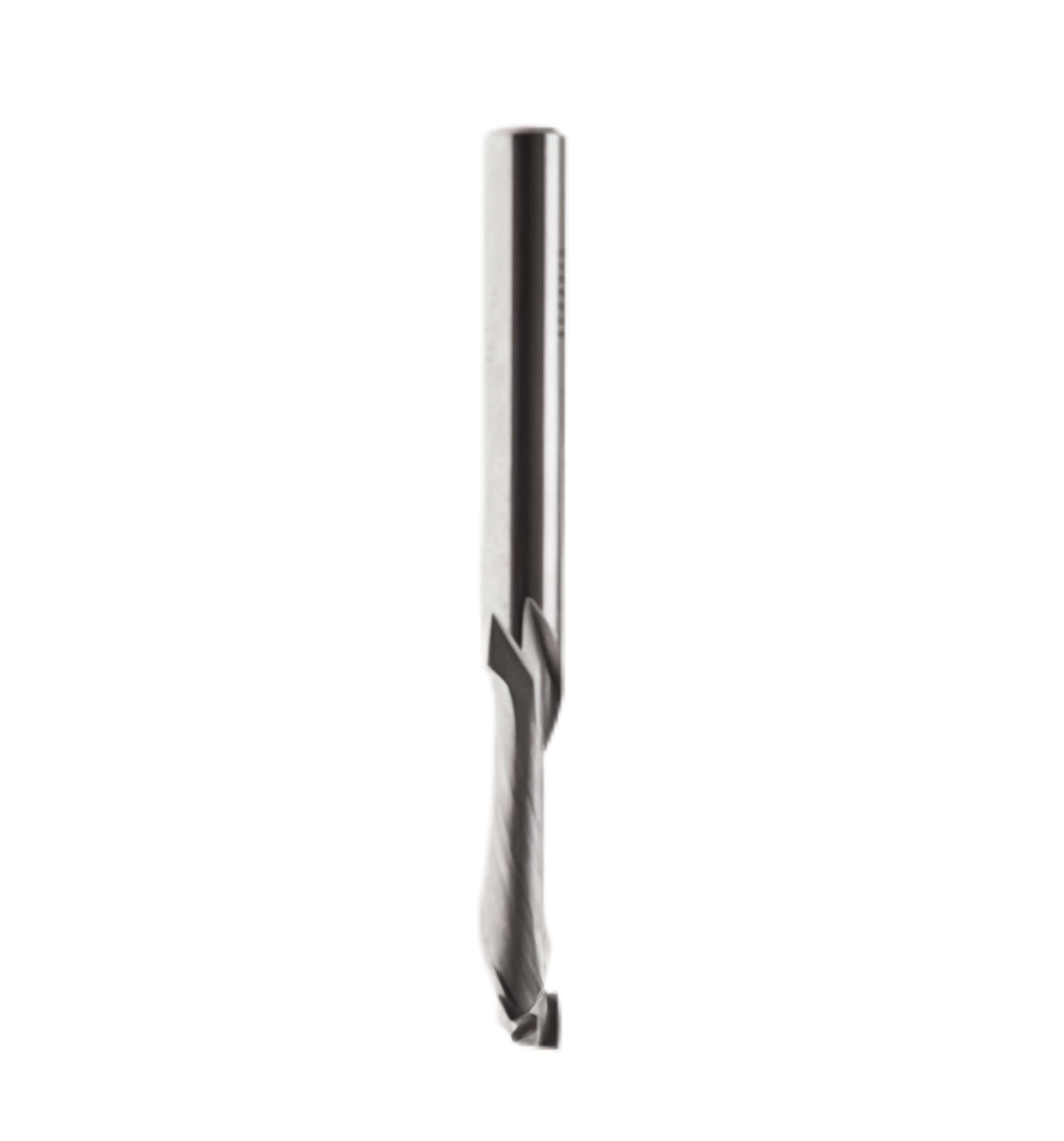

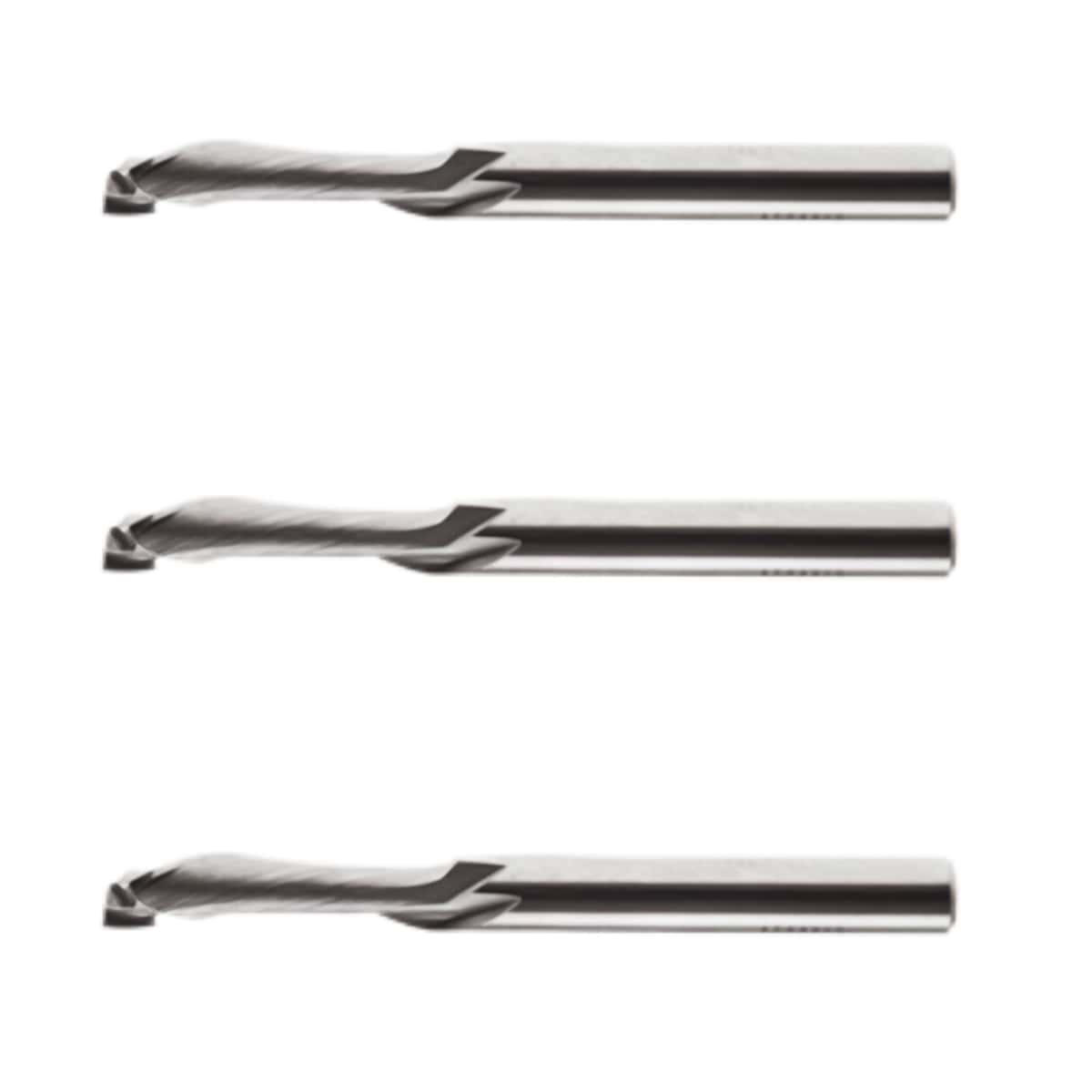

Esko Kongsberg Bit-Mcs06-6022-64 G42458786 Compression Milling Bit For Kongsberg Flatbed Cutters

Esko Kongsberg BIT-MCS06-6022-64 (G42458786) is a premium solid tungsten steel compression milling bit engineered for Kongsberg Precision Cutting Systems digital flatbed cutters. Known alternatively under the designator i-9152, this specialty tooling bit features opposing upward Enquire now

Description

Esko Kongsberg Bit-Mcs06-6022-64 G42458786 Compression Milling Bit For Kongsberg Flatbed Cutters

Key Technical Specifications

Part Number (ID): G42458786 (also categorized under Esko's premium tool matrices)
Shank Diameter: 6 mm (engineered for standard 6mm collets and tool chucks)
Cutting Edge Diameter: 6 mm
Maximum Cutting Depth: 22 mm
Total Tool Length: 64 mm
Flute Architecture: Compression (Up-cut at the tip, Down-cut near the shank)

Core Functional Advantages

Fray-Free Edges: The compression design forces material fibres downward at the top surface and upward at the bottom surface. This contains all forces within the center of the substrate to deliver smooth, burr-free finishes on both sides.
Enhanced Heat Dissipation: Engineered to minimize heat build-up when processing dense boards, significantly reducing the risk of melting or edge scorching on complex tool paths.
Extended Service Life: Fabricated from ultra-micrograin tungsten carbide, providing maximum wear resistance against highly abrasive materials compared to traditional high-speed steels.

Target Applications & Materials

This specialized milling bit is highly optimized for routing double-sided laminate, veneered wood composites, plywood, MDF, and complex multilayer sandwich panels.

Hardware Compatibility

The bit interfaces seamlessly with Kongsberg digital cutting tables utilizing the following tool modules:

High-Power Milling Unit (HPMU): The 3 kW fluid-cooled milling spindle running up to 60,000 RPM.
MultiCUT / MultiCUT-HP Heads: Standard production heads utilizing specialized 6mm chuck adapters.
