Esko/Kongsberg Milling & Router BIT-MSD06-6022-64(i-6432)(G42458794)
Kongsberg BIT-MSD06-6022-64,Kongsberg G42458794,Esko BIT-MSD06-6022-64,Esko G42458794,Esko Router Bits,Esko Bits,Kongsberg Router Bits,Kongsberg Milling Bits,Esko Milling Bits
Enquire now
Esko/Kongsberg Milling & Router BIT-MSD06-6022-64(i-6432)(G42458794)
Key Specifications
This bit follows Esko's standard 6mm shank architecture, commonly utilized in the High-Power Milling Unit or MultiCUT-HP tool heads.
Part Number: G42458794
Model Number: MSD06-6022-64 (also referred to as i-6432)
Shank Diameter: 6 mm
Cutting Edge Diameter: 6 mm
Cutting Depth (Max): Approx. 22–26 mm (approx. 1 inch)
Total Length: 64 mm
Geometry: 2-flute, straight flute
Material: "Super" Carbide (Tungsten Steel)
Recommended Materials
This specific bit is optimized for substrates that require a clean edge without the upward or downward force of a spiral flute. Common applications include:
Extruded Polystyrene: Gatorplast, Ultraboard, and Kappa.
Rigid Display Materials: Foamed PVC (Forex/Sintra), polycarbonate, and expanded PVC.
Signage Substrates: Aluminum Composite Material (ACM/Dibond) and acrylic.
Wood Products: MDF and thin plywood.
***Esko/Kongsberg Knives
***Esko/Kongsberg Conveyor belts/Cutting Underlay

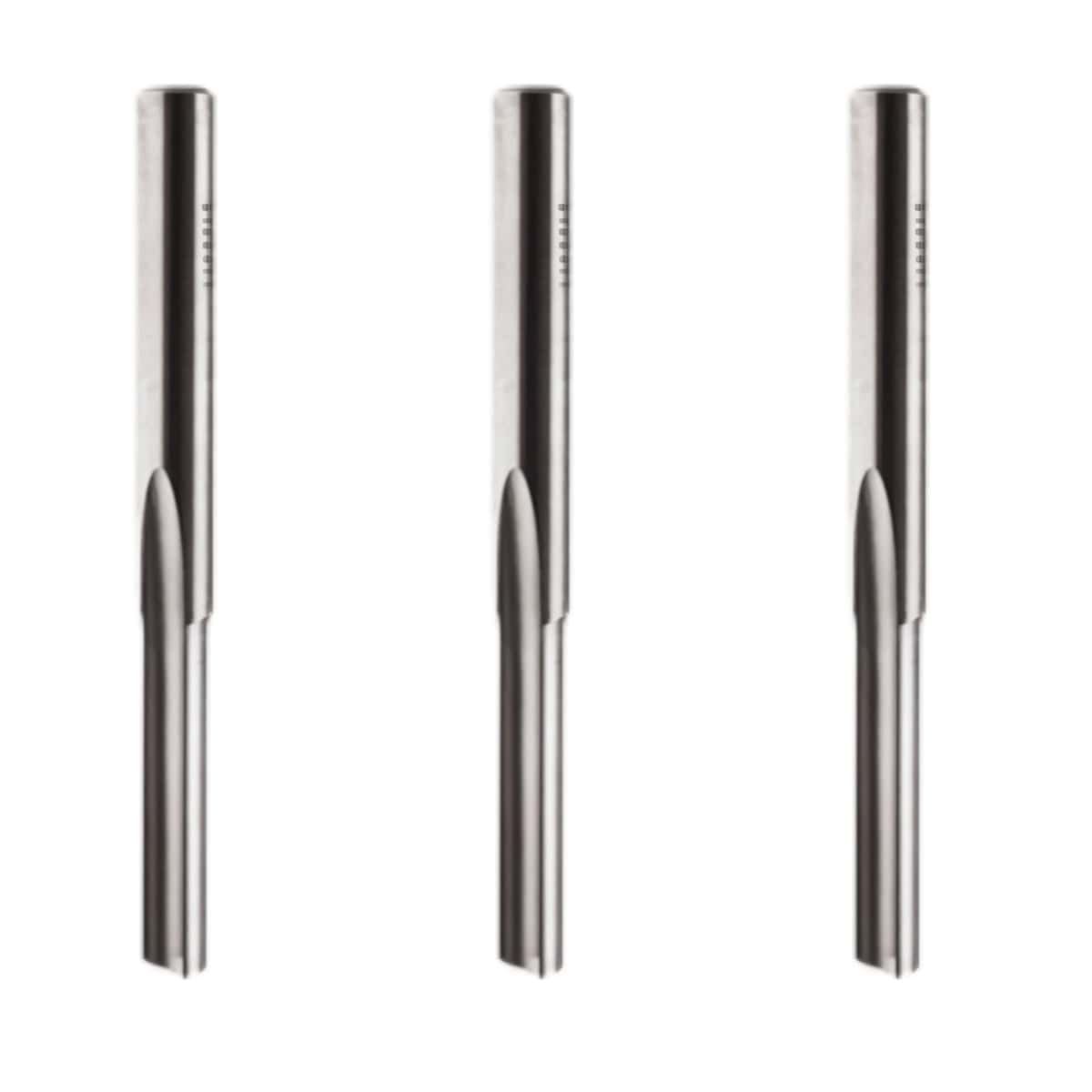

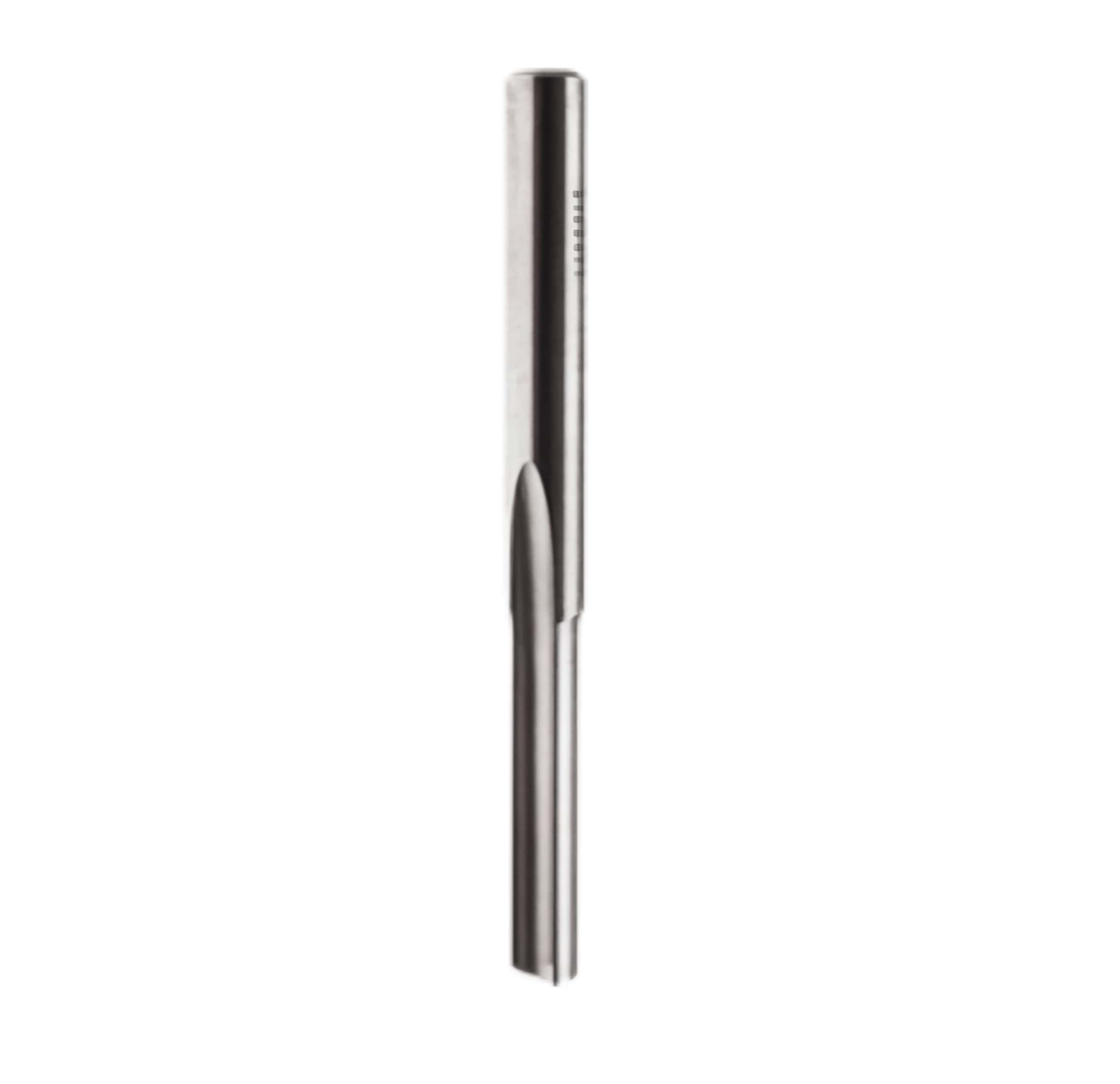

The BIT-MSD06-6022-64 (i-6432) is a specialty milling bit designed for Esko Kongsberg digital cutting tables. It is primarily used for straight flute through-cutting and routing applications in lightweight, rigid materials.
Key Specifications
This bit follows Esko's standard 6mm shank architecture, commonly utilized in the High-Power Milling Unit or MultiCUT-HP tool heads.
Part Number: G42458794
Model Number: MSD06-6022-64 (also referred to as i-6432)
Shank Diameter: 6 mm
Cutting Edge Diameter: 6 mm
Cutting Depth (Max): Approx. 22–26 mm (approx. 1 inch)
Total Length: 64 mm
Geometry: 2-flute, straight flute
Material: "Super" Carbide (Tungsten Steel)
Recommended Materials
This specific bit is optimized for substrates that require a clean edge without the upward or downward force of a spiral flute. Common applications include:
Extruded Polystyrene: Gatorplast, Ultraboard, and Kappa.
Rigid Display Materials: Foamed PVC (Forex/Sintra), polycarbonate, and expanded PVC.
Signage Substrates: Aluminum Composite Material (ACM/Dibond) and acrylic.
Wood Products: MDF and thin plywood.
OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Tel:+86-0769-88014625
Phone Number:+86-18823852826
Email: info@china-oyea.com
1659590865@qq.com
Web: www.china-oyea.com
We warmly welcome every customer to send us drawings for making customized product. Contact with us ,you will get more than what you can !
