Esko/Kongsberg Milling & Router BIT-RBO06-04(G34092429)
Kongsberg BIT-RBO06-04,Kongsberg G34092429,Esko BIT-RBO06-04,Esko G34092429,Esko Router Bits,Esko Bits,Kongsberg Router Bits,Kongsberg Milling Bits,Esko Milling Bits Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Esko/Kongsberg Milling & Router BIT-RBO06-04(G34092429)

Code
G34092429
Recommended use
Used for rounding sharp outside corners with a 4mm radius. Works fine in a large range of materials.
Specifications
D Shank diameter 6mm
M Max milling cutting thickness 4mm
Dimensions
1 x 1 x 5 cm
Weight
0.022 kg

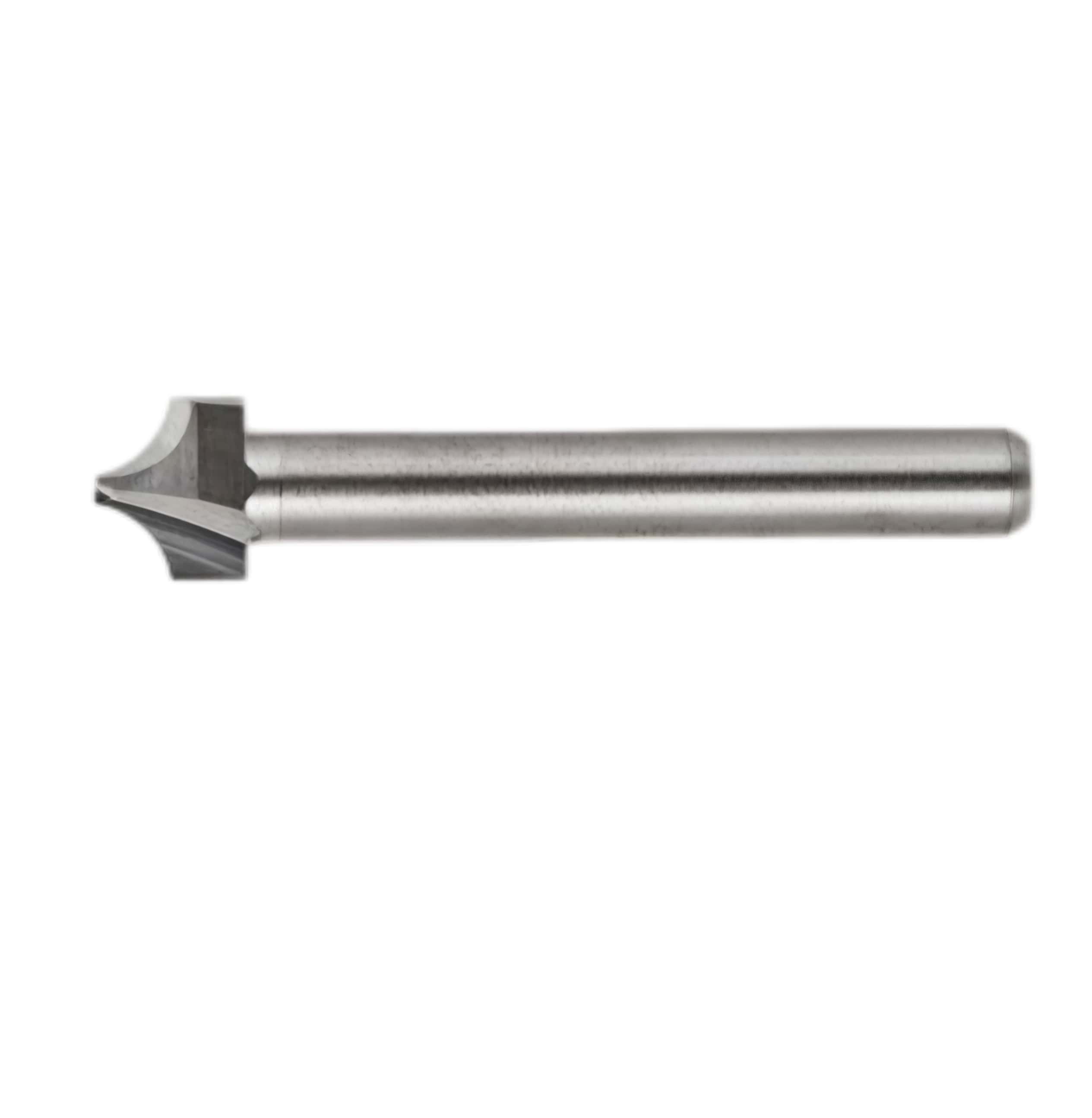

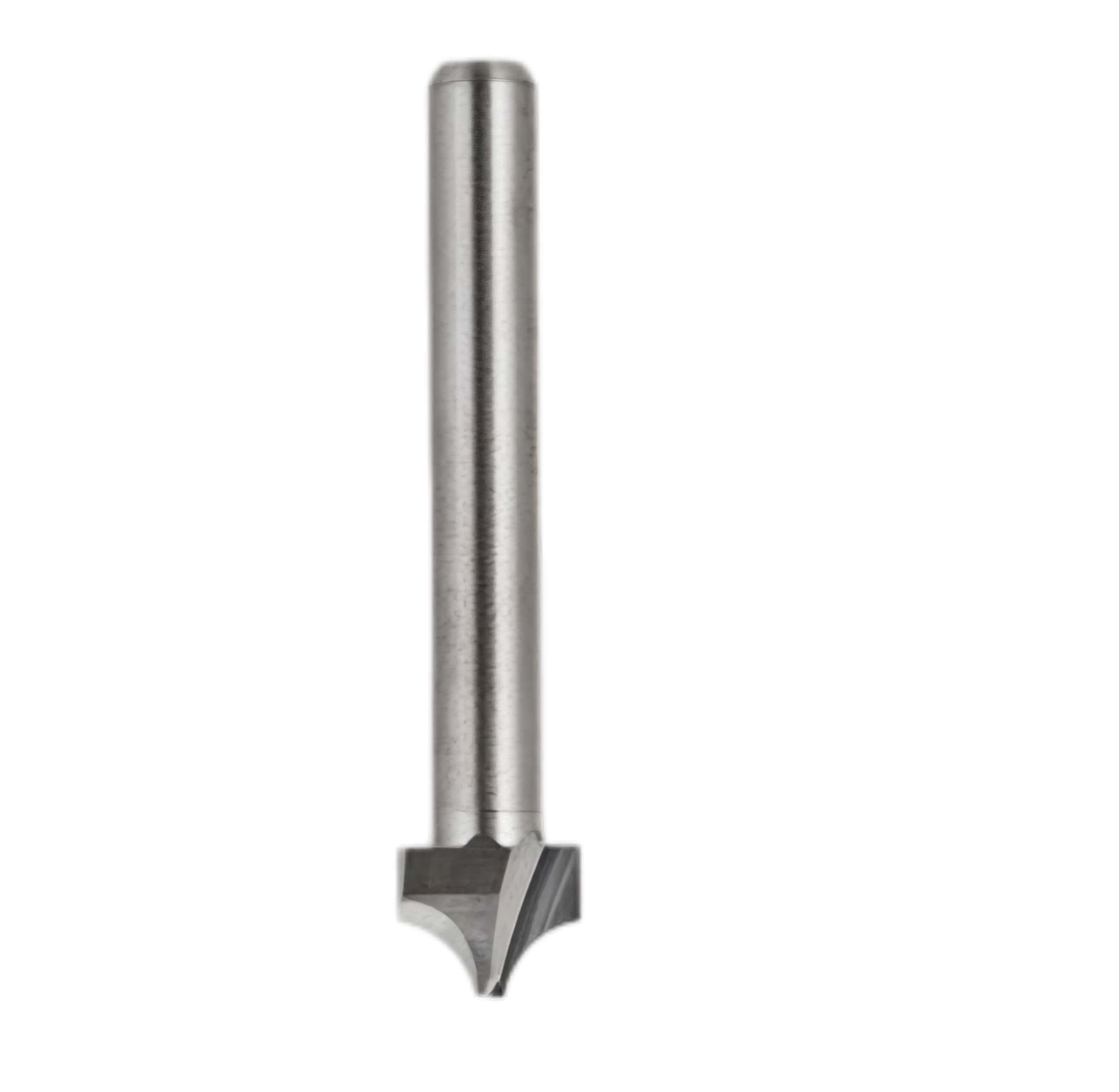

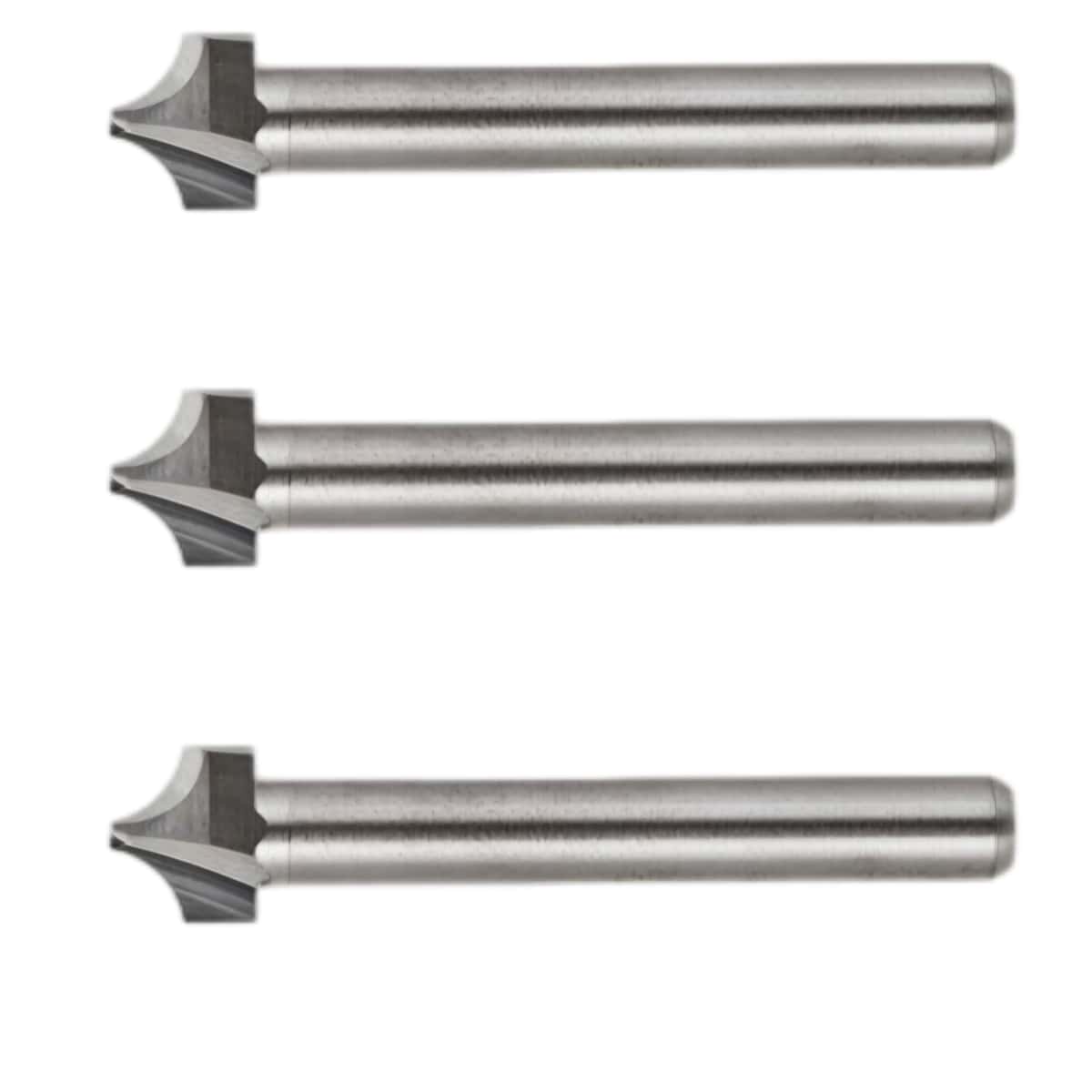

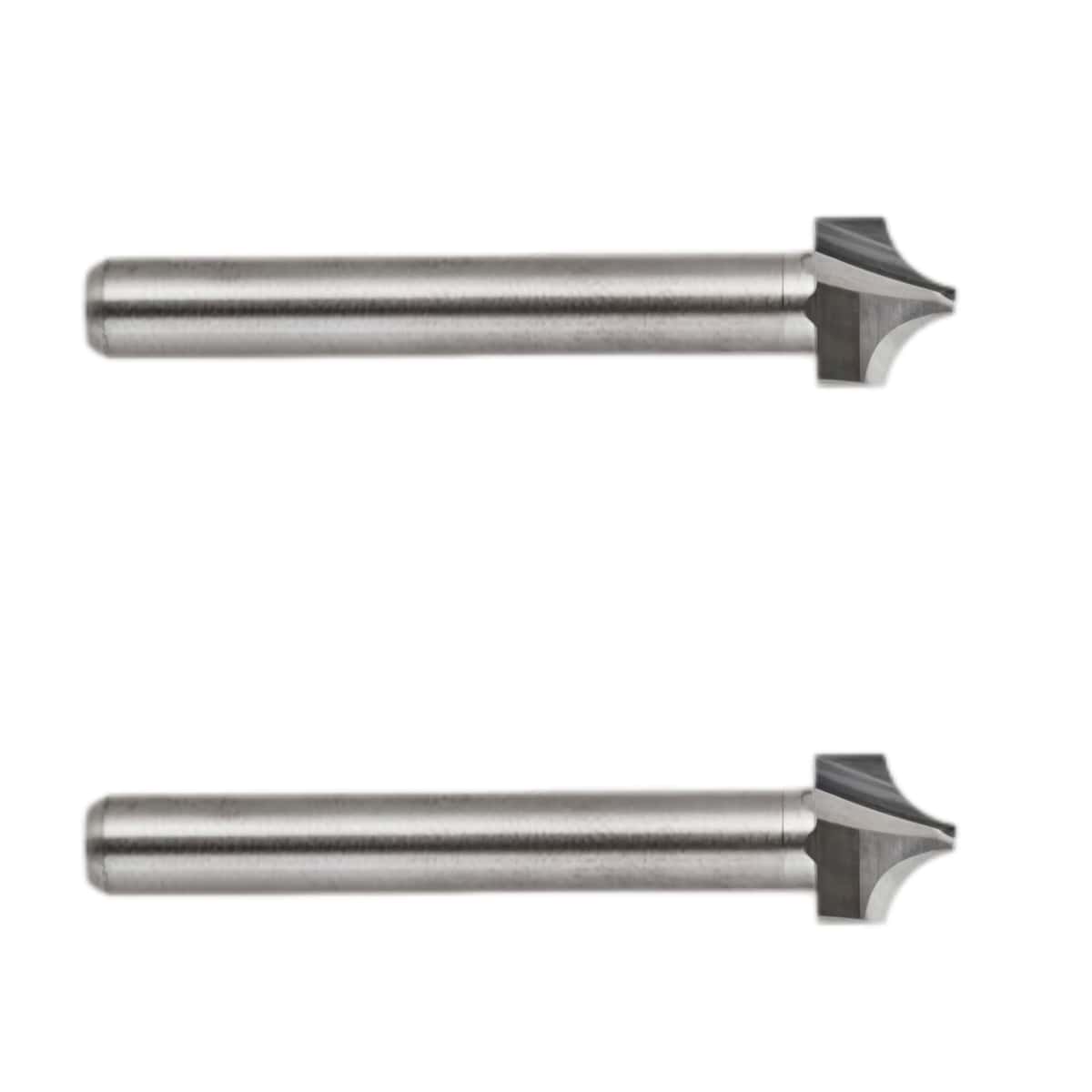

The Esko/Kongsberg BIT-RBO06-04 (part number G34092429) is a specialized 6mm shank radius milling bit designed for rounding corners and chamfering on Kongsberg digital cutting tables.

Technical Specifications
According to official and distributor documentation, the primary specs for this bit are:
Shank Diameter: 6mm
Max Milling Thickness: 4mm
Total Length: 50mm
Geometry: Radius bit (R4 mm) with 2 flutes.

Primary Applications
This bit is primarily used for rounding sharp outside corners or creating chamfers on rigid substrates.
Recommended Materials: It is highly effective for acrylic panels (PMMA) and other rigid plastics.
Compatibility: It is standard for use with Kongsberg High-Power Milling Units or MultiCUT-HP tool heads found on Kongsberg X and C series tables.

Related Tooling
If your project involves thicker materials or different edge profiles, you might consider these related bits in the same series:
BIT-RBO06-4-6: Designed for 4mm to 6mm material thickness.
BIT-RBO06-6-8: For materials 6mm to 8mm thick.
BIT-RBO06-12-14: Used for rounding corners on heavy-duty materials with a thickness of 12mm to 14mm.
