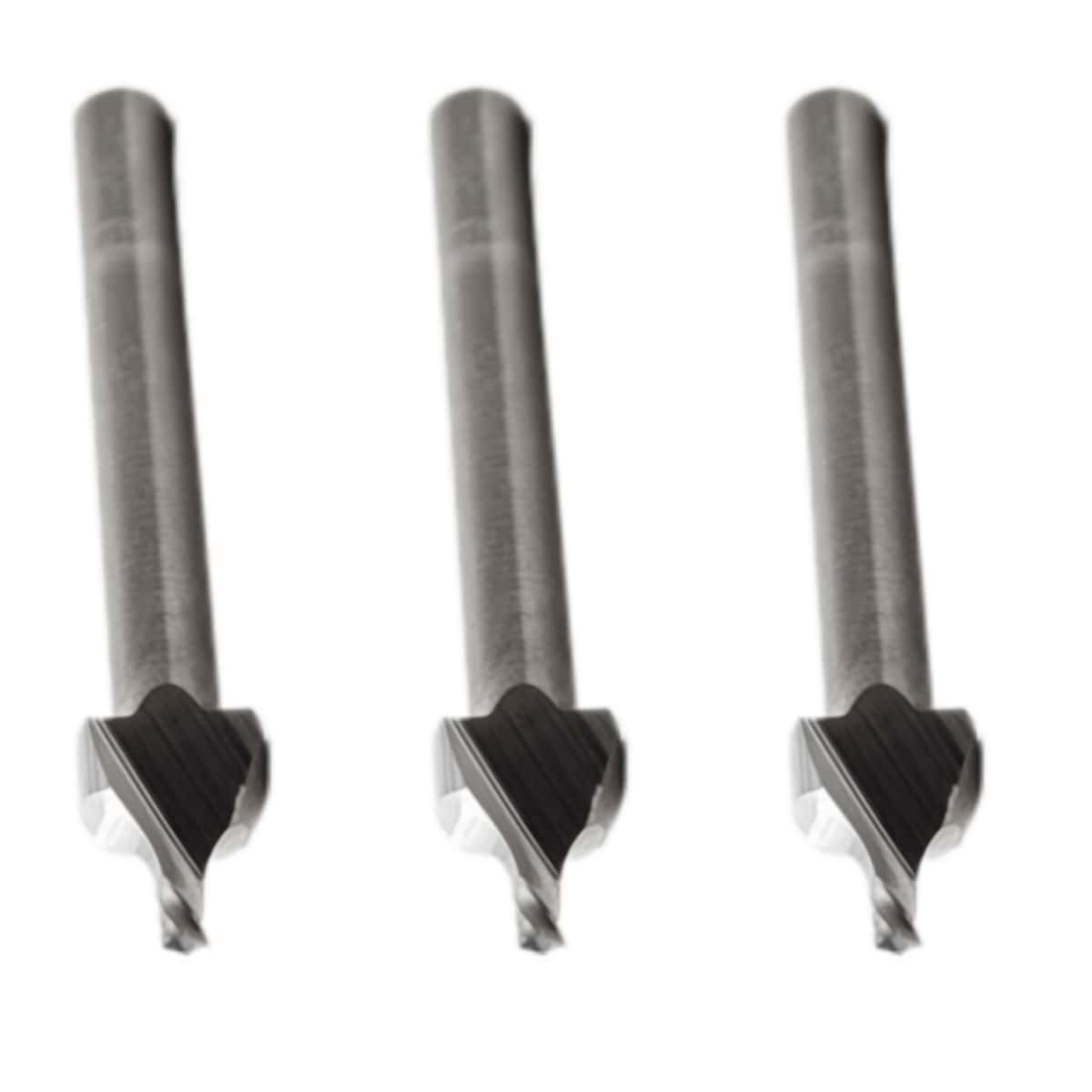

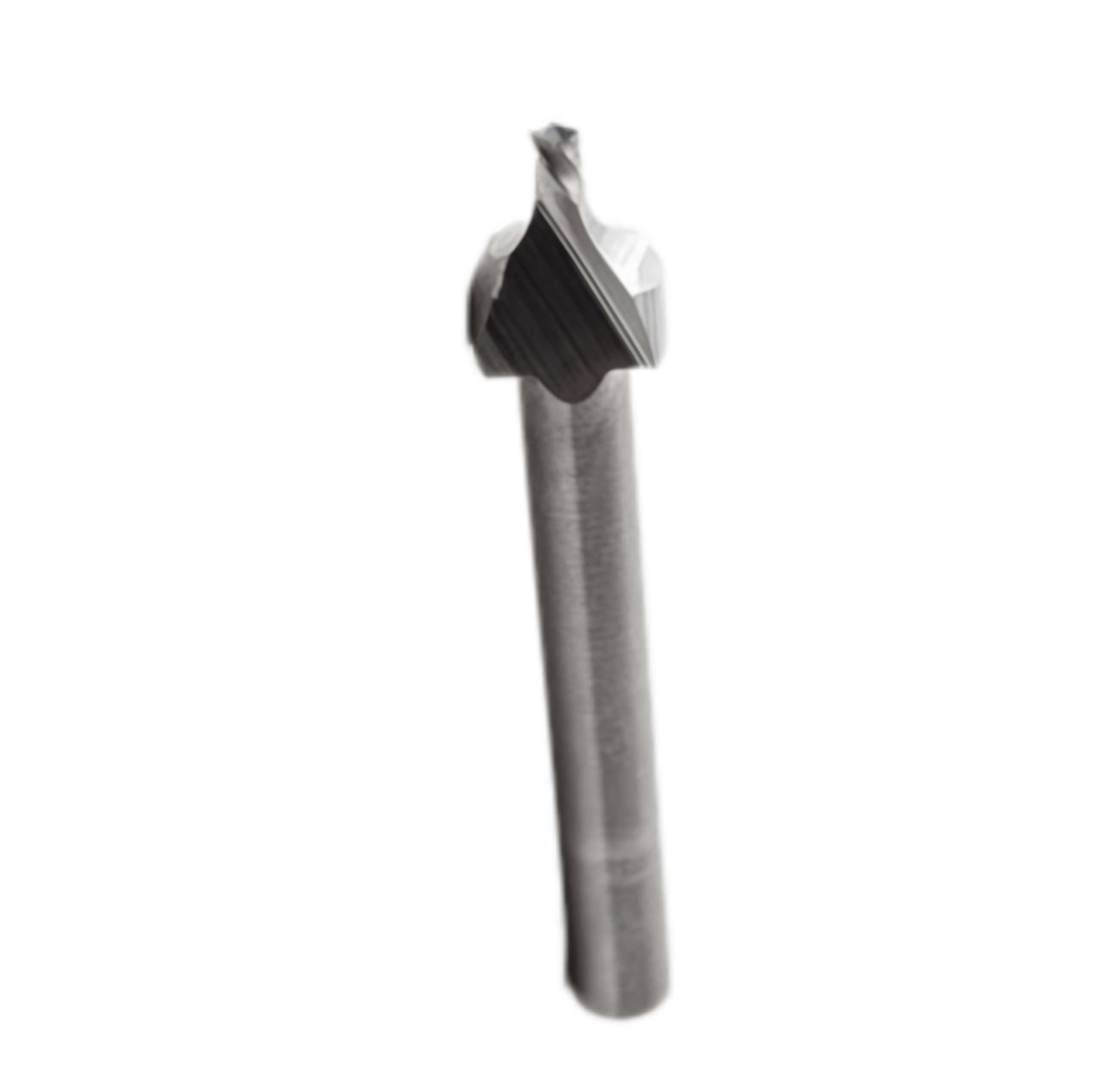

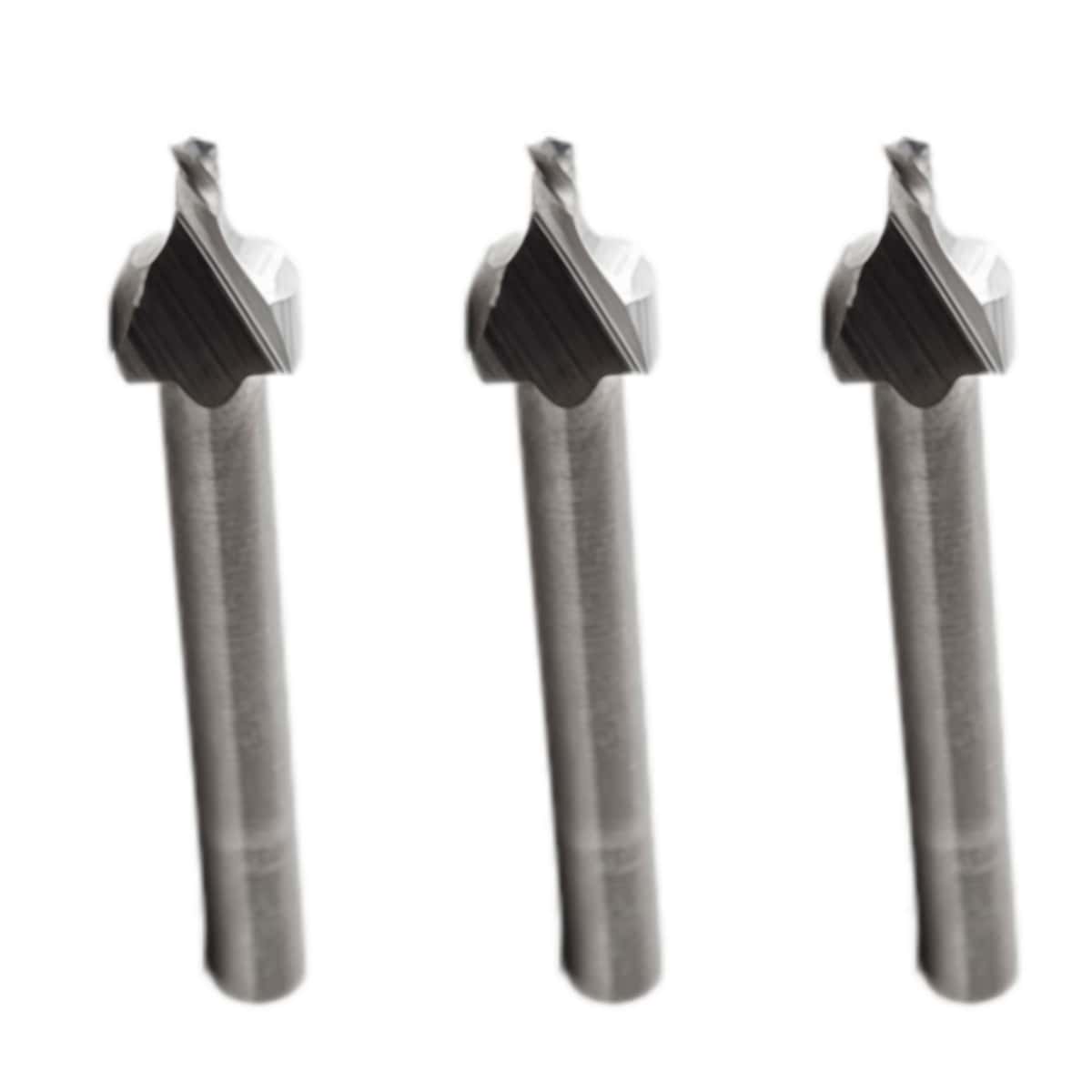

Esko Kongsberg Bit-Rbo06-6-8 G34111575 Milling Router Bit For Kongsberg Cutting Systems

Esko Kongsberg BIT-RBO06-6-8 (G34111575) is a highly specialized, industrial 6mm shaft milling and router bit manufactured for Kongsberg Precision Cutting Systems (formerly part of Esko). It belongs to the RBO series, which features professional-grade single-flute or radius geometries optimized for … Enquire now

Description

Esko Kongsberg Bit-Rbo06-6-8 G34111575 Milling Router Bit For Kongsberg Cutting Systems

Esko Kongsberg Bit-RBO06-6-8 (OEM Part Number G34111575) is a specialized, industrial-grade solid tungsten carbide radius formatting/rounding router bit. It is precision-engineered for use with high-speed tool heads like the High-Power Milling Unit (HPMU) and MultiCUT heads on Kongsberg Precision Cutting Systems digital flatbed tables.

Technical Specifications

Product Code: BIT-RBO06-6-8
OEM Part Number: G34111575
Shaft/Shank Diameter: 6.0 mm
Cutting Type: Radius Bolt-On / Corner Rounding
Flute Geometry: Single Flute configuration optimized for chips clearance
Material: Micrograin Tungsten Carbide for enhanced wear resistance

Applications & Material Compatibility

The "RBO" series bits are typically designated as special-purpose radius bits designed to create clean, rounded profiling on outer edges or custom contours rather than straight plunge routing.

Target Processes: Edge-profiling, rounding sharp outside corners, and executing smooth border contours.
Compatible Materials: Works with rigid or semi-rigid substrates processed on CNC tables, including acrylics, foam boards (Forex/Sintra), wood, MDF, and Aluminum Composite Materials (ACM/Dibond).

Operational Recommendations

Bit Swapping: Always engage the machine's air collet chuck system via the safety switch during a tool change. Ensure the bit is gripped cleanly at its 6mm shoulder.
Calibration: Execute an Automatic Tool Leveling (ATL) cycle immediately after installation to protect the router matrix underlayment and guarantee accurate milling depth.
