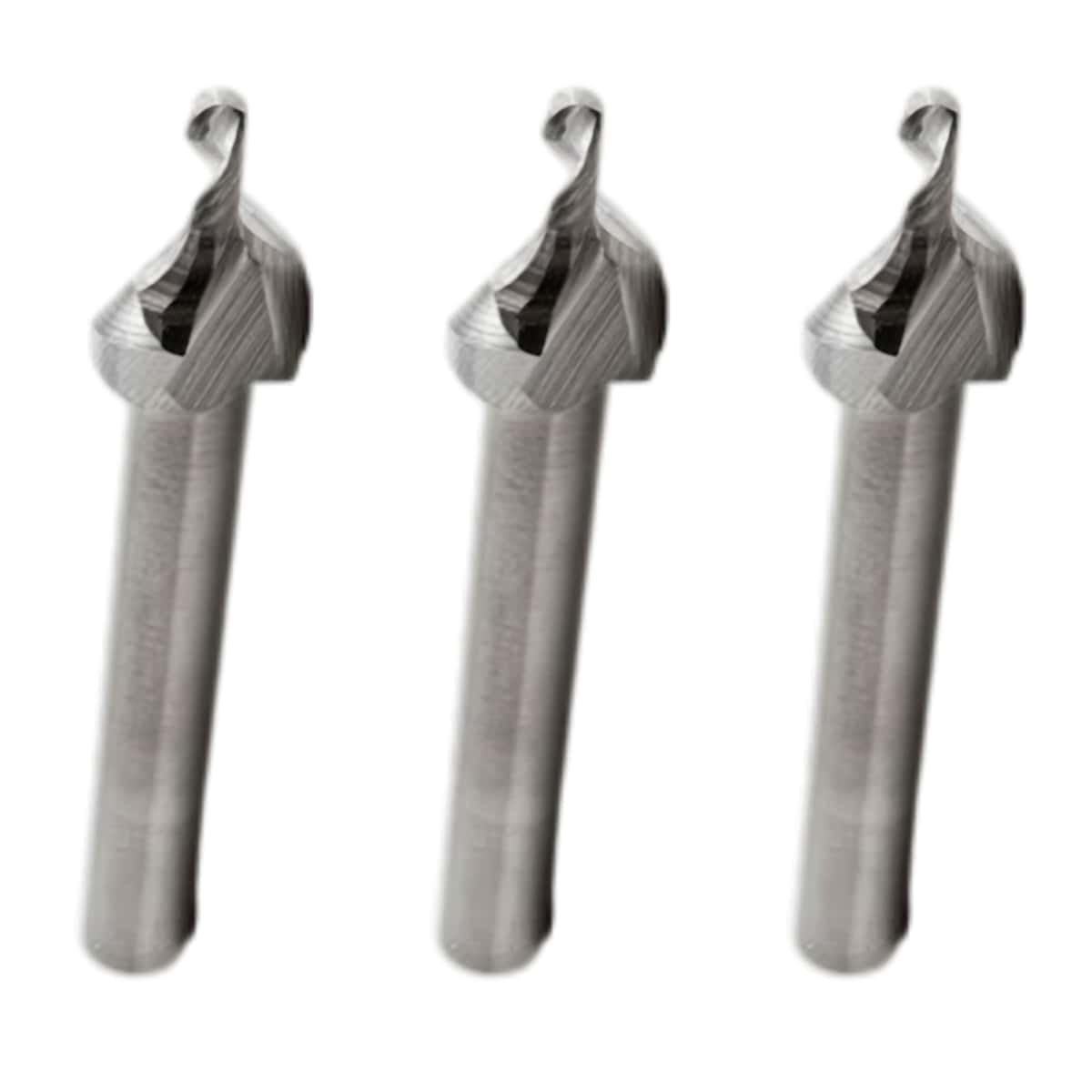

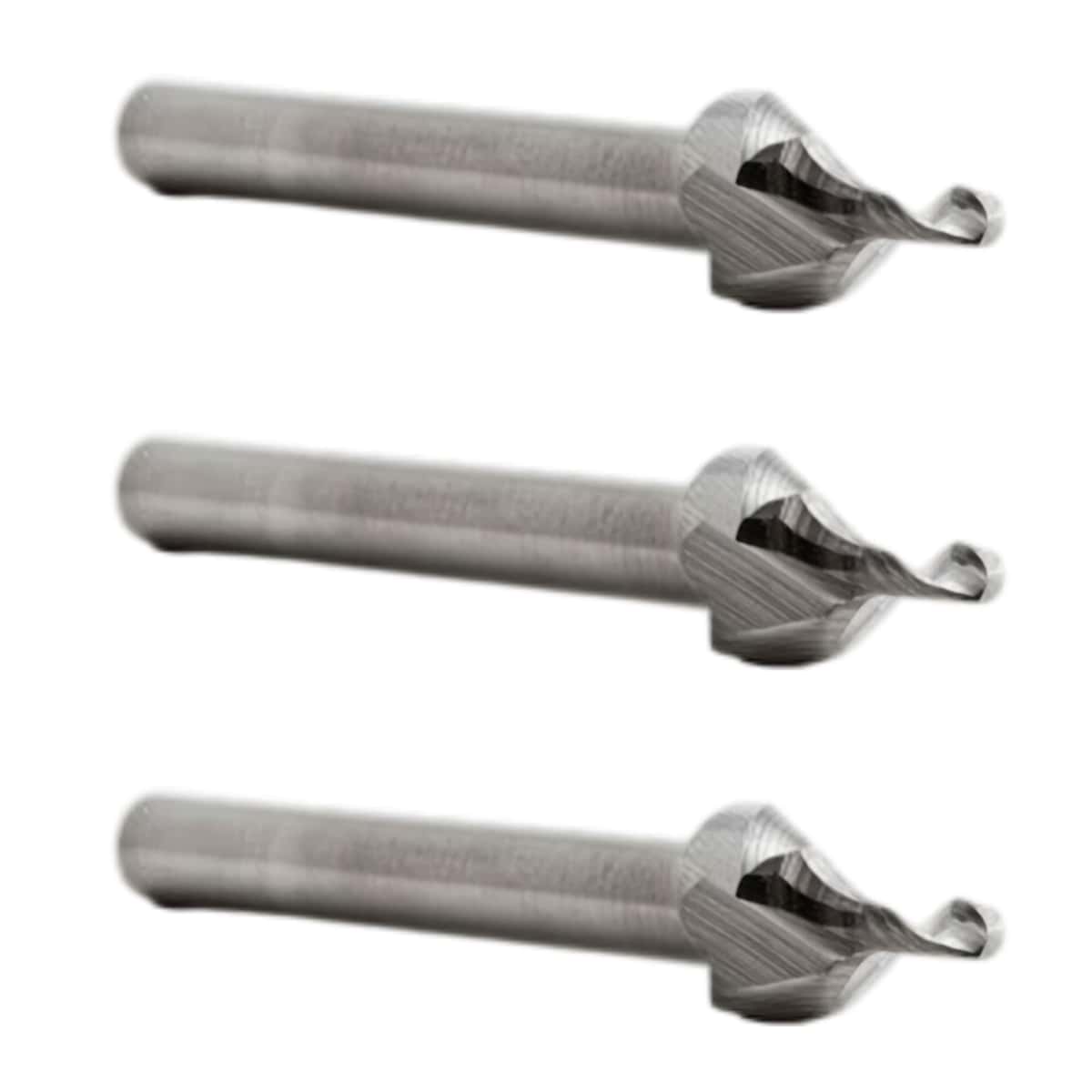

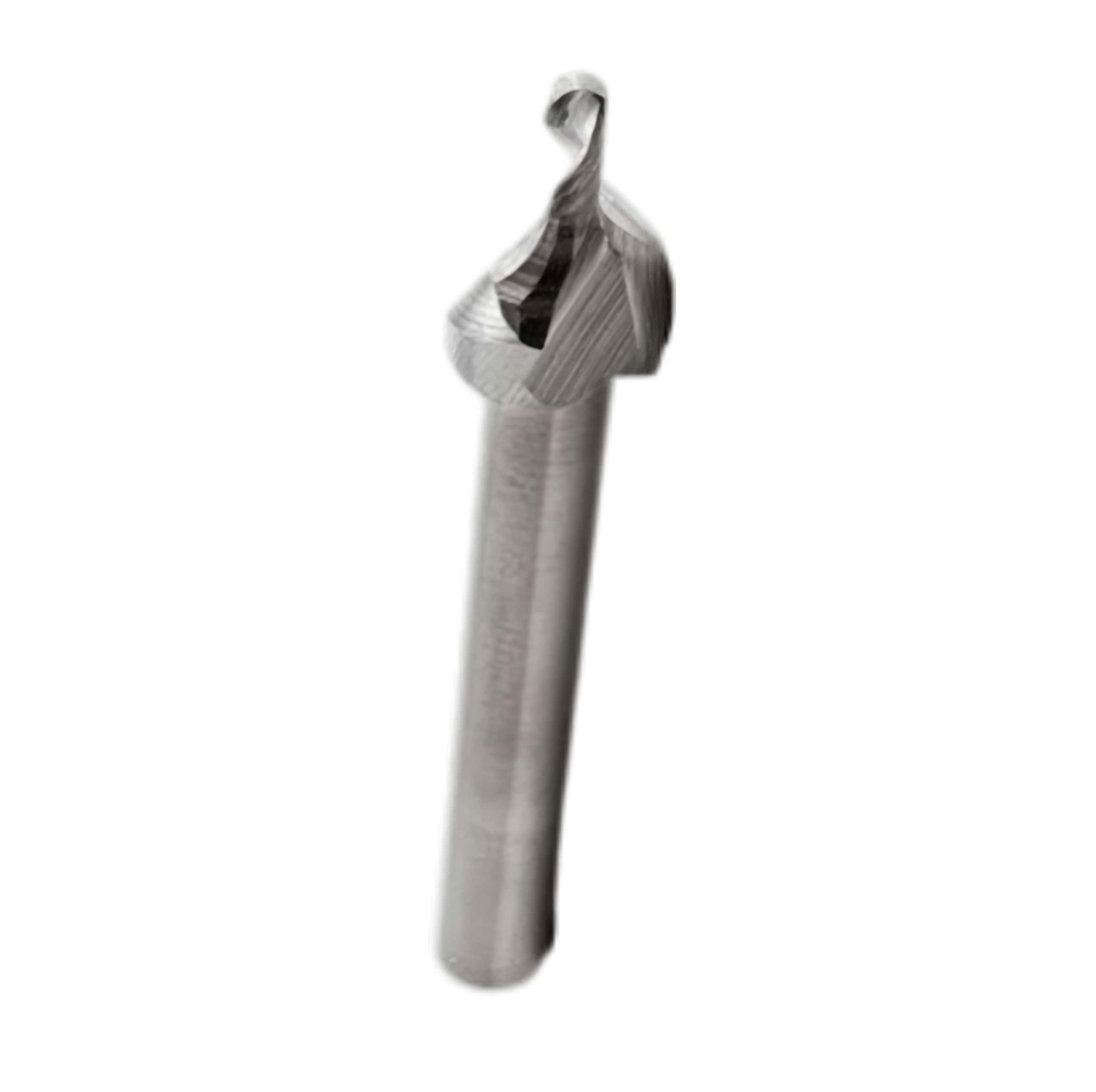

Esko Kongsberg Bit-Rbo06-8-10 G34111583 Purpose Radius Milling Bit

Esko Kongsberg BIT-RBO06-8-10 (Part Number: G34111583 or 34111583) is an official OEM special purpose radius milling bit engineered by Kongsberg Precision Cutting Systems (formerly part of Esko). It is explicitly designed for rounding and corner-profile shaping on digital cutting tables Enquire now

Description

Esko Kongsberg Bit-Rbo06-8-10 G34111583 Purpose Radius Milling Bit

Quick Technical Specifications

Part Number (ID): G34111583 (also cataloged as 34111583).
Shank Diameter: 6.0 mm.
Material Thickness Compatibility: Optimised for rigid substrates between 8 mm and 10 mm thick.
Bit Category: 6mm Special Purpose / Radius Profile Milling Tool.

Core Application & Purpose

Dual-Action Milling: The primary purpose is to trim a panel to shape while smoothly rounding the top outside edge.
Edge Finishing: Replaces two separate processes (cutting and post-process manual deburring/rounding) into a single automated step.
Target Materials: Built for processing rigid, high-density materials, including wood, MDF, plywood, and various wood derivatives.

Hardware Compatibility Requirements

To run this specialized milling bit on an official Kongsberg flatbed digital cutter, specific tooling infrastructure must be installed:

High-Speed Milling Unit (HSMU): Requires the 1kW MultiCut tool head configuration.
Chuck Requirement: Must be secured using the dedicated Ibag chuck (Part Number: 42444067) to ensure rotational stability and zero slippage at high RPMs.
