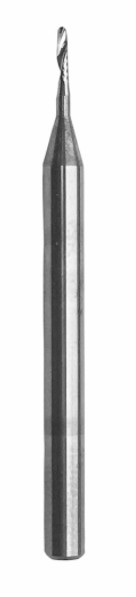

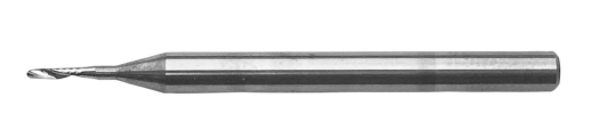

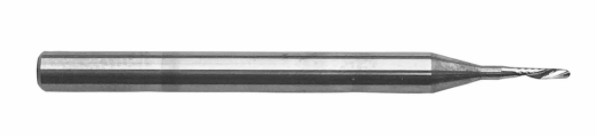

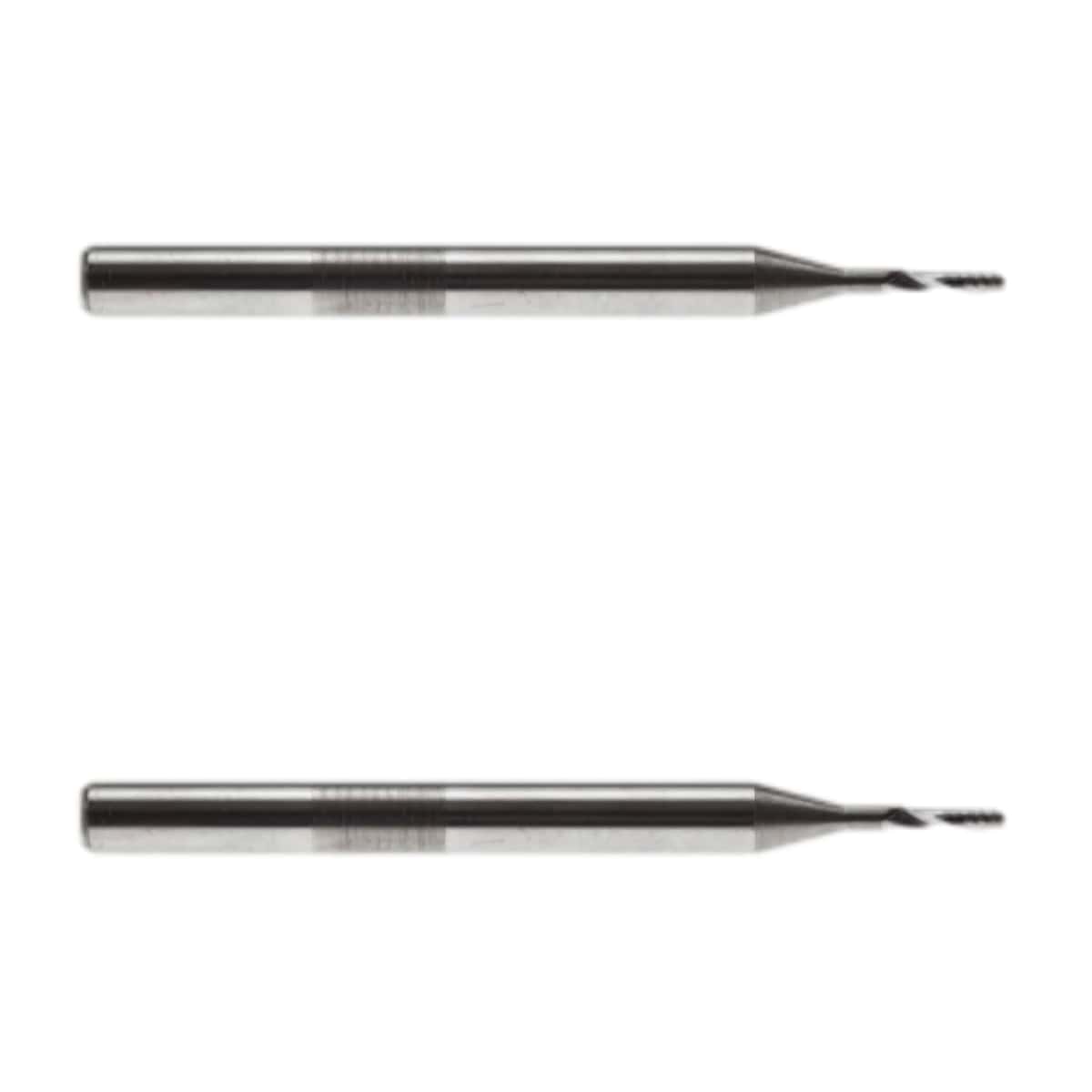

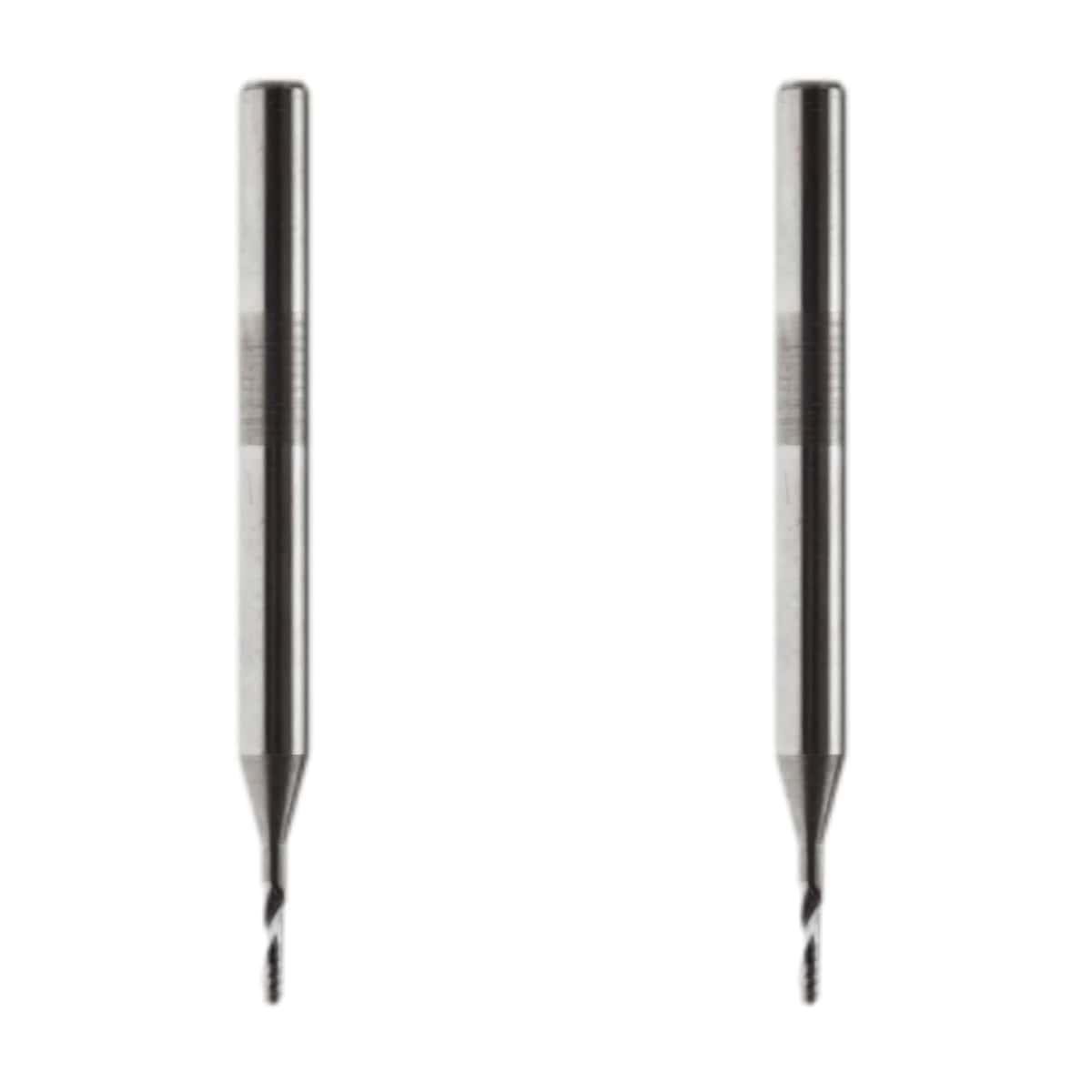

Esko Kongsberg Bit-Mus03-1004-38 G42443390 Multi-Purpose Milling And Router Bits

Esko Kongsberg BIT-MUS03-1004-38 (part number G42443390) is an official tungsten carbide multi-purpose milling and router bit manufactured for Kongsberg Precision Cutting Systems (formerly part of Esko) digital flatbed cutting tables. This high-performance tooling component features a single flute, … Enquire now

Description

Esko Kongsberg Bit-Mus03-1004-38 G42443390 Multi-Purpose Milling And Router Bits

Technical Specifications

· Shank Diameter (D): 3 mm

· Tip Diameter (d): 1 mm

· Total Length (L): 38 mm

· Max Cutting Depth (M): 3 mm

· Material Construction: Solid Tungsten Carbide

· Geometry: Single flute, up-cut spiral

Recommended Applications & Materials

The BIT-MUS03-1004-38 is engineered to perform reliably across a broad range of rigid and semi-rigid substrate materials, including:

· Metals & Composites: Aluminium and Aluminium Composite Materials (ACM / Dibond).

· Plastics: Acrylic, polycarbonate, and dense rigid plastics.

· Wood Products: Hardwoods, softwoods, and Medium-Density Fibreboard (MDF).

Required Machine Configurations

To deploy this 3 mm shank bit on a Kongsberg CNC table, specialized collet chucks are required depending on your tool head configuration:

· HSMU / MultiCUT (1 kW) Tool Heads: Requires Chuck Part Number 42444083.

· HPMU / MultiCUT-HP (3 kW) Tool Heads: Requires Chuck Part Number 42455675.
