Esko Kongsberg Bit-Mus03-1506-38 G42443408 Milling And Router Bit For Kongsberg Cutting Tables

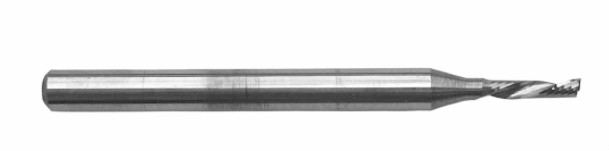

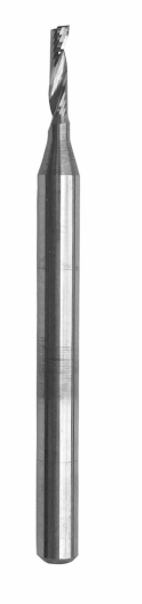

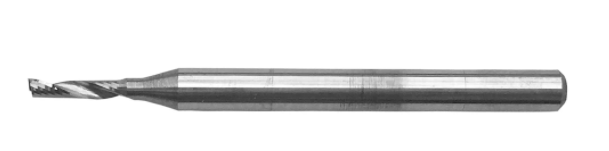

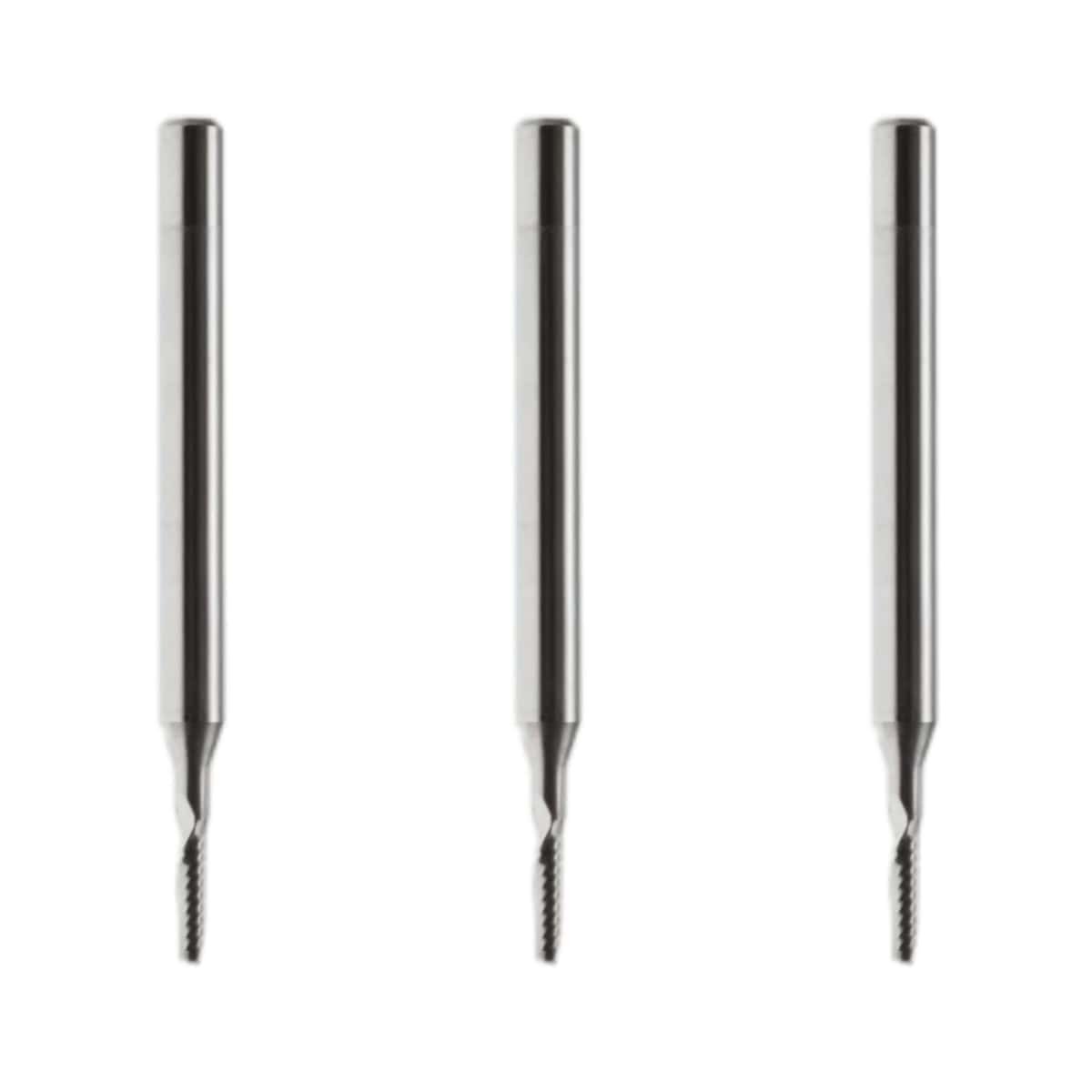

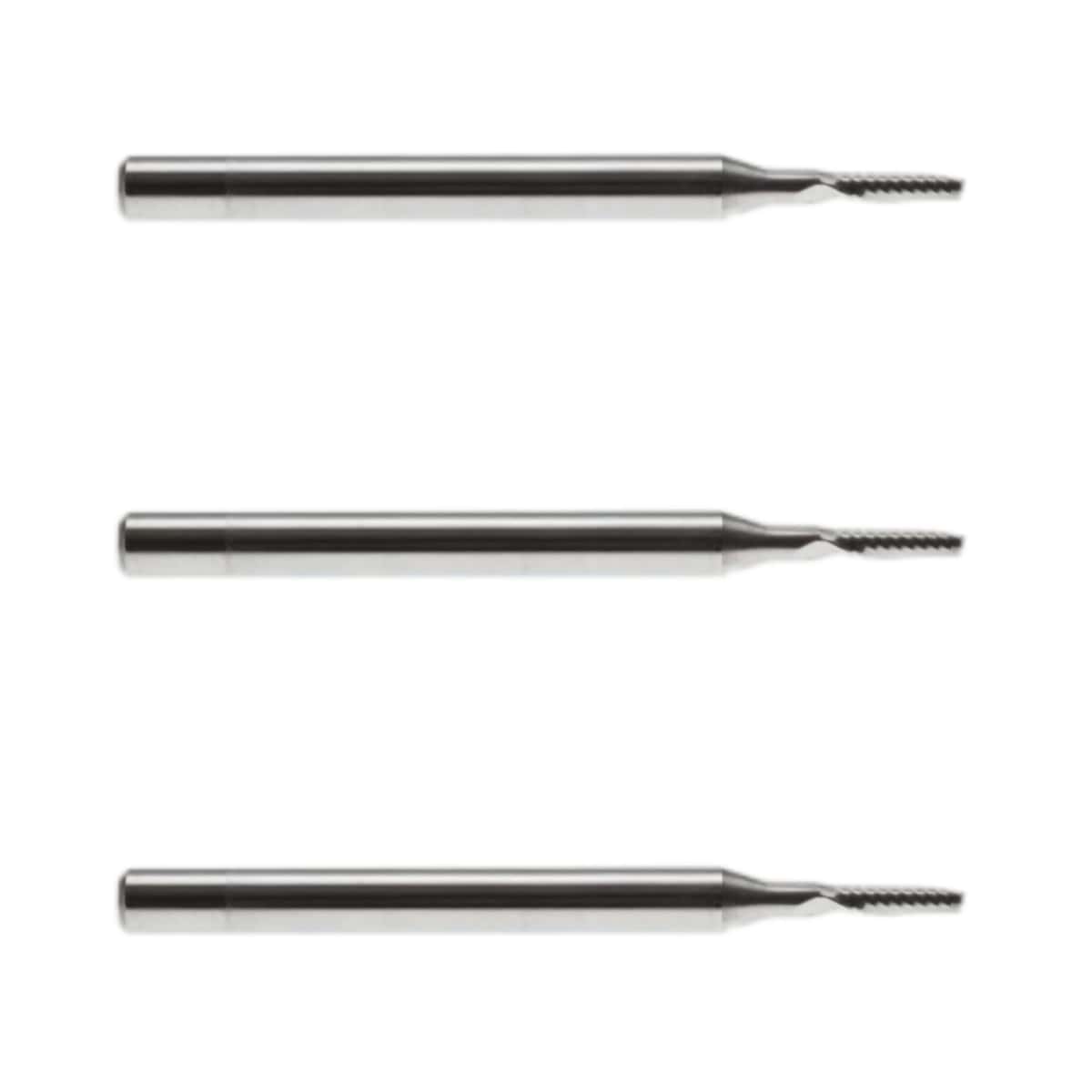

Esko Kongsberg BIT-MUS03-1506-38 (Part Number: G42443408) is a premium solid tungsten carbide CNC milling and router bit designed specifically for high-speed Kongsberg cutting tables and precision routing systems. It features a single-flute, up-cut geometry optimized for high-efficiency chip evacuat… Enquire now

Description

Esko Kongsberg Bit-Mus03-1506-38 G42443408 Milling And Router Bit For Kongsberg Cutting Tables

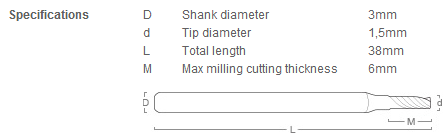

Key Technical Specifications

Milling Diameter (Cut Diameter): 1.5 mm
Max Cutting Depth (Flute Length): 6.0 mm
Shank Diameter: 3.0 mm (1/8")
Total Bit Length: 38.0 mm
Flute Geometry: Single flute, Up-cut
Material: Tungsten Carbide (TC)

Recommended Material Compatibility

This multi-purpose routing bit performs exceptionally well across an expansive range of rigid and flexible substrate materials:

Metals: Aluminium sheets
Composites: Aluminium Composite Materials (ACM) / Dibond
Plastics: Acrylic (Plexiglass), Polycarbonate, and Fluted Plastics
Wood Products: Solid wood, MDF, and Plywood

Hardware Compatibility & Equipment

Kongsberg Systems: Requires an active MultiCut (1kW) or High-Speed Milling Unit (HSMU) tool head.
Collet Requirements: A precise 3mm tool chuck or collet must be installed in the spindle to secure the 3.0 mm shank safely.
Alternative Routers: Can be adapted to MultiCam CNC routers provided a matching 3mm collet is installed.
