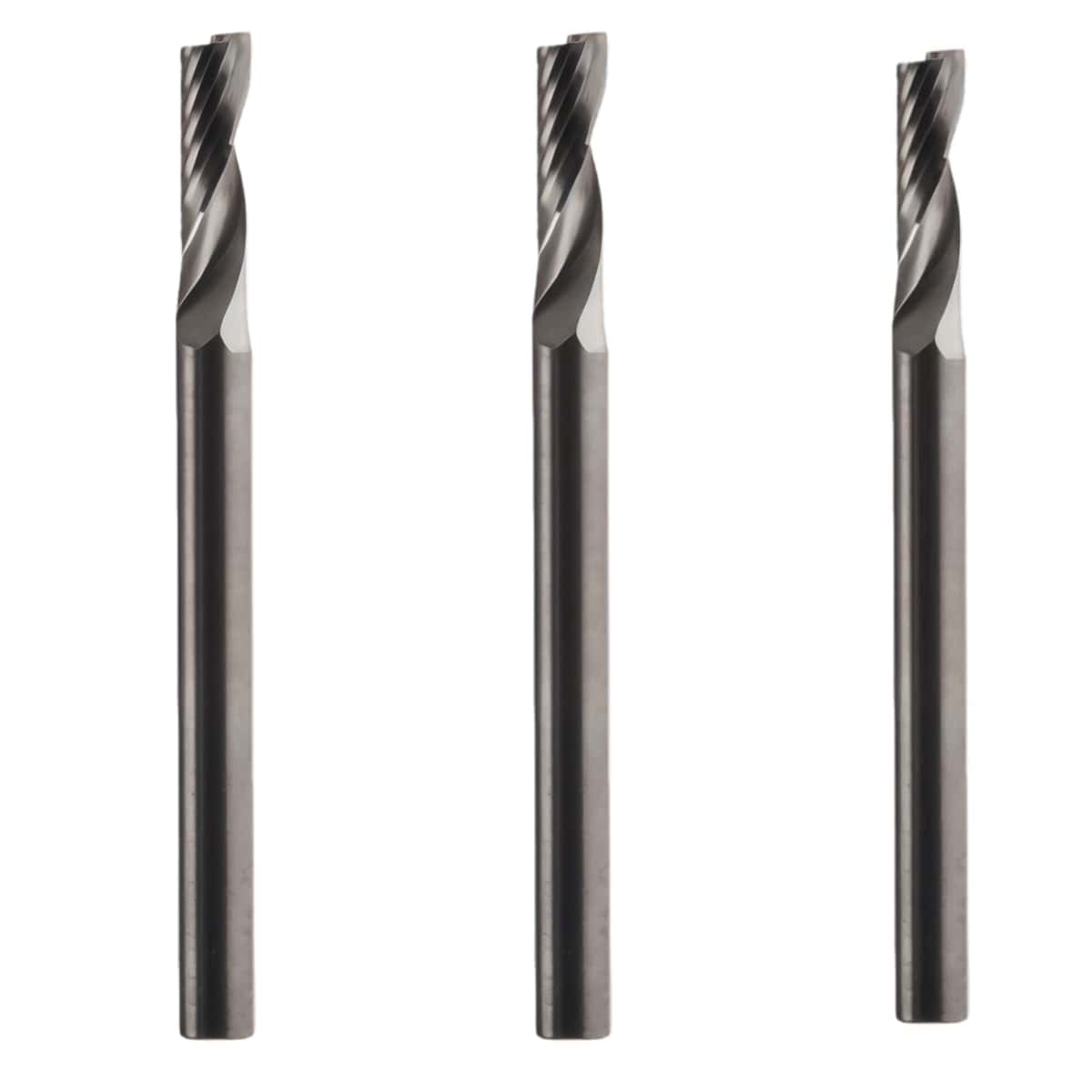

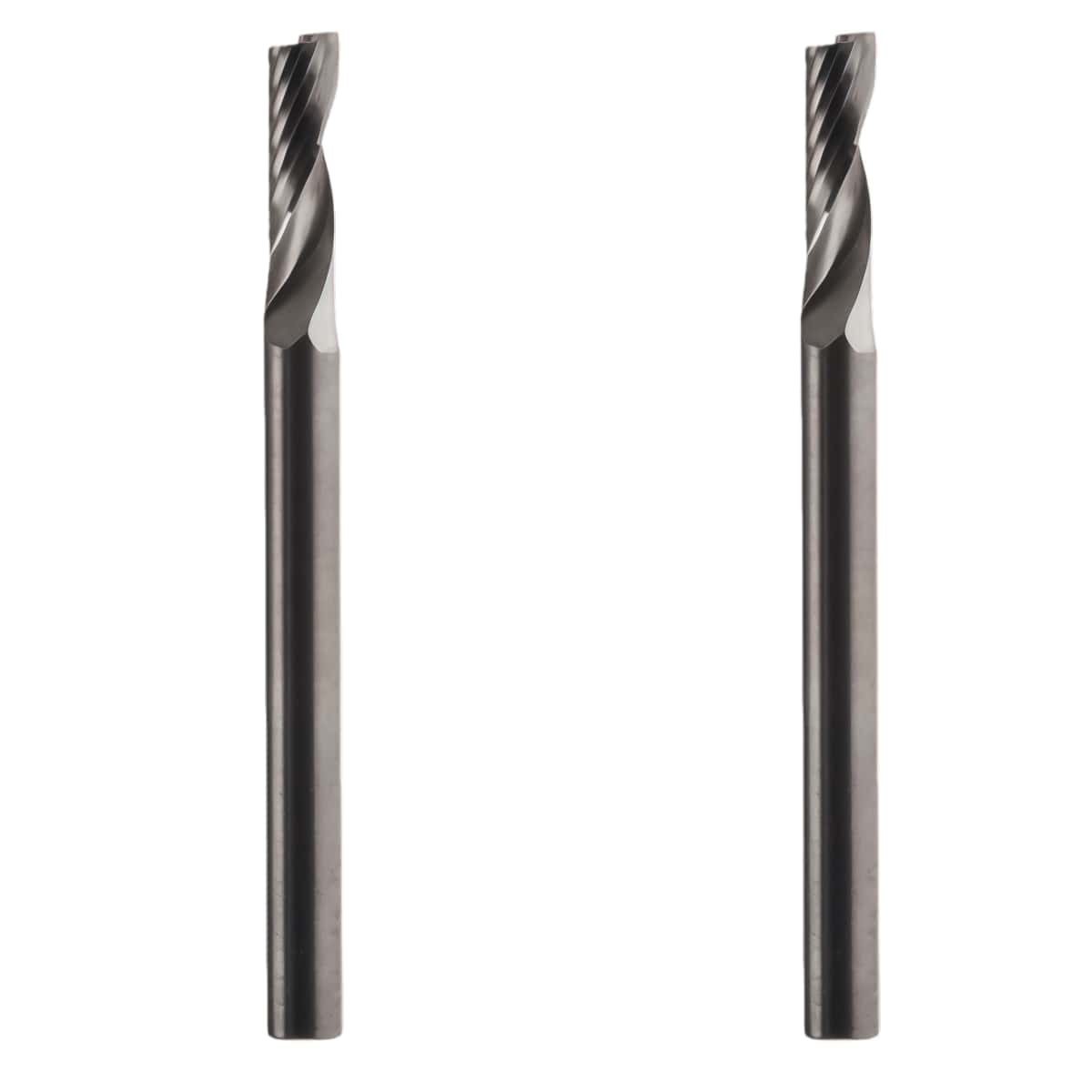

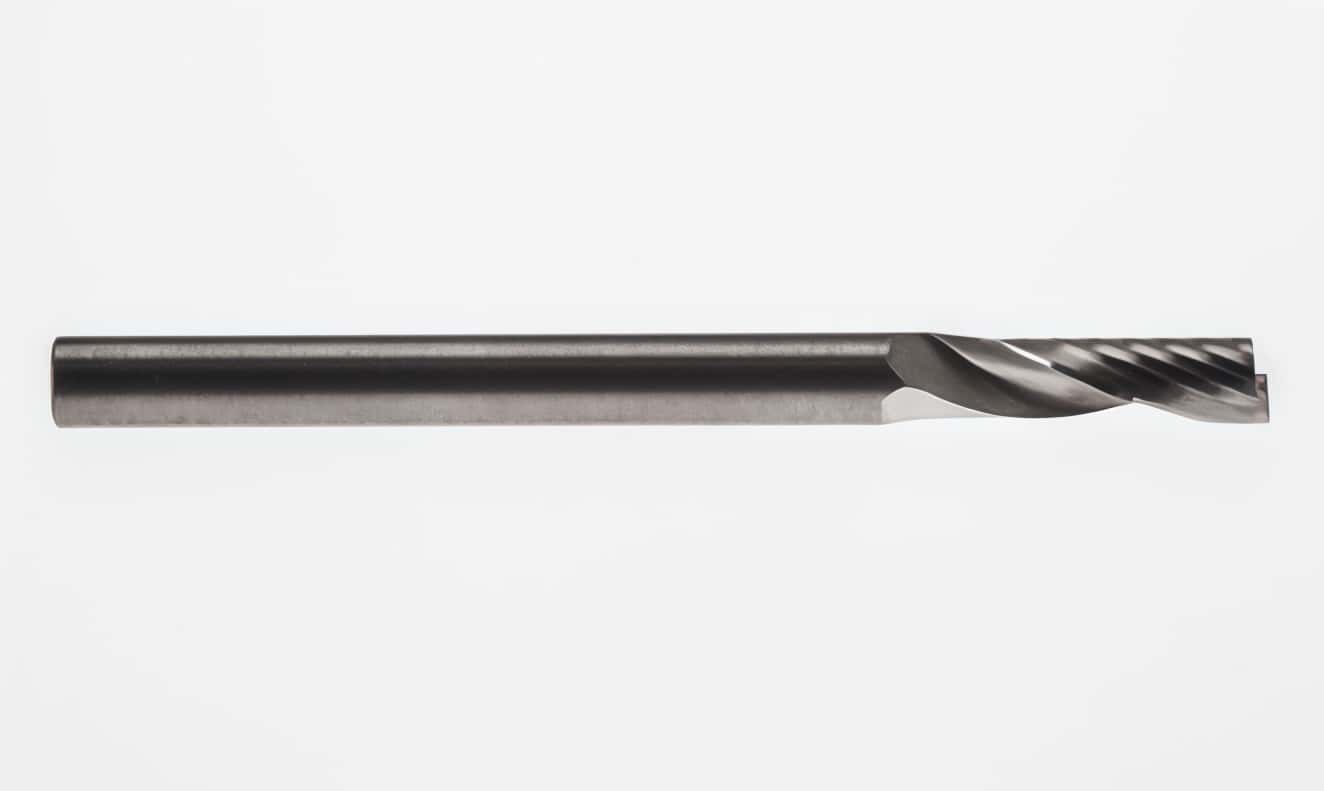

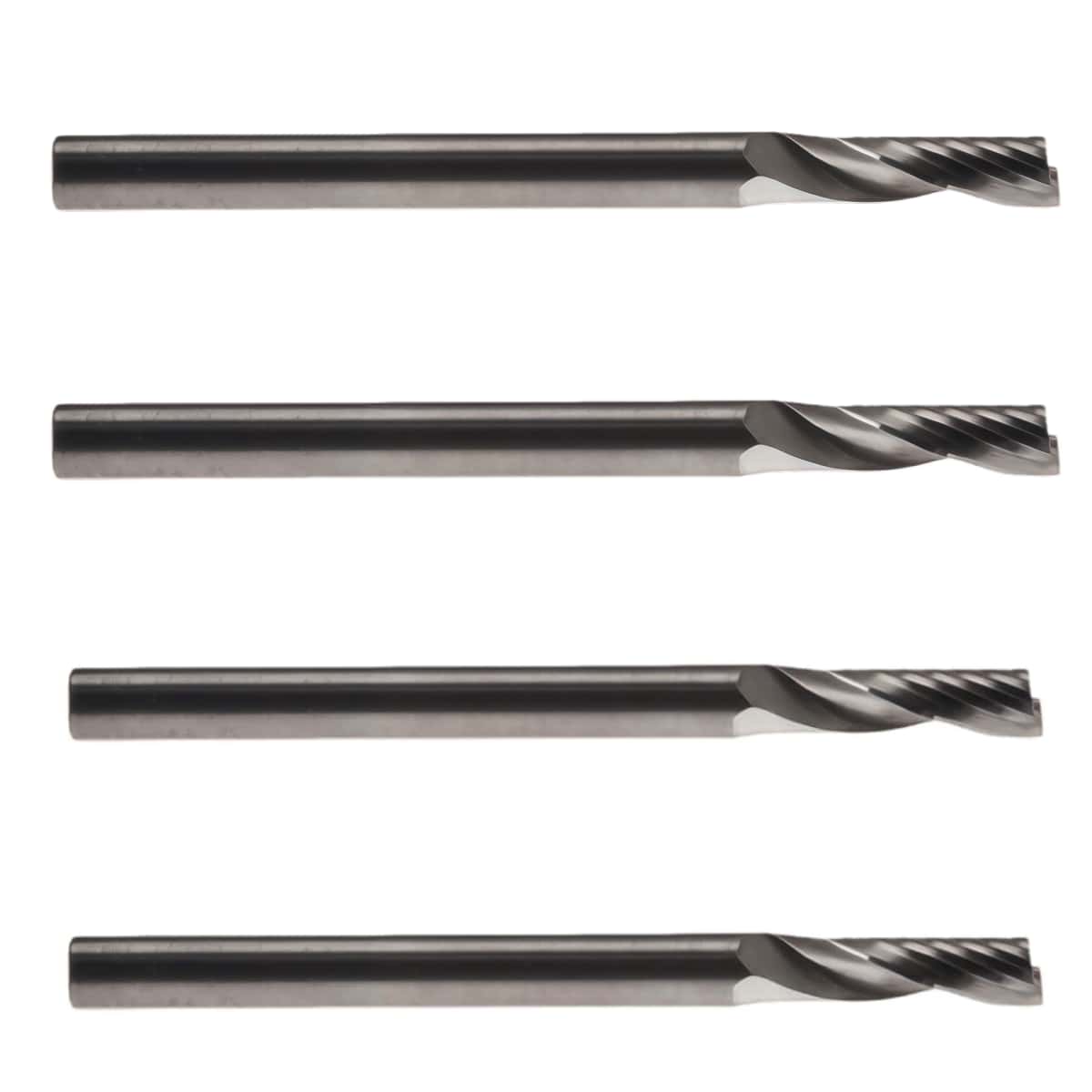

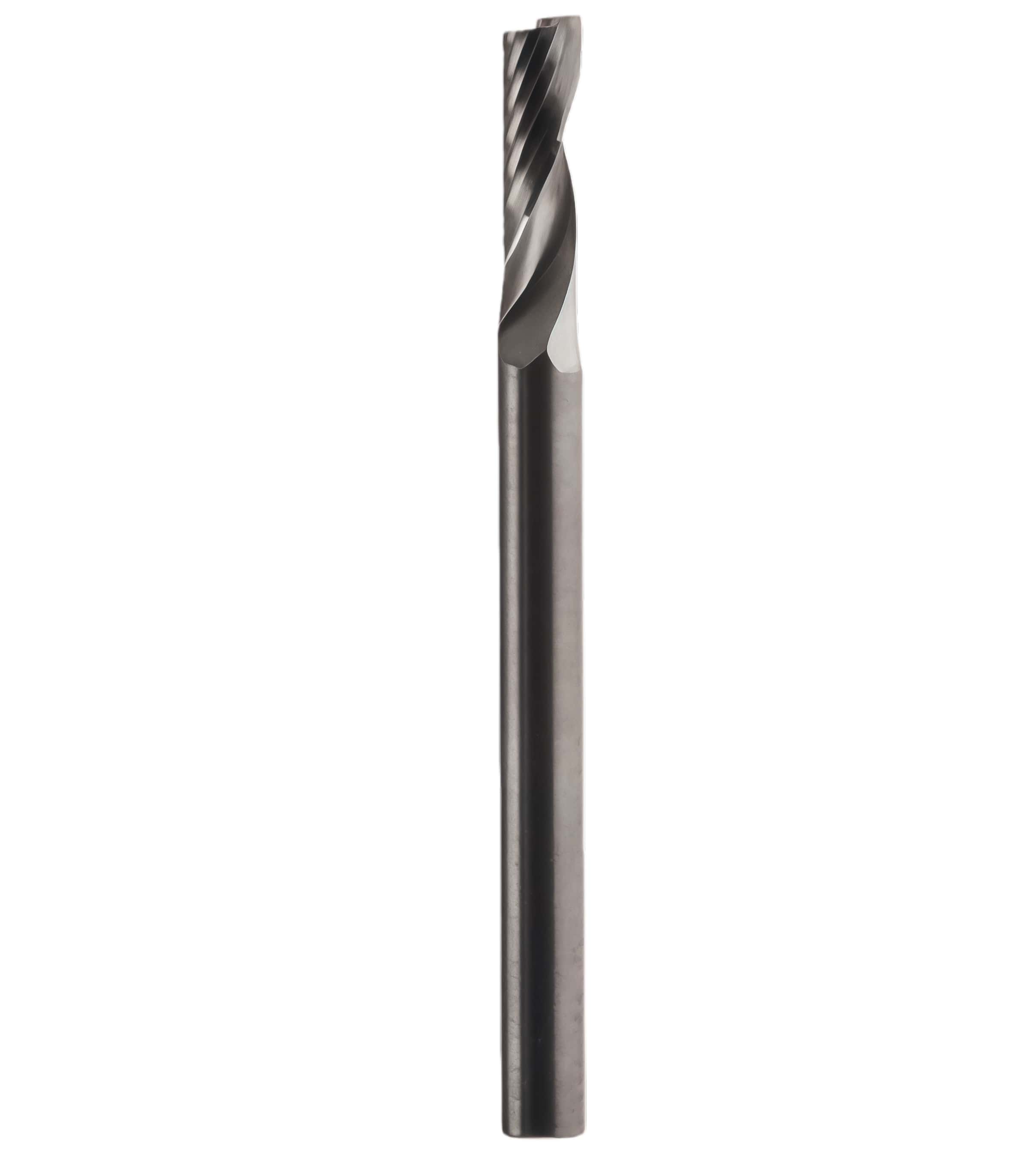

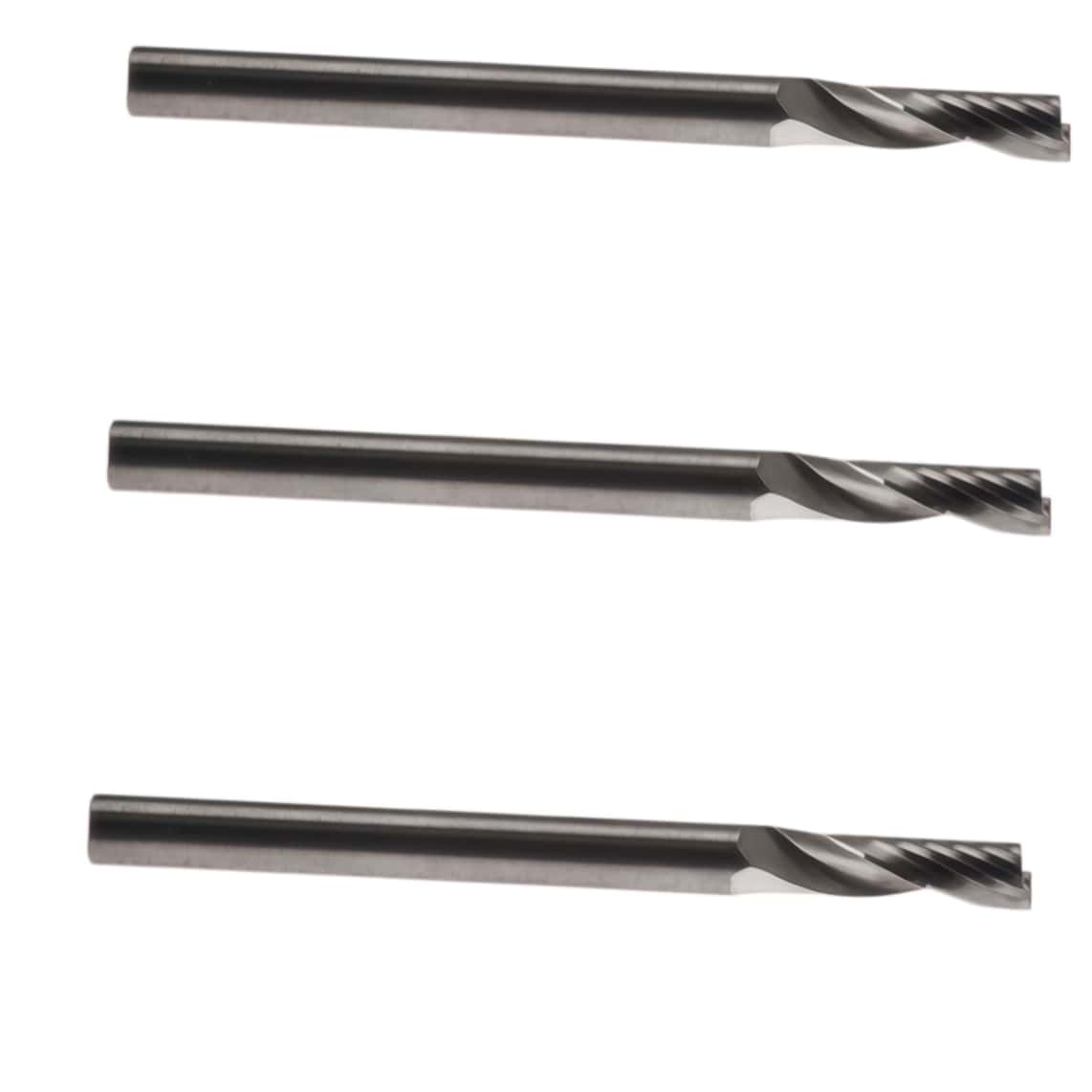

Esko Kongsberg Bit-Mus03-3011-38 G42443440 Tungsten Carbide Milling And Router Bits
Esko Kongsberg BIT-MUS03-3011-38 (G42443440) is an industrial tungsten carbide milling and router bit engineered for high-precision digital cutting tables. It functions as a multi-purpose, up-cut, single-flute end mill tool designed to evacuate chips efficiently upward during heavy-duty cutting oper… Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Esko Kongsberg Bit-Mus03-3011-38 G42443440 Tungsten Carbide Milling And Router Bits
Esko Kongsberg Bit-Mus03-3011-38 G42443440 Tungsten Carbide Milling And Router Bits
Technical Specifications
The structural architecture of the tool optimizes high-speed spindle performance for precision depth cuts.
  • Shank Diameter (D): 3 mm
  • Cutting/Tip Diameter (d): 3 mm
  • Total Length (L): 38 mm
  • Maximum Cutting Thickness (M): 6 mm
  • Flute Geometry: Single flute, up-cut spiral
  • Composition: Solid tungsten carbide steel (uncoated)

Substrate Compatibility
The multi-purpose geometry clears chips quickly from the cutting channel, preventing melting, welding, or edge fracturing on standard production materials.
  • Metals: Thin-gauge aluminium sheets and Aluminium Composite Materials (ACM / Dibond).
  • Plastics: Cast/extruded acrylics, polycarbonates, and foamed PVC (Forex).
  • Wood-Based Media: Medium-Density Fibreboard (MDF), natural hardwoods, and plywood.

Hardware Compatibility & Tooling Requirements
To run this 3 mm shaft bit safely on an industrial digital cutting system, specific high-speed tool heads and chucks are required.
  • Approved Tool Heads: Compatible with the Kongsberg High Frequency Solid Milling Unit (HSMU) and the MultiCut (1kW) tool stations.
  • Mandatory Component: Requires an Ibag-compatible precision chuck adapter (typically part code 42444083) to lock the 3 mm shank into standard 6 mm or 8 mm collet spindles safely.
  • Calibration: Tool changes require standard surface mapping calibration via the built-in Kongsberg X-Pad system to protect the cutting underlayment matrix.
Esko Kongsberg Bit-Mus03-3011-38 G42443440 Tungsten Carbide Milling And Router Bits

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.



If you have more questions to know ,please contact us .
Tel:+86-0769-88014625
Phone Number:+86-18823852826
Email:  info@china-oyea.com
             1659590865@qq.com
Web: www.china-oyea.com
We warmly welcome every customer to send us drawings for making customized product.
Contact with us ,you will get more than what you can !
