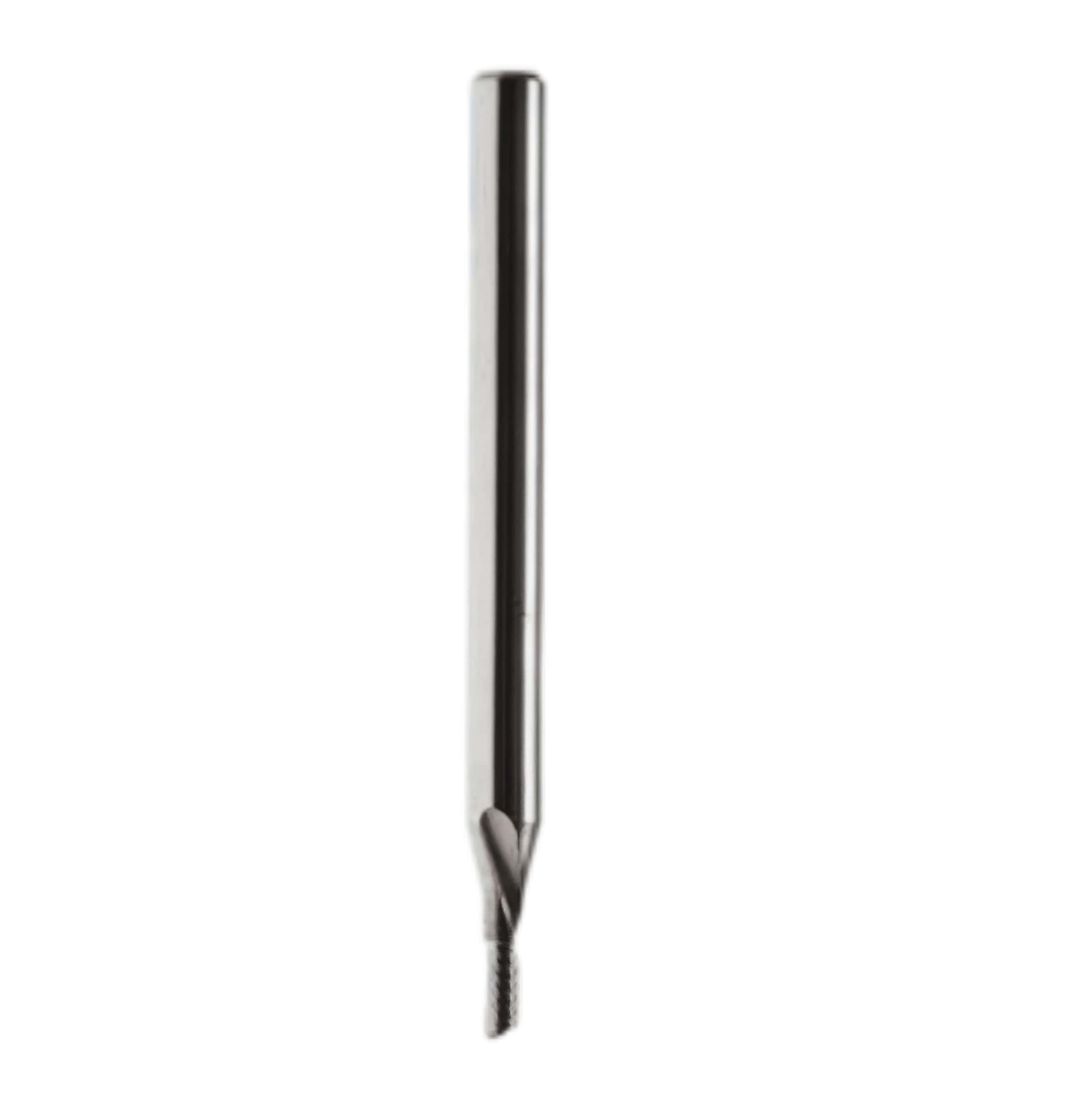

Esko Kongsberg Bit-Mds03-1503-38 G42449314 Multi-Purpose Milling And Router Bits

Esko Kongsberg BIT-MDS03-1503-38 (G42449314) is a professional-grade multi-purpose CNC milling and router bit designed for Kongsberg Precision Cutting Systems digital finishing tables. This specific solid tungsten steel bit features a down-cut spiral design with a polished flute, optimizing it for p… Enquire now

Description

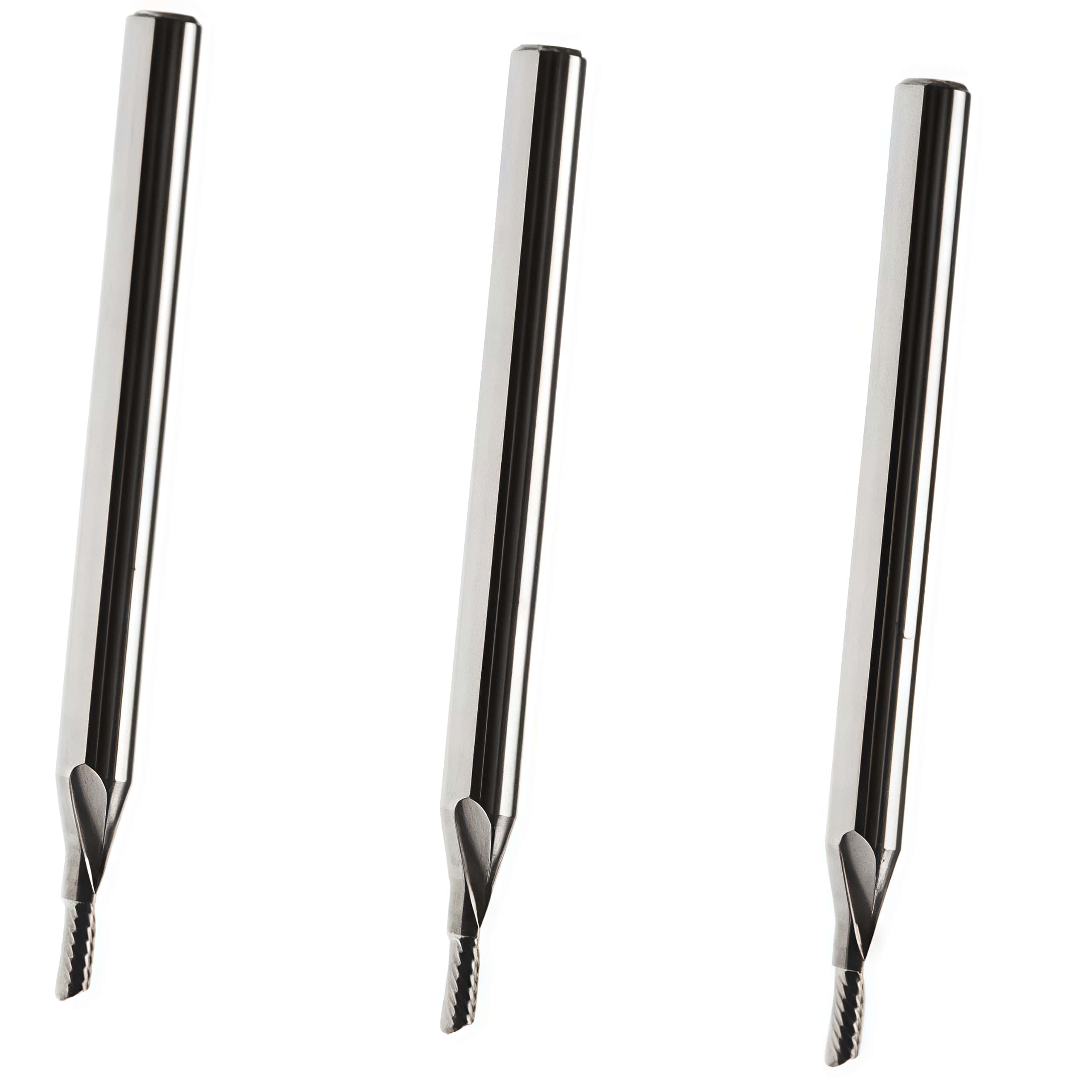

Esko Kongsberg Bit-Mds03-1503-38 G42449314 Multi-Purpose Cnc Milling And Router Bits

Esko Kongsberg Bit-Mds03-1503-38 G42449314 Multi-Purpose Milling And Router Bits

Technical Specifications

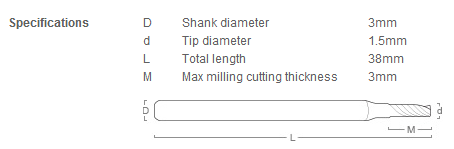

The code sequence breaks down the direct engineering dimensions of the tool:

MDS: Multi-purpose Down-cut Single-flute tool geometry.
03: 3mm (~1/8") shank diameter.
15: 1.5mm (1/16") nominal cutting diameter.
03: 3mm maximum milling cutting depth.
38: 38mm total overall tool length.
Material: Premium micro-grain tungsten carbide.

Key Functional Mechanics

Down-Cut Spiral Design: The flute geometry intentionally forces chip clearance downward toward the vacuum table surface.
Substrate Stabilization: Downward pressure prevents thin, lightweight, or flexible substrates from lifting or vibrating during high-speed passes.
Clean Top Edges: Exerts a down-shear action to yield perfectly crisp, burr-free edge finishes on the top surface of the processed material.

Hardware Compatibility

The bit is built specifically for use with Kongsberg Precision Cutting Systems flatbed tables. It integrates directly into the following tool heads:

HSMU: High Speed Milling Unit
HPMU: High Power Milling Unit
MultiCUT: Multi-purpose tool combinations found across the Kongsberg X, XL, V, and C-series hardware platforms.

Target Applications

This specific tool size handles highly intricate detail profiles, small text engraving, and micro-milling applications. Optimized material sets include:

Plastics: Acrylic, Polycarbonate, foamed PVC (Forex/Sintra), and Delrin.
Composites: Thin Aluminum Composite Materials (ACM / Dibond).
Wood Products: Hardwood, MDF, premium plywood, and dense veneers.
