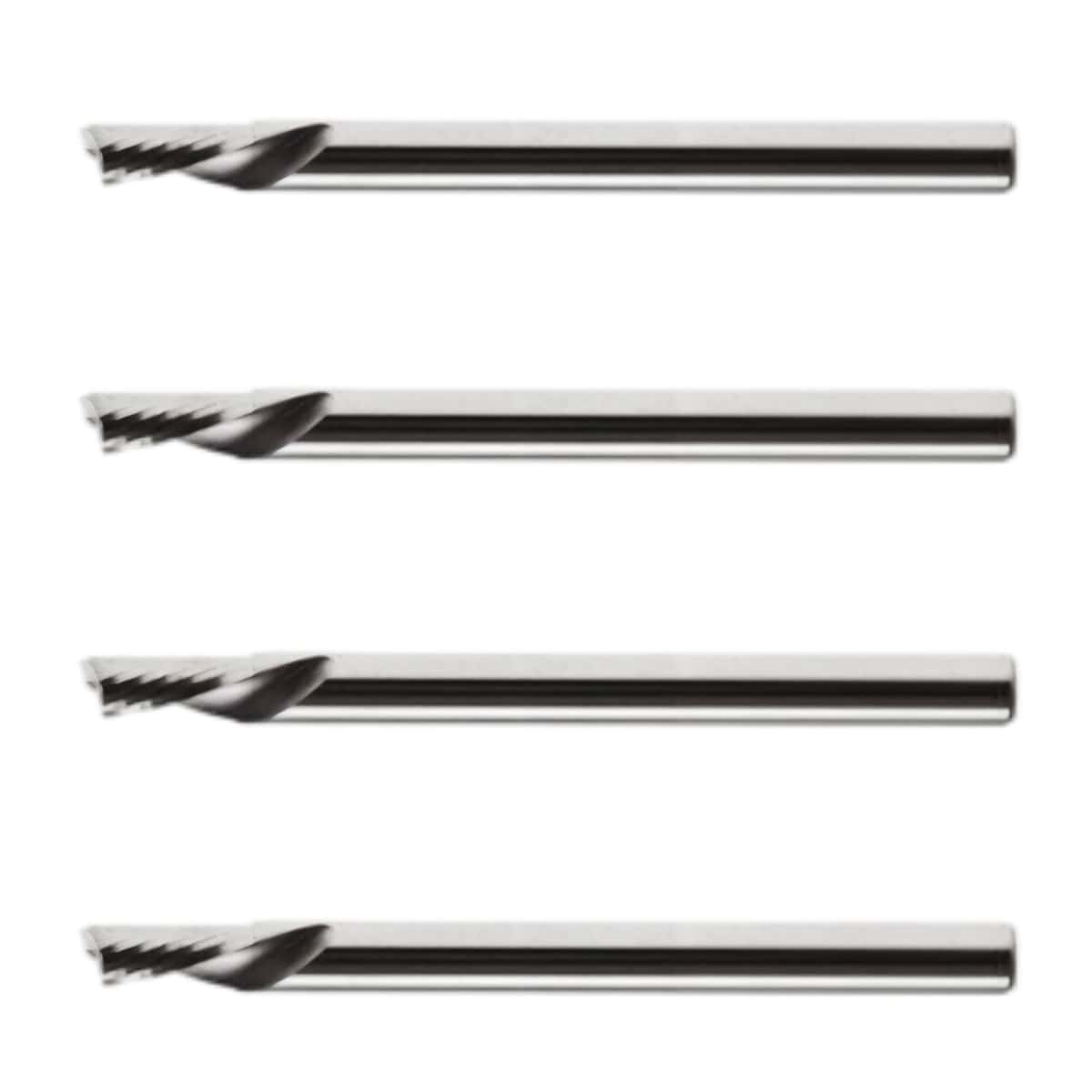

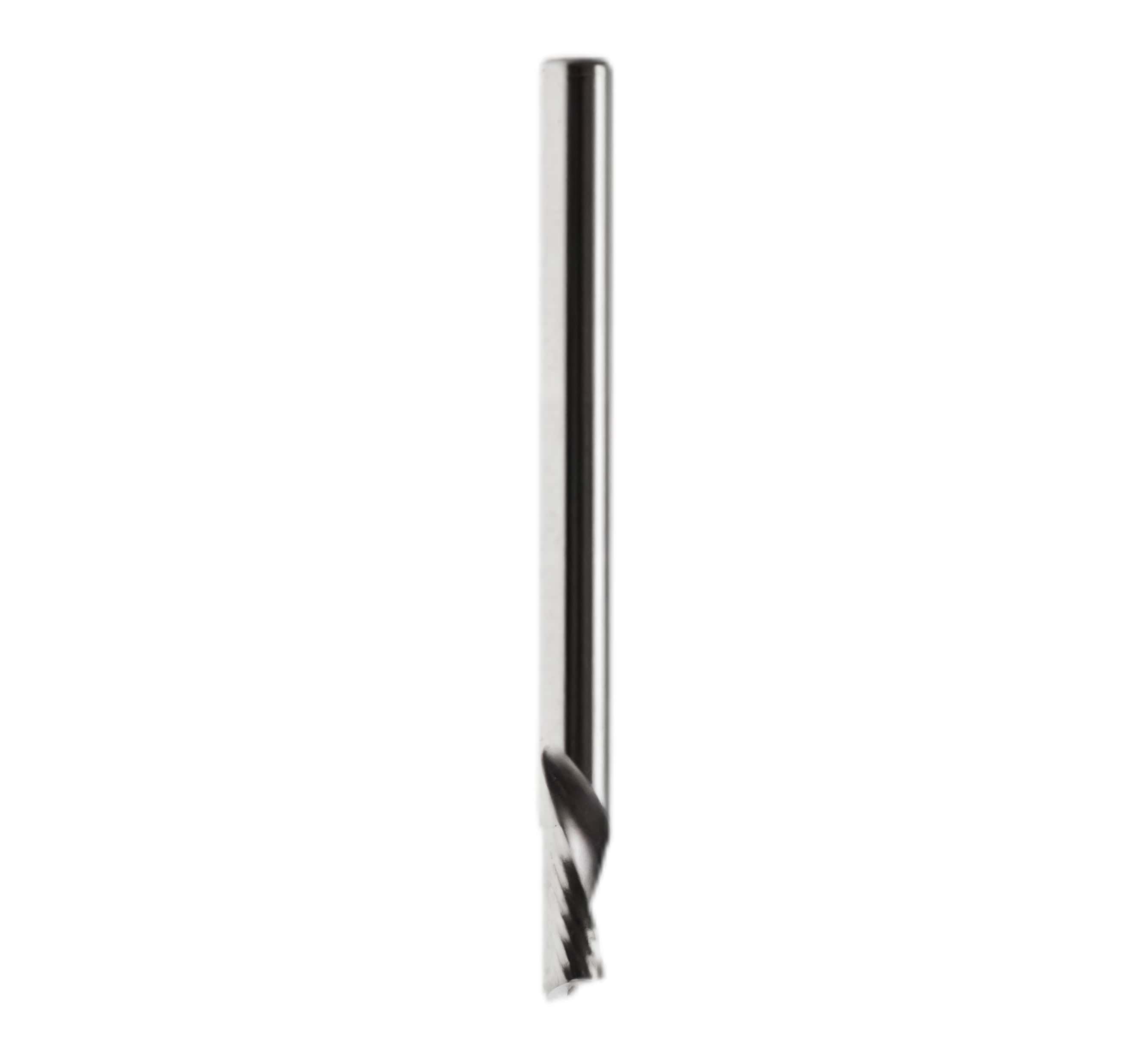

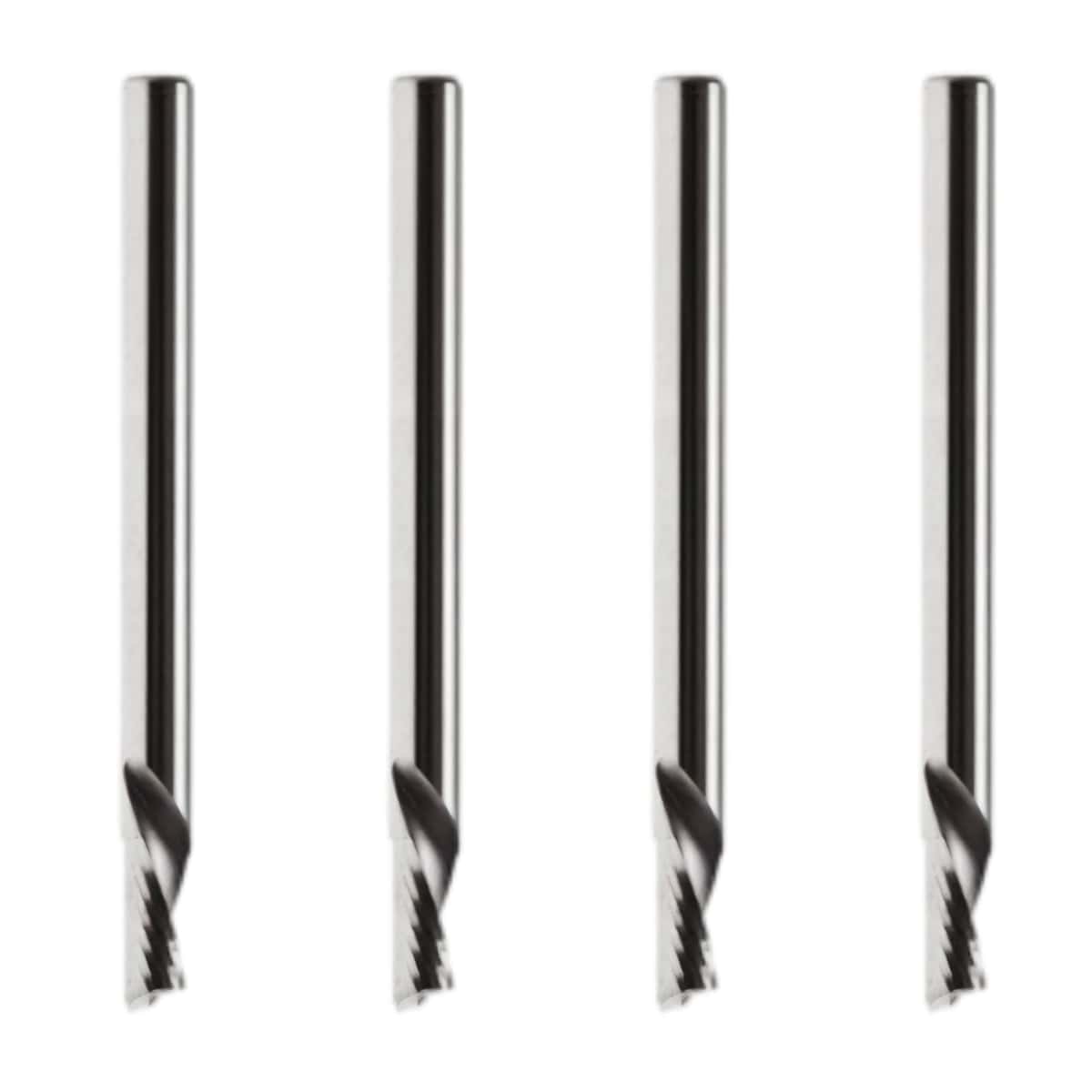

Esko Kongsberg Bit-Mds03-3006-38 G42449330 Multi-Purpose Cnc Router Bit

Esko Kongsberg BIT-MDS03-3006-38 (Part Number: G42449330) is an OEM multi-purpose CNC router bit. It is designed explicitly for rigid routing applications on Kongsberg digital cutting tables. Enquire now

Description

Esko Kongsberg Bit-Mds03-3006-38 G42449330 Multi-Purpose Cnc Router Bit

Quick Facts

Part Number: BIT-MDS03-3006-38
Global ID: G42449330
Material Composition: Solid Tungsten Steel / Carbide
Bit Category: 3mm Multi-Purpose Milling Bit

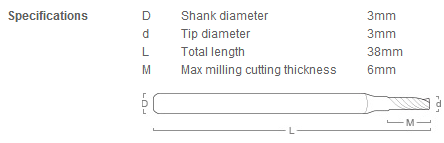

Dimensions: 0.3 cm cutting diameter x 0.3 cm shank diameter x 3.8 cm total length

Material Compatibility

This multi-purpose cutting geometry delivers clean edge finishes across an extensive range of hard and flexible substrates, including:

Metals: Aluminium sheet stock and Aluminium Composite Materials (ACM / Dibond)
Wood Products: Medium-Density Fibreboard (MDF) and solid wood panels
Plastics & Synthetics: Acrylic, Polycarbonate, Expanded PVC (Forex/Sintra), and structural plastics

Machine Operation & Integration

Collet Compatibility: Fits natively into the 3mm collet systems of standard Kongsberg RM (Rigid Material) or High-Frequency milling spindles.
Quick-Change System: Operates seamlessly with the pneumatic air-chuck mechanisms used on modern Kongsberg X-Table and C-Series production platforms.
Flute Geometry: Designed primarily as a single or dual-flute upward spiral (up-cut) matrix to efficiently evacuate heavy debris up and out of the cutting channel into the machine's dust extraction hood.
