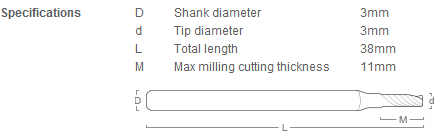

Quick Specifications

The nomenclature of the bit reveals its structural dimensions and layout:

Key Tooling Attributes

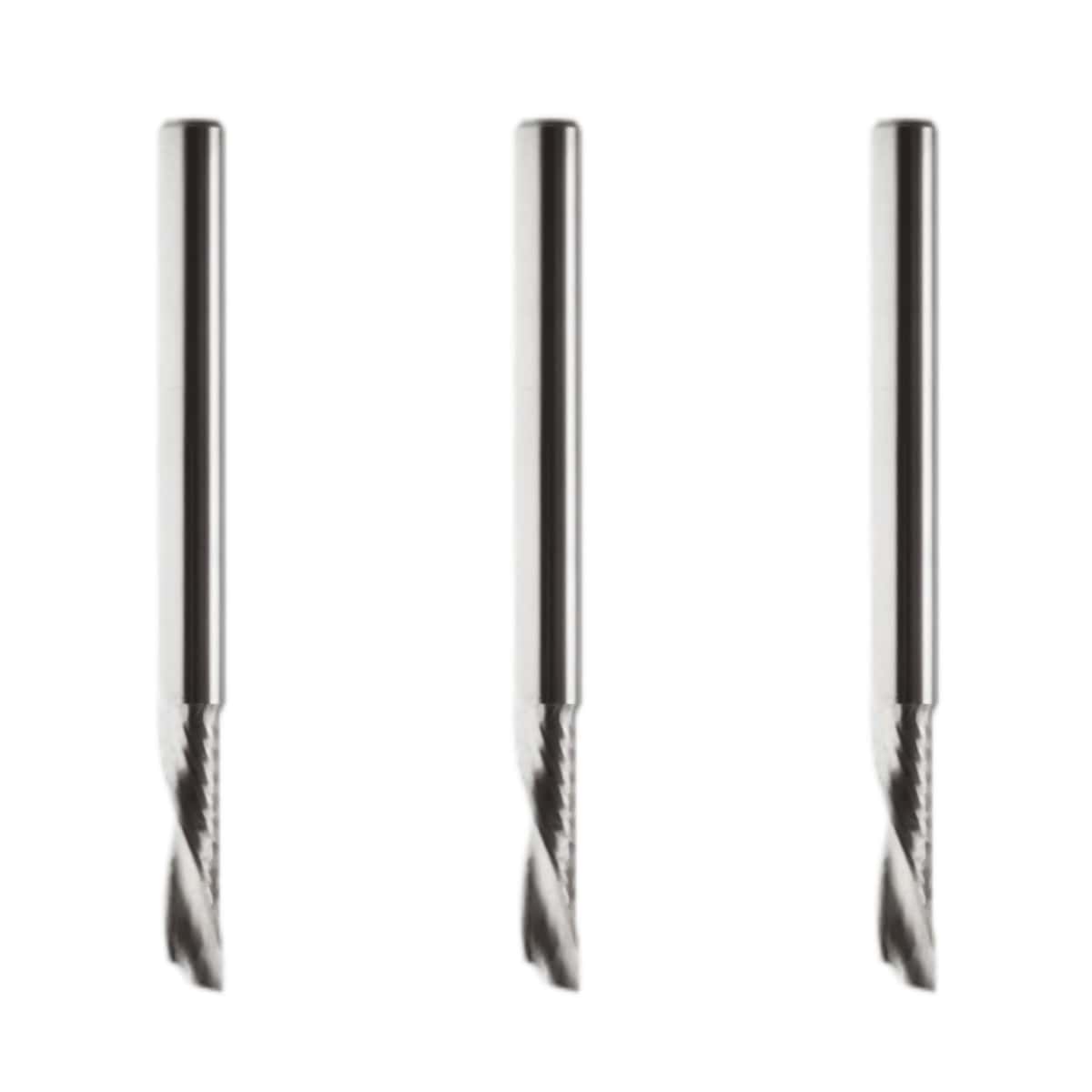

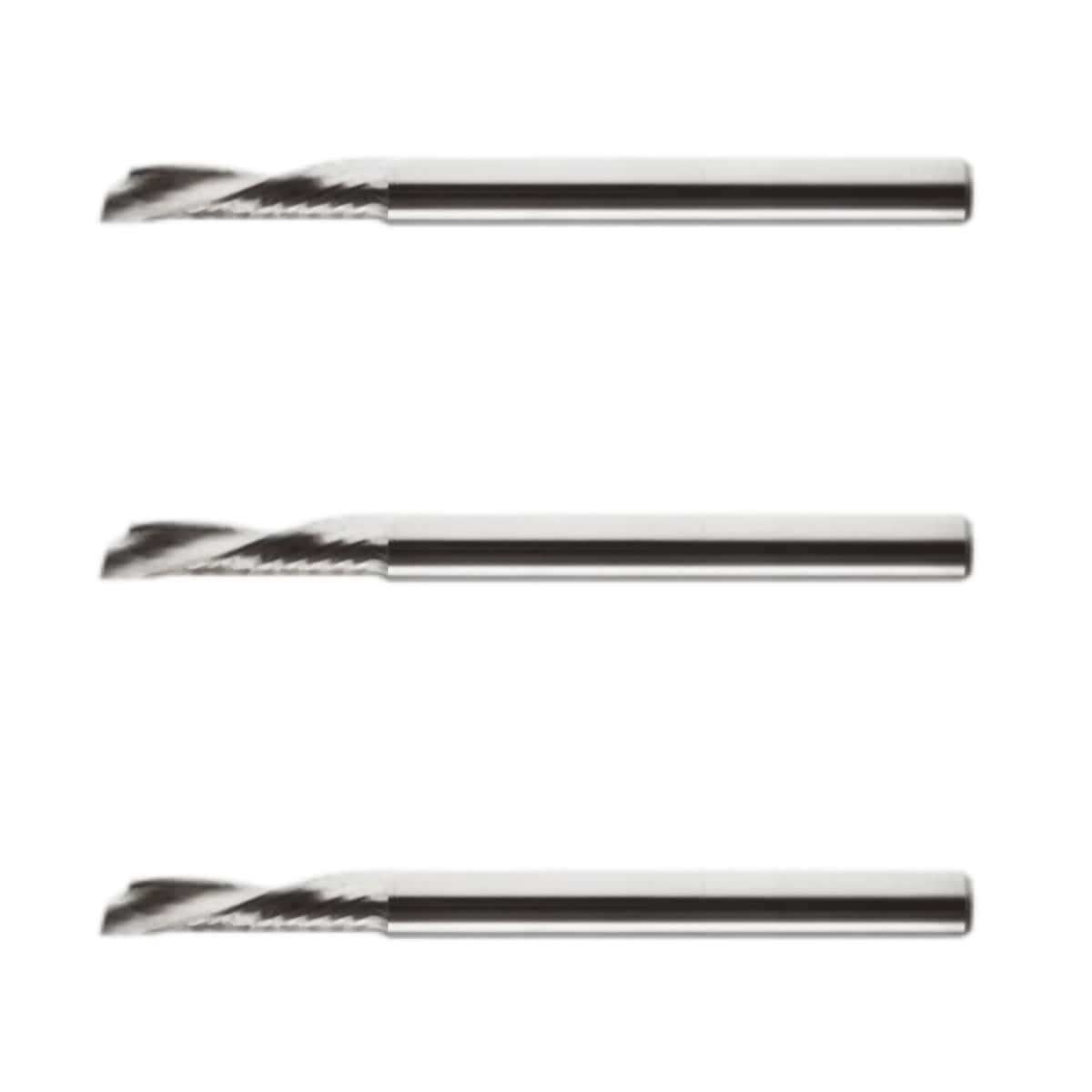

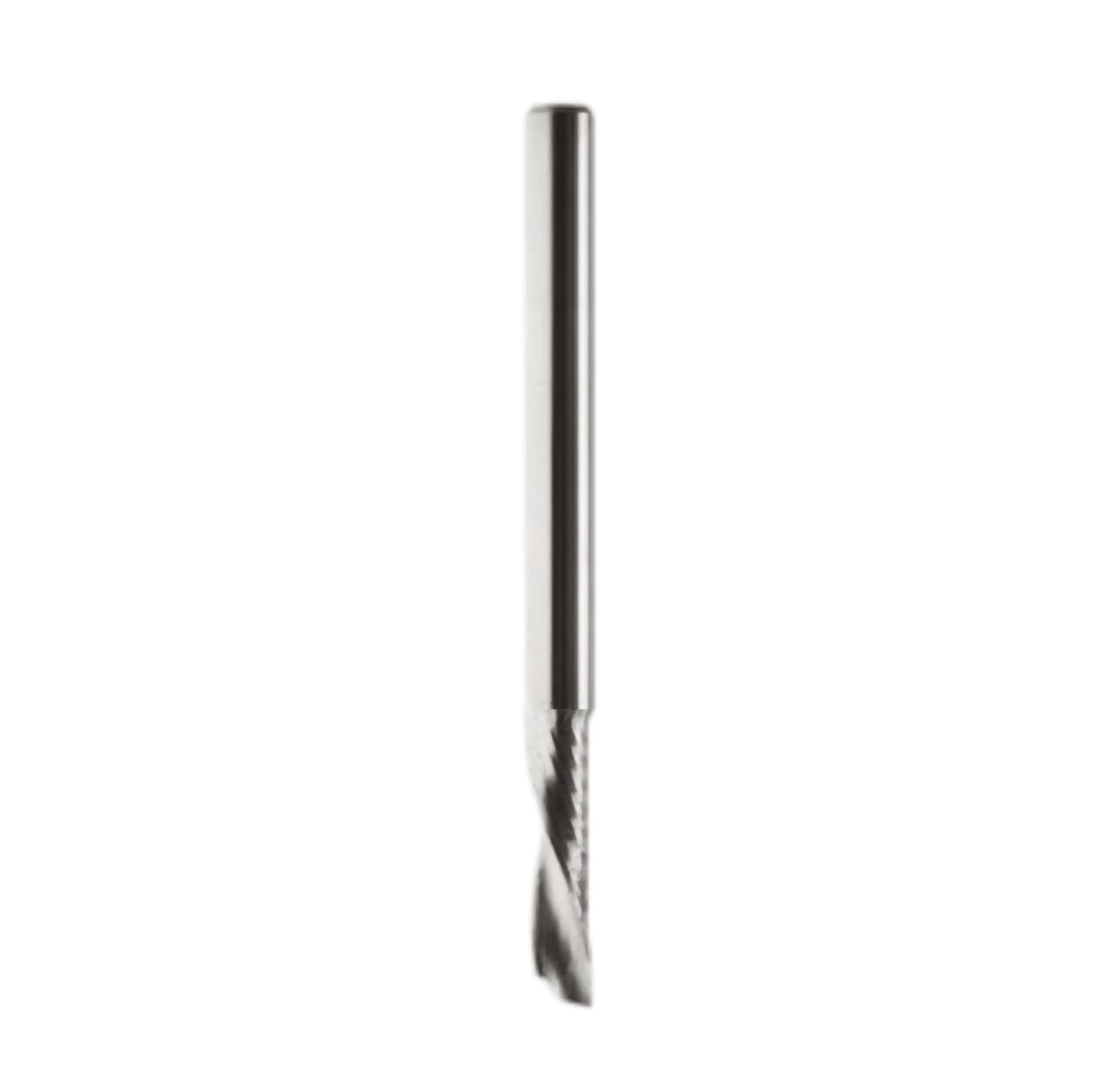

· Down-Cut Spiral Design: The "MDS" designation denotes a multi-purpose down-cut geometry. The spiral flute profile forces chips and material downward toward the vacuum matrix table during high-speed rotation. This active downward pressure prevents thin or flexible substrates from lifting, flapping, or vibrating, resulting in perfectly clean top edges.

· High-Speed Tooling Compatibility: This 3 mm shank bit is explicitly optimized for lightweight, ultra-high-velocity machining modules. It interfaces natively with the High-Speed Milling Unit (HSMU) on Kongsberg X, XL, and C series automated digital cutting flatbeds.

· Rigid Material Processing: Built from sub-micron grade solid tungsten carbide, this bit offers extreme resistance to wear and thermal deformation. It maintains sharp cutting geometry when piercing dense, abrasive, or medium-hardness materials.

Common Applications

This specific bit is deployed primarily in precision packaging, sign making, and display manufacturing for routing:

· Harder technical plastics and thick acrylic sheets

· Dense wood composites, MDF, and hardwood veneers

· Solid PVC, foamed PVC boards (Forex/Sintra), and polystyrene

· Non-ferrous soft metals and composite sandwich panels at lower feed rates
