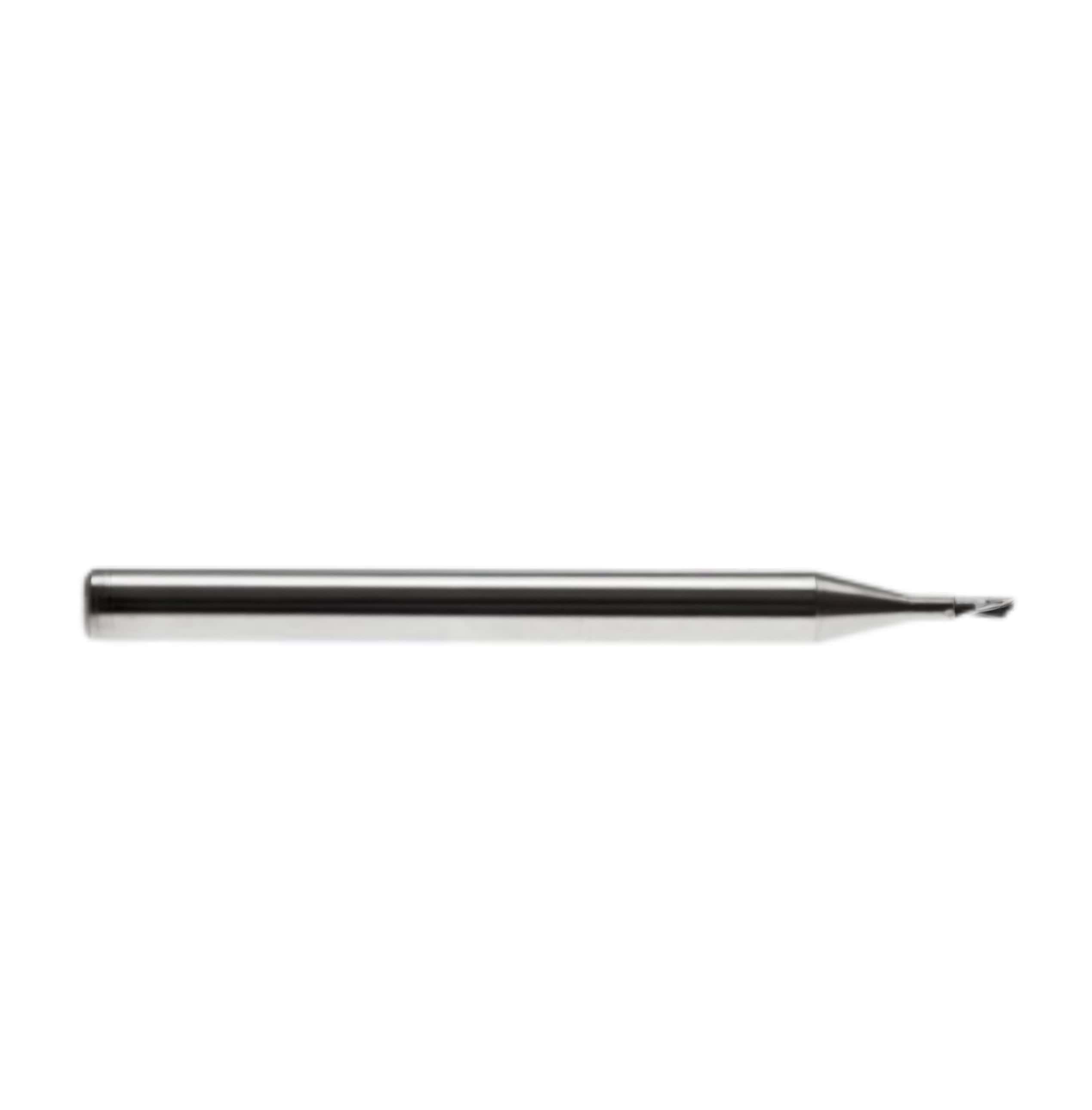

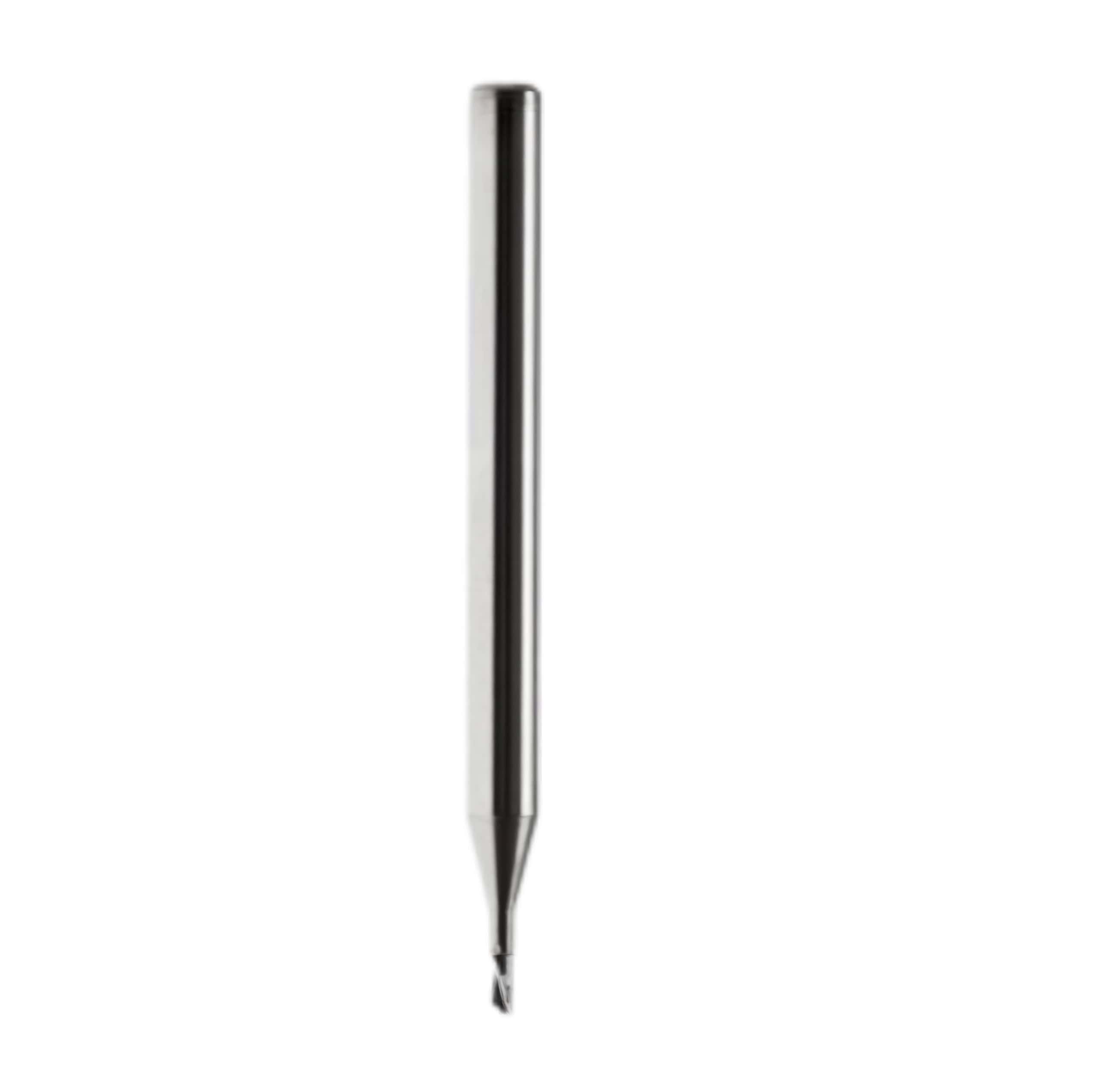

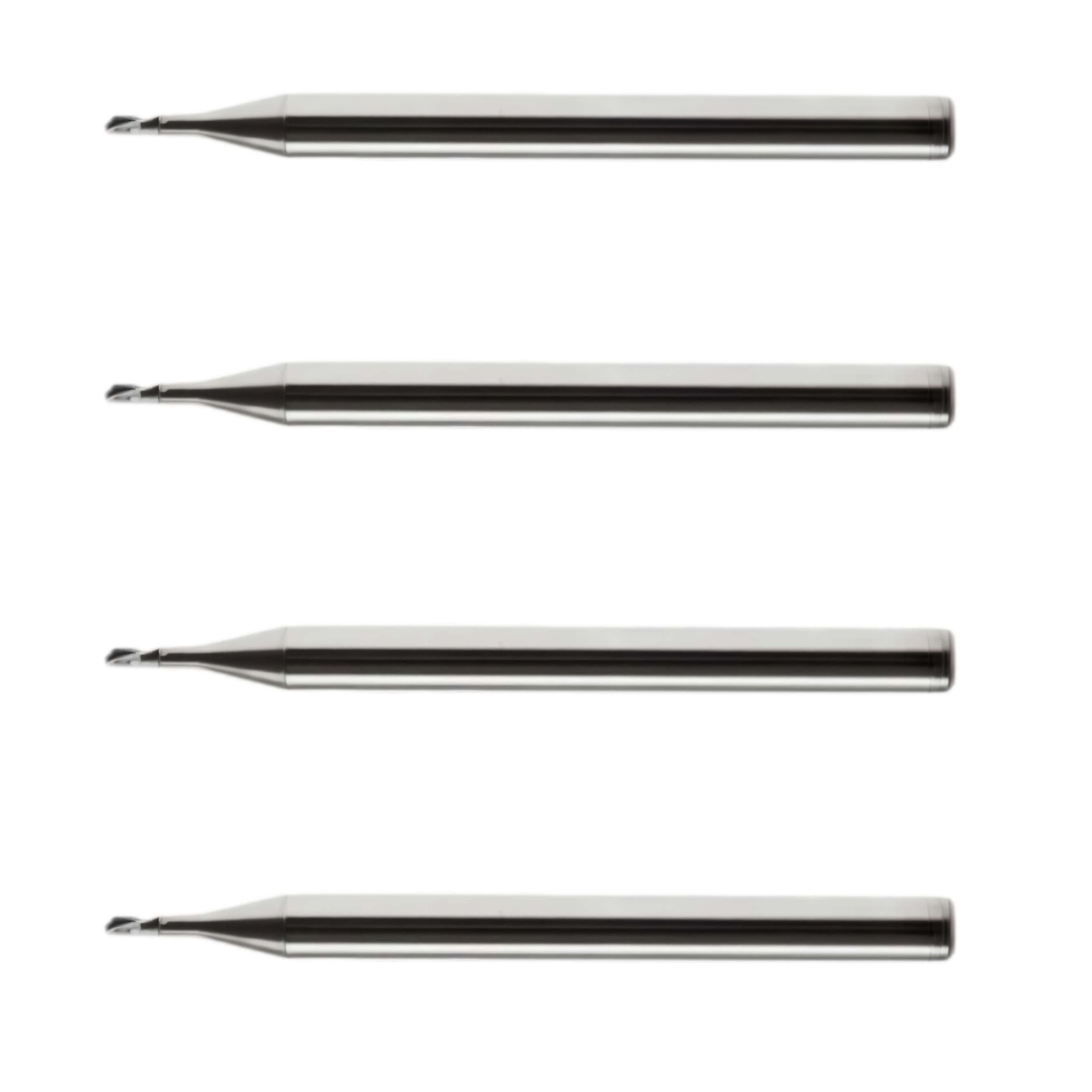

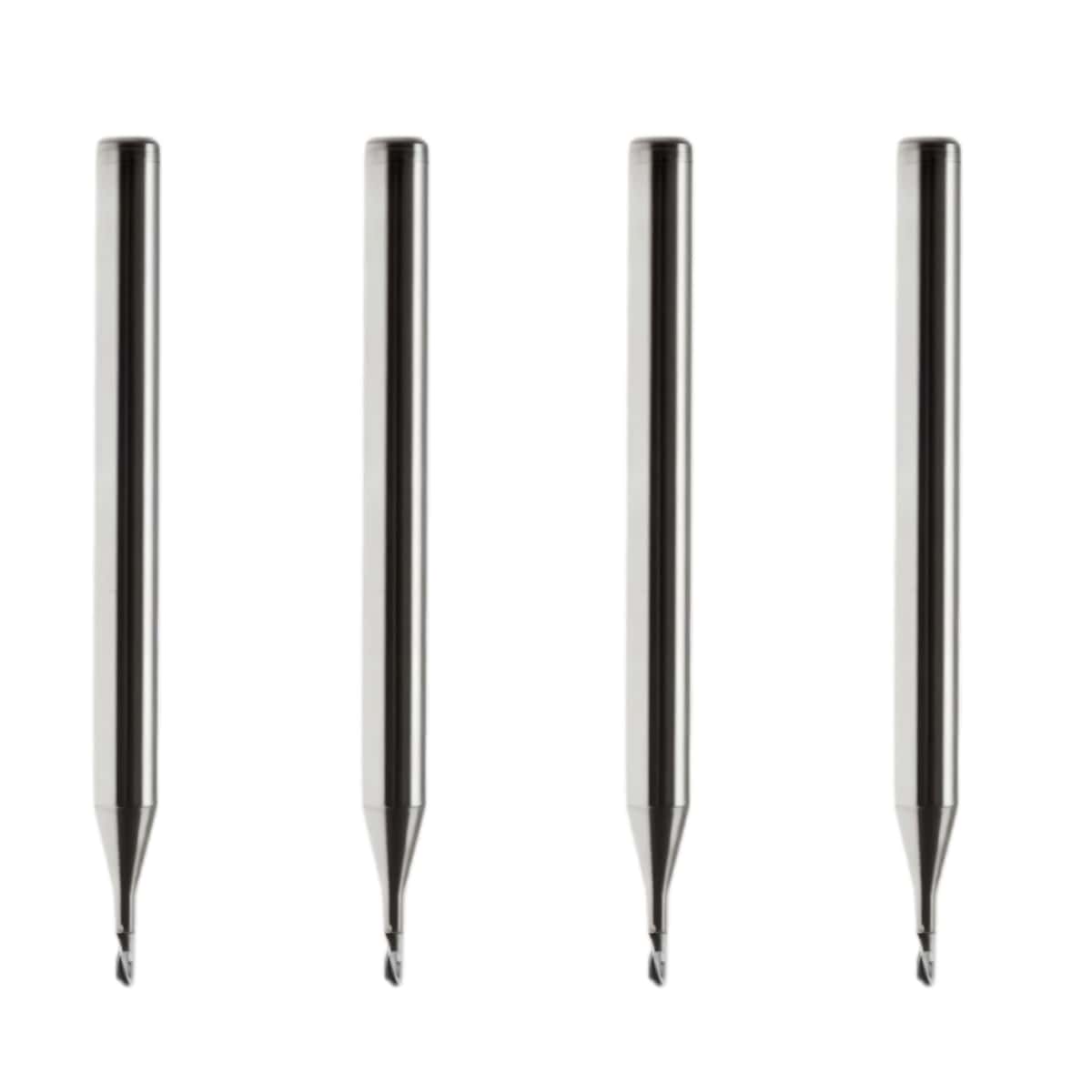

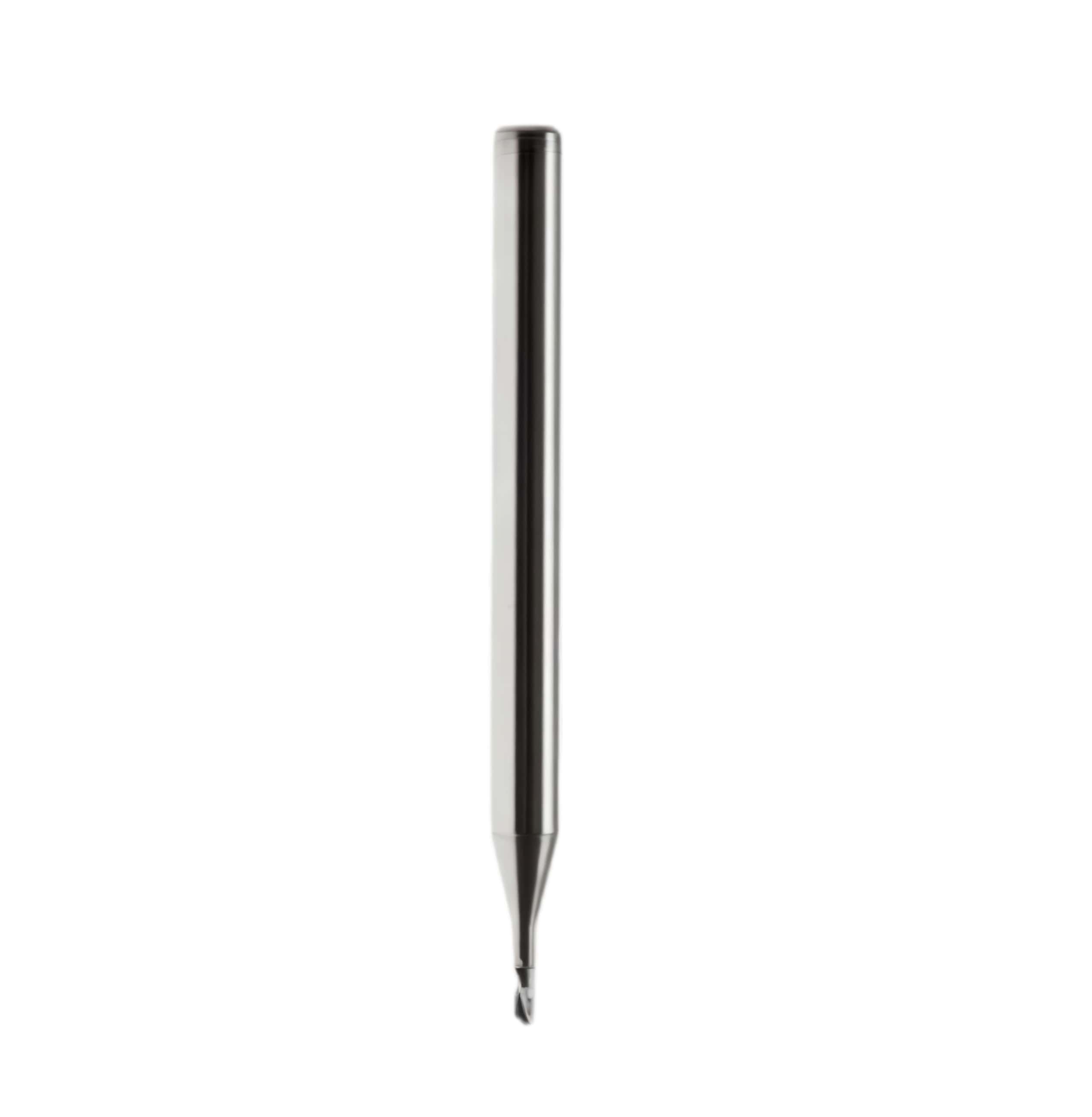

The Esko Kongsberg BIT-MDS03-1002-38 (Part No. G42449306) is a high-precision, single-flute milling bit designed for professional digital cutting systems. It is a multi-purpose down-cut bit, which means the spiral design pushes the material down toward the table during operation to prevent thin substrates from lifting or vibrating.

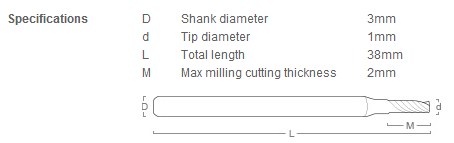

Technical Specifications

This bit is specifically engineered for the HSMU (High Speed Milling Unit) and HPMU (High Power Milling Unit) found on Kongsberg X, XL, and C series tables.

Key Applications

· Recommended Materials: This multi-purpose bit is effective for cutting plastics, thin rigid materials, and acrylic.

· Edge Quality: The down-cut action is particularly useful for achieving a clean finish on the top surface of the material.

· Compatibility: It is standard for Kongsberg X-Tables and compatible with some Multicam router systems using a 3mm collet.

Operation Requirements

To use this 3mm shank bit on a Kongsberg table, you may need a specific chuck or collet:

· HSMU / MultiCut (1kW): Requires chuck 42444083.

· HPMU / MultiCUT-HP (3kW): Requires chuck 42455675.
