Esko Kongsberg Bit-Aus03-1506-30 G42443622 Acrylic Milling And Router Bits

Esko Kongsberg BIT-AUS03-1506-30 (Part Number: G42443622) is a premium solid carbide single-flute acrylic milling and router bit engineered specifically for Kongsberg Precision Cutting Systems digital flatbed cutters Enquire now

Description

Esko Kongsberg Bit-Aus03-1506-30 G42443622 Carbide Single-Flute Acrylic Milling And Router Bits

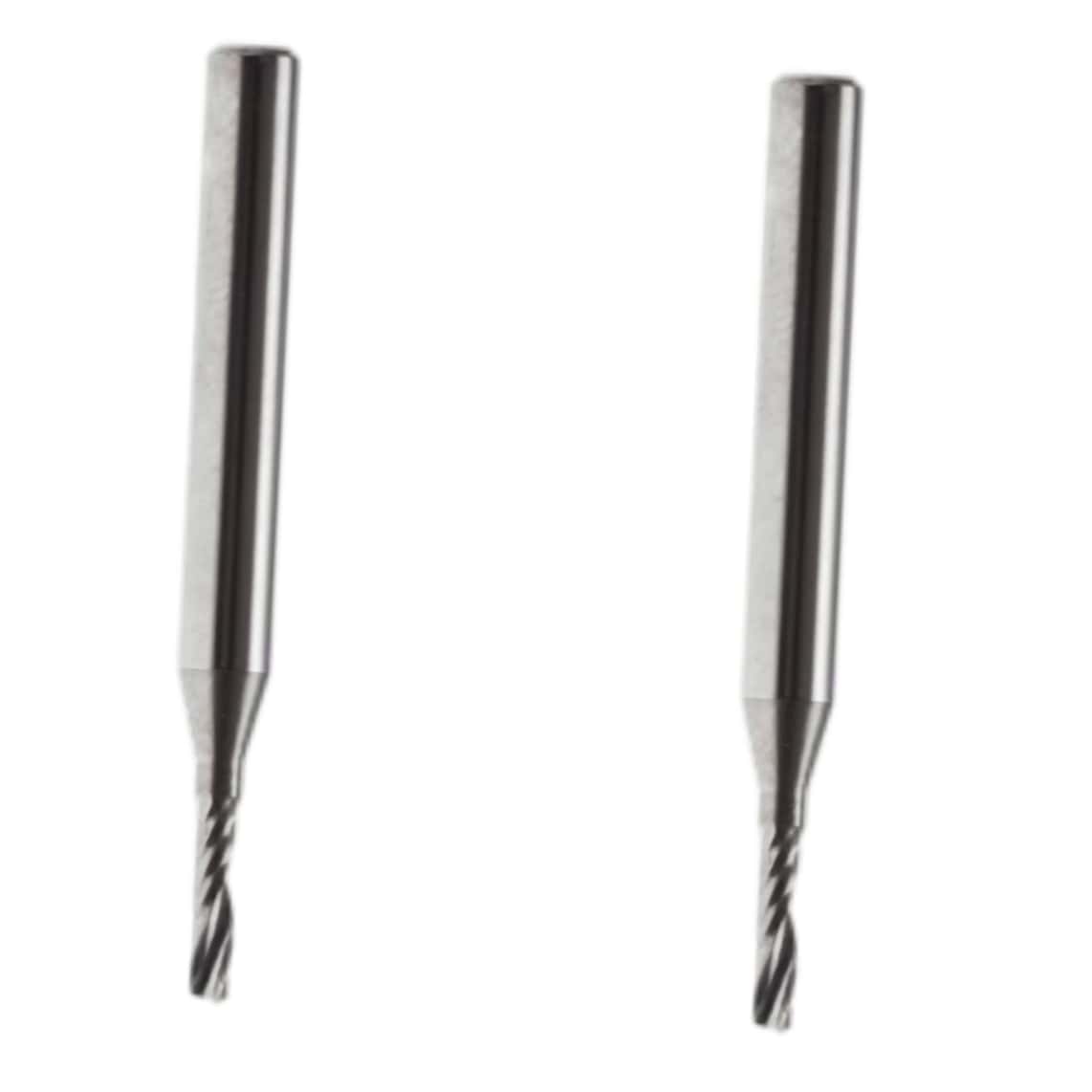

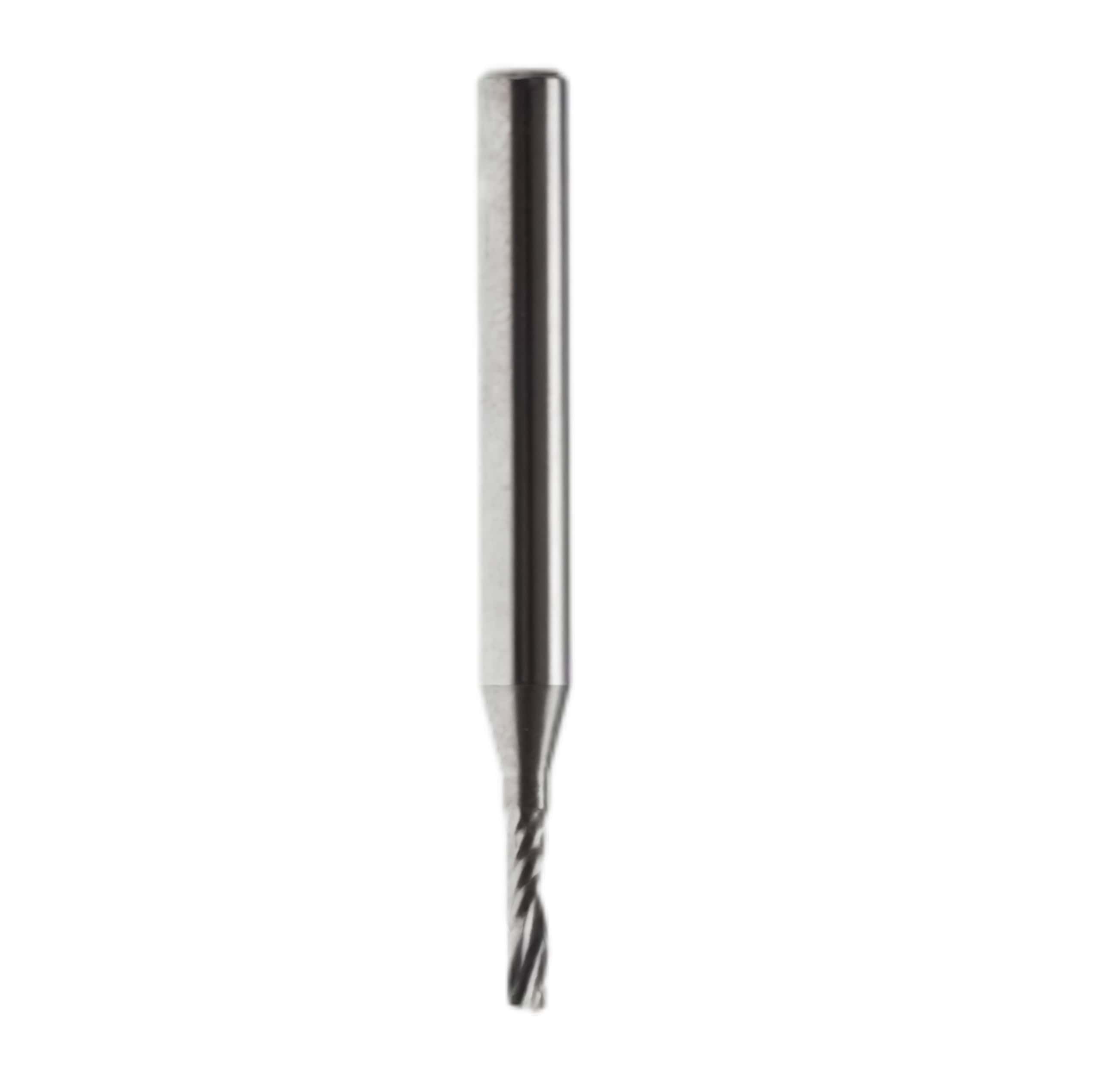

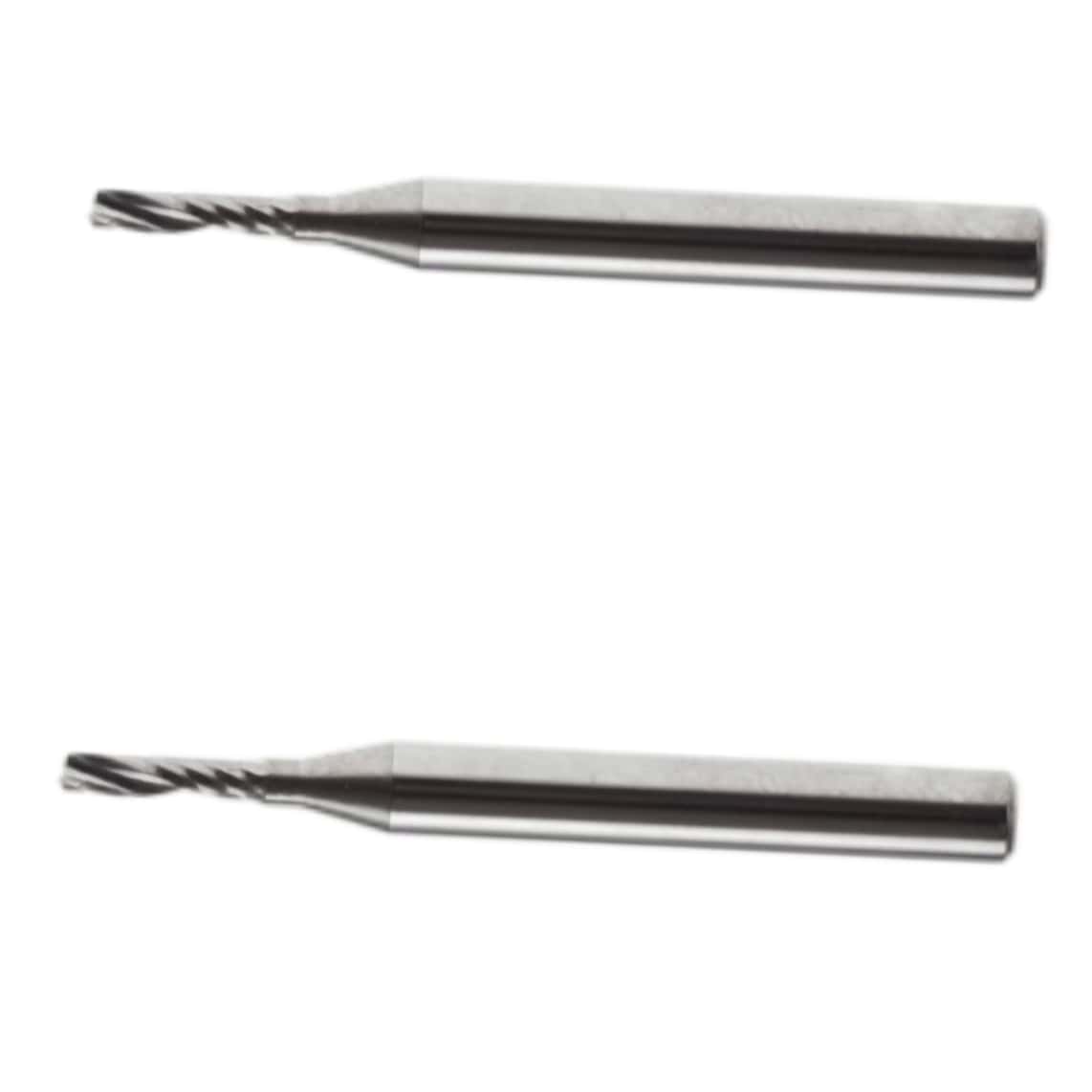

Esko Kongsberg Bit-Aus03-1506-30 G42443622 Acrylic Milling And Router Bit

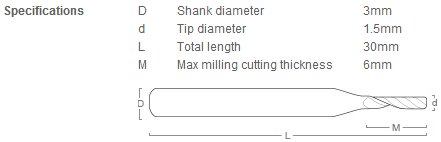

Technical Specifications

Part Number / SKU: G42443622 (also referenced as 42443622)
Bit Classification: BIT-AUS03-1506-30
Flute Geometry: Single Flute (Z1), Up-Cut Spiral
Shank Diameter: 3.0 mm
Cutting Diameter: 1.5 mm
Flute Length (Cutting Depth): 6.0 mm
Total Length: 30.0 mm

Recommended Material Applications

This specialized geometry is explicitly optimized for rigid, heat-sensitive synthetic materials where edge quality is critical:

Acrylic plastics (Plexiglas, PMMA)
Polycarbonates & PETG
Solid engineering plastics
Softwoods and multi-layer wood laminates

Performance Benefits

Polished Spannut (Flute): The ultra-smooth inner flute accelerates chip evacuation, drastically reducing friction and heat buildup.
No Melting: Eliminates the risk of plastic chips welding back onto the newly cut edges.
High Sharpness: Leaves a burr-free, glass-like edge profile that eliminates the need for manual secondary flame-polishing.
