Esko Kongsberg Bit-Aus03-3011-38 G42443697 Milling Bit For Kongsberg Digital Cutting Tables

Esko Kongsberg BIT-AUS03-3011-38 (G42443697) is a single-flute, up-cut solid carbide milling bit designed for high-performance routing on Kongsberg digital cutting tables. It is optimized for precision cutting of materials like acrylic, plastics, and wood. Enquire now

Description

Esko Kongsberg Bit-Aus03-3011-38 G42443697 Carbide Milling Bit For Kongsberg Digital Cutting Tables

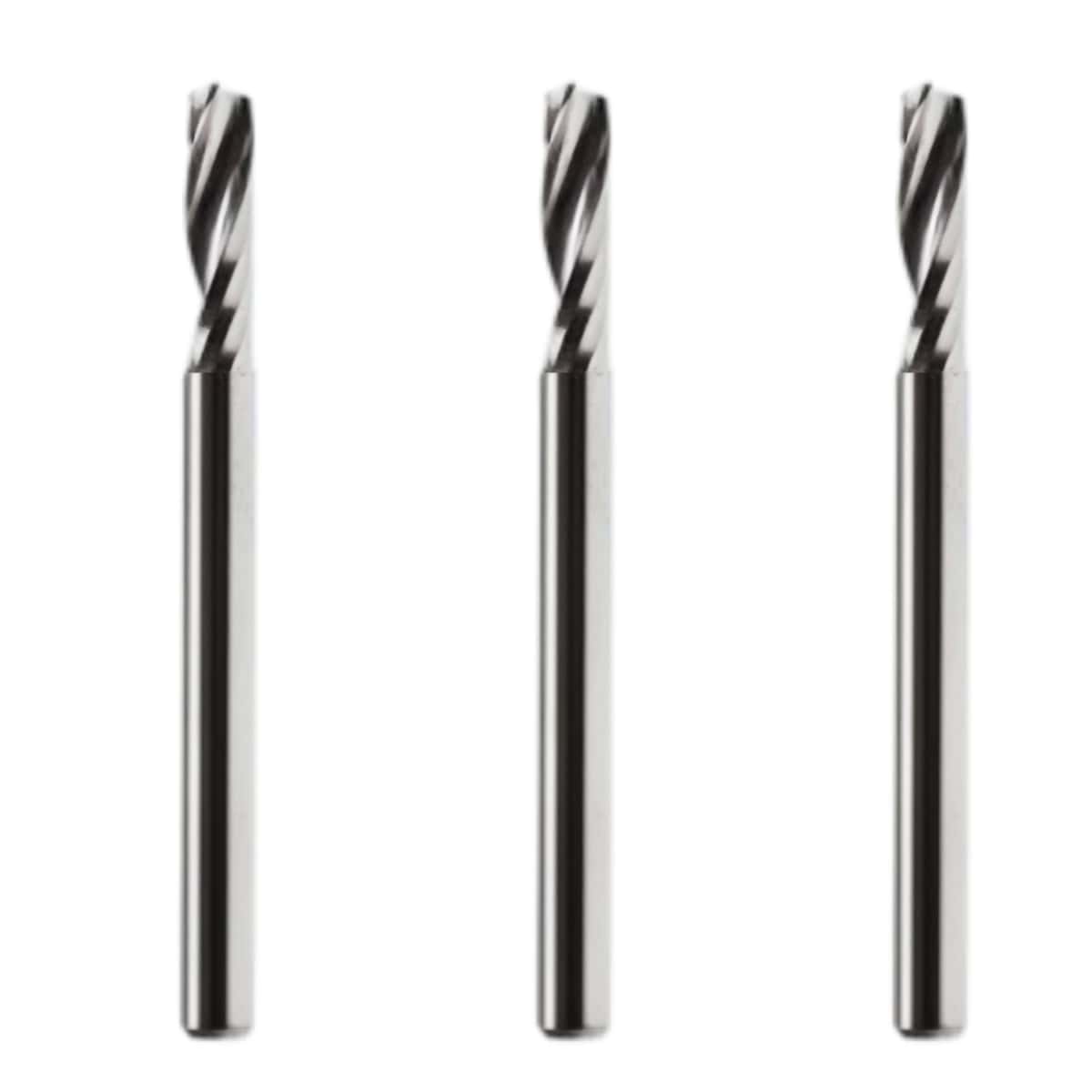

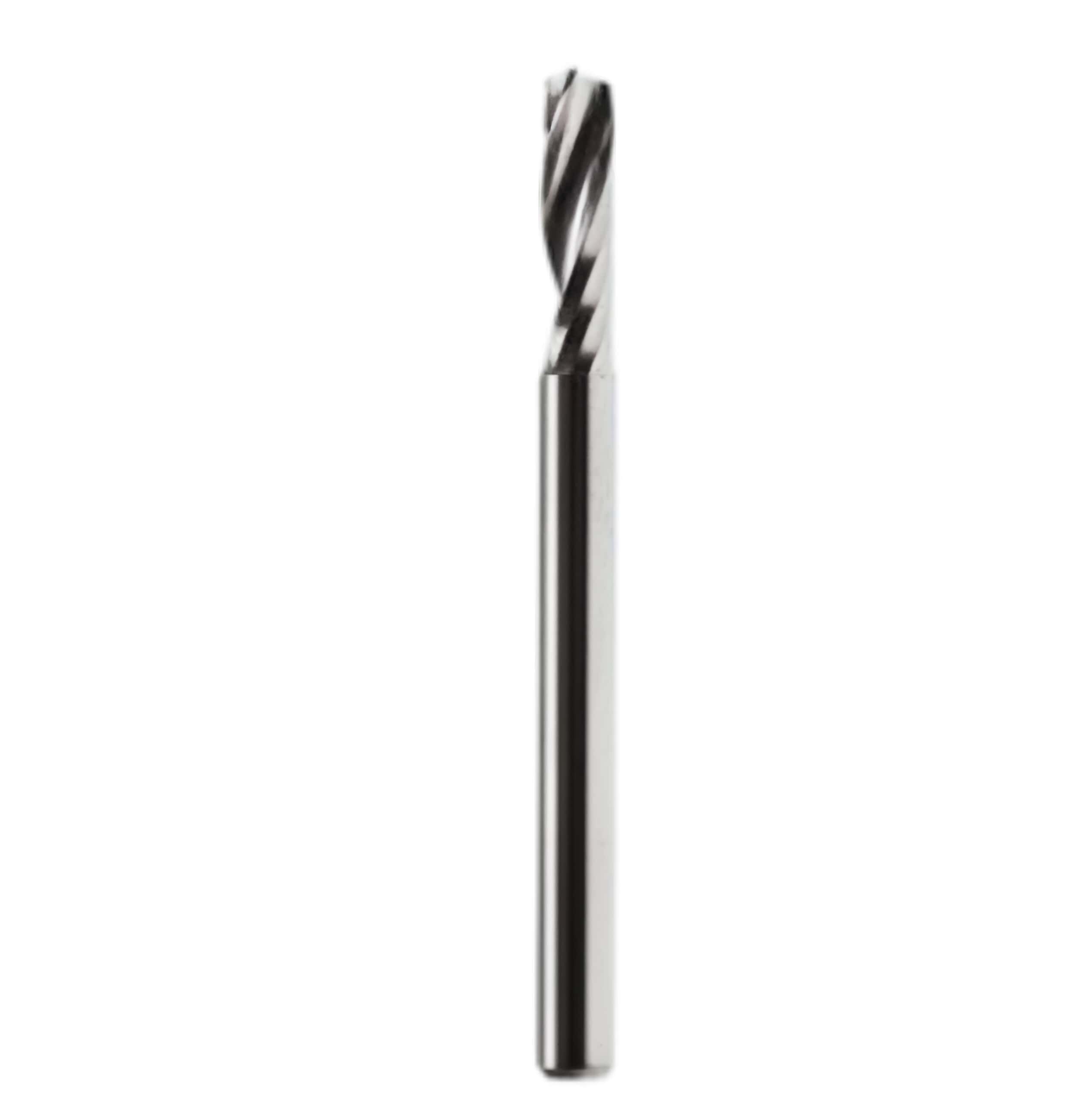

Esko Kongsberg Bit-Aus03-3011-38 G42443697 Milling Bit

Technical Specifications

Part Number: G42443697
Product Code: BIT-AUS03-3011-38
Shank Diameter: 3.0 mm
Cutting Edge Diameter: 3.0 mm
Cutting Depth (Flute Length): 11 mm
Total Length: 38 mm
Flute Geometry: Up-Cut, Single Flute (Balanced for rapid chip evacuation)
Material Category: "AUS" Class (Acrylic/Plastic Super Sharp Series)

Key Applications & Materials

This specific bit is optimized for the Kongsberg High-Power Milling Unit to eliminate burrs and material melt:

PMMA & Plastics: Acrylic panels (Plexiglas, Perspex), Polycarbonate, and PETG.
Signage Composites: Expanded PVC (Forex/Sintra) and lightweight multi-layer boards.
Wood Substrates: Thin MDF, plywood, and high-density foam cores.

Decoding the Tool Part Number (BIT-AUS03-3011-38)

BIT: Standard Kongsberg tooling classification.
AUS: Acrylic/Up-cut/Super Sharp geometry.
03: 3mm tool shank diameter.
30: 3.0mm cutting flute diameter.
11: 11mm maximum milling thickness / cut depth.
38: 38mm overall tool length.
