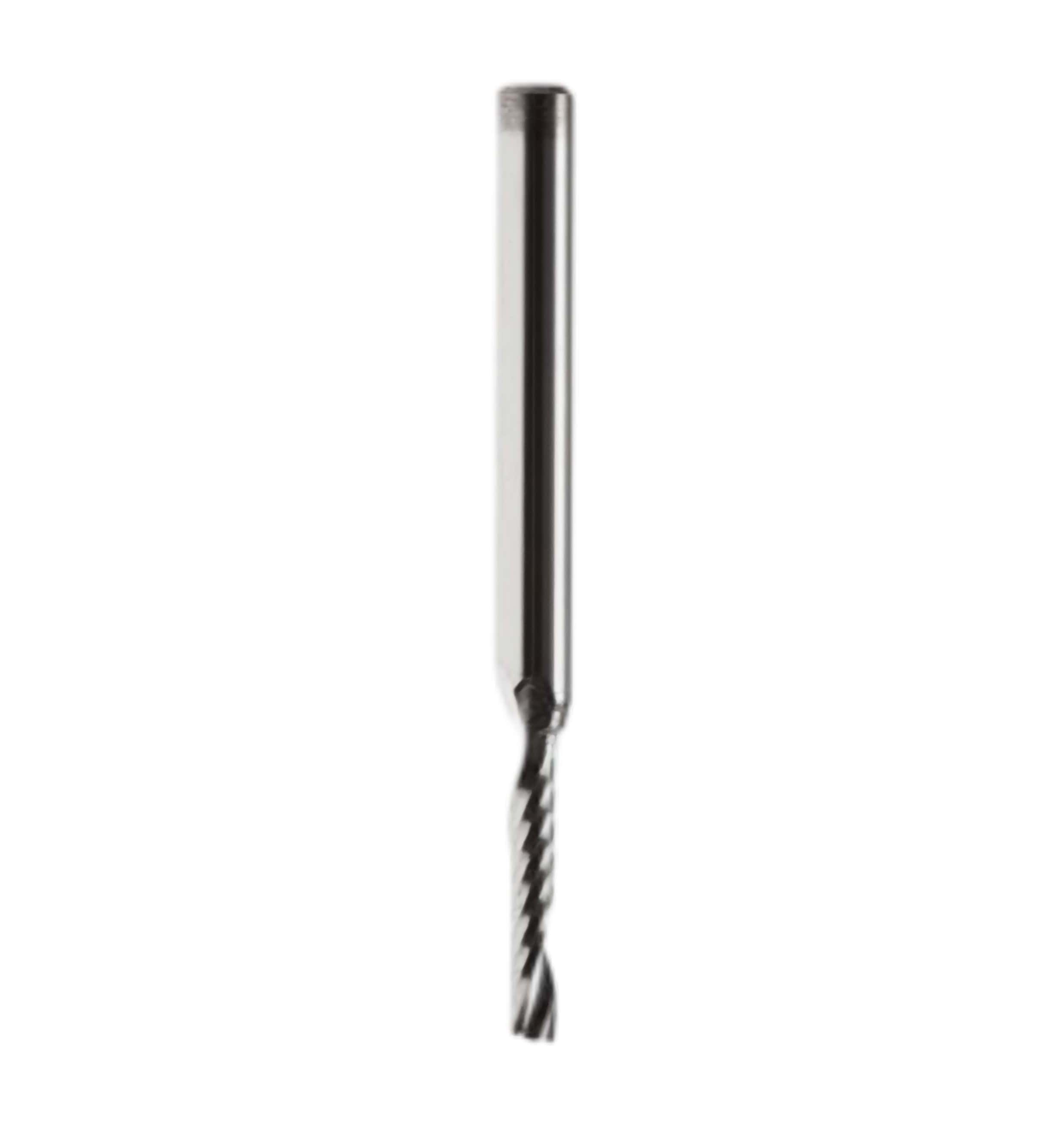

Esko Kongsberg Bit-Aus03-2011-38 G42443655 Up-Cut Milling And Router Bit

Esko Kongsberg BIT-AUS03-2011-38 (item number G42443655) is a 3mm shank tungsten carbide single-flute up-cut milling and router bit designed for Kongsberg Precision Cutting Systems digital cutting tables Enquire now

Description

Esko Kongsberg Bit-Aus03-2011-38 G42443655 Up-Cut Milling And Router Bit

Key Technical Specifications

Part Number: G42443655
Model Code: BIT-AUS03-2011-38
Flute Geometry: Single flute (O-flute), Up-cut spiral
Cut Diameter: 3 mm
Shank Diameter: 6 mm (Standard for high-speed small diameter tooling)
Material Composition: Solid tungsten carbide
Primary Target Substrate: Acrylic and cast PMMA

Material Suitability & Performance

Up-Cut Advantage: The upward spiral geometry rapidly evacuates chips from the channel, preventing heat buildup and plastic melting.
Super-Sharp Edge: Ground specifically to yield smooth, transparent vertical edges on acrylic panels without needing manual flame polishing.
Alternative Applications: Can also process soft plastics, wood, and light non-ferrous sign blanks when narrow radiuses are required.

Tool Head Compatibility

This 3 mm bit is fully compatible across various Esko Kongsberg tooling modules, notably running on the high-powered MultiCUT and MultiCUT-HP (High Performance) tool heads found on X-Series, V-Series, and C-Series flatbed tables.
