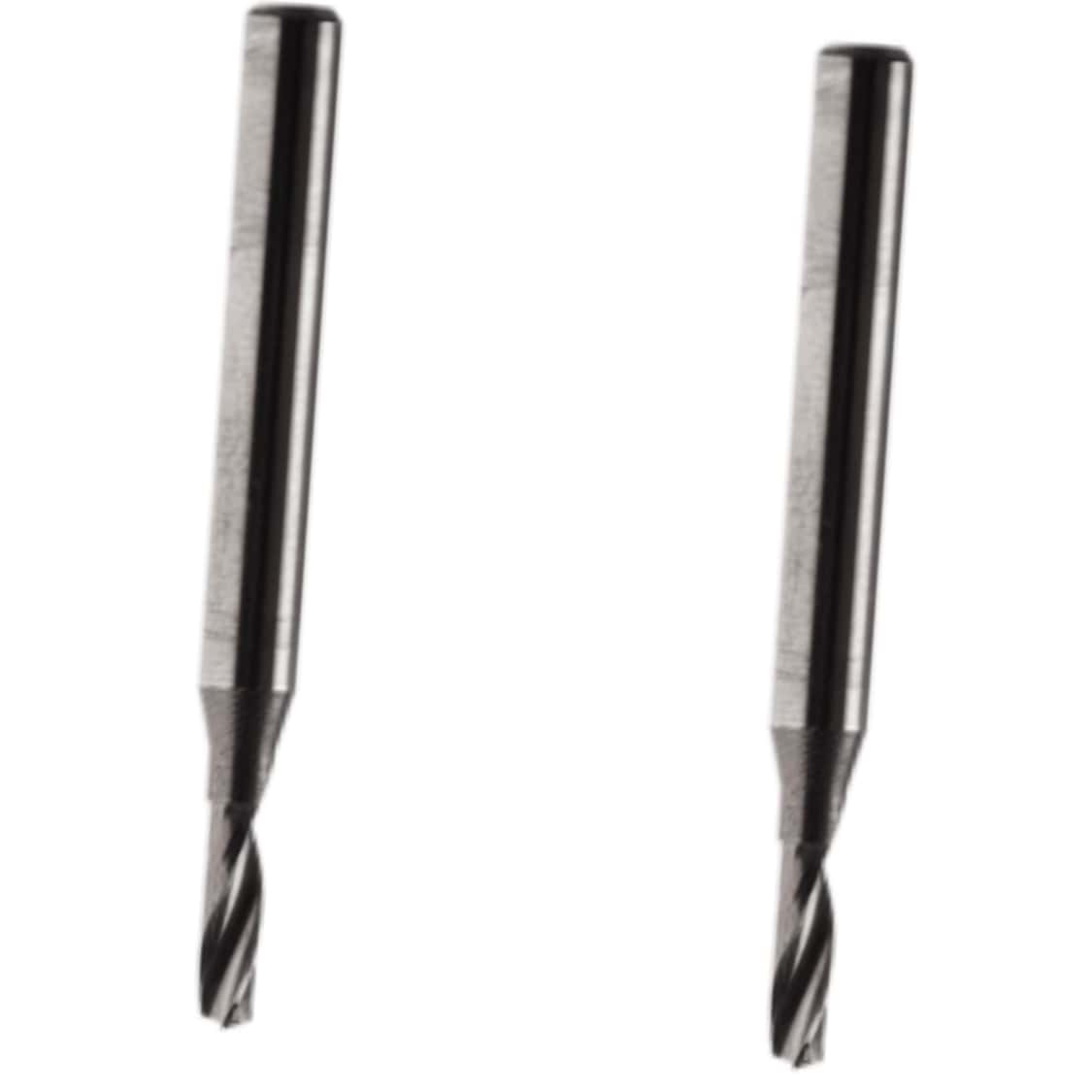

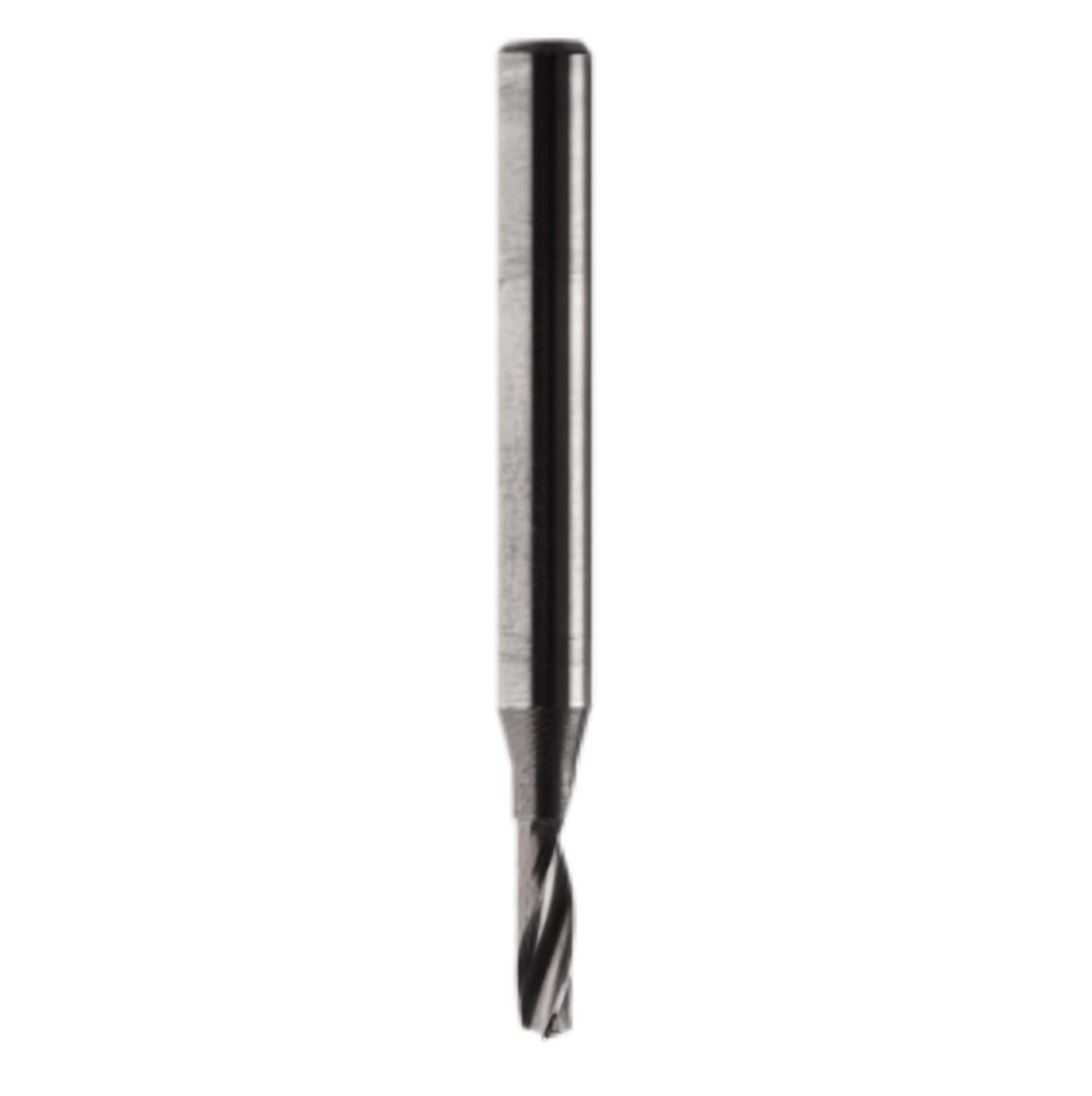

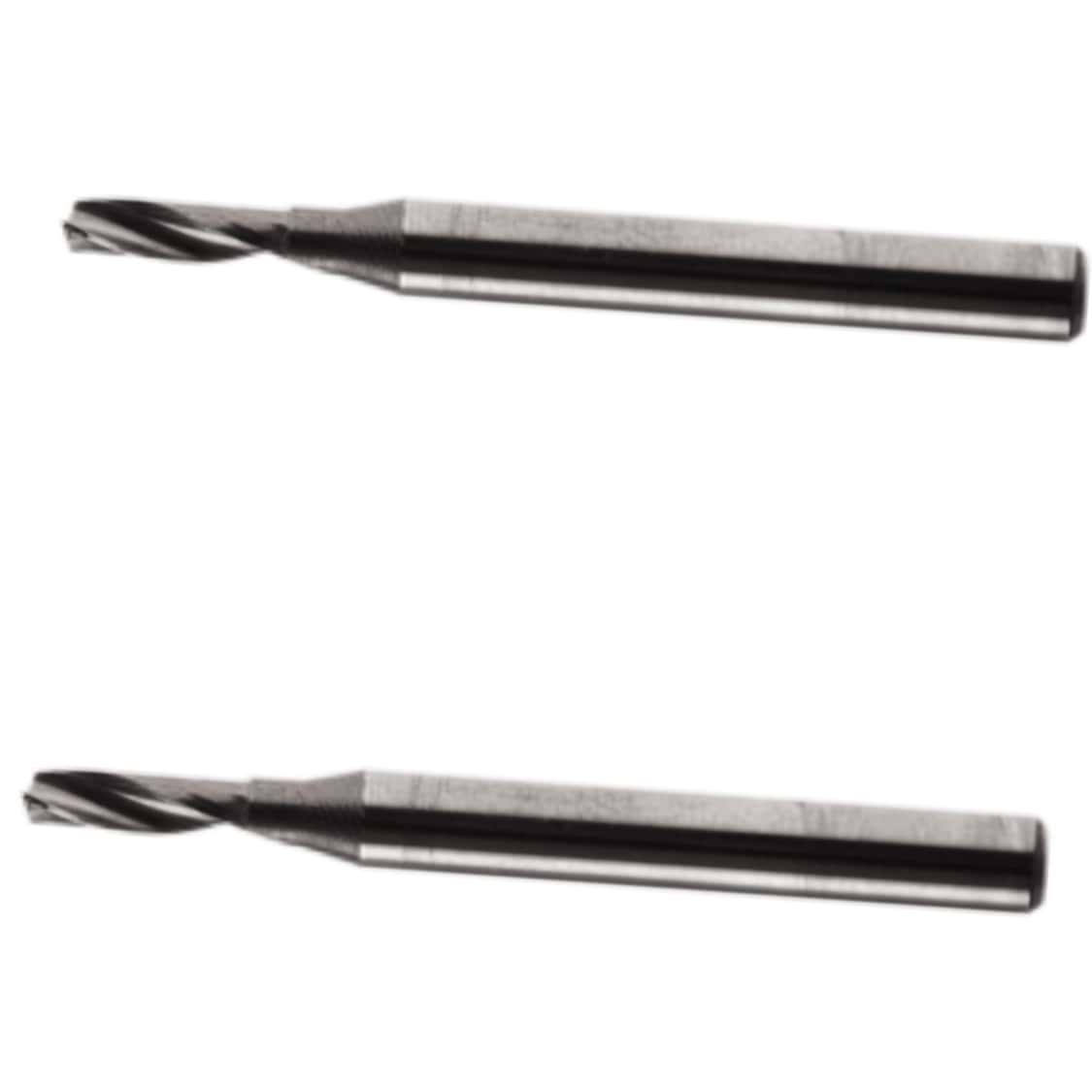

Esko Kongsberg Bit-Aus03-2006-30 G42443630 Milling And Router Bit For Kongsberg Routing Systems

Esko Kongsberg BIT-AUS03-2006-30 (G42443630) is a high-precision, solid tungsten carbide single-flute milling and router bit. It is specifically engineered for use with Kongsberg CNC digital flatbed cutting tables and routing systems. Enquire now

Description

Esko Kongsberg Bit-Aus03-2006-30 G42443630 Milling And Router Bit For Use With Kongsberg Cnc Digital Flatbed Cutting Tables And Routing Systems

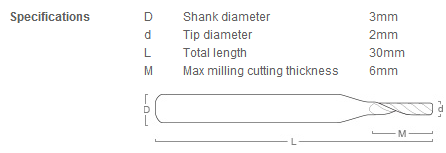

Core Specifications

Part Number (Code): G42443630
Model Identifier: BIT-AUS03-2006-30
Geometry: Single flute (O-flute layout)
Flute Length: 6 mm
Material Composition: Micro-grain tungsten steel / carbide

Target Applications & Materials

The specialized geometry and high polish of the bit make it ideal for processing dense, rigid, or heat-sensitive substrates, including:

Plastics: Acrylic (PMMA), polycarbonate, and solid plastics.
Wood Products: MDF, hard woods, and plywood composites.
Graphics Materials: Rigid signage boards, foamed PVC (Sintra/Forex), and display cartons.

Equipment Compatibility

This bit functions across multiple generations of Kongsberg flatbed routers. It fully integrates with the Kongsberg High-Power Milling Unit (HPMU) and MultiCUT-HP tool heads. The tool operates efficiently up to 60,000 RPM on the following platforms:

Kongsberg C Series: High-production industrial tables (e.g., C24, C64).
Kongsberg X Series: Versatile signage and display cutting tables (e.g., X24, X44).
Legacy Platforms: XL, XN, and XP routing systems.
