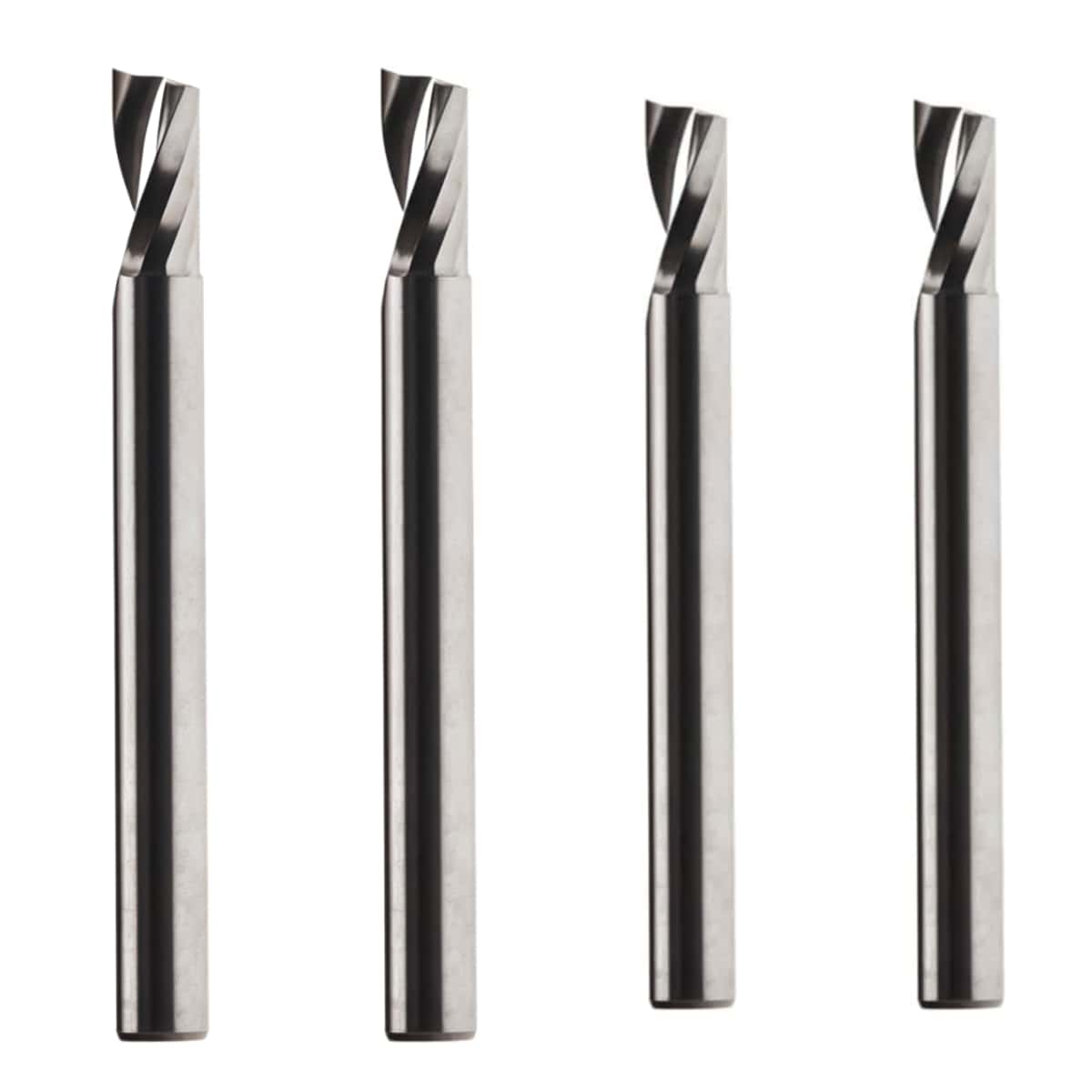

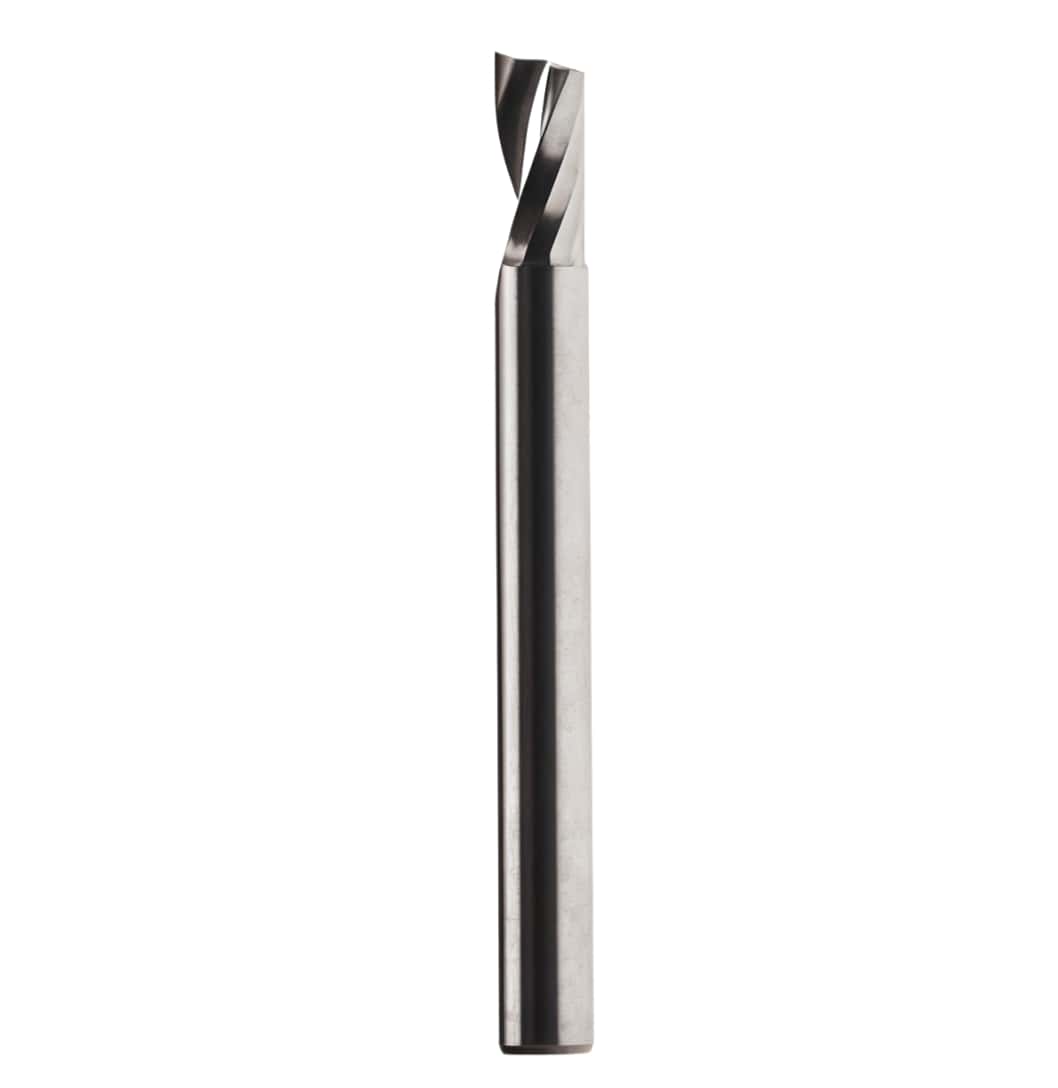

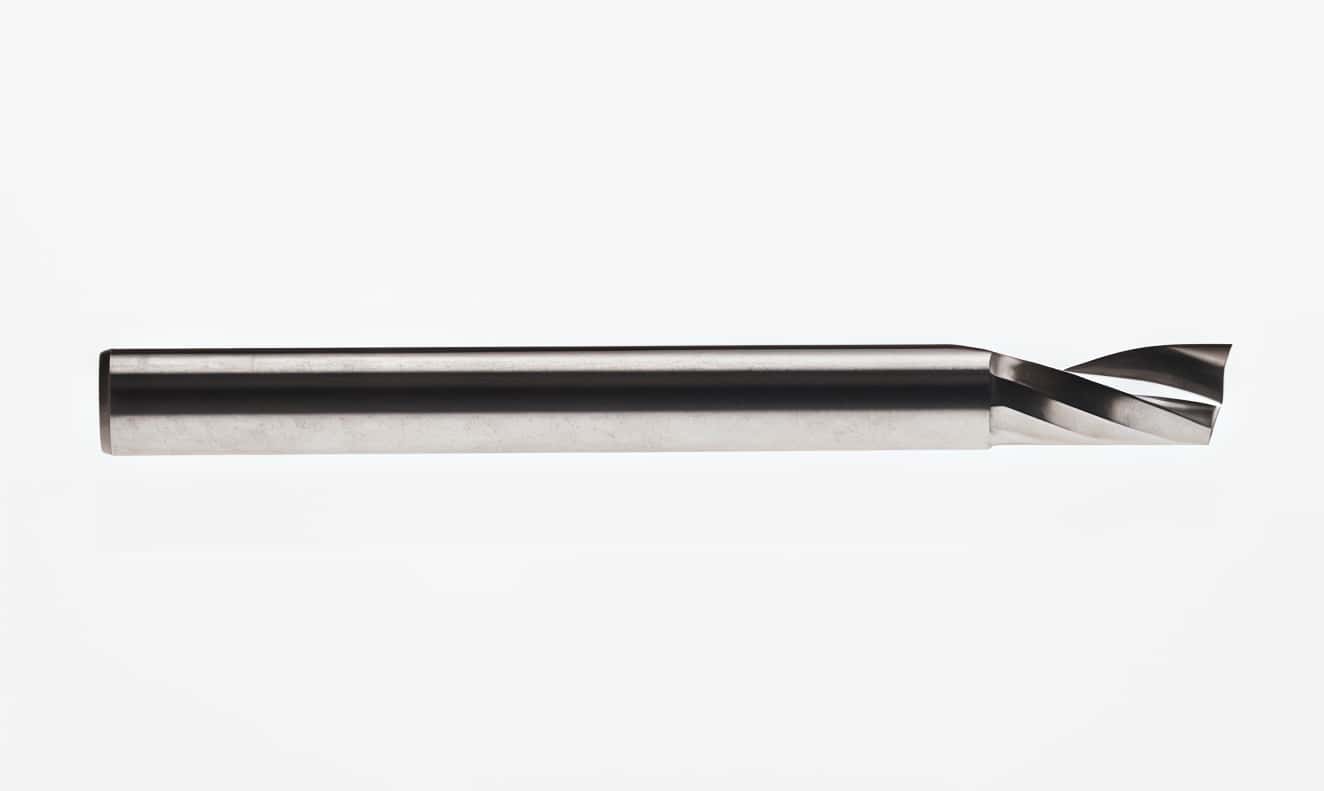

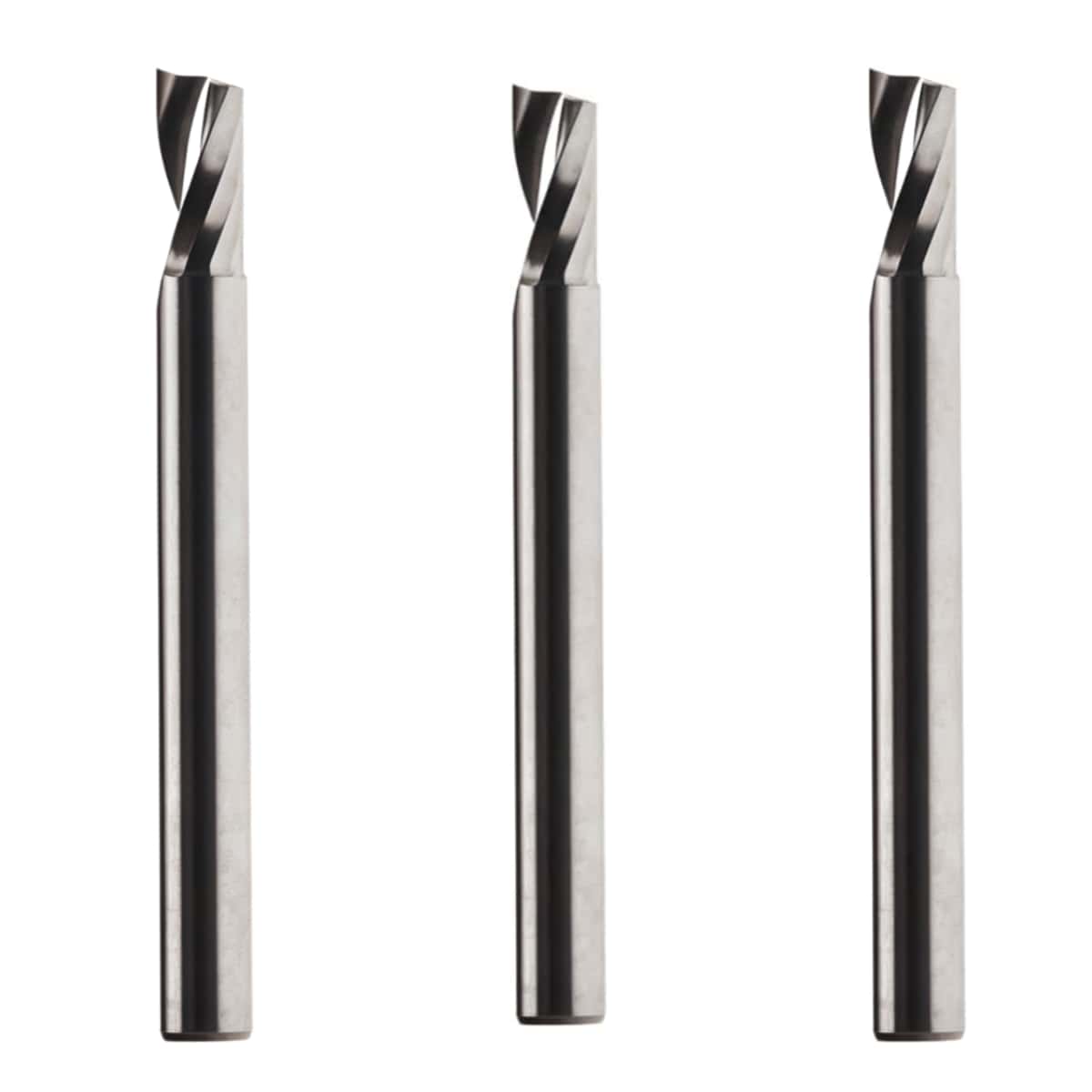

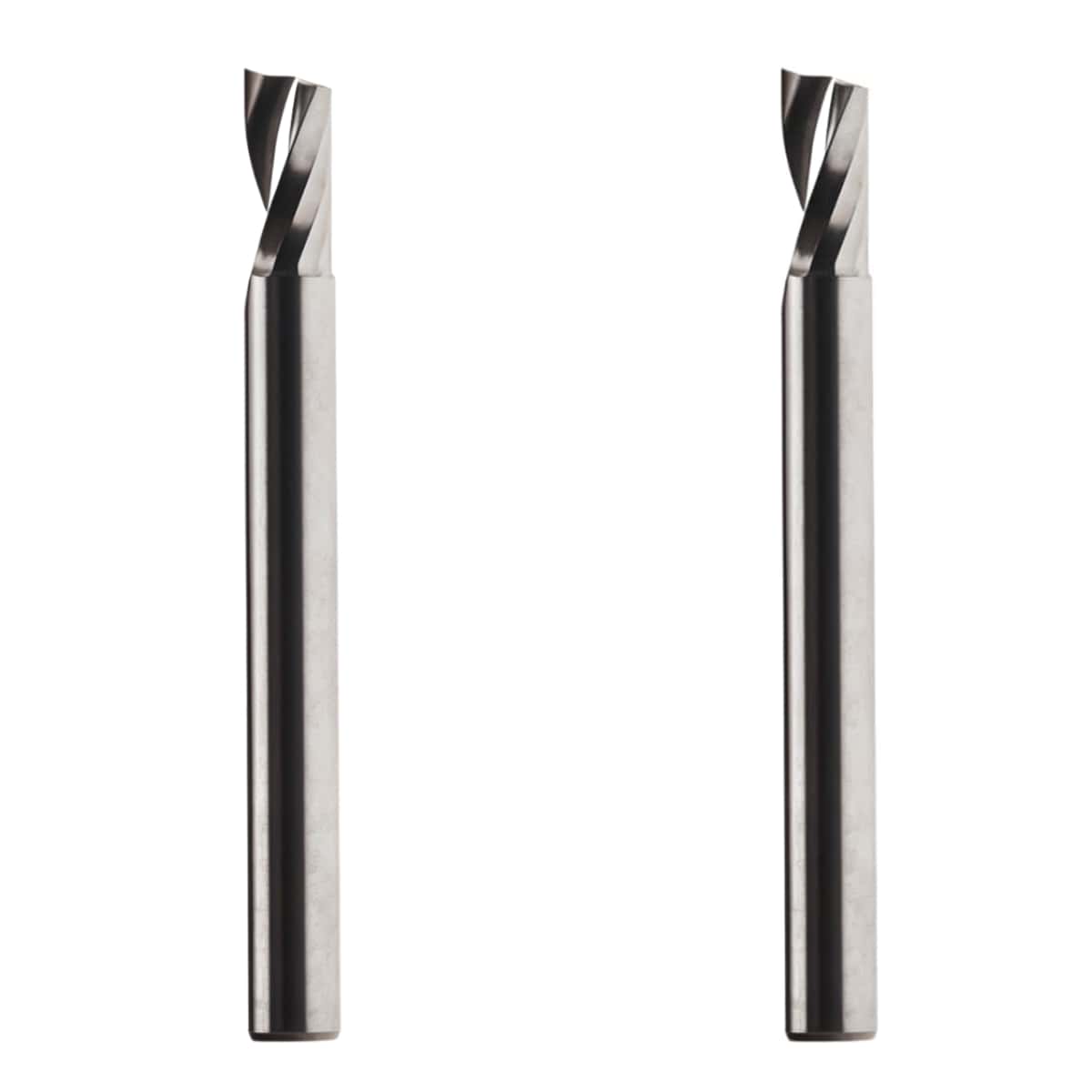

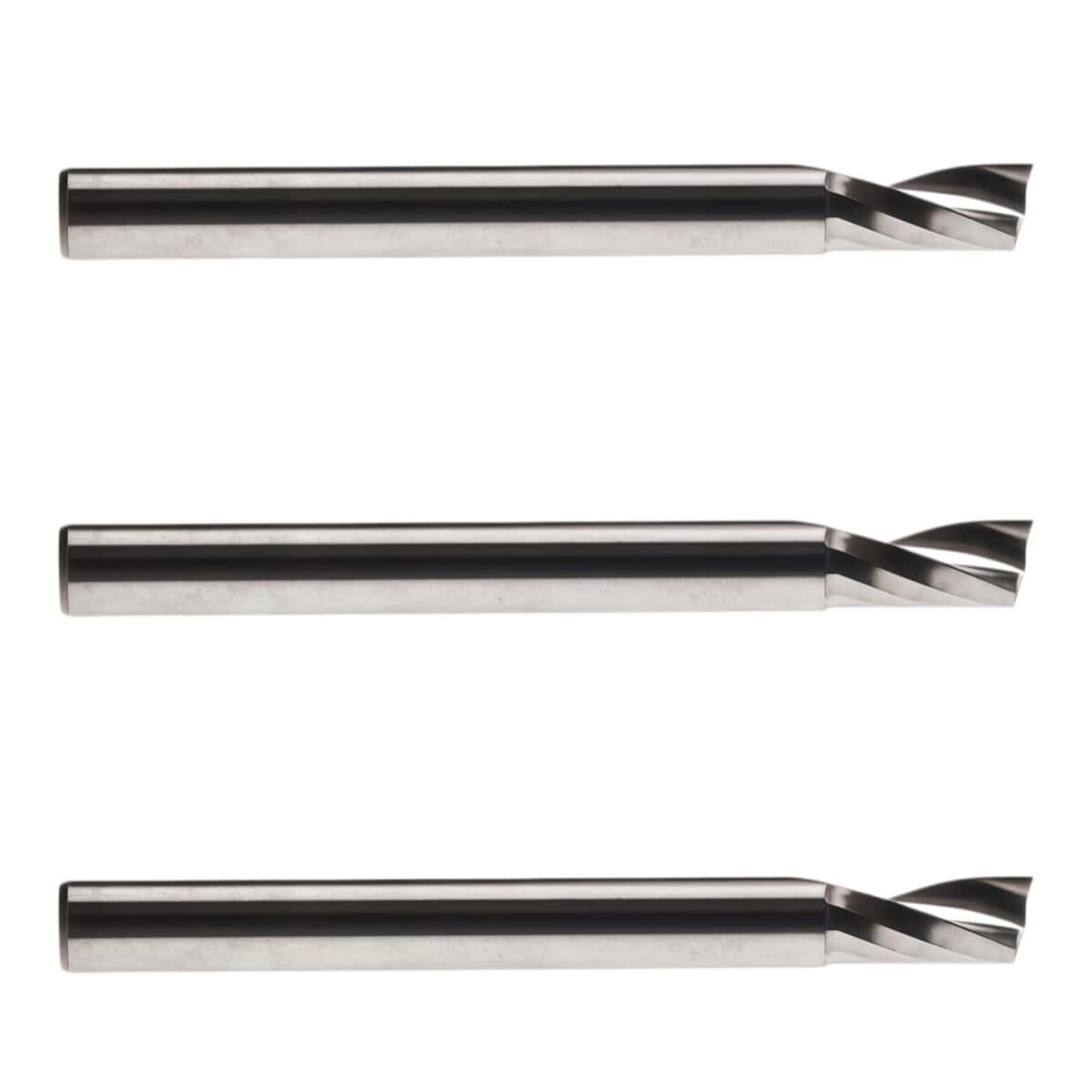

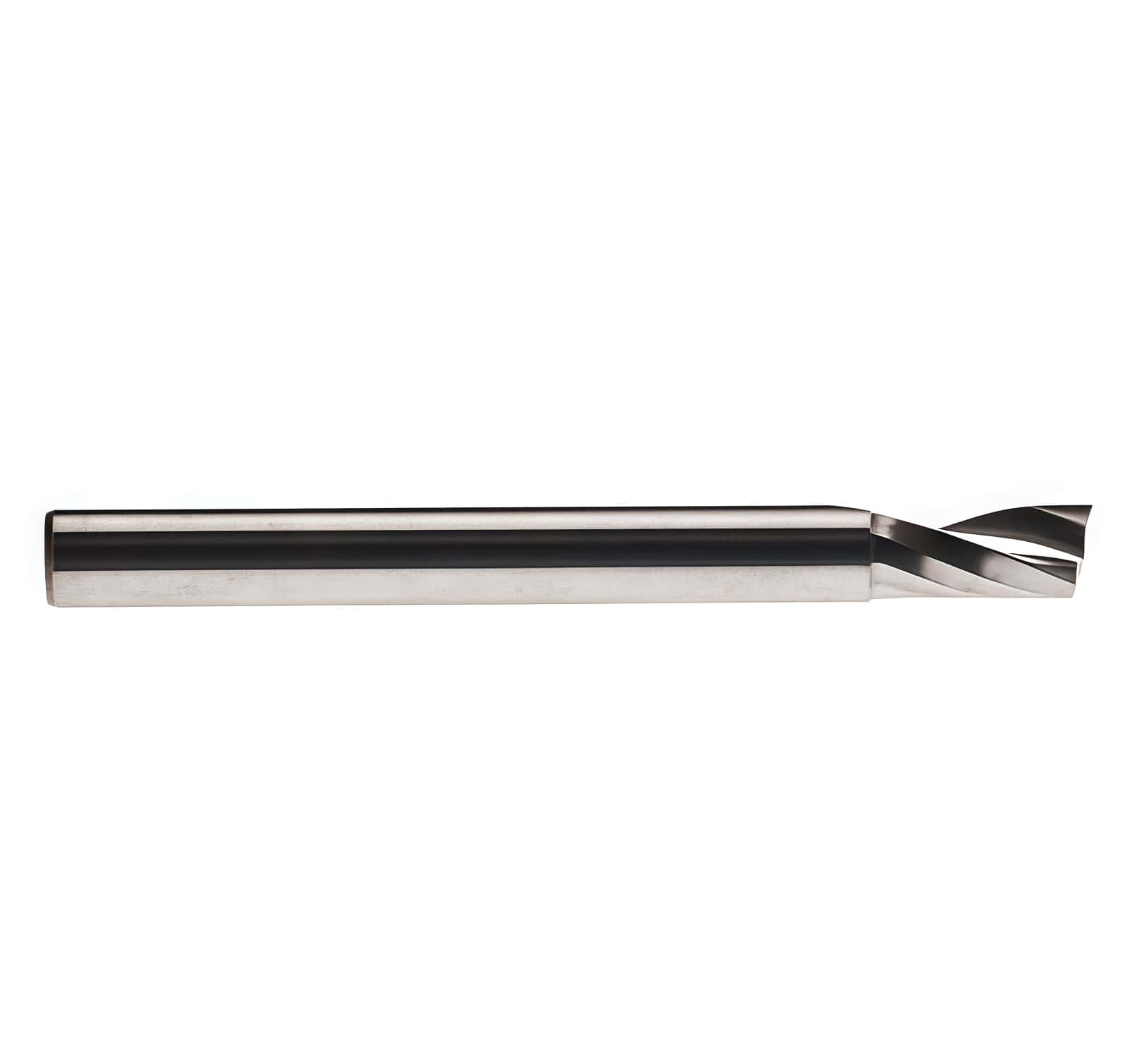

The Esko Kongsberg BIT-AUS03-3006-30 (part number G42443689) is a premium, solid tungsten carbide milling and router bit engineered specifically for Kongsberg Precision Cutting Systems flatbed digital cutters. Part of the specialized "A-series" tooling lineup, this high-performance bit features an exceptionally sharp, polished cutting edge designed to deliver flawless finish quality with minimal burring.

Nomenclature Breakdown

The Kongsberg part numbering structure defines the exact mechanical geometry and application of the tool:

· BIT: Identifies the tool as a rotating CNC router/milling bit.

· AUS: Represents Acrylic Up-Cut Single Flute with a super-sharp polished edge.

· 03: Indicates a standard 3 mm shank diameter.

· 30: Specifies a 3.0 mm cutting tip diameter.

· 06: Specifies a 6 mm flute length (maximum milling depth).

· 30: Denotes a total overall tool length of 30 mm.

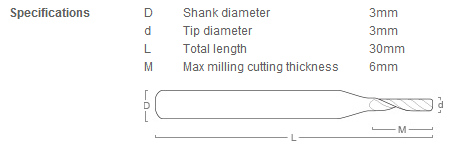

Key Specifications

Recommended Applications & Compatibility

The single-flute up-cut geometry is optimized to pull chips upward rapidly out of the cut path, preventing material melting and heat re-welding.

· Primary Materials: Acrylic (PMMA, Plexiglas, Perspex), polycarbonate, rigid plastics, and soft wood variations.

· Tool Head Integration: Used primarily with the lightweight, precise MultiCUT tool heads and high-speed routing spindles equipped with a 3 mm collet/air chuck on Kongsberg X, V, C, and XE digital tables.
