Esko Kongsberg Bit-Ads03-1504-38 G42449454 Carbide Router Bit For Digital Cutting Systems
Esko Kongsberg BIT-ADS03-1504-38 (G42449454) is a high-precision, solid tungsten carbide router bit engineered explicitly for industrial flatbed digital cutting systems. This specialty cutting tool is designed to deliver exceptional geometric accuracy and smooth surface finishes across rigid substra… Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Esko Kongsberg Bit-Ads03-1504-38 G42449454 Carbide Router Bit For Digital Cutting Systems

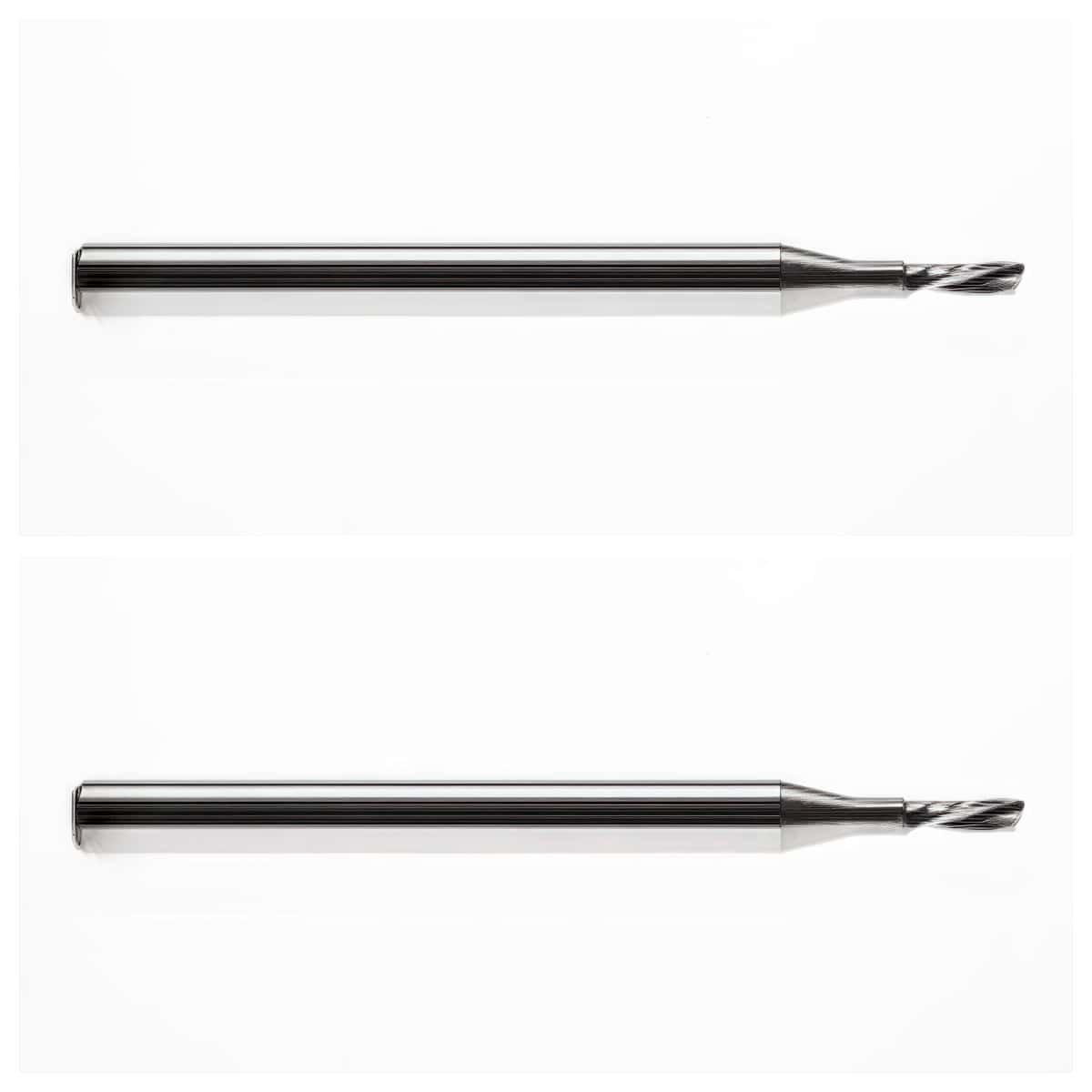

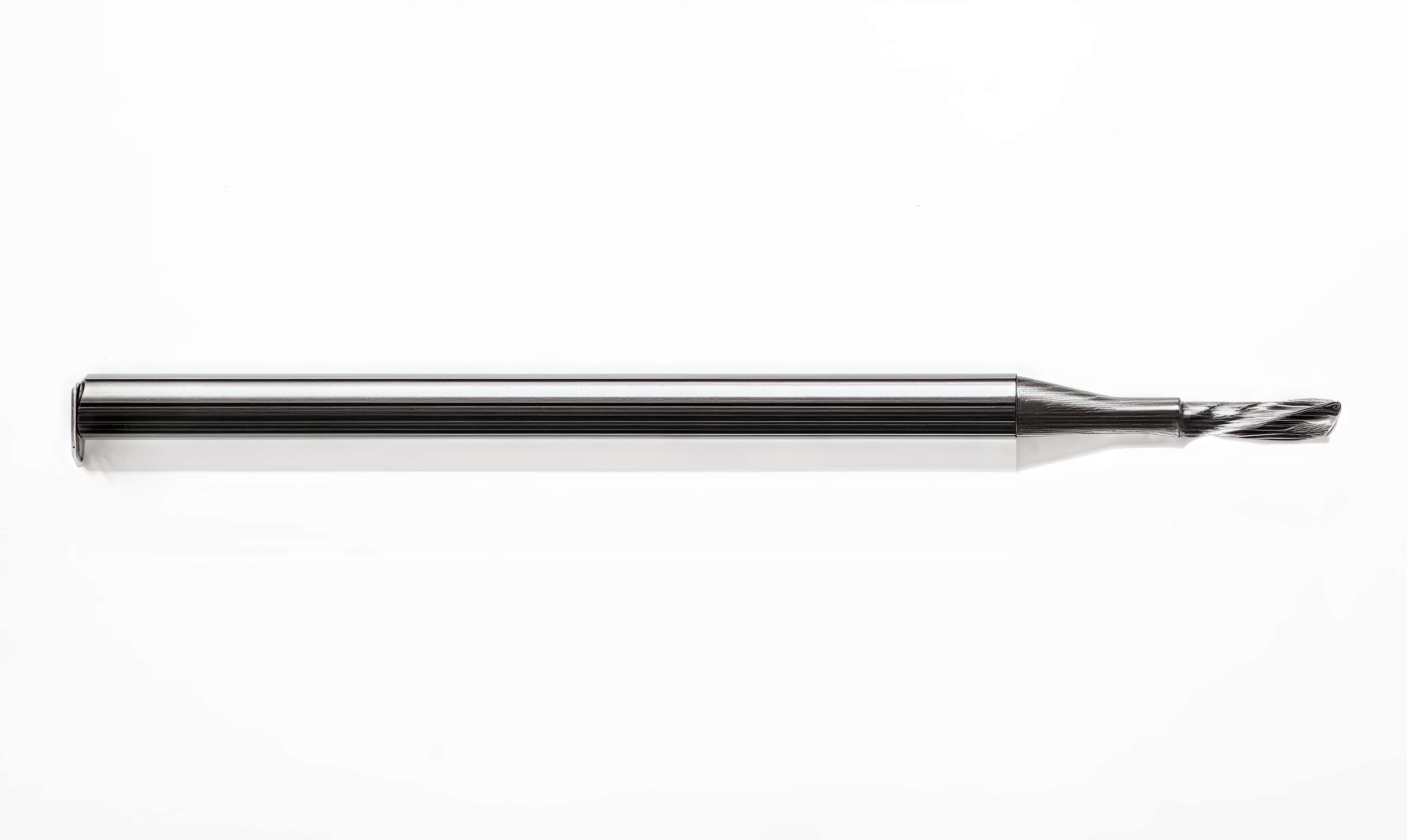

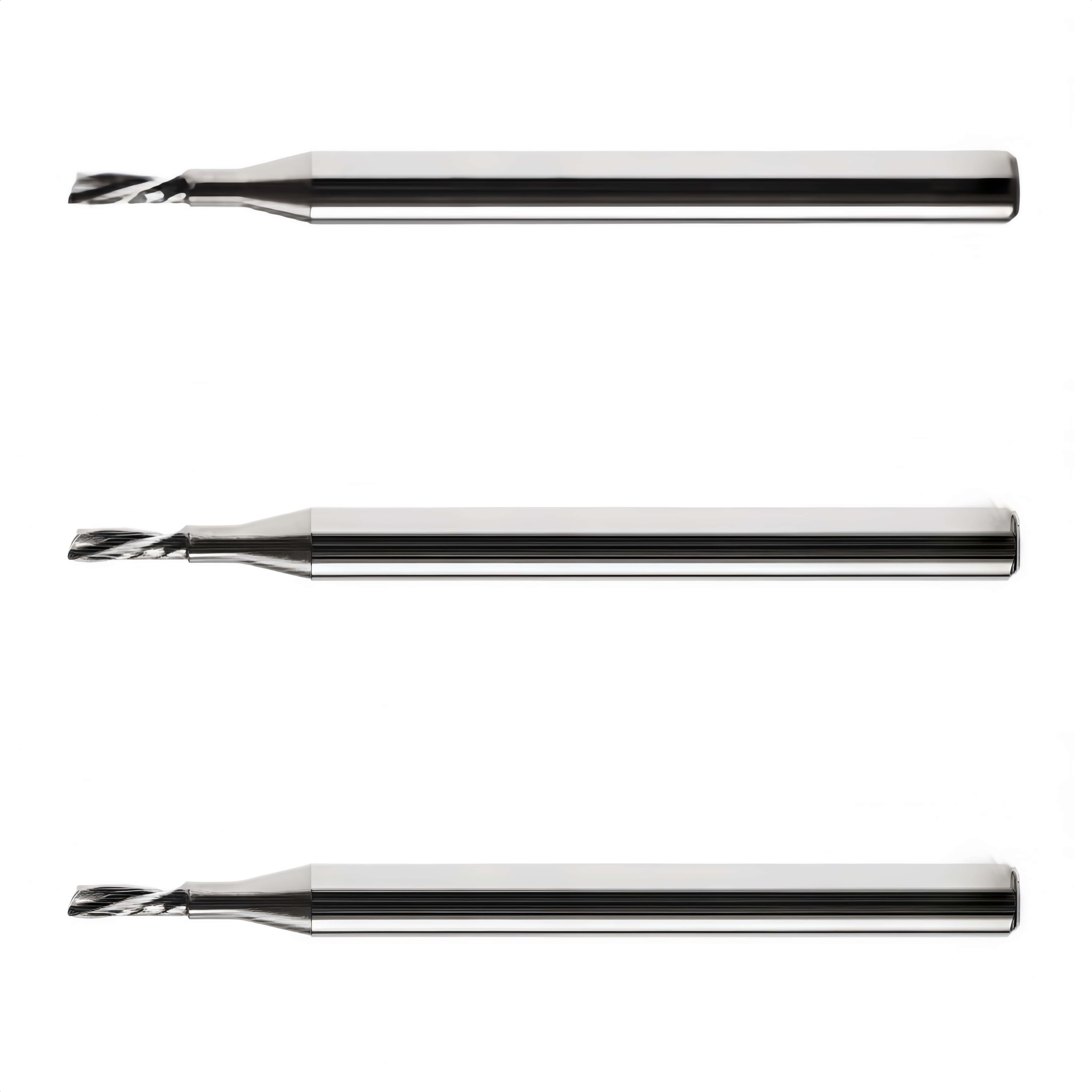

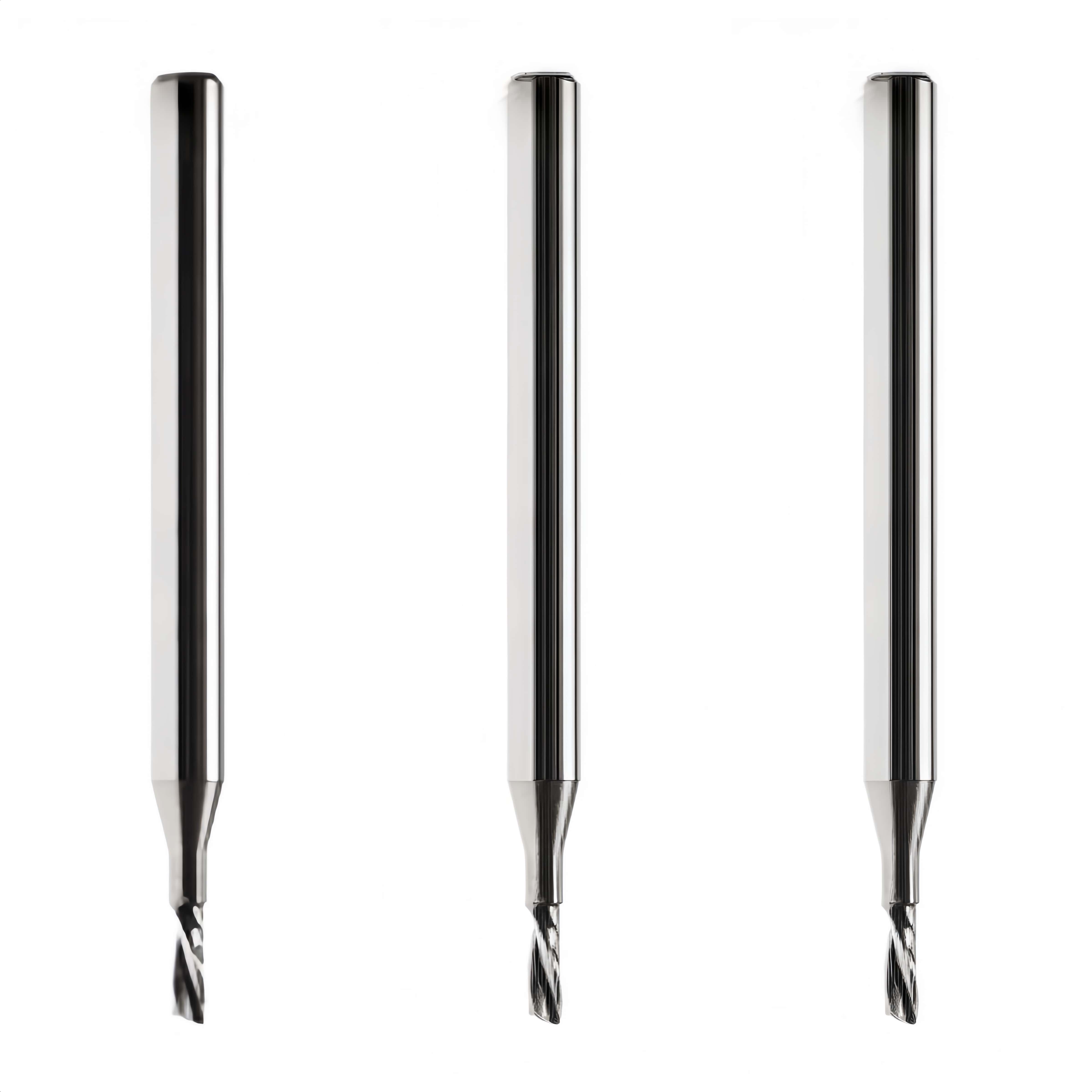

Esko Kongsberg Bit-Ads03-1504-38 G42449454 Carbide Router Bit

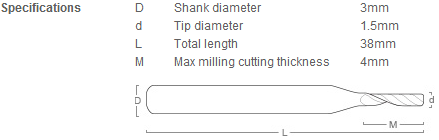

Key Technical Specifications
The part number configuration decodes into the tool's exact physical geometry and dimensional bounds:
  • Shank Diameter: 3.0 mm
  • Cutting Diameter: 1.5 mm
  • Max Milling Depth: 4.0 mm
  • Total Length: 38 mm
  • Material Composition: Micrograin solid tungsten carbide
  • Flute Geometry: Single-flute, down-cut (spiral design pushes chips and material downward)

Hardware Compatibility
This carbide bit natively integrates with specialized milling tool heads optimized for continuous industrial throughput:
  • Kongsberg Tool Heads: High Speed Milling Unit (HSMU) and High Power Milling Unit (HPMU).
  • Digital Finishing Tables: Kongsberg X-Series, XL, and C-Series flatbed cutting tables.
  • Alternative Equipment: Select Multicam automated router systems utilizing a matched 3mm precision collet assembly.

Target Substrates and Material Processing
The down-cut spiral configuration makes this bit highly effective at preventing thin or delicate materials from vibrating or lifting off the vacuum matrix during operation. It is primarily deployed for routing and through-cutting thin, rigid substrates:
  • Engineering Plastics: Thin acrylic, polycarbonate sheets, and rigid PVC panels.
  • Composite Layering: Thin aluminum composite materials (ACM) and signboards.
  • Synthetic & Fibrous Stocks: High-density protective foam, compact MDF, and rigid display cartons.

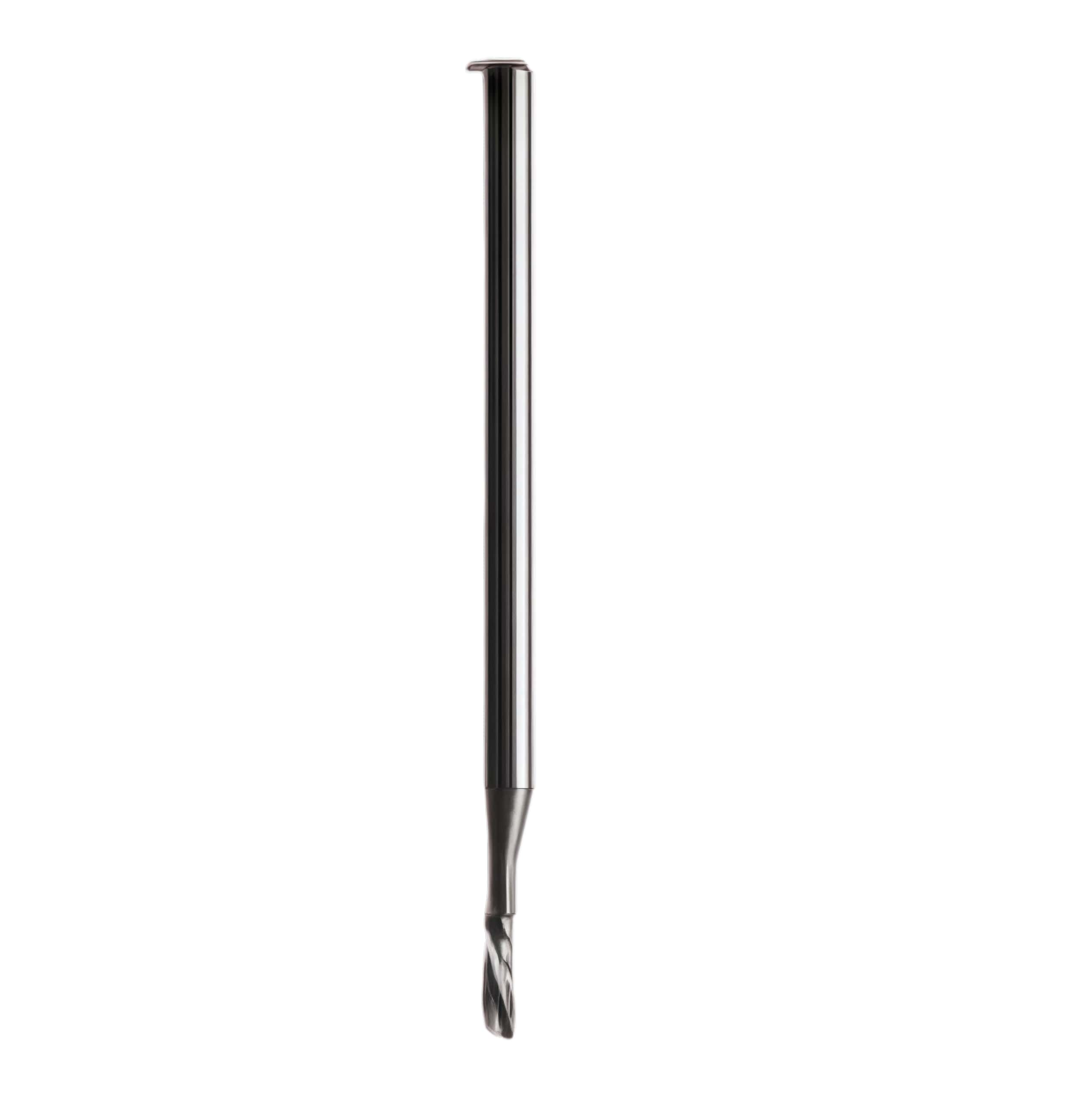

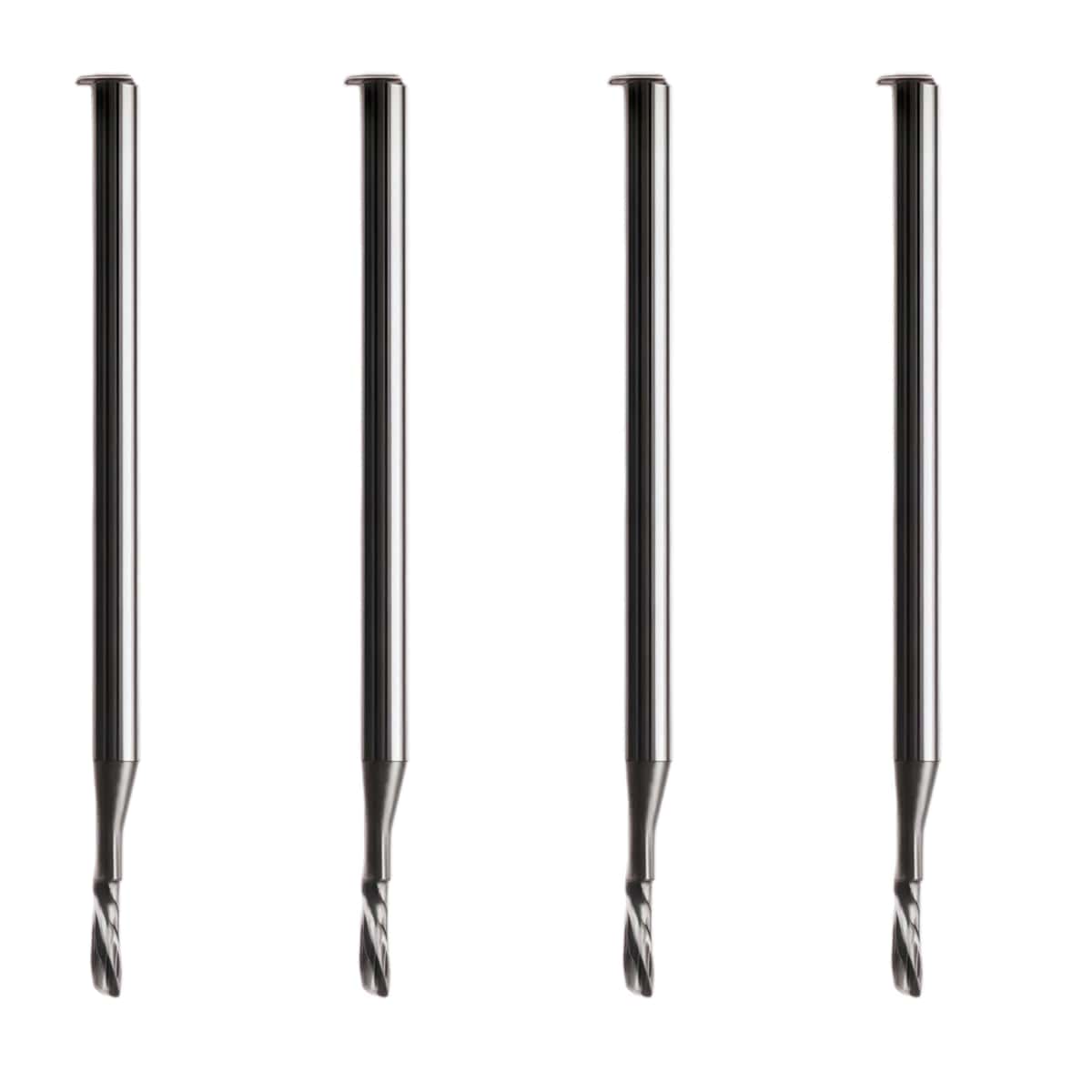

Esko Kongsberg Bit-Ads03-1504-38 G42449454 Carbide Router Bit
