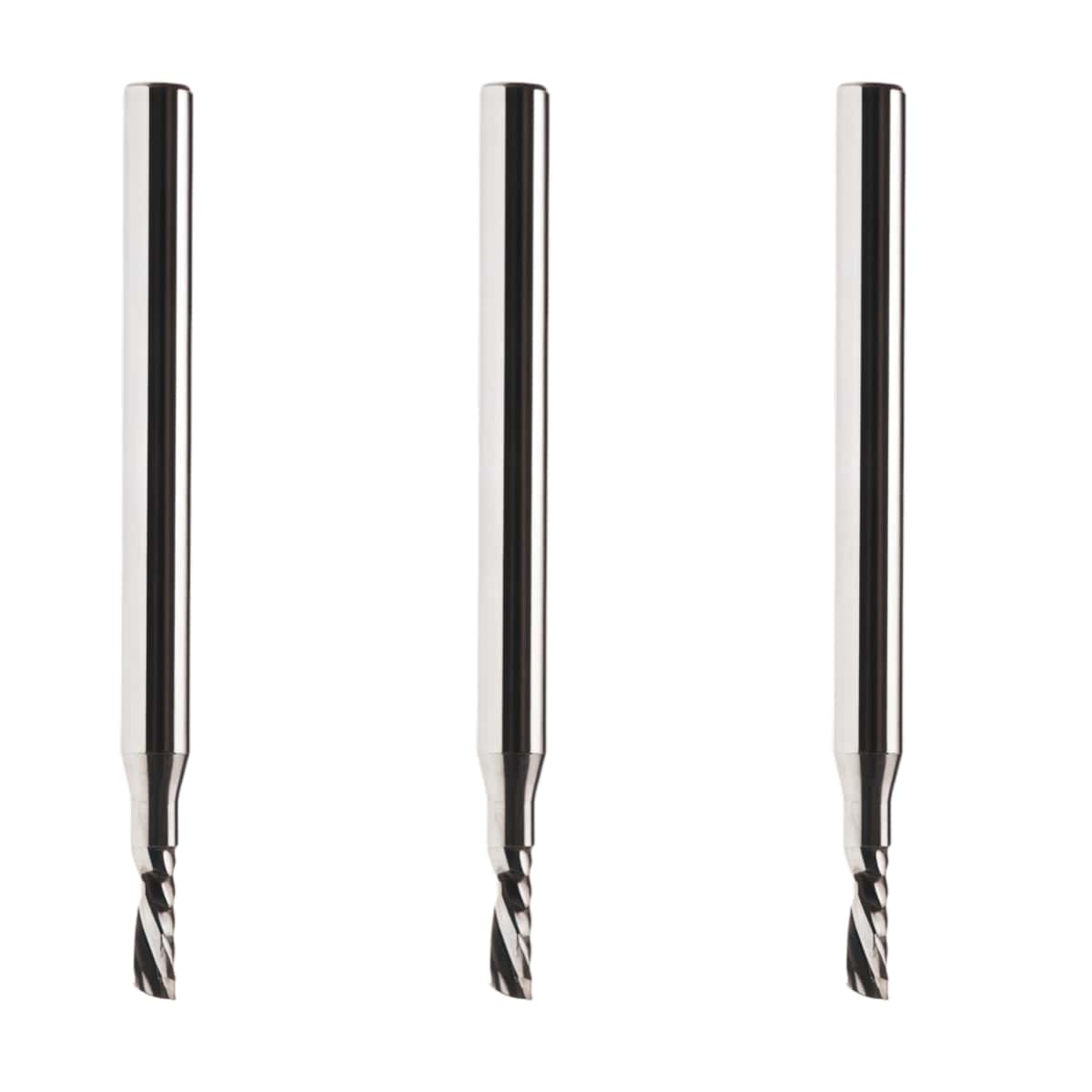

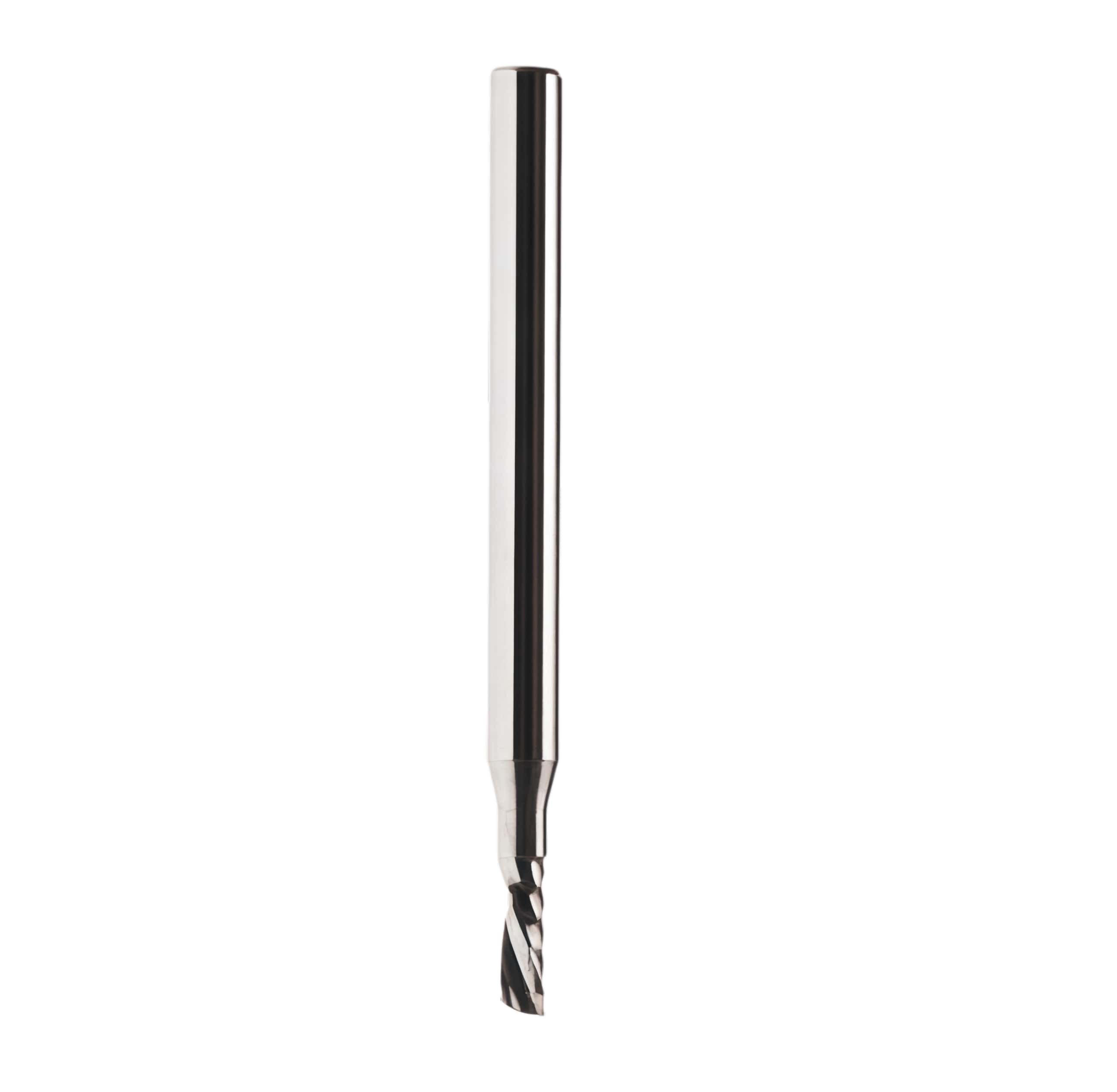

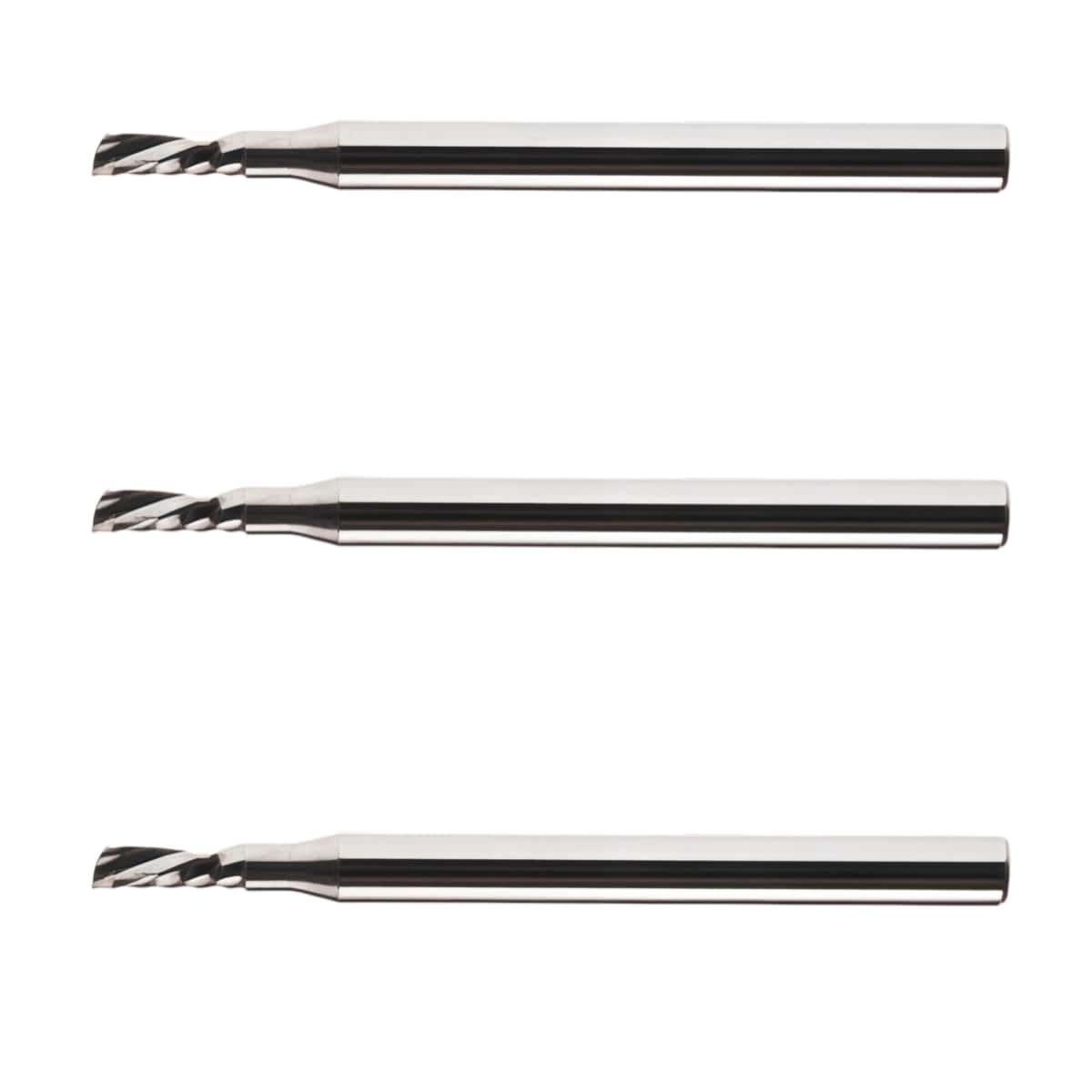

Esko Kongsberg Bit-Ads03-1006-38 G42449462 Tungsten Carbide Milling Router Bit

Esko Kongsberg Bit-Ads03-1006-38 (Part Number G42449462) is a premium, specialized tungsten carbide milling router bit engineered exclusively for use with high-precision Kongsberg Precision Cutting Systems Enquire now

Description

Esko Kongsberg Bit-Ads03-1006-38 G42449462 Tungsten Carbide Milling Router Bit

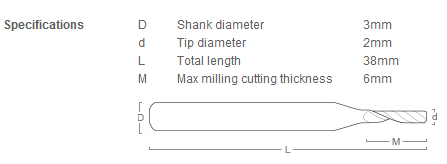

Technical Specifications

Understanding the cryptic alphanumeric product code reveals the tool's foundational metrics:

Bit-Ads: Denotes the specific engineering geometry group, typically optimized for rigid or multi-purpose substrate routing.
03: Indicates a 3.0 mm cutting diameter.
10: Specifies a 10 mm cutting edge length (maximum depth of cut per pass).
06: Represents a 6.0 mm shank diameter to fit standard Kongsberg collets.
38: Designates a total overall length (OAL) of 38 mm.
G42449462: The Esko unique manufacturer identifier code ensuring OEM compatibility.

Material & Engineering Advantages

Solid Tungsten Carbide Composition: Utilizing industrial-grade micro-grain tungsten steel gives this bit up to a 600% lifecycle advantage over high-speed steel (HSS). This structural rigidity minimizes friction and resists intense heat buildup.
Precision Coaxiality: Advanced CNC machining guarantees minimal dimensional deviation. This balance significantly reduces machine spindle vibration, giving users cleaner edges with zero burring.
Optimal Chip Evacuation: Designed with specialized geometry (often a single "O" flute or spiral up-cut) to lift debris up and away from the cutting path instantly.

Primary Substrate Compatibility

This specific milling bit is highly effective when deploying high-speed routing passes across an array of rigid sign, packaging, and display materials:

Acrylics & Plexiglass: Keeps edges clear and crisp without melting the plastic polymers.
Foamed PVC & Sintra: Prevents edge deformation or jagged cuts along long trajectories.
MDF & Softwoods: Delivers reliable pocketing and contouring performance.
Gatorfoam & Alucobond: Cuts through dense sandwich structures cleanly without delaminating the outer skins.

Maintenance & Machine Setup

When changing and executing operations with this bit on a machine like the Kongsberg X-Table, operators should follow proper protocol:

Safety Lock: Bring the dust boot to the top position and lock it securely.
Bit Swap: Grip the bit at its upper shoulder, push down the air-pneumatic collet chuck to release the old tool, and fully slide the new bit in up to the fingertips.
Recalibration: Always trigger the automated tool tip calibration sequence within the Kongsberg i-cut Suite software after a swap to avoid marring the cutting underlayment.
