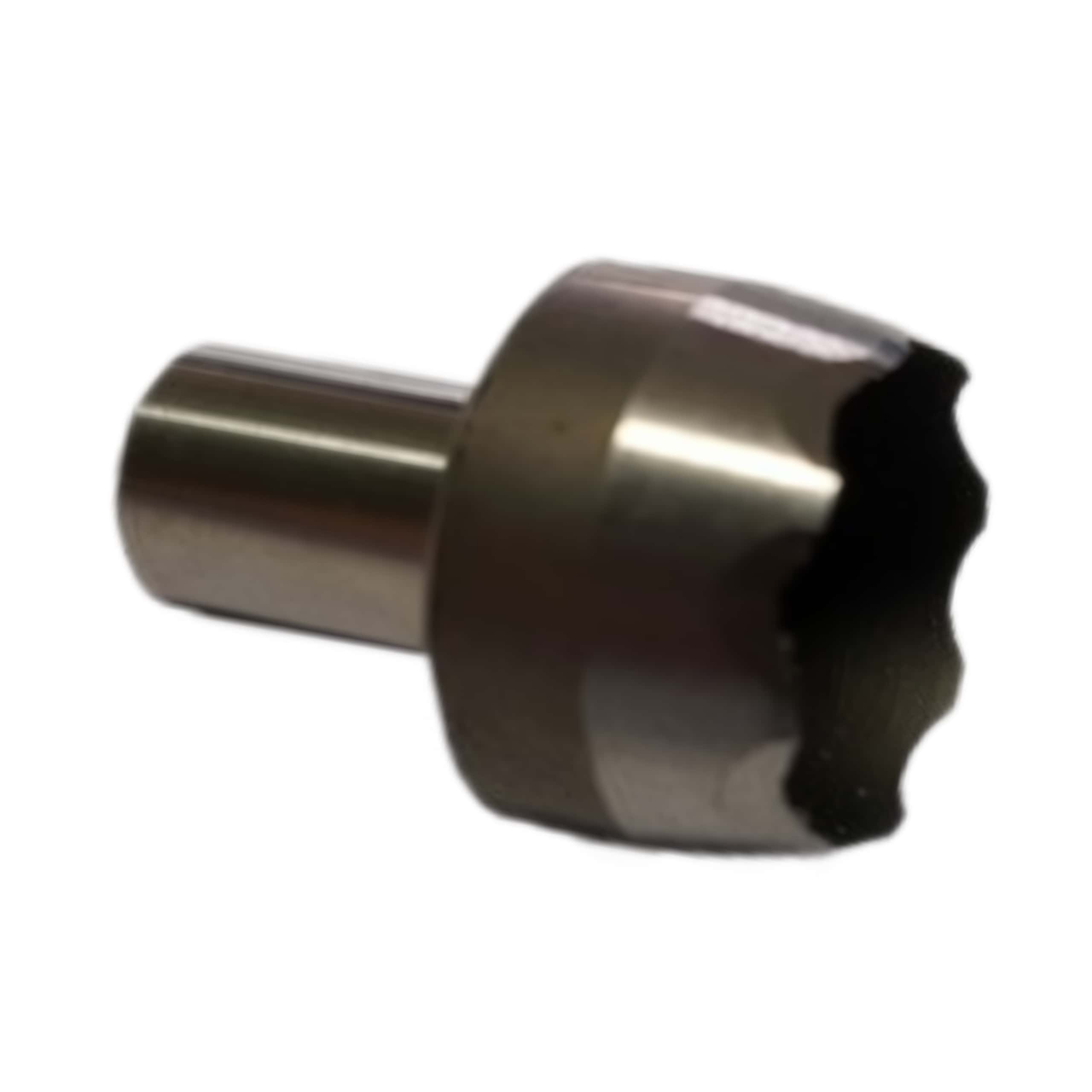

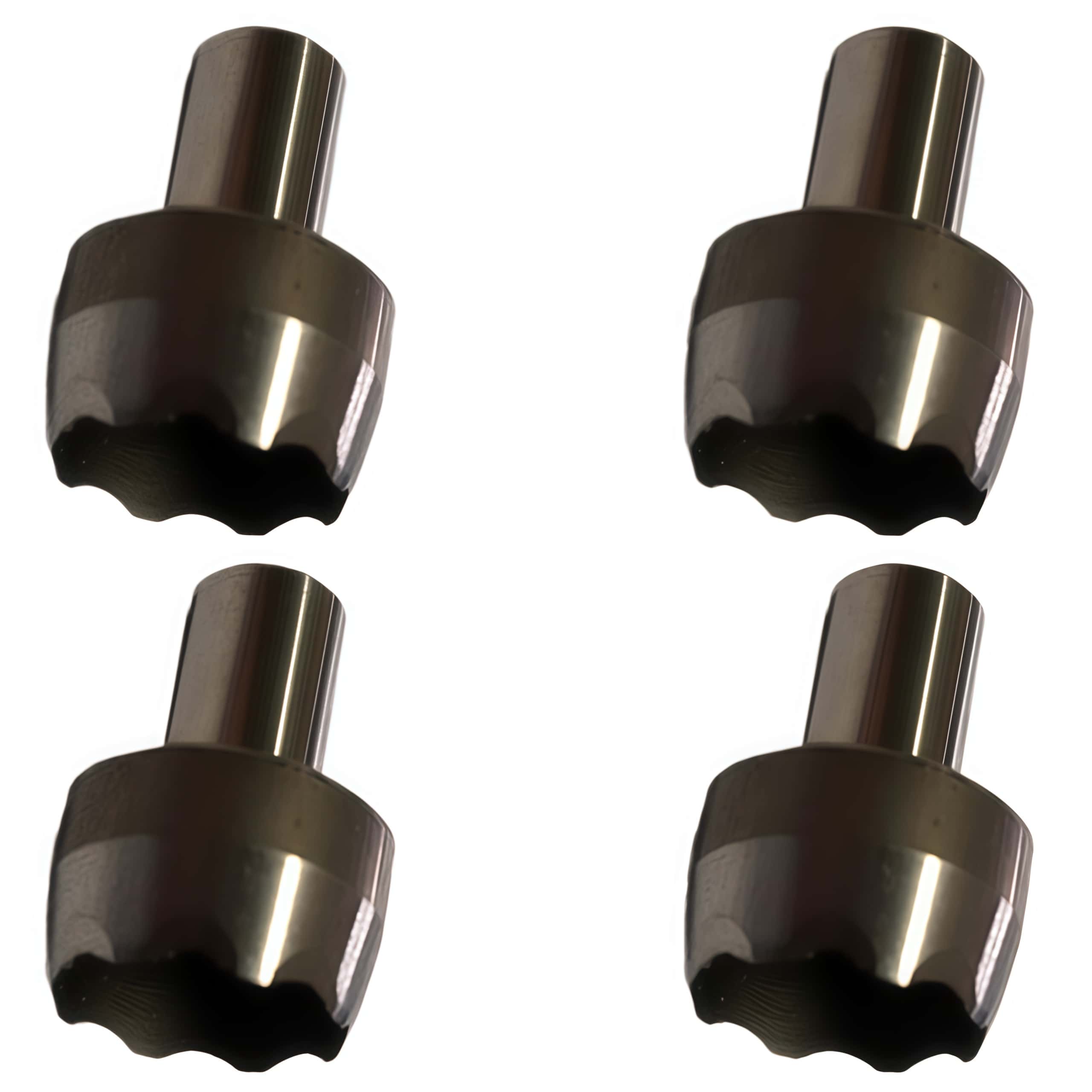

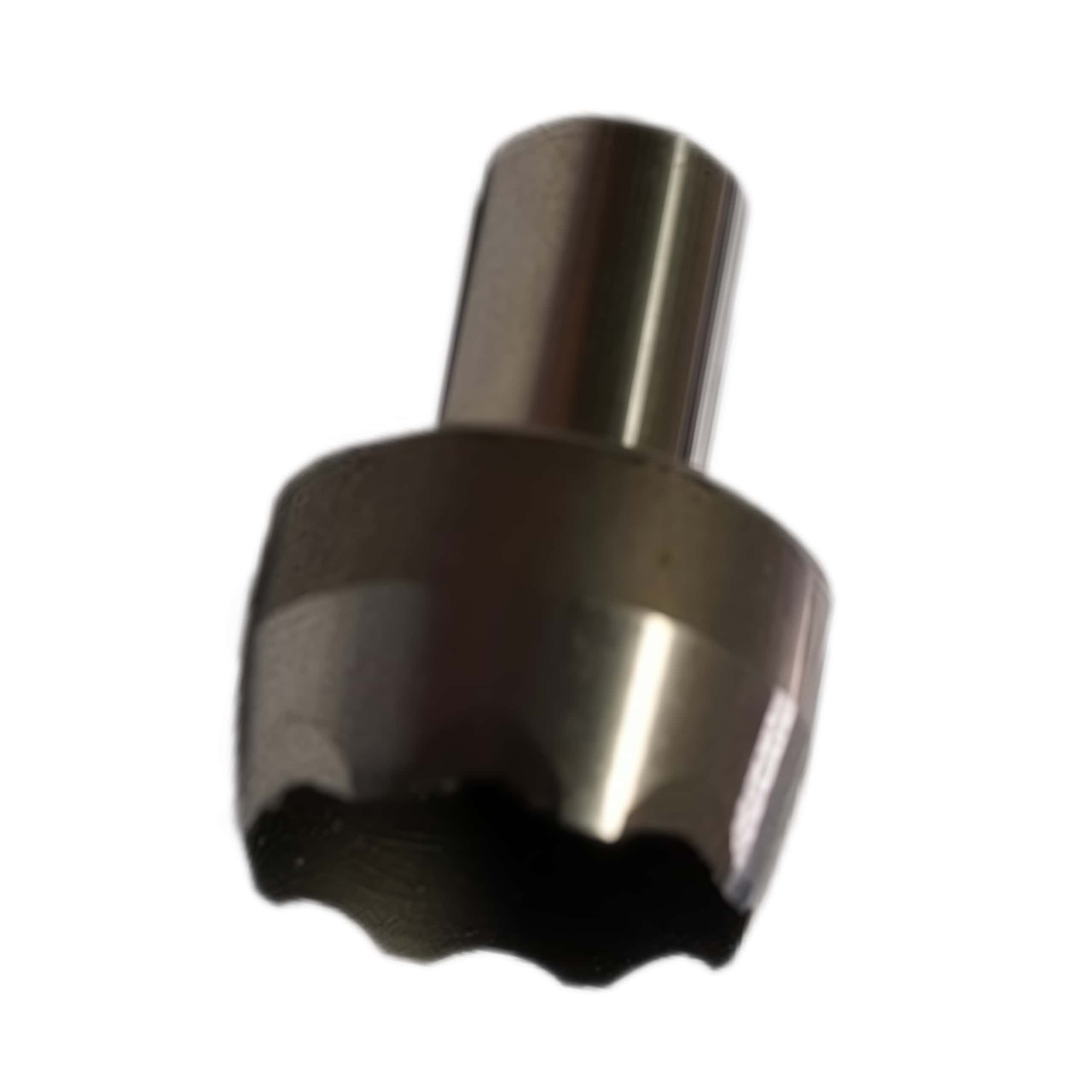

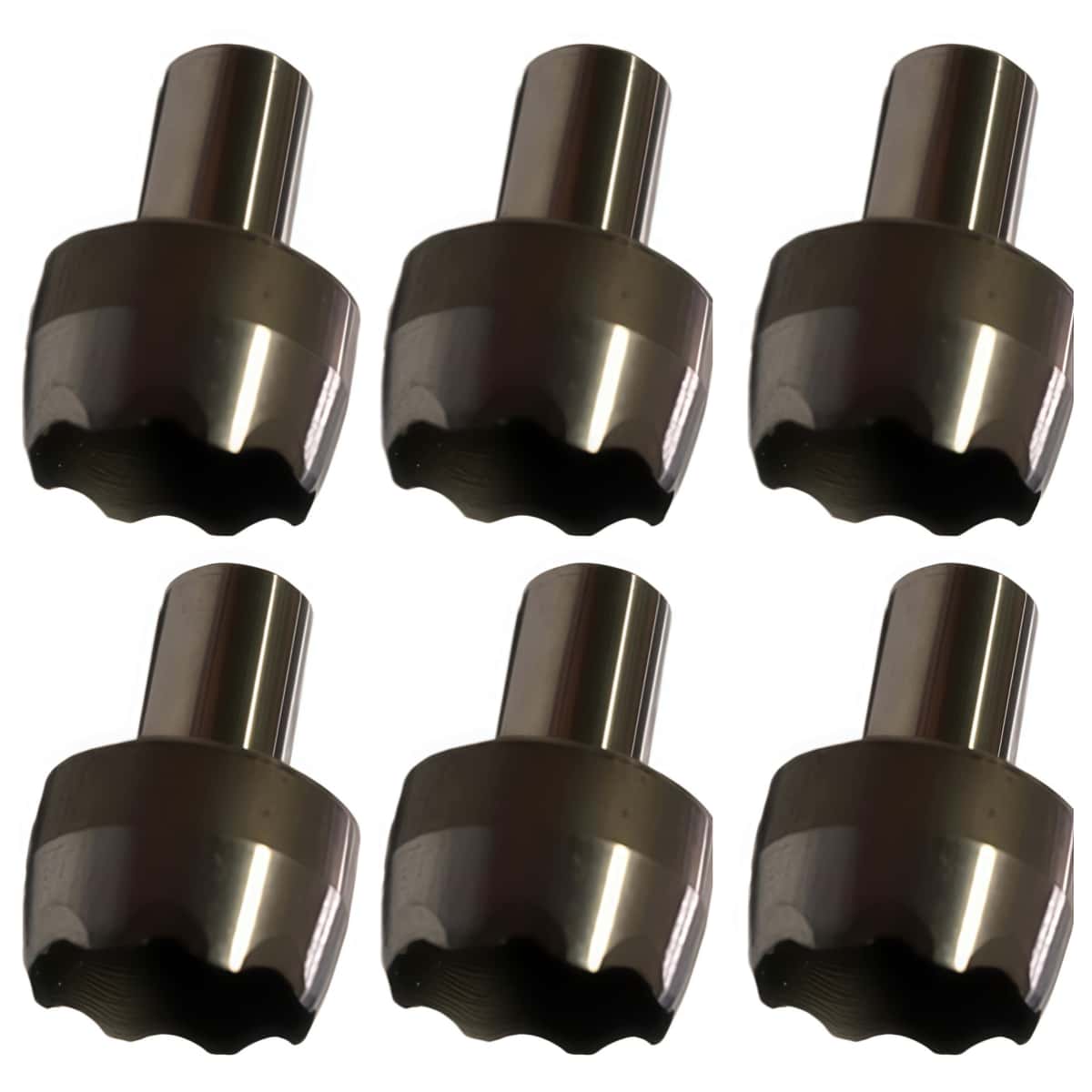

Atom 01044025 11 Mm Automatic Cnc Cutting Systems Punching Tool Cutting Bit
Atom 11 mm Punching Tool (01044025) is an industrial-grade, large-diameter cutting bit manufactured It is engineered exclusively for automatic CNC leather and textile knife cutting systems,
Enquire now
Atom 01044025 11 Mm Automatic Cnc Cutting Systems Punching Tool Cutting Bit
***Atom Cutter Cutting Knives Knife Blades
***Atom Conveyor belts/Cutting Underlay
Atom 11 mm Punching Tool, identified by its part code 01044025, is a high-quality, large-diameter cutting bit crafted. It's specifically designed for use in automatic CNC leather and textile knife cutting systems, including the renowned Atom FlashCut series like FlashCut FLEX, SPEEDY, and TWINS.
Technical Specifications:
- Punching Diameter: 11.0 mm
- Edge Geometry: Toothed/serrated perimeter (Dentate)
- Waste Management: Mechanical ejection mechanism that guides waste downward
- Material Composition: Constructed from premium High-Speed Steel (HSS) or durable micro-grain Tungsten Carbide
- Maximum Substrate Thickness: Optimized for dense layers up to 4.0 mm thick
Core Mechanics and Ejection:
Producing an 11.0 mm hole creates a sizable leather or textile plug, necessitating a different operation from smaller punches, which typically expel waste horizontally. The tool's toothed edge slices quickly into the material instead of solely pressing down with vertical force. This design reduces the needed downforce, minimizing deformation in stretchy or delicate leathers. The downward ejector works with a specific pneumatic tool chuck assembly (e.g., AT16B12A / AT17012A tool holders). After the punch penetrates the substrate, an internal mechanical push-rod ejects the waste disc downward, ensuring it drops cleanly into the scrap bed without clogging.
Primary Industrial Applications:
This 11.0 mm tool is crucial for producing large circular cuts in high-volume production settings:
- Automotive Interiors: Creating main installation ports for seating frames, seatbelt passthroughs, and acoustic panels.
- Footwear & Leather Goods: Making decorative cutouts, large strap holes, structural rivet anchors, and positioning markers for luggage or leather footwear.
- Technical Materials: Punching industrial gaskets, compressed rubber sheeting, heavy technical felts, and composite materials with multiple layers.
Technical Specifications:
- Punching Diameter: 11.0 mm
- Edge Geometry: Toothed/serrated perimeter (Dentate)
- Waste Management: Mechanical ejection mechanism that guides waste downward
- Material Composition: Constructed from premium High-Speed Steel (HSS) or durable micro-grain Tungsten Carbide
- Maximum Substrate Thickness: Optimized for dense layers up to 4.0 mm thick
Core Mechanics and Ejection:
Producing an 11.0 mm hole creates a sizable leather or textile plug, necessitating a different operation from smaller punches, which typically expel waste horizontally. The tool's toothed edge slices quickly into the material instead of solely pressing down with vertical force. This design reduces the needed downforce, minimizing deformation in stretchy or delicate leathers. The downward ejector works with a specific pneumatic tool chuck assembly (e.g., AT16B12A / AT17012A tool holders). After the punch penetrates the substrate, an internal mechanical push-rod ejects the waste disc downward, ensuring it drops cleanly into the scrap bed without clogging.
Primary Industrial Applications:
This 11.0 mm tool is crucial for producing large circular cuts in high-volume production settings:
- Automotive Interiors: Creating main installation ports for seating frames, seatbelt passthroughs, and acoustic panels.
- Footwear & Leather Goods: Making decorative cutouts, large strap holes, structural rivet anchors, and positioning markers for luggage or leather footwear.
- Technical Materials: Punching industrial gaskets, compressed rubber sheeting, heavy technical felts, and composite materials with multiple layers.
OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Tel:+86-0769-88014625
Phone Number:+86-18823852826
Email: info@china-oyea.com
1659590865@qq.com
Web: www.china-oyea.com
We warmly welcome every customer to send us drawings for making customized product. Contact with us ,you will get more than what you can !
