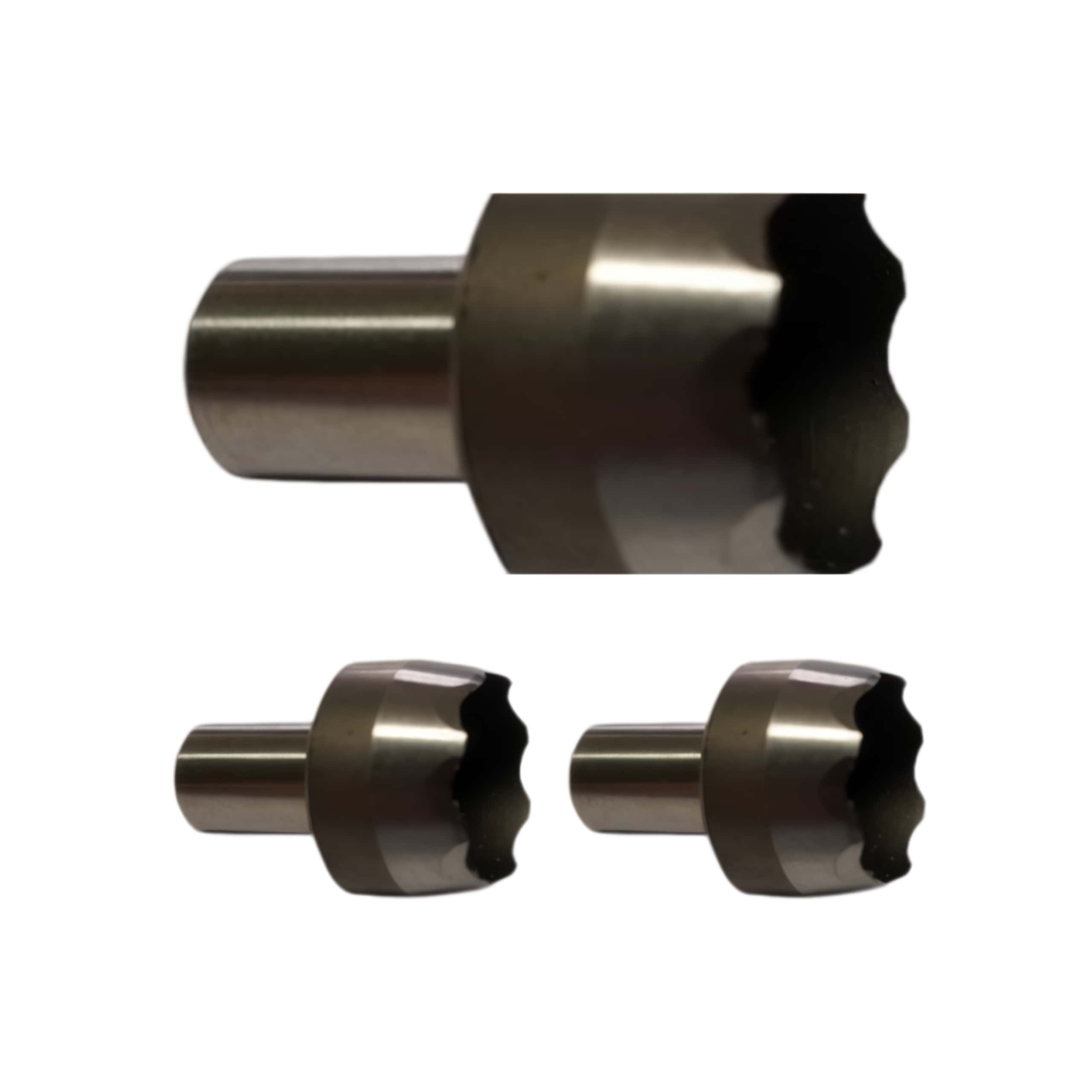

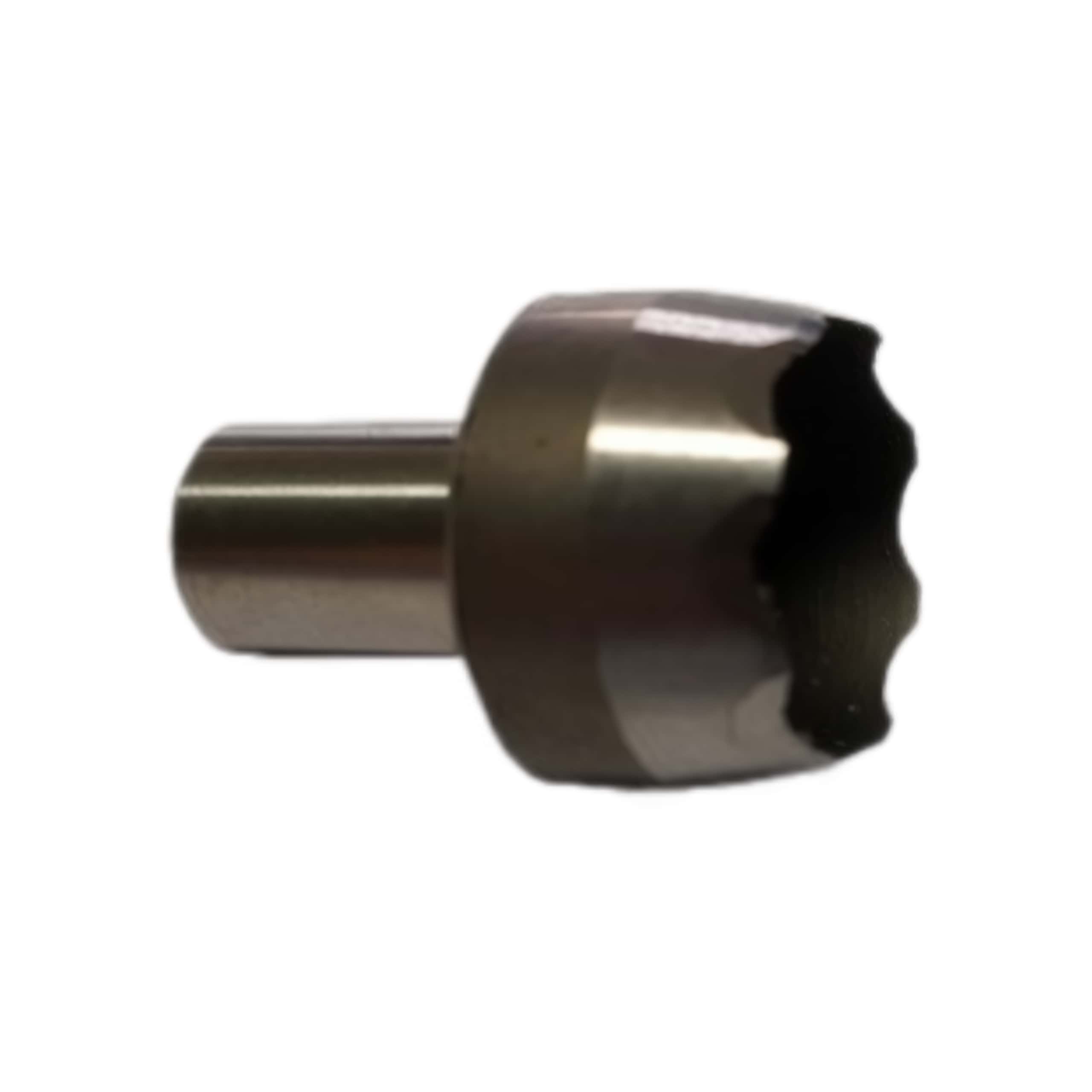

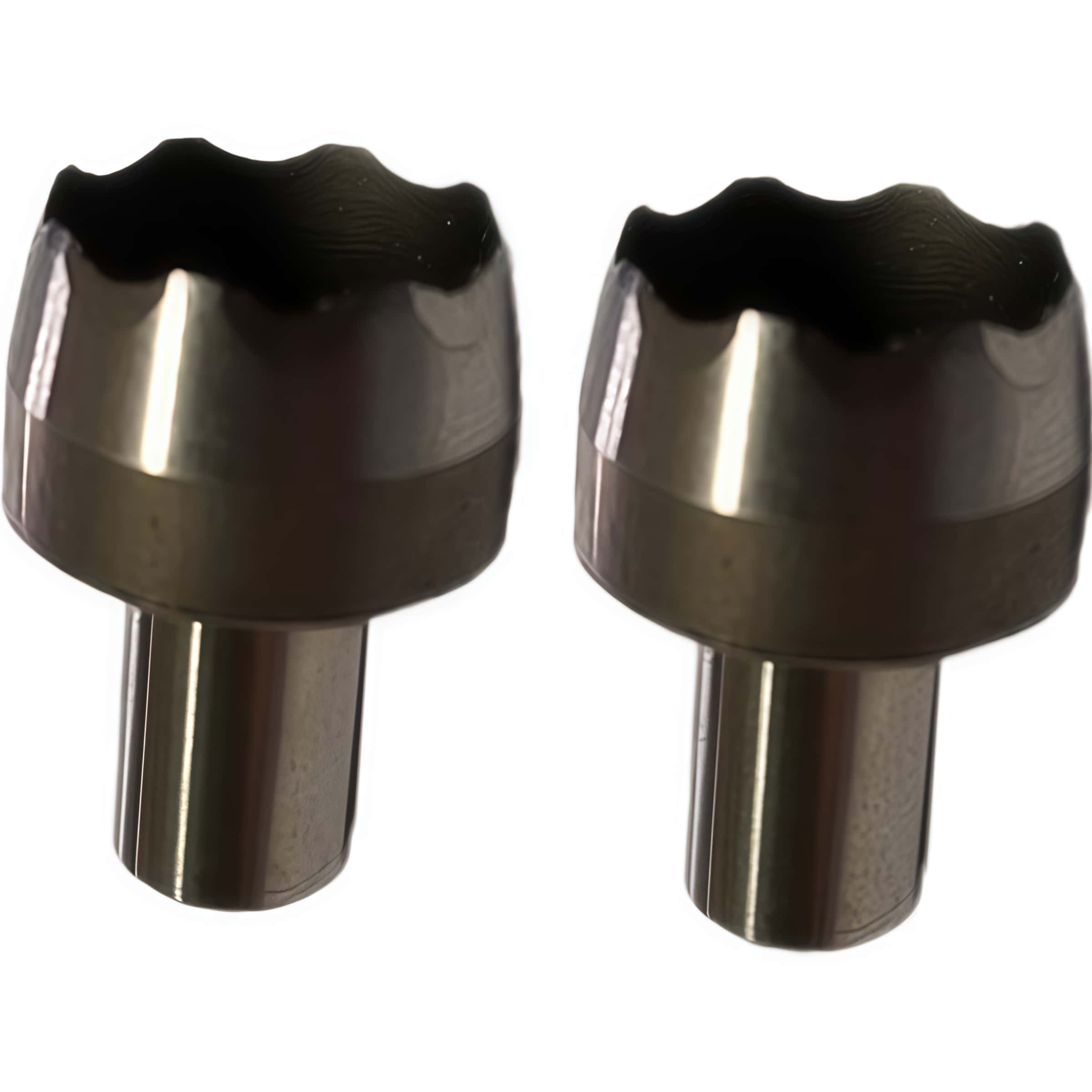

Atom 01043616 12 Mm Santoni Cnc Leather Vibratory Knife Cutting Machines Toothed Punch Tool

Atom 12 mm Toothed Punch Tool (Original Code: 01043616) is a heavy-duty, large-diameter micro-perforating bit engineered exclusively for automated digital leather and textile cutting gantries manufactured Enquire now

Description

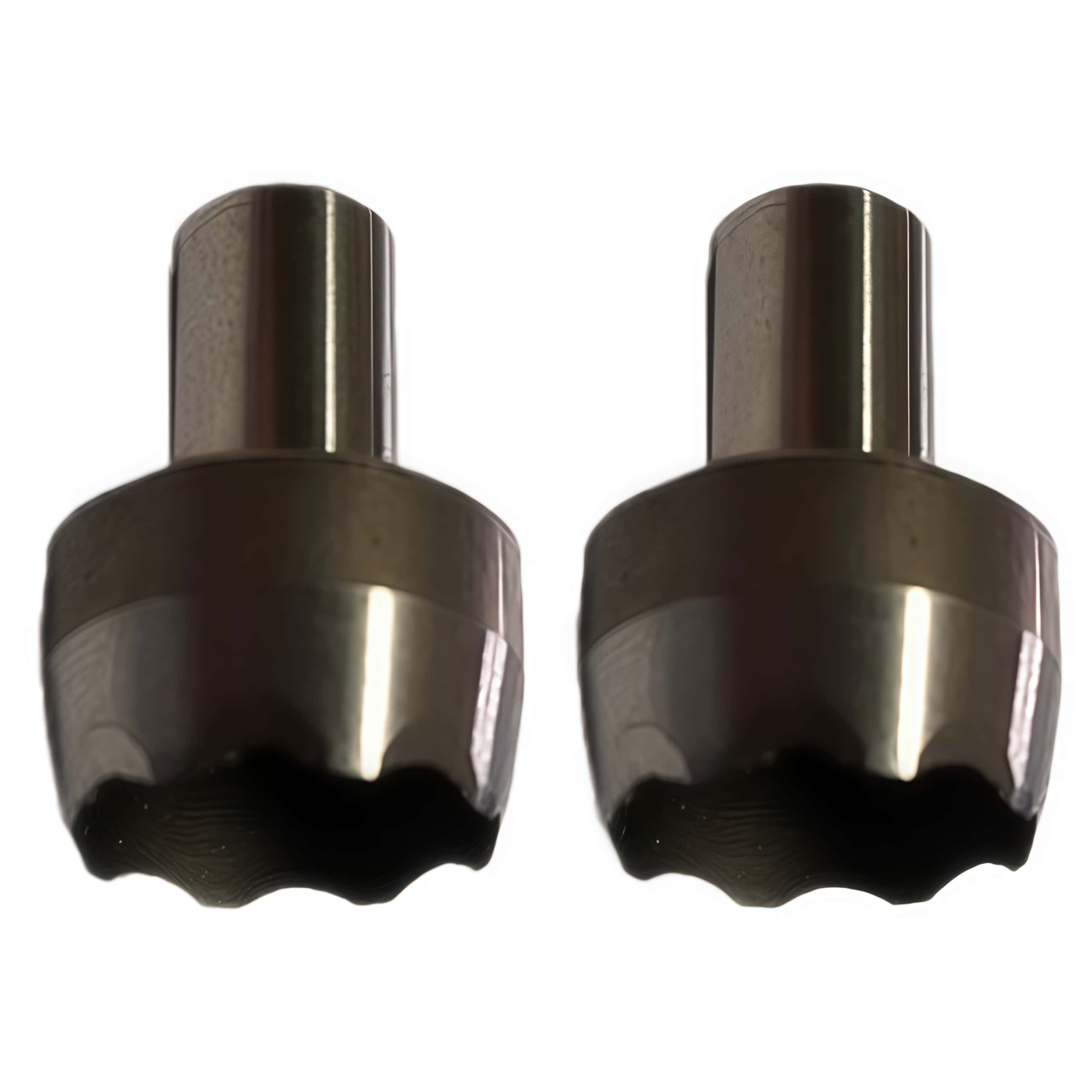

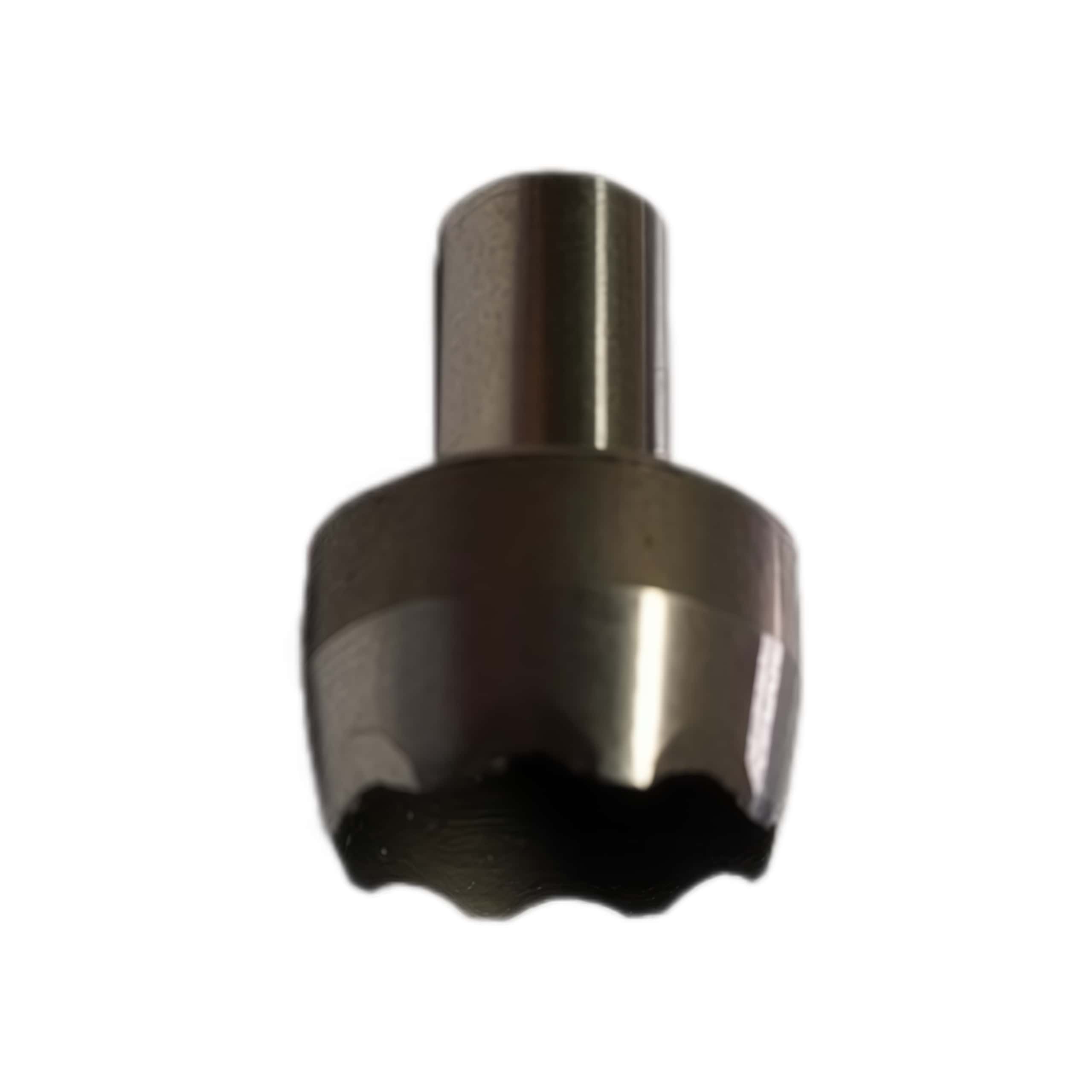

Atom 01043616 12 Mm Santoni Cnc Leather Vibratory Knife Cutting Machines Toothed Punch Tool

Technical Specifications
Cutting Edge Diameter: 12.0 mm (oversized hole output)
Tip Configuration: Toothed/serrated perimeter (minimizes leather punch resistance)
Waste Management: Built-in push-rod mechanical waste ejection (With Ejection mechanism)
Maximum Cutting Depth: Highly efficient on multi-layer packs up to 4.0 mm thick
Material Composition: Solid High-Speed Steel (HSS) or specialized micro-grain Tungsten Carbide
Mechanics: Toothed Edge vs. 12 mm Slug Ejection

For smaller holes (e.g., 1.5 mm), waste chads can be forced through a side slot in the tool shank. However, a 12.0 mm leather slug is too wide to route sideways without bending or bending the tool.
The Toothed Cut: Rather than crushing its way vertically through rigid hide fibers, the serrated edge micro-slices the material under pneumatic downforce, requiring significantly lower pressure from the cutting head.
The Downward Ejector: The tool works in tandem with a specialized pneumatic tool holder module (such as the AT16B12A / AT16012A). After punching down, an integrated internal mechanical plunger instantly strikes downward, pushing the large 12 mm round leather plug out through the bottom so it falls away onto the conveyor matrix or scrap bed without causing a jam.

Machine & Software Compatibility
This 12 mm bit is fully compatible with heavy-duty multi-tool configurations on Atom FlashCut series cutting tables, as well as licensed/retrofitted cutting systems often colloquially associated with integrated Santoni textile workflows.
Supported Platforms: Atom FlashCut FLEX (HD / B Series), FlashCut SPEEDY, and FlashCut TWINS.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
