Atom 01044424 Flashcut Series Toothed Punching Tool (Punzone Dentato)

Atom 01044424 is an industrial 14.0 mm toothed punching tool (hollow punch) engineered specifically for ATOM FlashCut digital CNC cutting systems Enquire now

Description

Atom 01044424 Flashcut Series Toothed Punching Tool (Punzone Dentato)

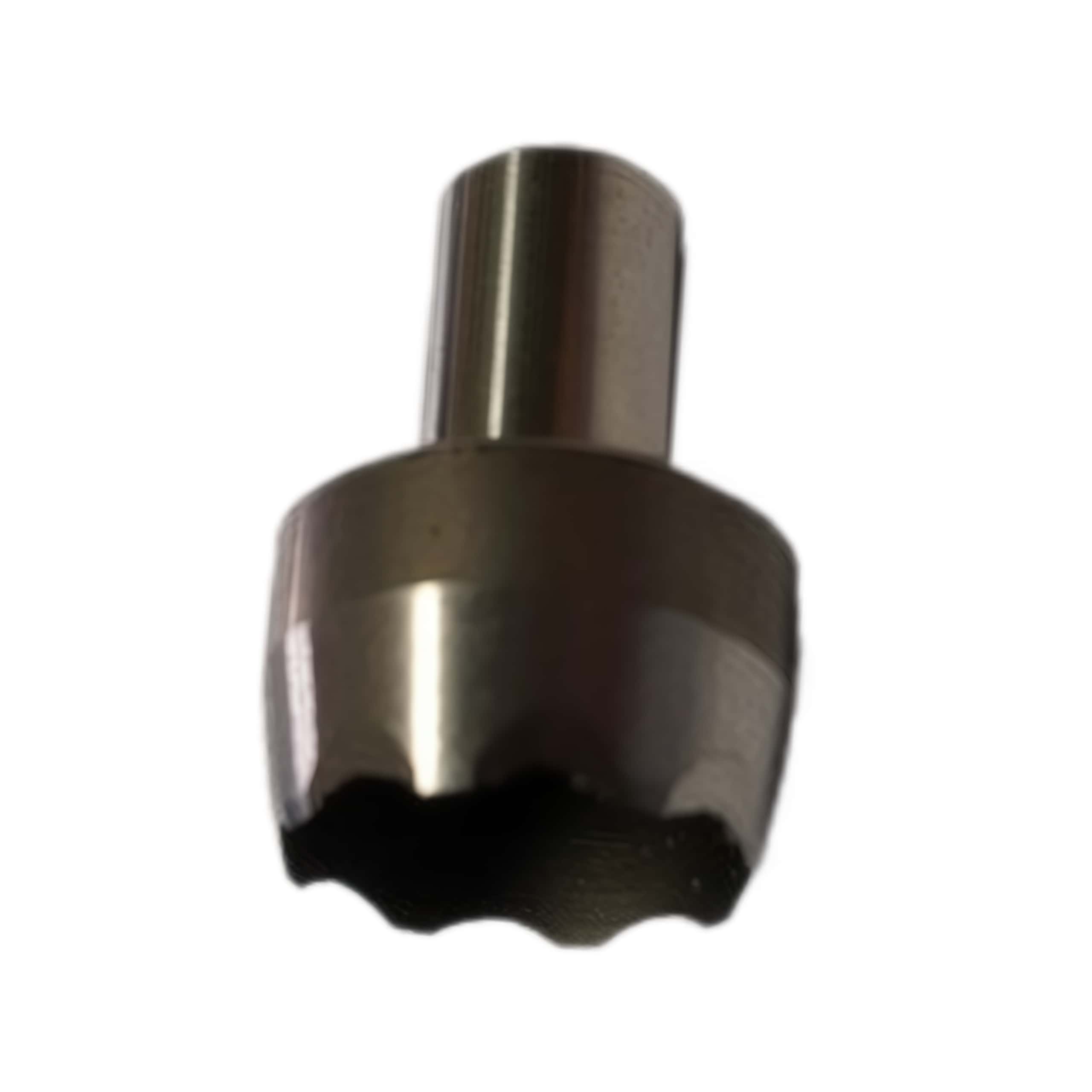

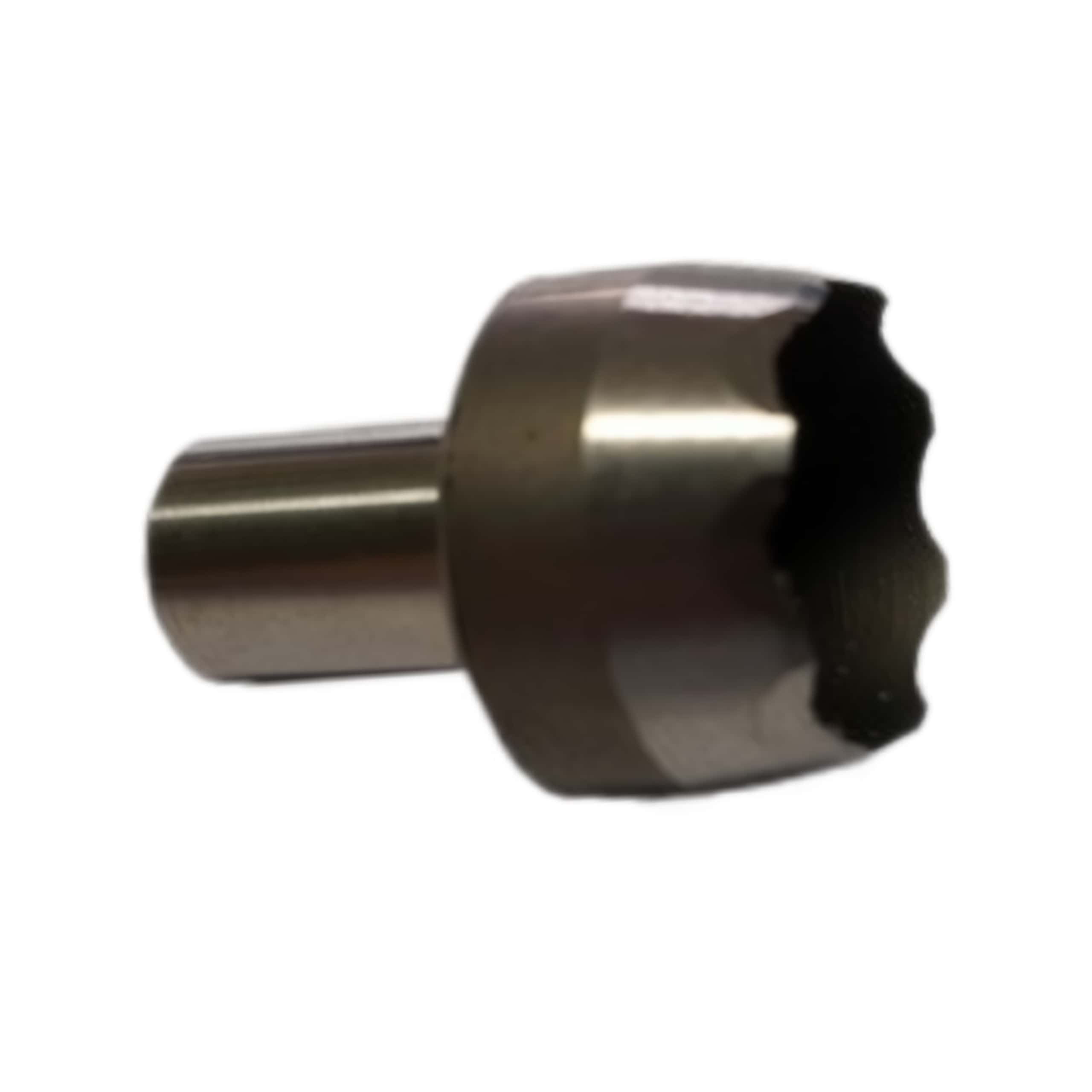

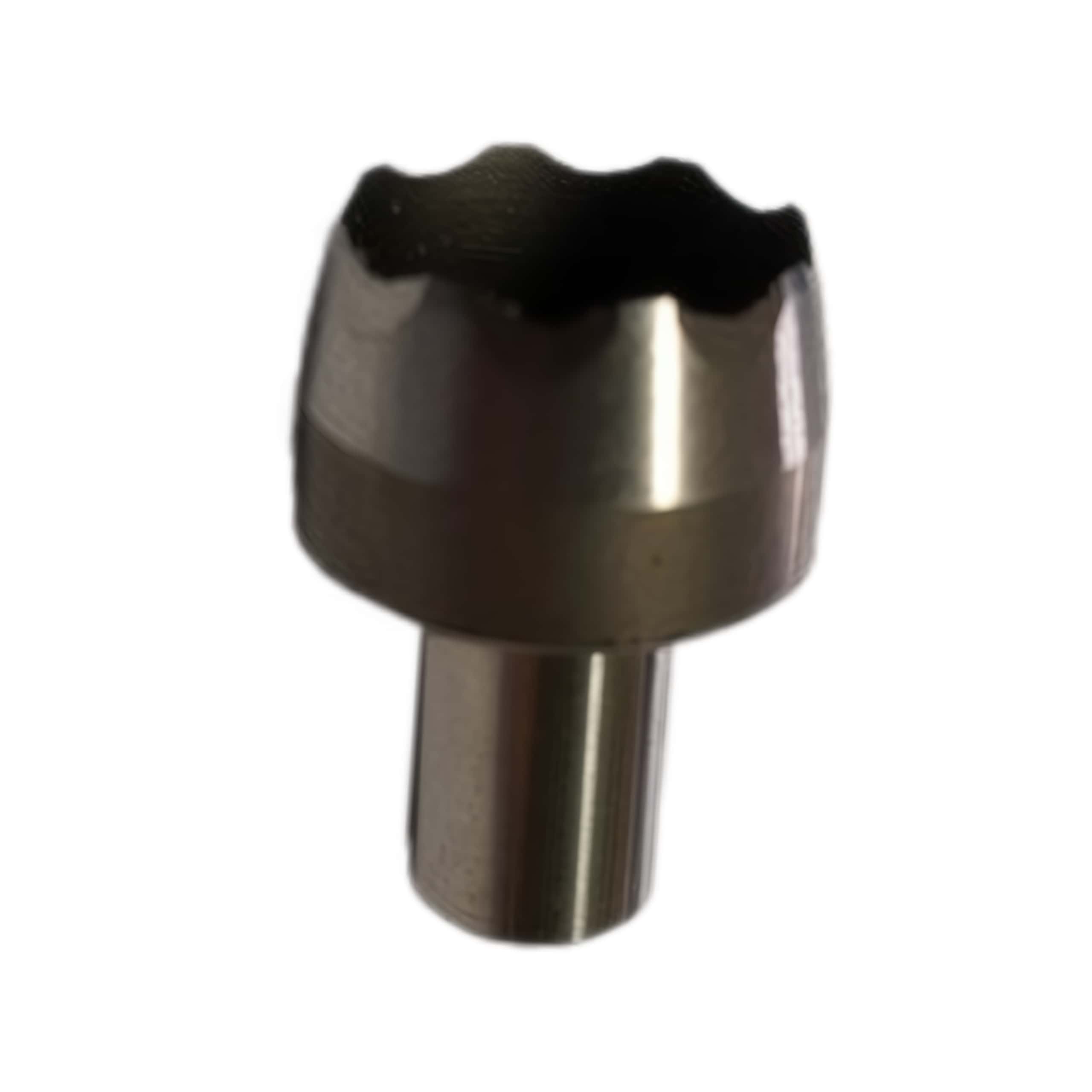

Atom 01044424 is an industrial 14.0 mm toothed punching tool (hollow punch) engineered specifically for ATOM FlashCut digital CNC cutting systems. Mounted in ATOM's multi-tool heads, this heavy-duty punch utilizes a specialized toothed edge combined with an internal spring-loaded mechanism to stamp clean holes through thick leather, dense textiles, and gaskets.

Key Technical Specifications

Part Number: 01044424 (Often designated as Atom Punching Tool 14).
Punch Diameter: 14.0 mm (A large-bore profile utilized for hardware preparation and heavy ventilation positioning).
Blade Edge Geometry: Toothed / Serrated Rim (Punzone Dentato), reducing downward pressure requirements on dense fibers.
Maximum Cutting Thickness: Rated for materials up to 4.0 mm to 4.5 mm in single or multi-layer configurations.
Waste Core Ejection: Features an integrated internal mechanical ejector that forcibly expels the cutout 14mm material plug on every stroke, preventing core compaction or tool breakage.

Primary Material Applications

The toothed edge geometry lowers material friction and heat, optimizing it for demanding cutting surfaces:

Heavy Automotive & Footwear Leather: Perfect for punching mounting points, eyelets, or aesthetic patterns in premium automotive upholstery and thick footwear components.
Industrial Gaskets & Packing Materials: Used to stamp out bolt alignment holes in rubber, composite materials, compressed fibers, and cork gasket sheets.
Heavy Technical Textiles & Cardboard: Handles multi-layered synthetic webbings, canvas, and industrial grayboard for luxury rigid box packaging.

CNC Table & Head Compatibility

The tool mounts directly into the multi-tool configurations used across ATOM's premier FlashCut flatbed lines:

ATOM FlashCut Series: Fully compatible with the FlashCut FLEX, FlashCut SPEEDY, Twins, and Easy tables equipped with 5-tool or 7-tool modular processing heads.
Cross-Platform Fitment: Due to standard shank dynamics, high-quality aftermarket equivalents are broadly compatible with industrial leather processing heads, including those found on Zund, Gerber DCS, and Comelz machines.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
