Atom 01043092 7.0 Automatic Knife Cutting Tables Hollow Punching Bit / Punch Die

Atom 01043092 (also designated as Atom Punching Tools 7.0) is an hollow punching bit / punch die for Atom CNC automatic knife cutting tables. Enquire now

Description

Atom 01043092 7.0 Automatic Knife Cutting Tables Hollow Punching Bit / Punch Die

Atom Punching Tools 7.0(Material code: 01043092) is an industrial-grade hollow punch designed specifically for use with ATOM brand CNC vibrating knife CNC cutting machines (such as the FlashCut series flat cutting table) .

Core Technical Parameters

Punching diameter : 7.0 mm
OEM Code : 01043092

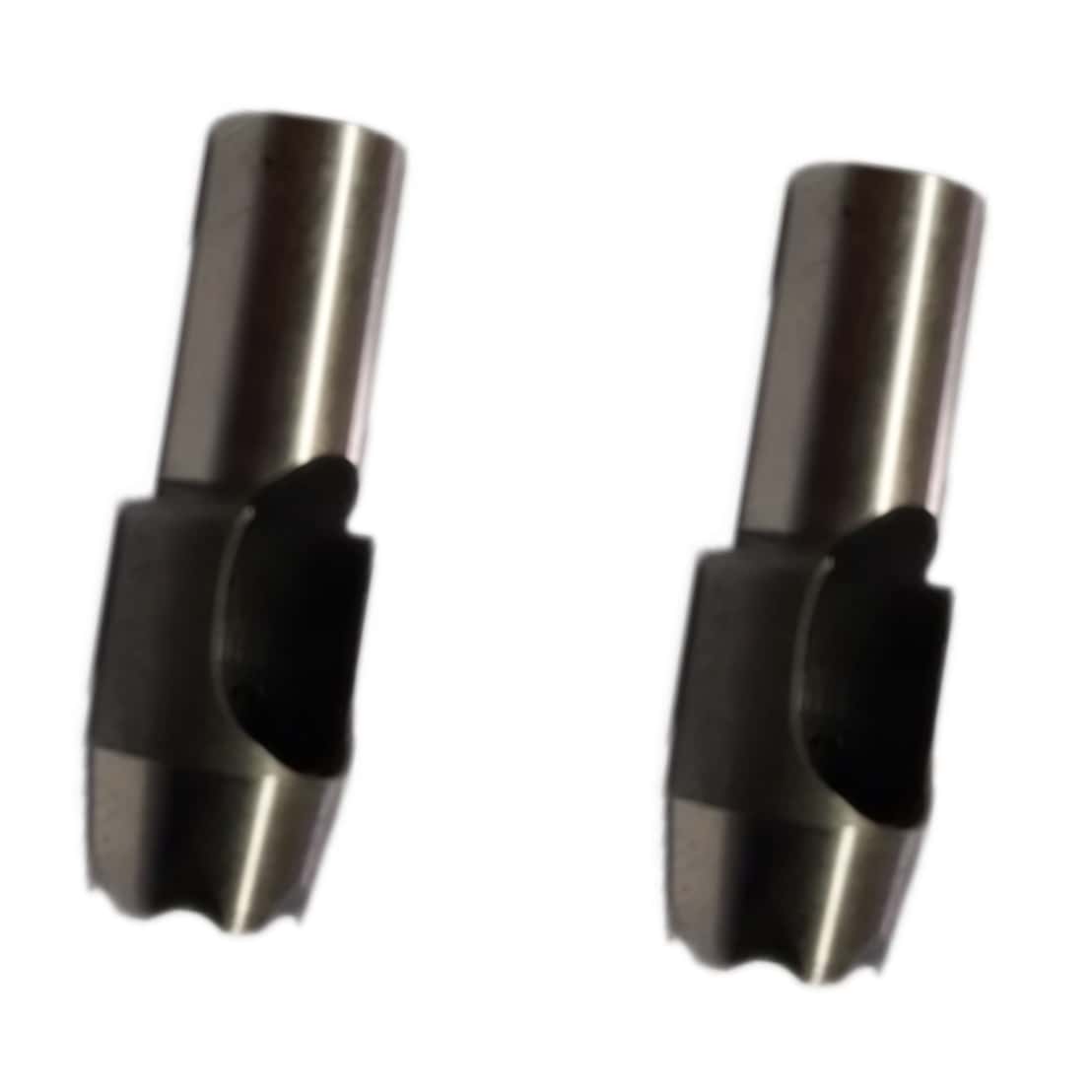

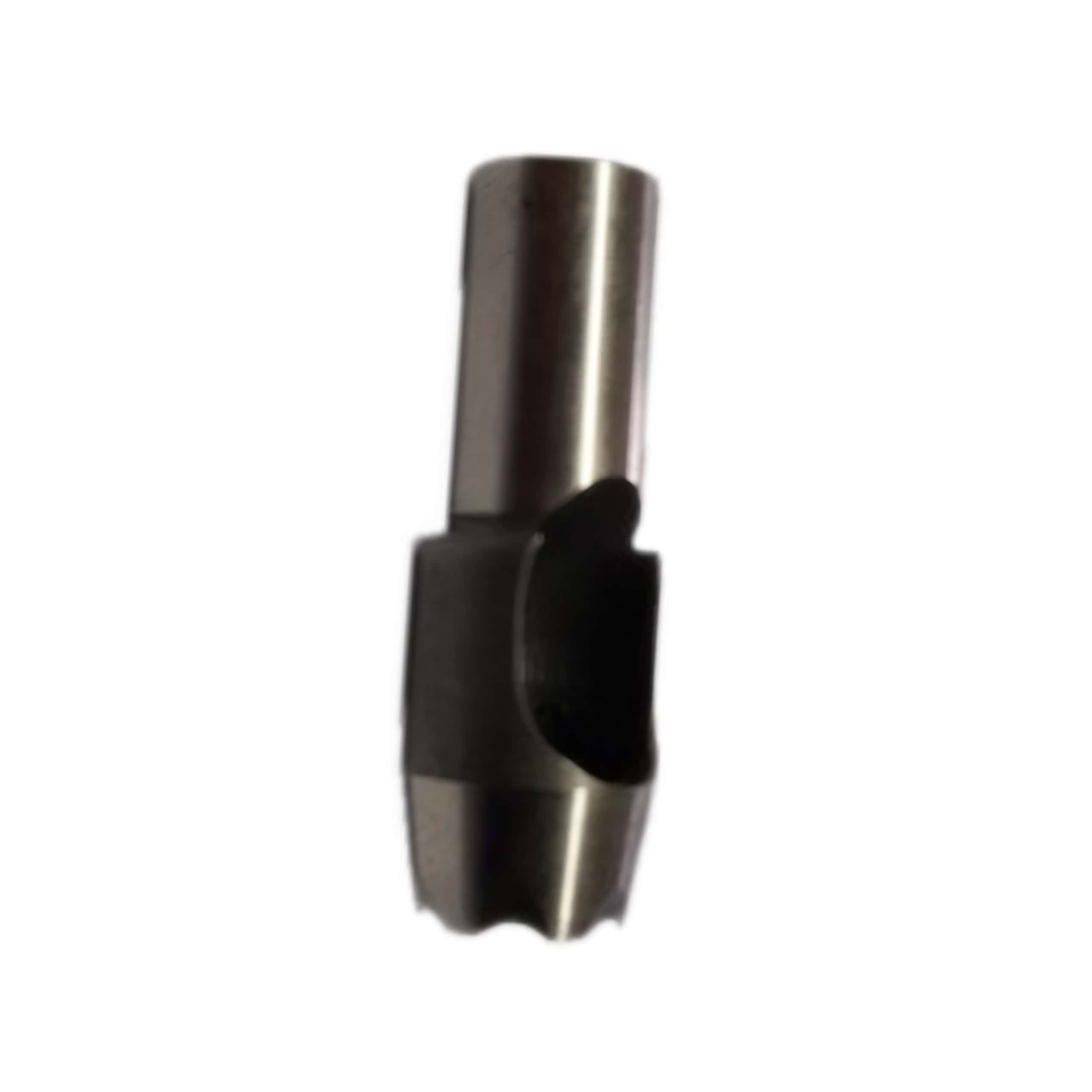

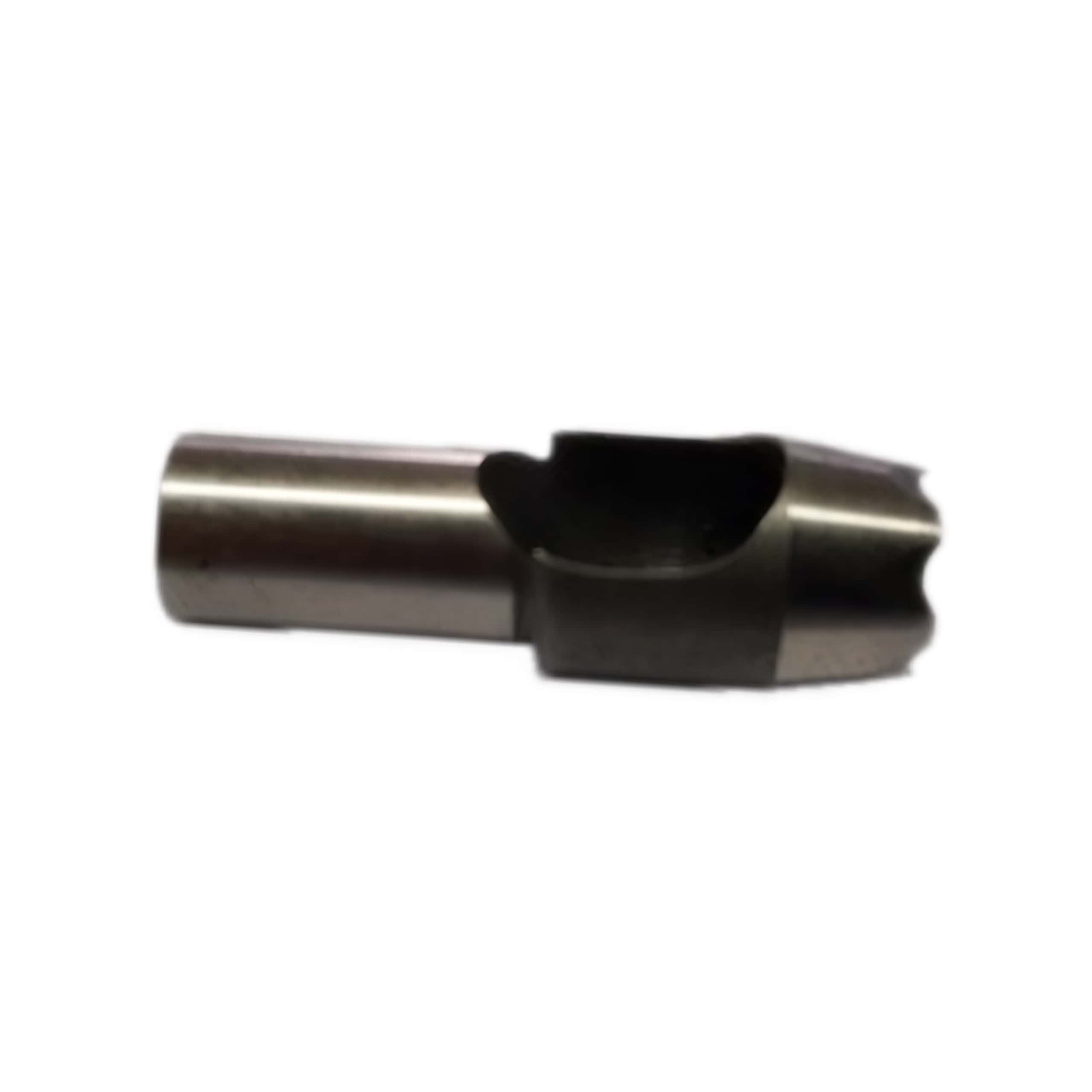

Blade type : Toothed edge , with micro-serrations.
Chip removal method : Lateral relief / Side slot , waste material is automatically discharged from the side hole.
Applicable material thickness : Can penetrate materials up to 4.5 mm thick.

Core Design and Manufacturing Advantages

Unlike traditional flat-blade punches that rely solely on vertical air pressure for extrusion, the toothed edge design creates a tiny sawing and tearing effect on the fibers during the downward thrust . This significantly reduces the downward pressure required by the cylinder, protecting the machine and perfectly preventing "edge chipping" or fraying at the bottom of tough materials.

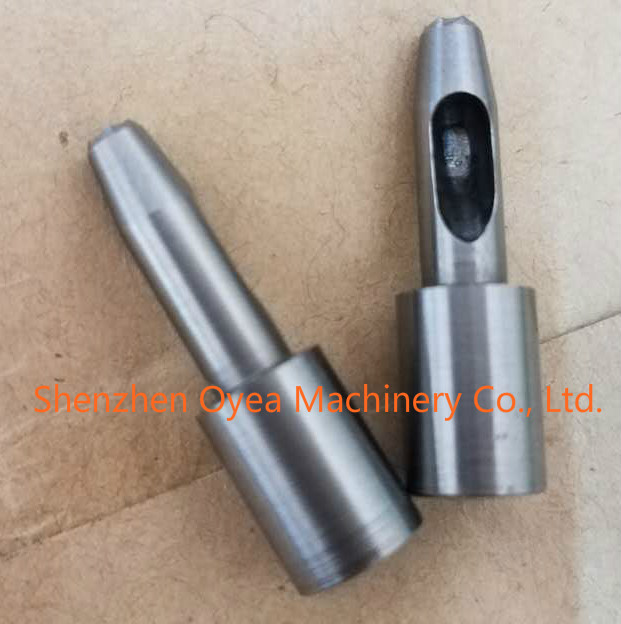

Lateral relief is used when the punch is continuously punching holes in leather or cardboard at high speed. The circular chads cut off are automatically pushed out of the openings on the side of the punch by the pressure of subsequent chads . This design completely prevents serious blockage inside the cutter tube due to chad accumulation.
High-performance materials
are typically made of high-speed steel (HSS) or specially customized hard alloys (tungsten steel), which have extremely high wear resistance and impact resistance, making them suitable for fully automated high-frequency striking operations.
