Lectra Vt5000 Grinding Stone For Lectra Cnc Cutting Machine

Lectra VT5000 grinding stone(also commonly referenced alongside VT7000 series) isa vital consumable part used to continuously sharpen the reciprocating blade on Lectra Vector CNC automated fabric cutting machines. Maintaining high-quality grinding stones ensures precise cuts, prevents fabric shreddi… Enquire now

Description

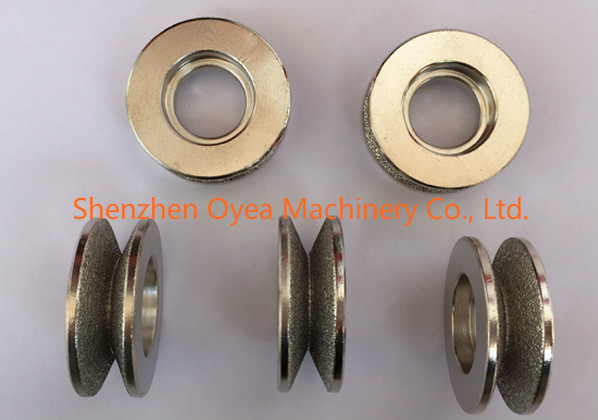

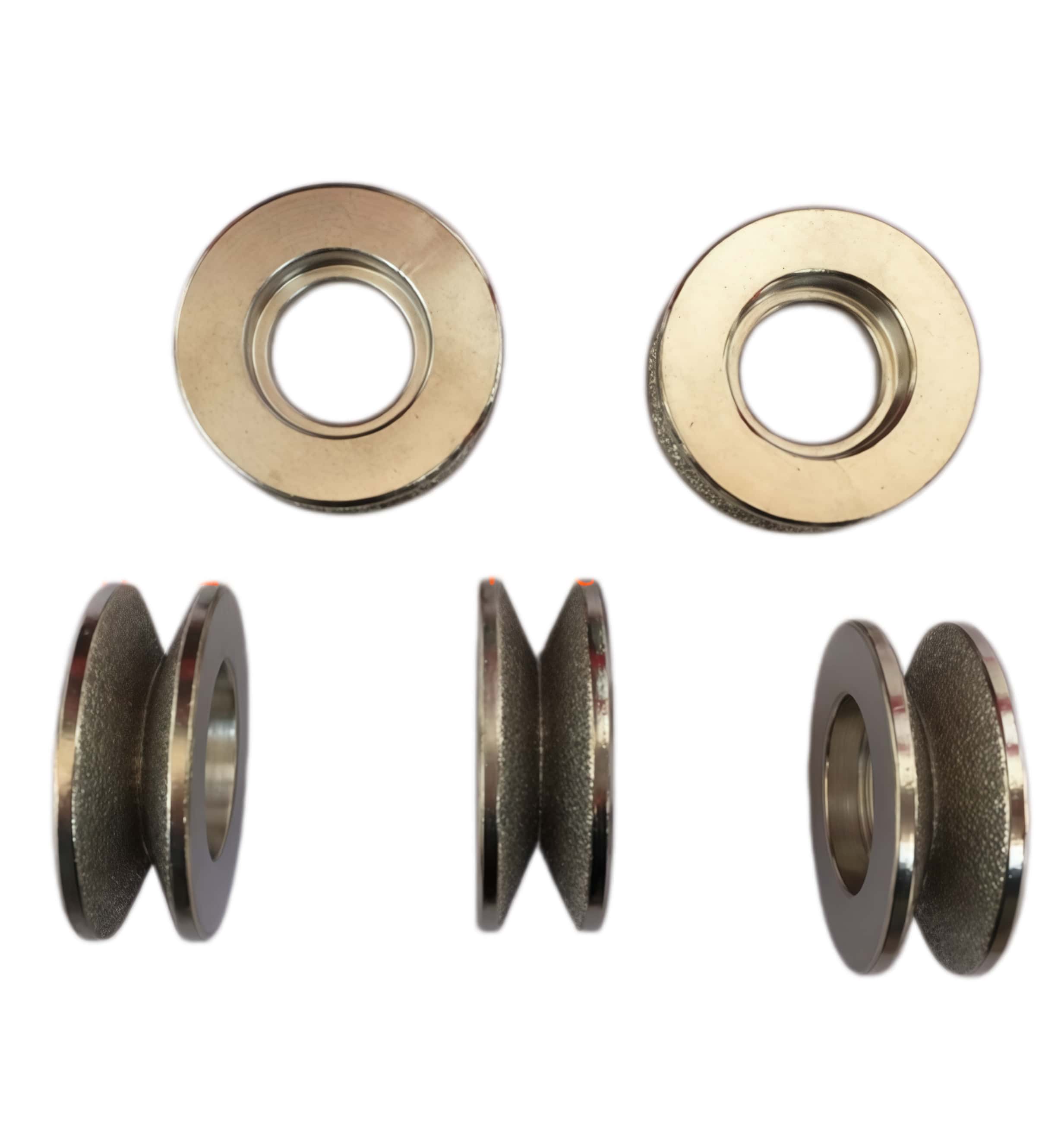

Lectra VT5000 grinding stone

Model Number:
Lectra VT5000 grinding stone

Core Specifications & Part Numbers

Depending on your exact machine sub-configuration and aftermarket supplier catalog, this component corresponds to a few widely recognized technical identifiers:

Lectra OEM / Common Part Numbers : 703410 , 118353 , and 602331 .
Alternative Variation Code : 112694 (often listed as Grit 150 D.91 microns).
Standard Dimensions : Typically feature an outer diameter of approximately 34mm to 35mm , a thickness of roughly 12mm to 14.4mm , and an integrated center bore or specialized ball bearing assembly.
Abrasive Grits : Available primarily in Grit 150 (D.91 microns) for fine, clean edge maintenance, or Grit 120 (D.107 microns) for heavier stock cutting needs.
