Sinajet Cutter Tungsten Carbide Knives/Knife Blades

Sinajet digital flatbed cutters utilize a vast, highly specialized lineup of tungsten carbide knife blades tailored for diverse industrial materials. These modular blades are categorized across dedicated tool heads—such as the Electronic Oscillating Tool (EOT), Drag Cutting Tool (DCT), and Kiss Cut Tool (KCT)—to execute distinct finishing tasks.

Below is an organized breakdown of the specific blade types, their tool head groupings, and functional applications based on your referenced model list.

Oscillating & Drag Knife Blades (N-Series)

The N-series consists primarily of oscillating and drag blades engineered for high durability and continuous industrial operation. Oscillating blades utilize rapid up-and-down vibrations to slice cleanly through thicker or dense materials.

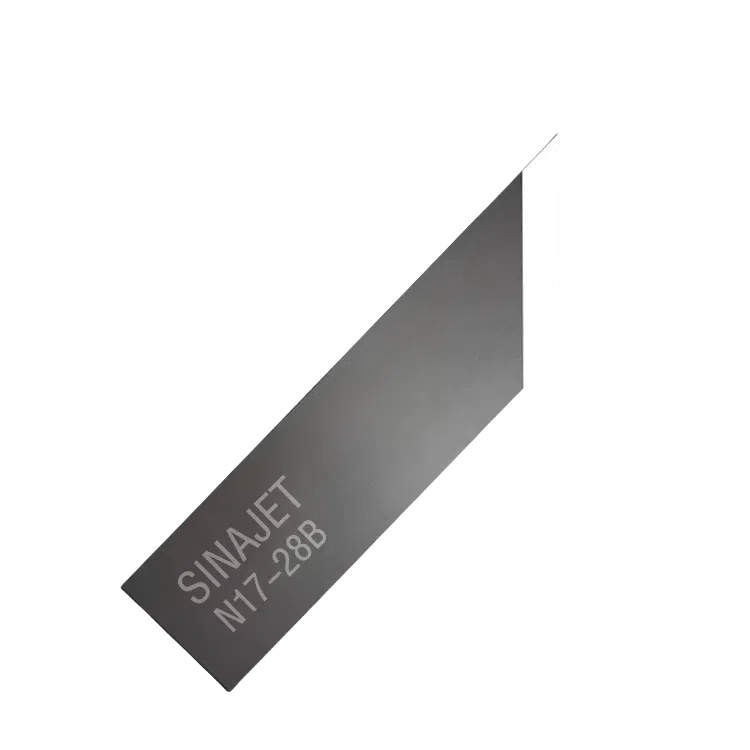

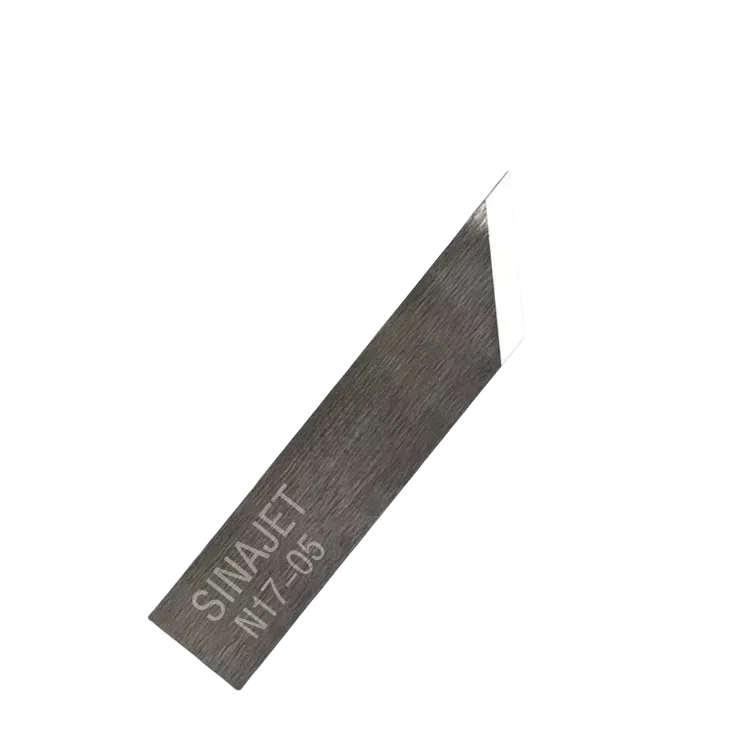

Sinajet N17 Series: The most diverse category, fitting standard oscillating knife holder mounts. They tackle tasks ranging from textiles to composites and vinyl.
- N17 Oscillating Knife Blade (26 Degrees): Specifically built as a vibration-heavy option, such as the Sinajet N17 Oscillating Knife 26° which utilizes a 0.8 mm profile.
- N17 Drag Knife Blade (45 Degrees) & Knife Blade (16 Degrees): Drag setups pull the blade edge along the trajectory for precise contour cuts.
Sinajet N73 Series (Oscillating & Drag): Dual-purpose geometry variants.
- N73-02: Features a shorter 15 mm edge length for tight radii.
Double-Edged Multi-Angle Blades: Double edges allow the machine to cut efficiently in forward and reverse paths.

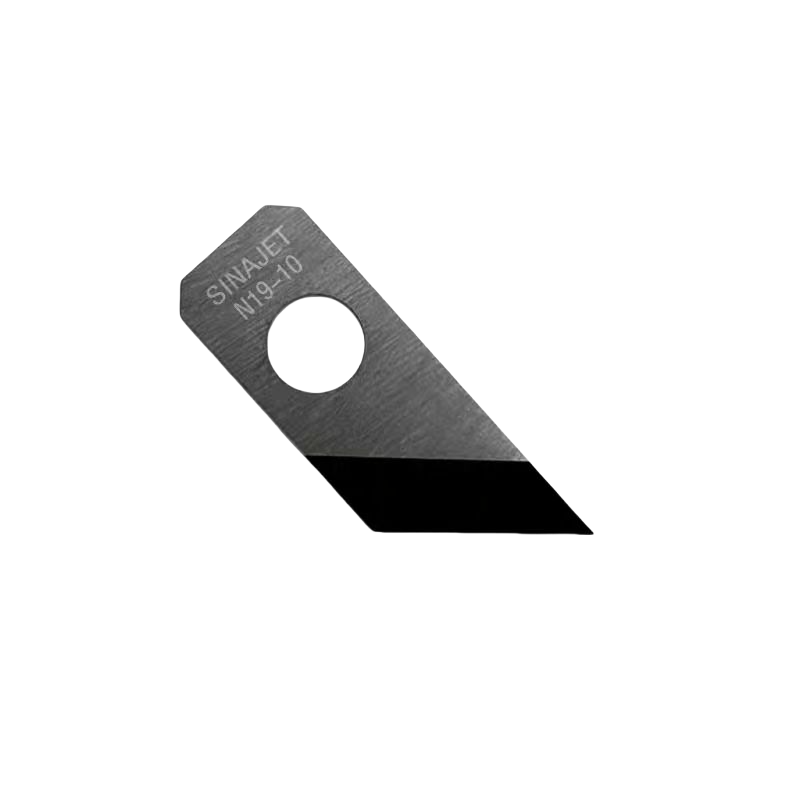

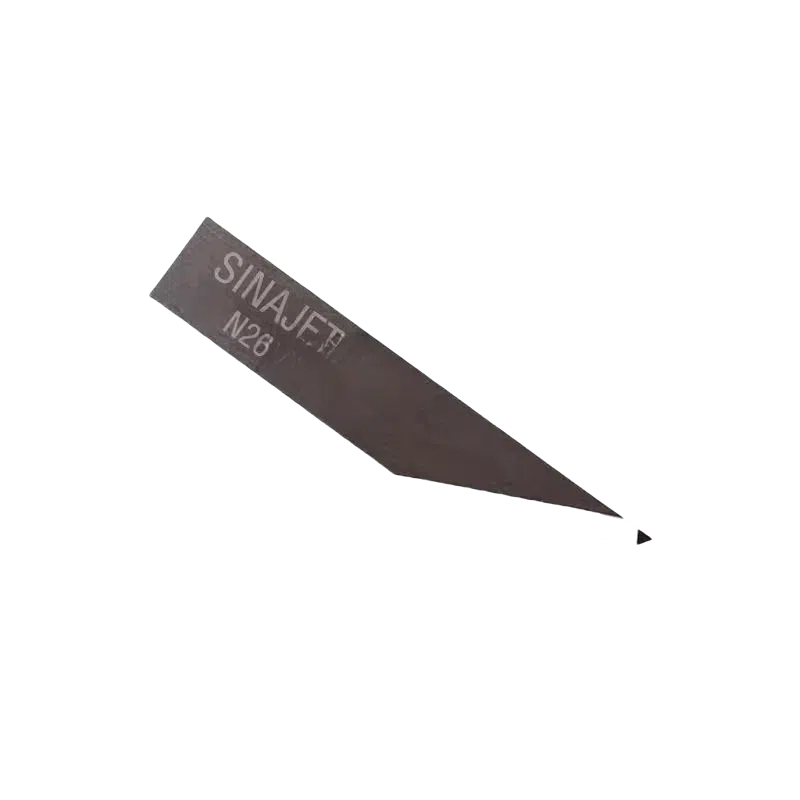

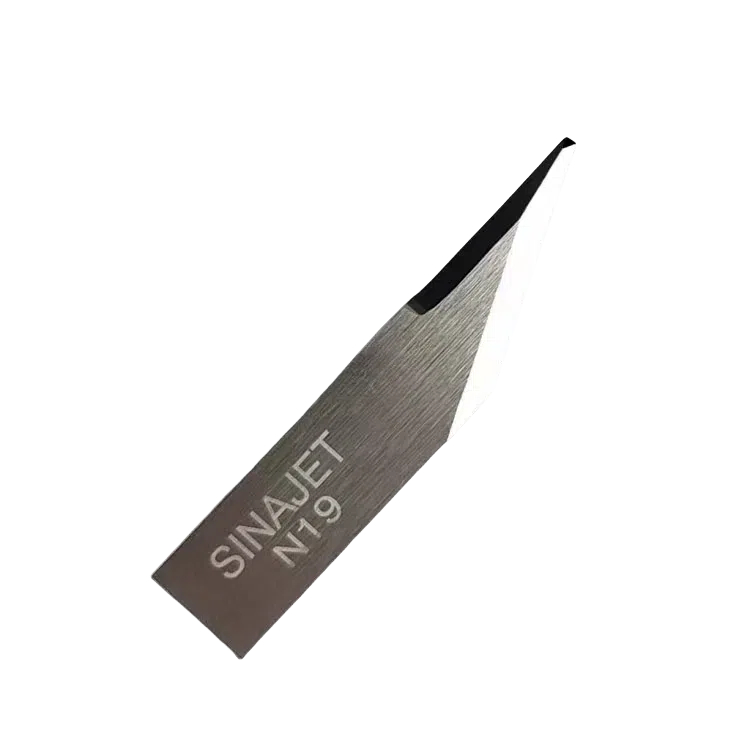

- N19 / N26: Feature acute 12/15-degree double edges for clean slicing of delicate films or synthetic layers.
- N42: Employs a wider 15/55-degree combination double edge.
- N71 / N74: Long-reach dual edges (up to 48 mm length) designed for thick core cutting.

EOT / DCT Specialized Tool Blades

These blades specify tool pairing with Electronic Oscillating Tools (EOT) or Drag Cutting Tools (DCT) to match standard CAD/CAM depth expectations.

N10-01 (45 Degrees): Standard medium-angle blade for structural cardboards and packaging foam.
N11 (30/74 Degrees): Multi-angle beveling blade used to create crease fold transitions or heavy composite cuts.
N27 (46.8/84.5 Degrees) & N29 (4.9/26 Degrees): Niche high-degree and shallow-degree profiles optimized for specific stiffness metrics.
N68 (5/83 Degrees): Extreme wide-bevel blade for specific structural grooving.

Kiss Cutting & Rotary Systems

For specialized kiss cutting and high-speed web production, Sinajet relies on spring-pressured and circular profiles.

Sinajet N05 Kiss Cut Blade (25/35 Degree): Designed for the Kiss Cut Tool (KCT). It slices exclusively through the top self-adhesive layer (vinyl decals, labels, or foils) while leaving the underlying liner backing entirely uncut. Authentic replacements can be sourced via platforms like the Sinajet N05 Kiss Cut Blade catalog.

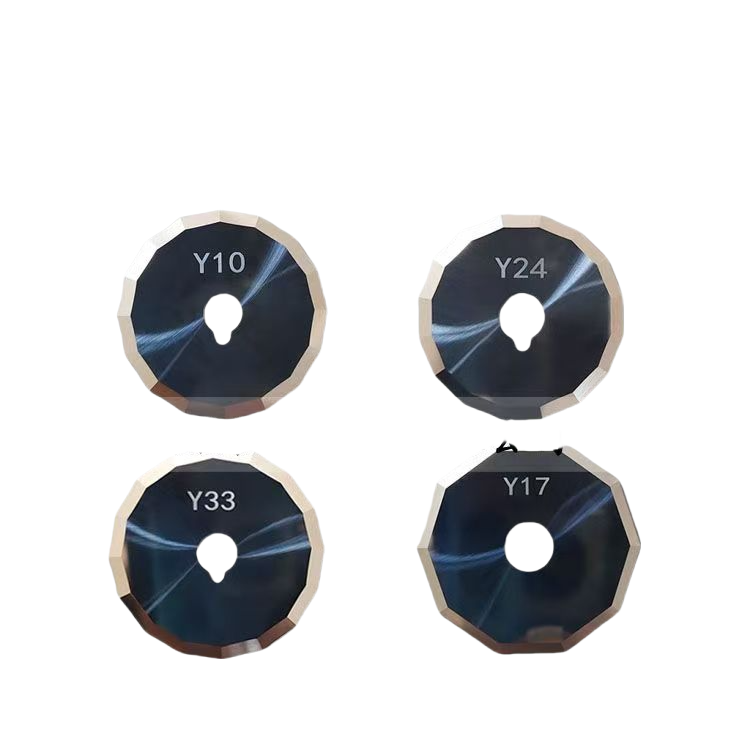

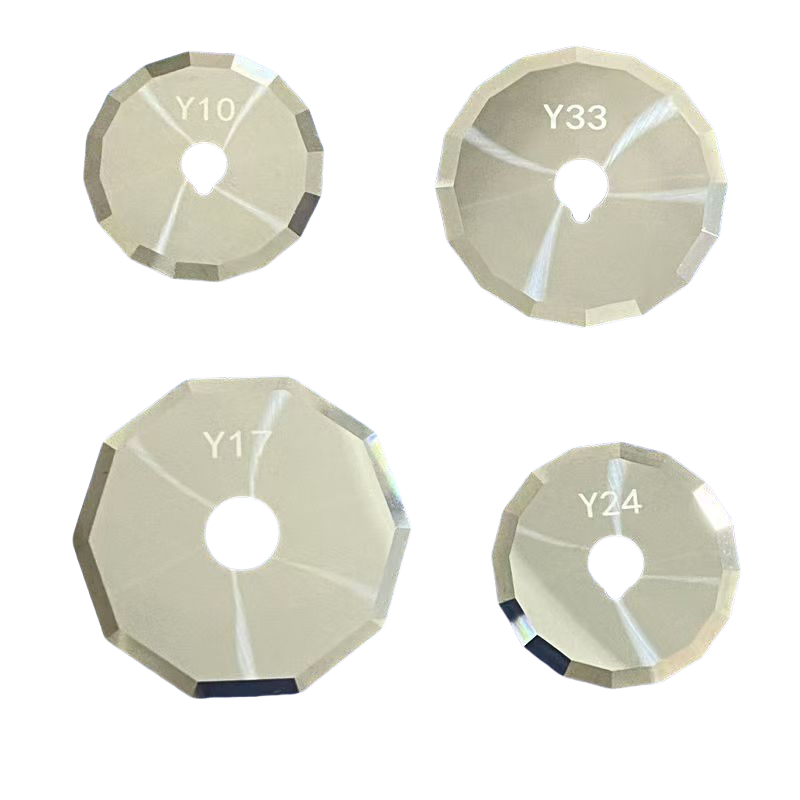

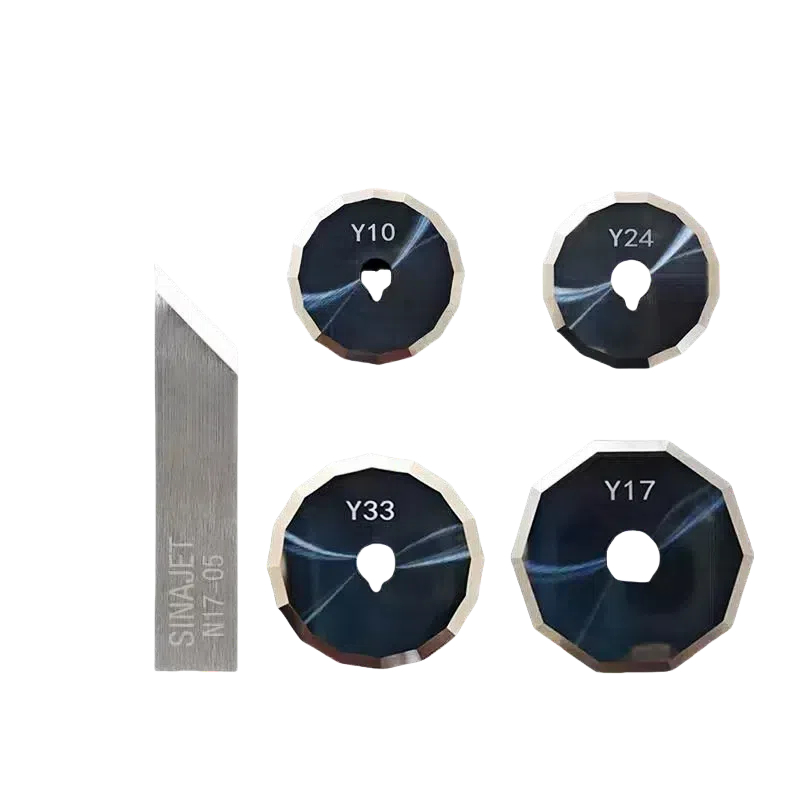

Y-Series Rotary Blades (Y10, Y17, Y24, Y33): Circular tungsten carbide knives built for the Active Circular Tool (WKT) or Rotary Tool (RCT). They continuously roll across fabric, textiles, and carbon fiber honeycomb boards to prevent overcutting or fraying.
