SUMMA 390-549 36°Tangential Knife Blades For Summa T Series SummaCut SummaSign/SummaSign Pro T Serie

china TheSumma 390-549 part number refers directly to theindustry-standard 36° tangential cutting blade geometry used on Summa T-Series vinyl plotters and F-Series flatbed modules Enquire now

Description

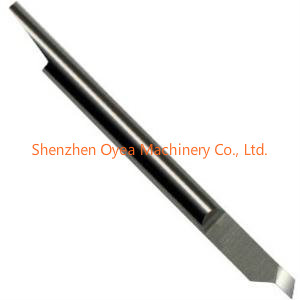

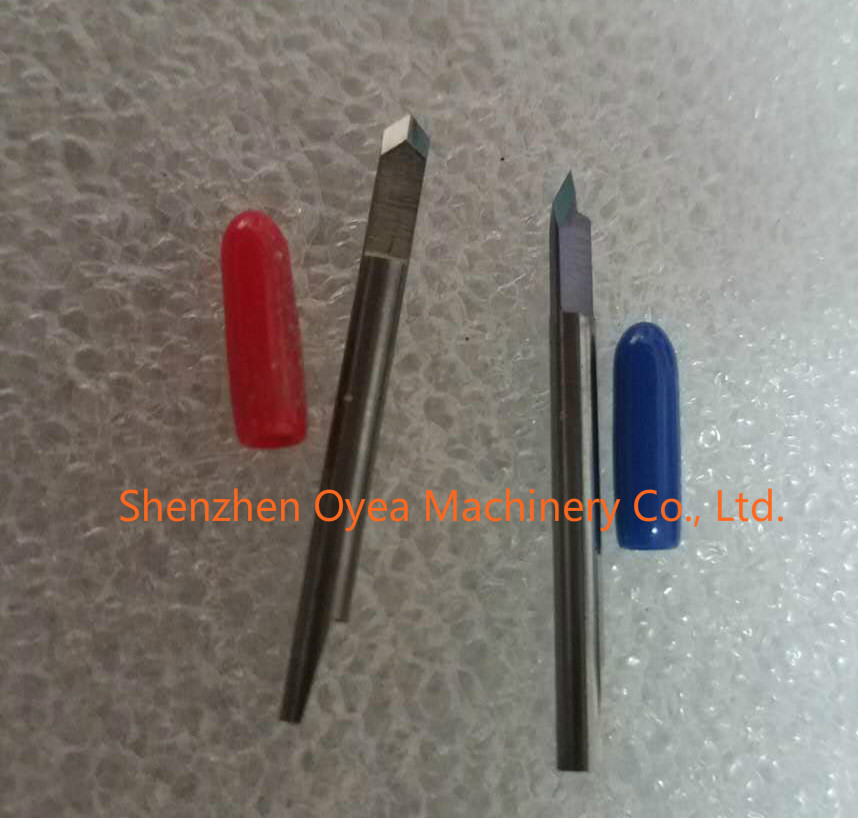

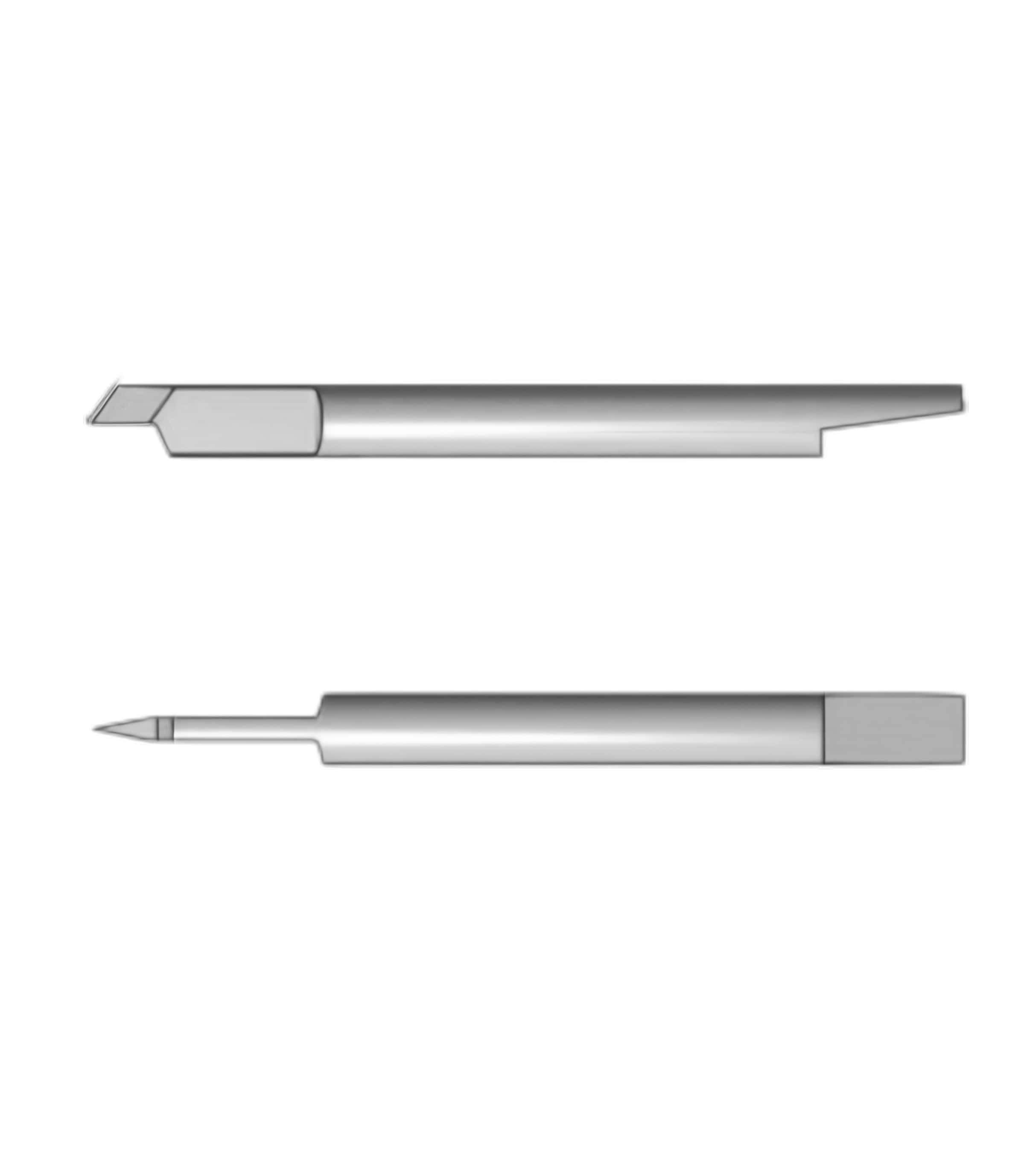

SUMMA 390-549 36° Tangential Knife Blades

Technical Specifications

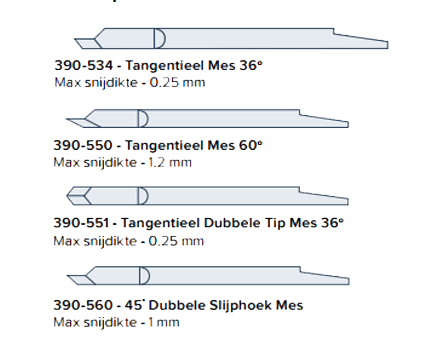

Part Numbers: 390-549 / 390-534

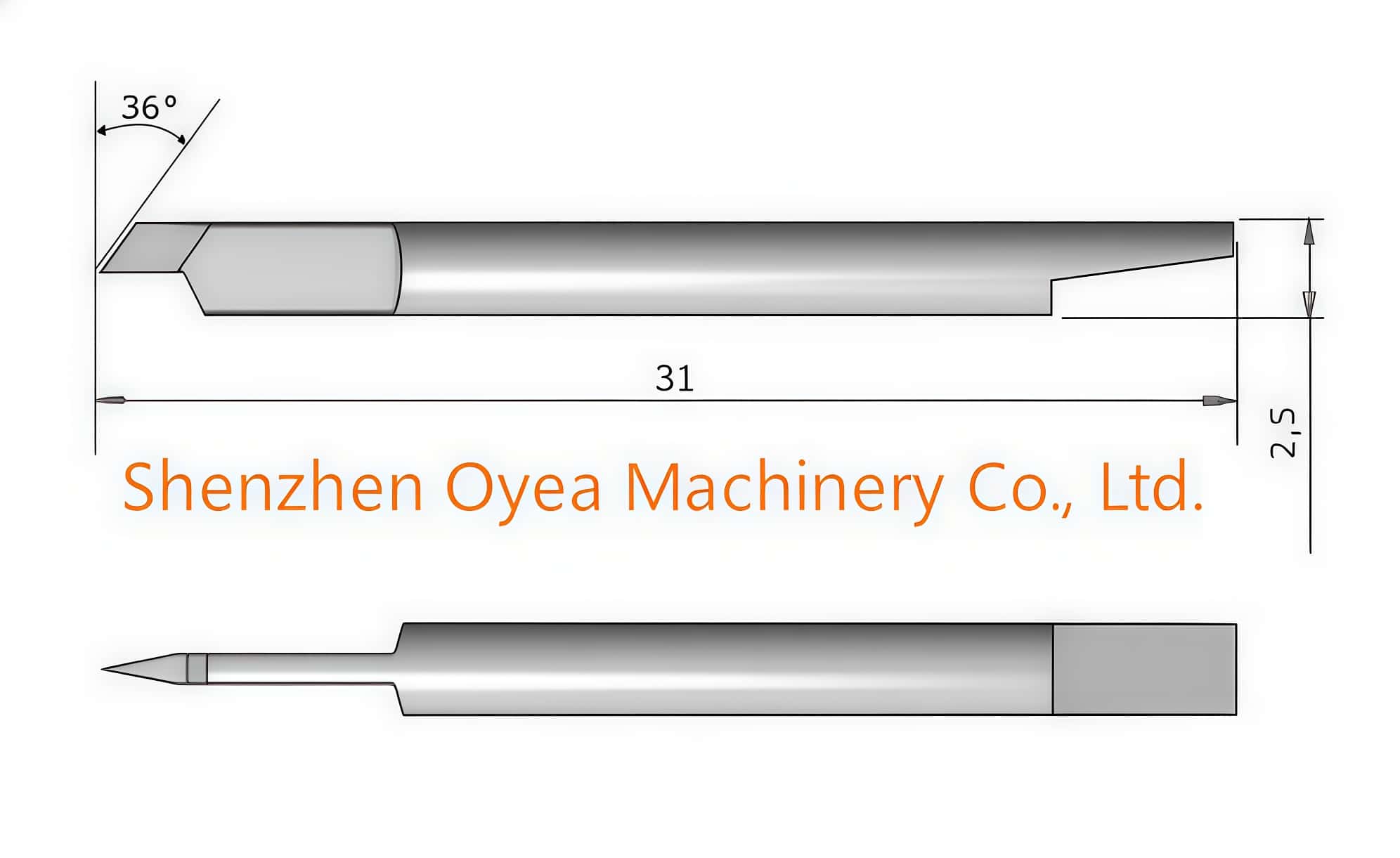

Cutting Angle: 36°
Lip/Wedge Angle: 25°

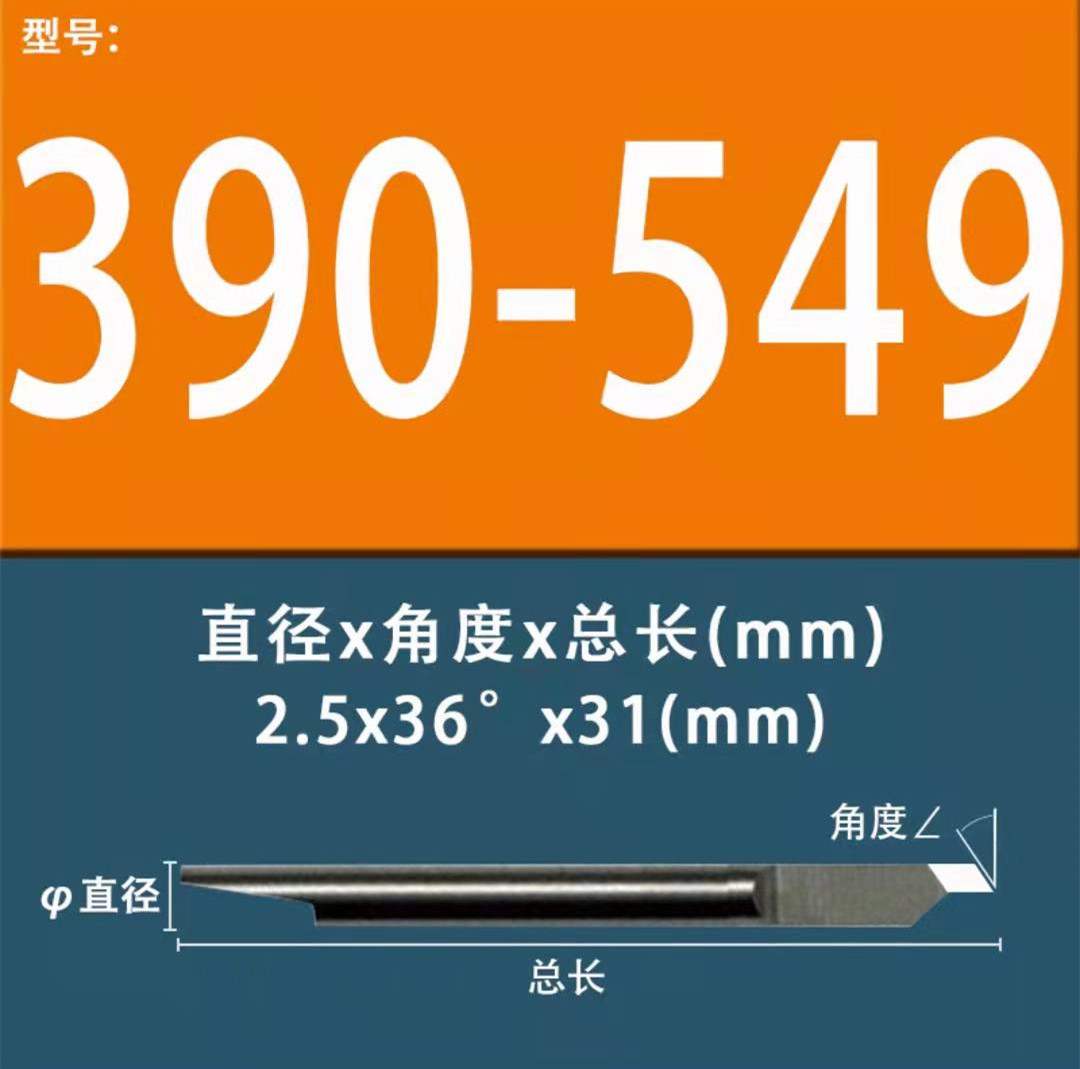

Blade Diameter: 2.5 mm
Blade Length: 31 mm
Max Cutting Depth: 0.010″ (0.25 mm)
Material: Premium micro-grain tungsten carbide

Machine Module Compatibility

This tool relies entirely on motorized tangential heads that lift and mechanically

Summa S Class & S Class 2 T-Series (S75T, S120T, S140T, S160T)
Summa S One T-Series roll cutters
Summa F-Series Flatbed Cutters (equipped with the Tangential Module)
Legacy SummaSign / SummaSign Pro T-Series systems

Primary Material Applications

Its shallow 36° angle is the industry standard for high-speed tracking, intricate

Standard self-adhesive cast and calendered sign vinyl
Daily garment heat transfer vinyl (HTV)
Thin masking foils, window wrap films, and paper
Polyester-based geometric lettering sheets

Sourcing & Packing Layouts

Depending on your operational volume and budget preferences, you can buy this

Summa standard tangential inserts, 36° cutting angle: OEM carbide inserts. Sold through distributors at Shenzhen Oyea Machinery Co., Ltd.

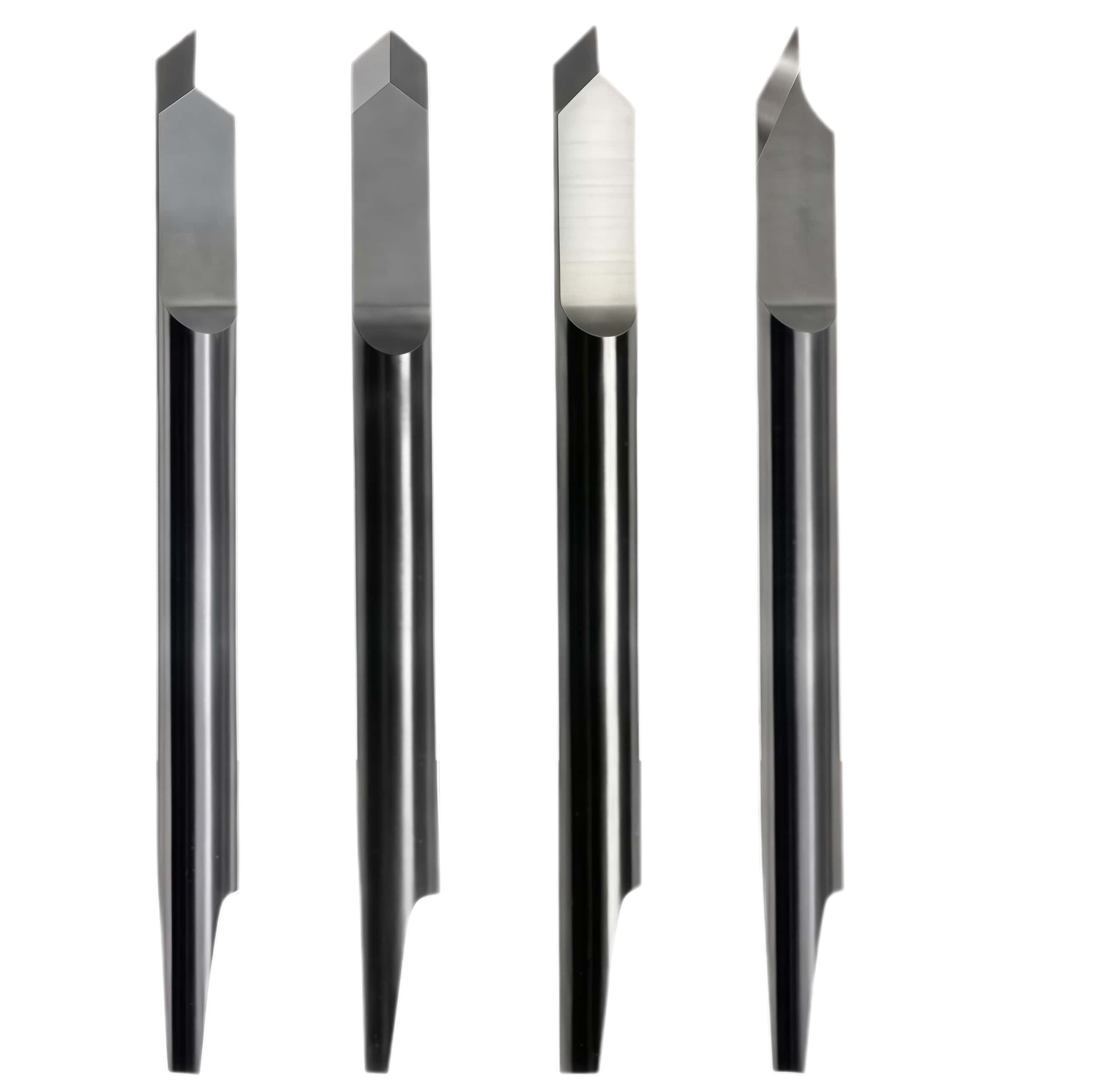

Aftermarket Alternatives: For high-volume production facilities cutting abrasive substrates, generic precision-ground carbide varian
