Summa 500-9850 CNC illing & Router Bit, D3/3 L60/10-Replacement Compatible Review

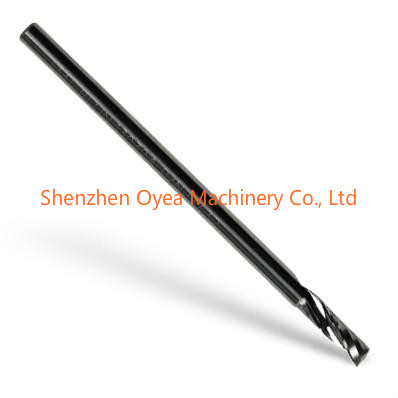

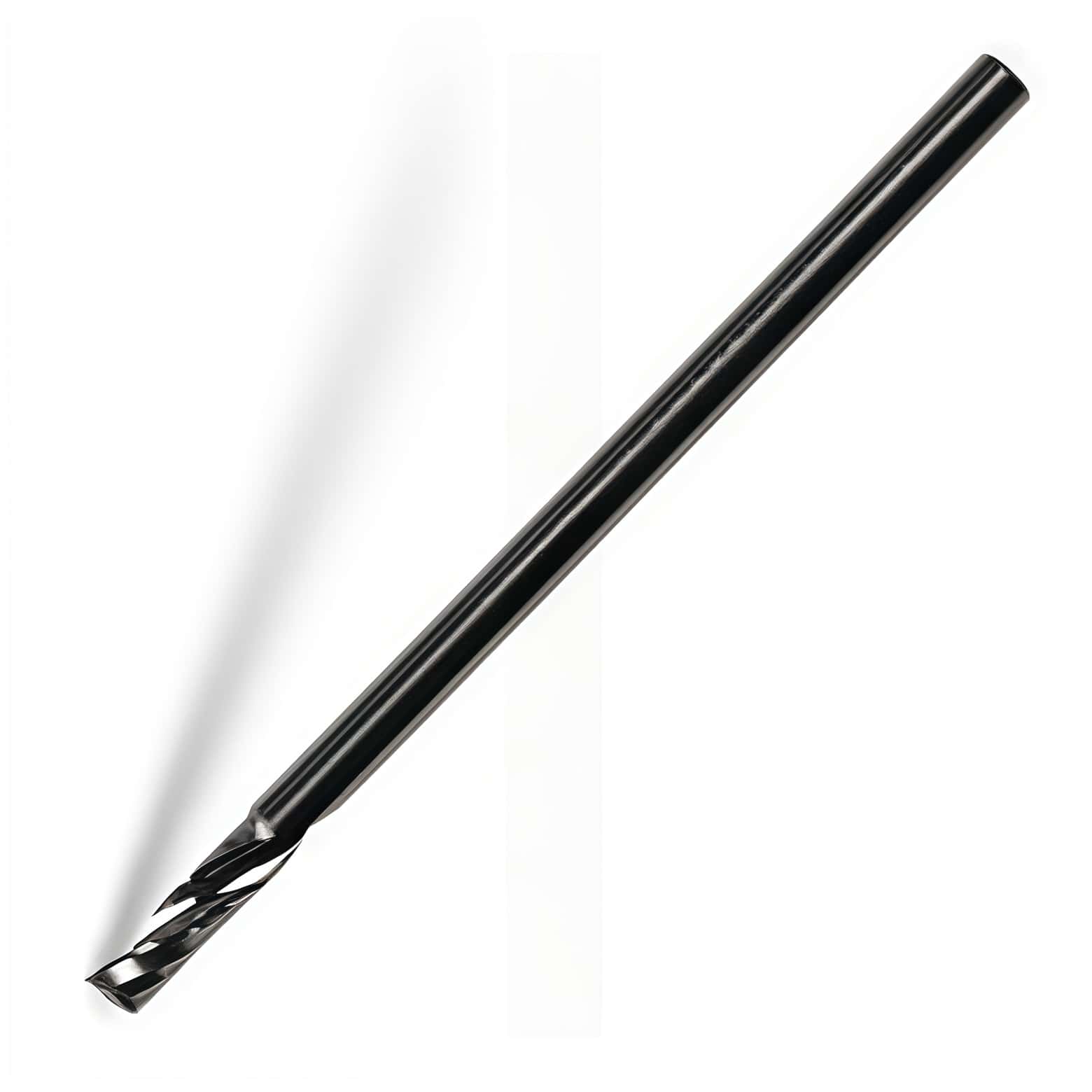

CHINA Summa 500-9850 (D3/3 L60/10) is a single-flute, up-cut solid carbide router bit designed primarily for the Summa F Series flatbed cutters. It is a versatile "multi-purpose" consumable, and replacement compatible versions are widely used as a cost-effective alternative to OEM parts. Enquire now

Description

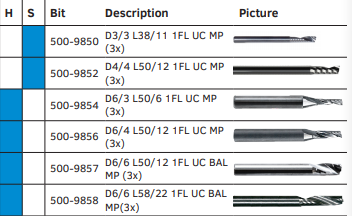

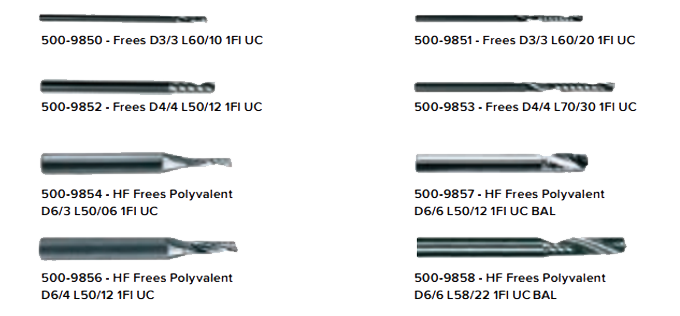

Summa Milling & Router Bit, D3/3 L60/10(500-9850)

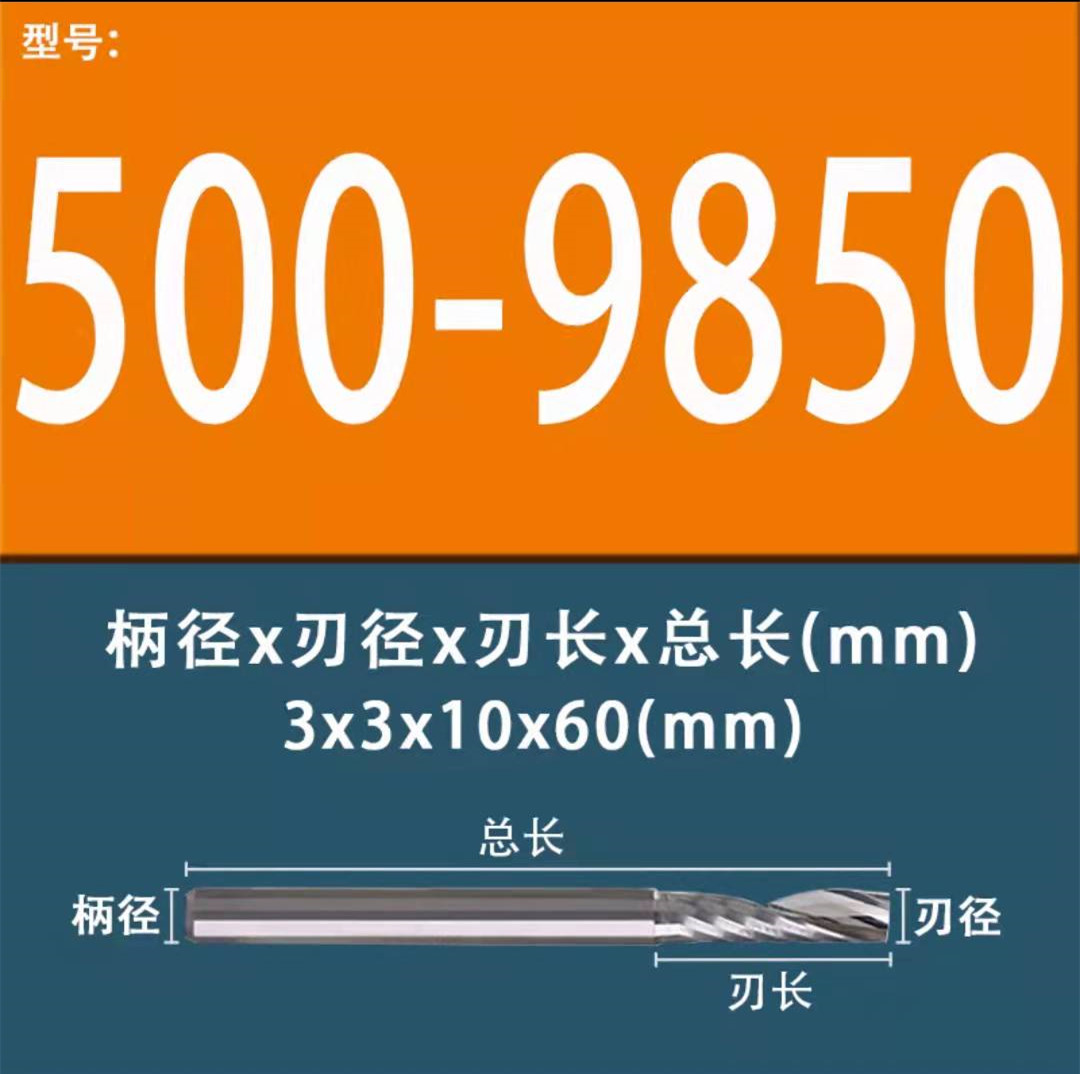

Specifications
Shank diameter: 3 mm
Routing diameter: 3 mm
Tool length: 60 mm
Max. routing depth: 10 mm
Flutes: 1 flute
Up Cut: debris is moved to the top

Compatibility
F Series

Performance & Usage Review

Material Versatility: Ideal for routing standard sheet materials, including wood, PVC, acrylic, and thin aluminum or composite panels.

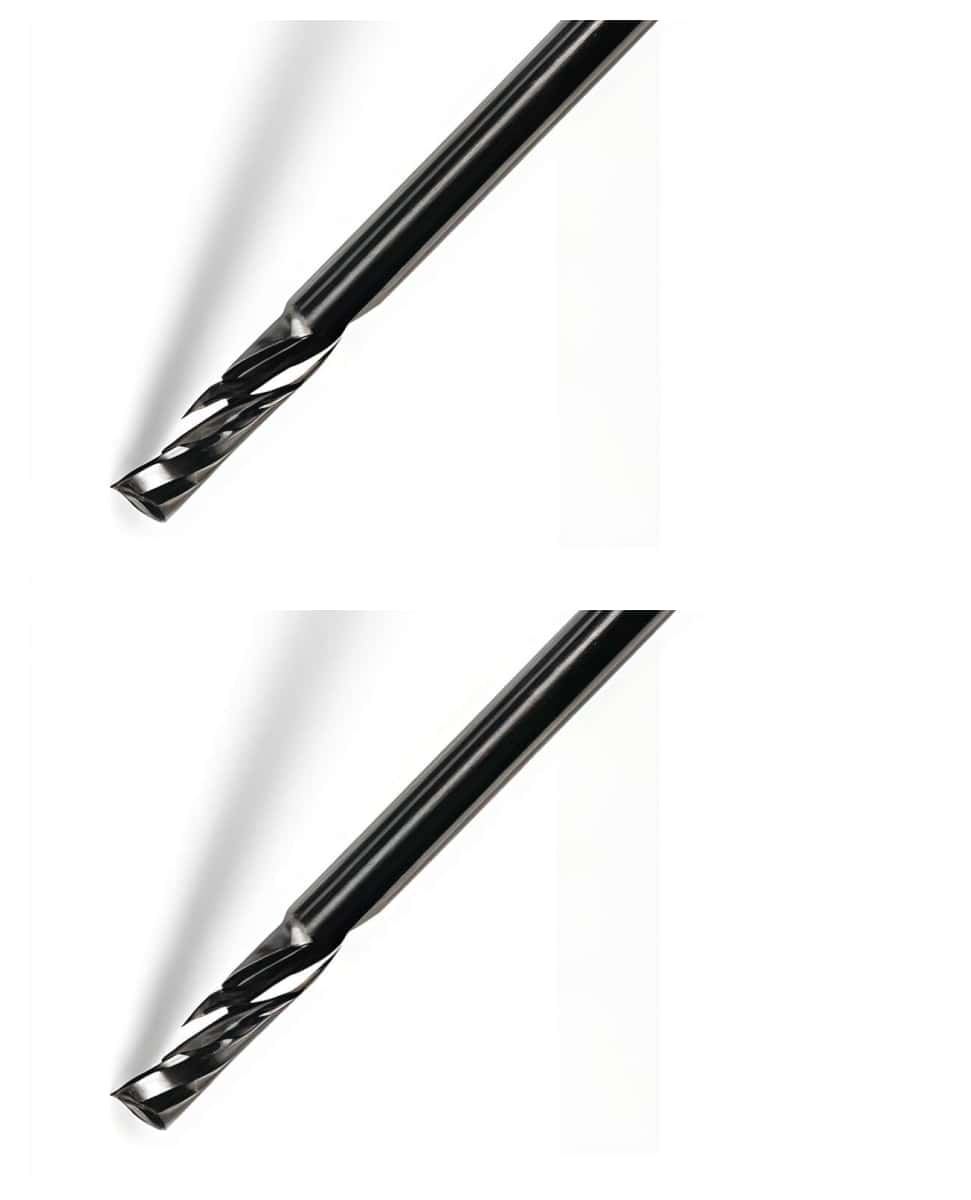

The "Up-Cut" Advantage: The single-flute up-cut spiral design aggressively pulls debris and chips up and out of the cutting path, preventing heat buildup and bit melting in plastics.

Best Practices & Limitations

Depth Limitation: Because the cutting edge only allows for 10 mm of routing depth, do not use it to process materials thicker than 10 mm.
Brittleness: Due to the narrow (3 mm) shank, these bits are fragile. You must adjust your feed rate carefully and ensure your collet is clean to avoid vibration and premature bit snapping.
Specialty Jobs: While great for general sign-making, if you need optically clear acrylic edges or are cutting thick laminated boards, you may want to look into dedicated polishing or compression bits

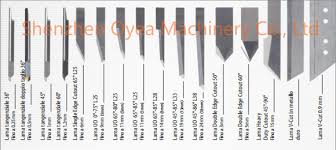

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
