Lectra 116802 Cutter Knife Blades Compatible Lectra Knives For Automatic Cutting Machines 360x2.4x7

Lectra 116802 heavy-duty reciprocating cutting knife blade engineered specifically for Lectra Vector series high-ply automatic fabric cutters. Enquire now

Description

Lectra 116802 Cutter Knife Blades Compatible Lectra Knives For Automatic Cutting Machines 360x2.4x7

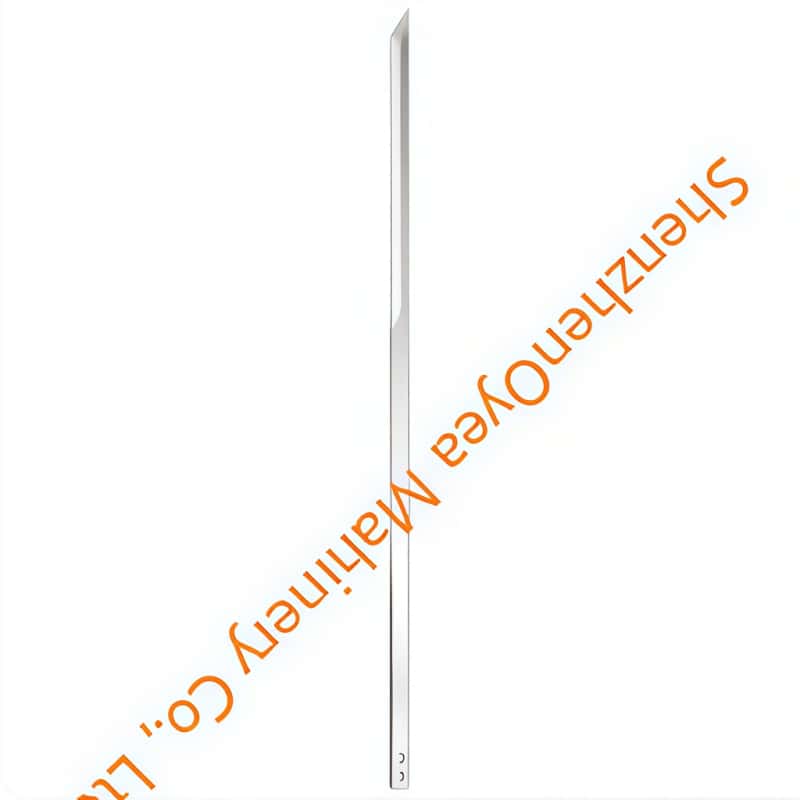

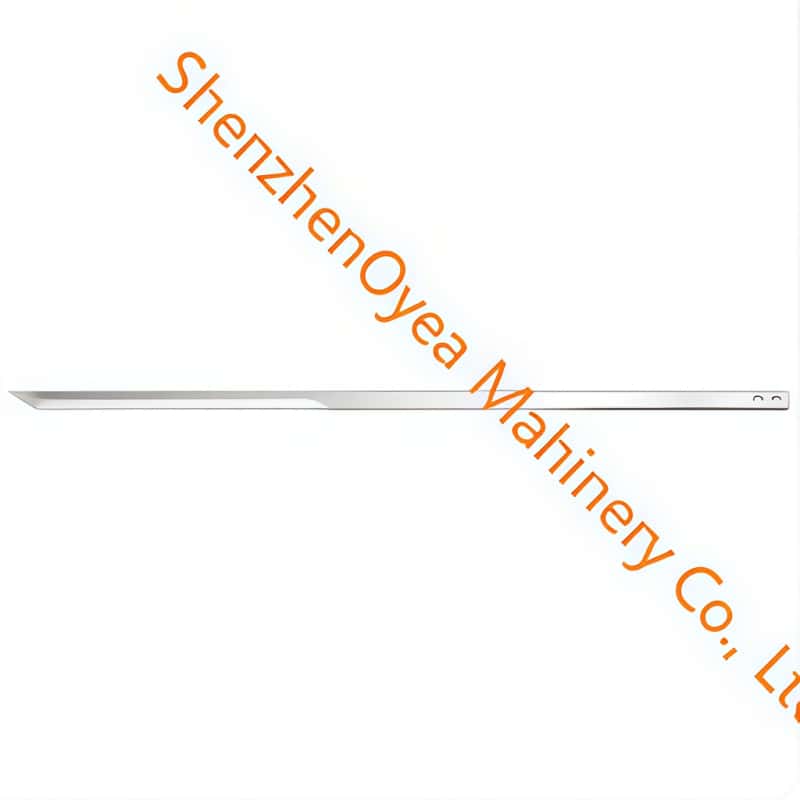

Lectra 116802 cutter blade is a precision, high-performance replacement cutter designedspecifically for industrial automation cutting machines (CAD/CAM automatic cutting machines) such as the Lectra Vector 7000 series .

Core Technical Specifications

Part Number: 116802
Standard dimensions: 360mm (length) × 2.4mm (thickness) × 7mm (width)
Material selection:
- HSS (High-Speed Steel): It has extremely high hardness (usually between 61-65 HRC) and excellent impact resistance.
- Tungsten carbide: Higher hardness, providing an ultra-long wear-resistant life, suitable for long-term continuous production.
Compatible models: Perfectly matches multi-layer material automated cutting machine systems such as Lectra Vector 7000 .

Core Product Advantages

Precision geometric cutting edge: The finely ground cutting edge ensures rapid and smooth longitudinal cutting, avoiding fabric fraying, scorching, or melting.
High wear resistance and toughness: Made of high-quality imported steel, it maintains sharpness while taking into account toughness, greatly reducing the risk of blade breakage when cutting multi-layered hard materials.
Wide material applicability: Suitable for cutting diverse multi-layer industrial soft materials such as automotive interiors, leather, clothing textiles, and composite materials (such as carbon fiber and glass fiber).

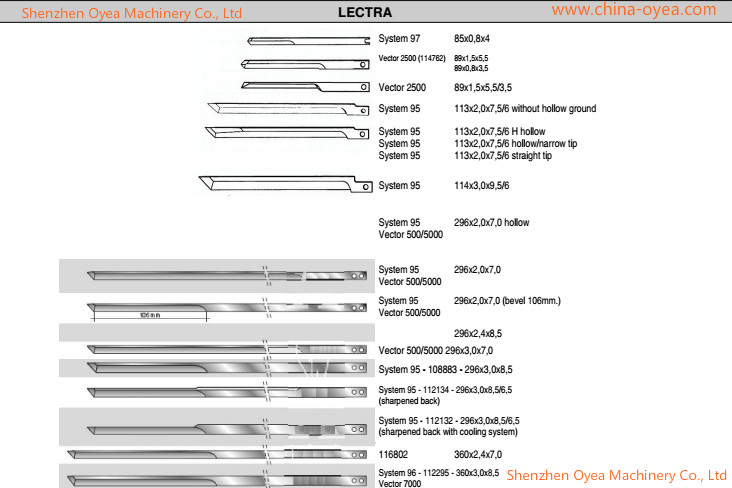

For more Lectra Cutter Knife Blade (CNC knife)
Length*Width*Thickness
System 97 85x0.8x4mm
Vector 2500 89x1.5x5.5/3.5mm No.801220,114782
Vector 2500 89x1.5x5.5mm No.801224
System 95 113x2.0x6/7.5mm
Vector 5000 296x2.0x7mm 304g/box
Vector 5000 296x3.0x7mm
Vector 7000 360x2.4x7mm 116802 360*8.5*3mm 801217
System 96 VECTOR 7000 360x2.4x8.5mm 112295
Lectra Vect?r S96 Cutter Knife 296 x 3 x 8.5mm
Vectorfasion MP9 MP6: 364mmX8.5mmX2.4mm 801269
Vectorfasion MP6: 295mmX8.5mmX2.4mm 454g/box
System 97: 89x0.8x4mm
System 95: 113X2.0X7.5/6 without hollow ground
113X2.0X7.5/6 H HOLLOW
113X2.0X7.5/6 HOLLOW/NARROW TIP
113X2.0X7.5/6 STRAIGHT TIP
System 95: 114X3.0X9.5/6 without hollow ground
System 95/VECTOR 500/5000 296 x 2.0x 7mm HOLLOW/LONG BEVEL
System 95/VECTOR 500/5000: 296 x 2.0x 7mm (106mm bevel) / 296 x 2.4x 8.5mm
System 95 296 x 3.0x 8.5mm/296 x 3.0x 8.5/6.5mm/108883/112134/112132
