Multicam 60-degree Dual Edge Solid Carbide Wide Diameter Knife Blades(94-02466-910.309-S) K24

XK4060-D MultiCam 94-02466-910.309-S (K24) is an industrial-grade, 60-degree dual-edge solid carbide knife blade designed for heavy-duty, high-precision digital flatbed cutters. Featuring a distinct wide-diameter flat shaft geometry, it delivers maximum structural rigidity to prevent blade deflectio… Enquire now

Description

Multicam 60-degree Dual Edge Solid Carbide Wide Diameter Knife Blades(94-02466-910.309-S) K24

MultiCam 94-02466-910.309-S (K24) is an industrial-grade, 60-degree dual-edge solid carbide knife blade designed for heavy-duty, high-precision digital flatbed cutters. Featuring a distinct wide-diameter flat shaft geometry, it delivers maximum structural rigidity to prevent blade deflection or twisting when executing intricate, tight-radius geometry through dense substrates.

Core Technical Specifications

Blade Geometry: 60° cutting angle, dual-edge (double-sided) symmetry for balanced cutting pressure.
Material: Solid premium tungsten carbide (Widia) for extended edge longevity and extreme wear resistance.

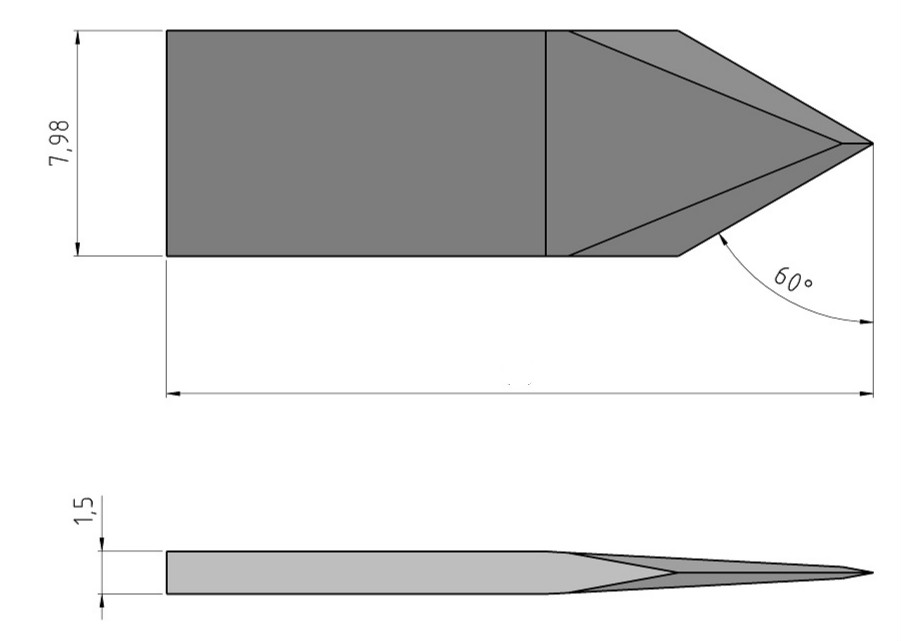

Shaft Profile: Wide-diameter, flat-backed shaft (8mm total width, 1.5mm thickness).
Cutting Application: Optimized for fine detailing, minimizing overcut errors on intricate designs compared to shallower angle blades.
Machine Compatibility: Designed for standard MultiCam drag/oscillating knife tool heads and compatible Kongsberg tooling assemblies

Primary Material Applications

Thanks to the steeper 60° angle, this blade excels at cutting clean corners in semi-rigid or thin fibrous materials where standard 50° blades pull or cause excessive overcut:

Graphics & Plastics: Thin PVC, polycarbonate, polystyrene, polyester film, and self-adhesive foils.
Packaging: Precision folding cartons, dense paperboards, and lightweight corrugated media.
Technical Fabrics: Synthetics, woven textile fabrics, leather, and thin gasket materials.

Replacement for:Jwei J353 Esko Kongsberg G42443036 42443036 BLD-DF113 i-309 Summa 500-0803 500-9803 Colex T00313 Blackman & White BW113 MultiCam 94-02466-910.309-S Zund Z11 in 25 mm AXYZ BT1051L-7 Gerber MCT DE13 895013

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
