Tct carbide reversible knives-Carbide inserts 4 cuts

TCT (Tungsten Carbide Tipped) carbide reversible knives with 4 cuts are indexable, four-sided carbide insert blades designed for woodworking planer heads, spiral cutterheads, moulder tooling, and spindle shapers, Enquire now

Description

Tct carbide reversible knives-Carbide inserts 4 cuts

Parameter	Typical Value
Material	Tungsten carbide (C-2, C-4, FK07, FK08, FK30UF grades)
Hardness	91–94 HRA / 1750 HV10
Bending Strength (TRS)	2350–2800 MPa
Cutting Edges	4 (indexable/reversible)

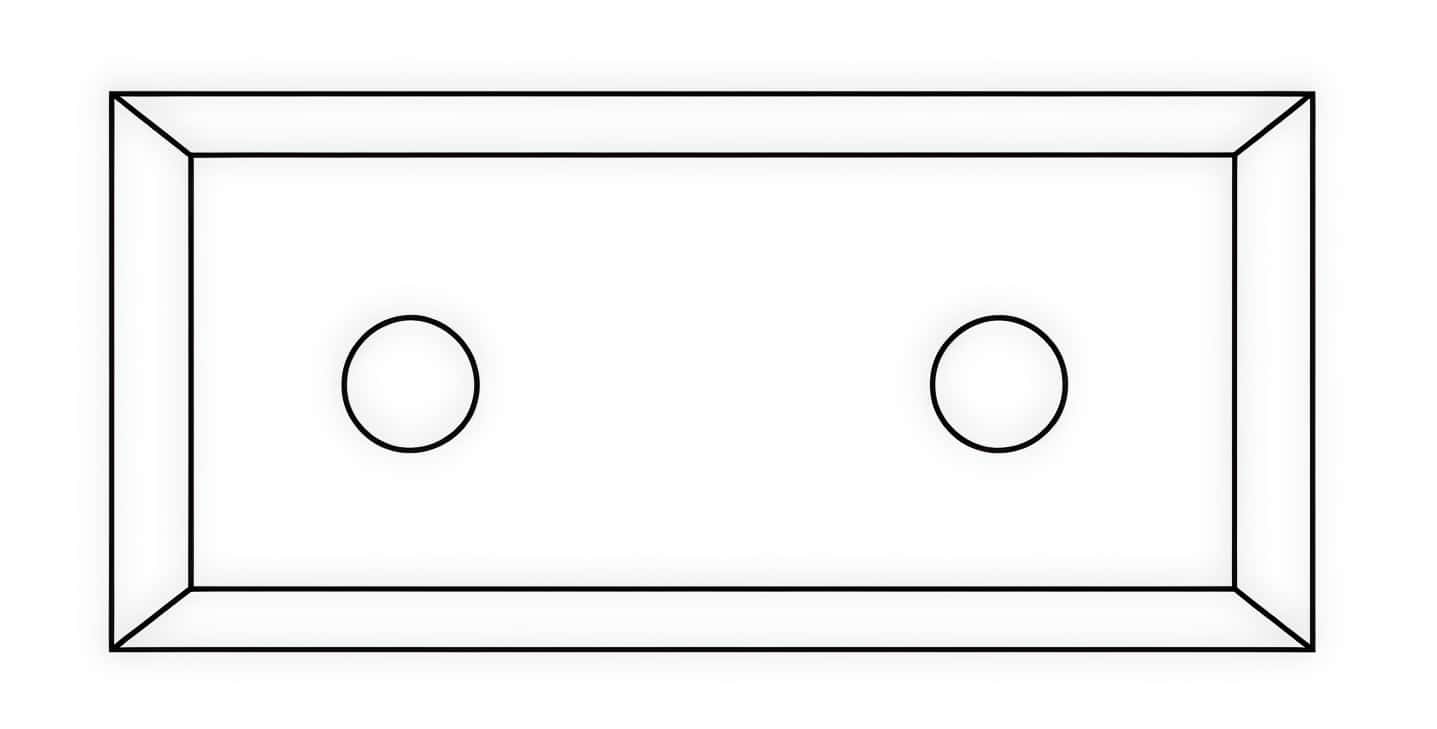

Mounting Holes	1–3 holes (commonly 4 mm diameter, 14–37 mm spacing)

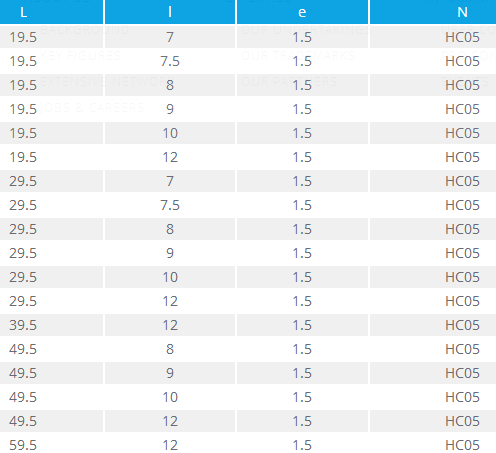

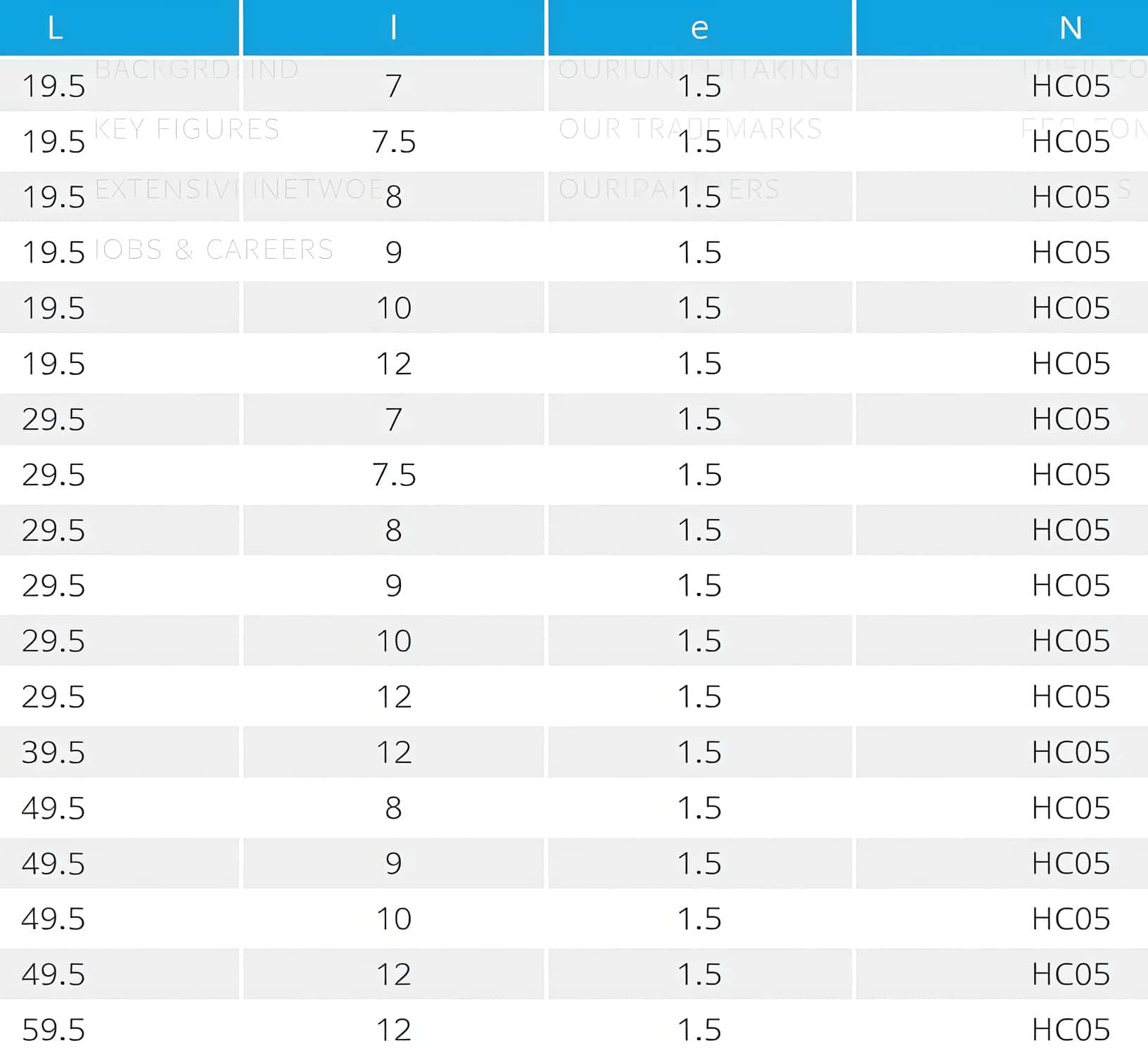

Common Sizes	12×12×1.5 mm, 14×14×2.0 mm, 20×12×1.5 mm, 29.5×12×1.5 mm, 30×12×1.5 mm, 50×10×1.7 mm, 50×12×1.7 mm

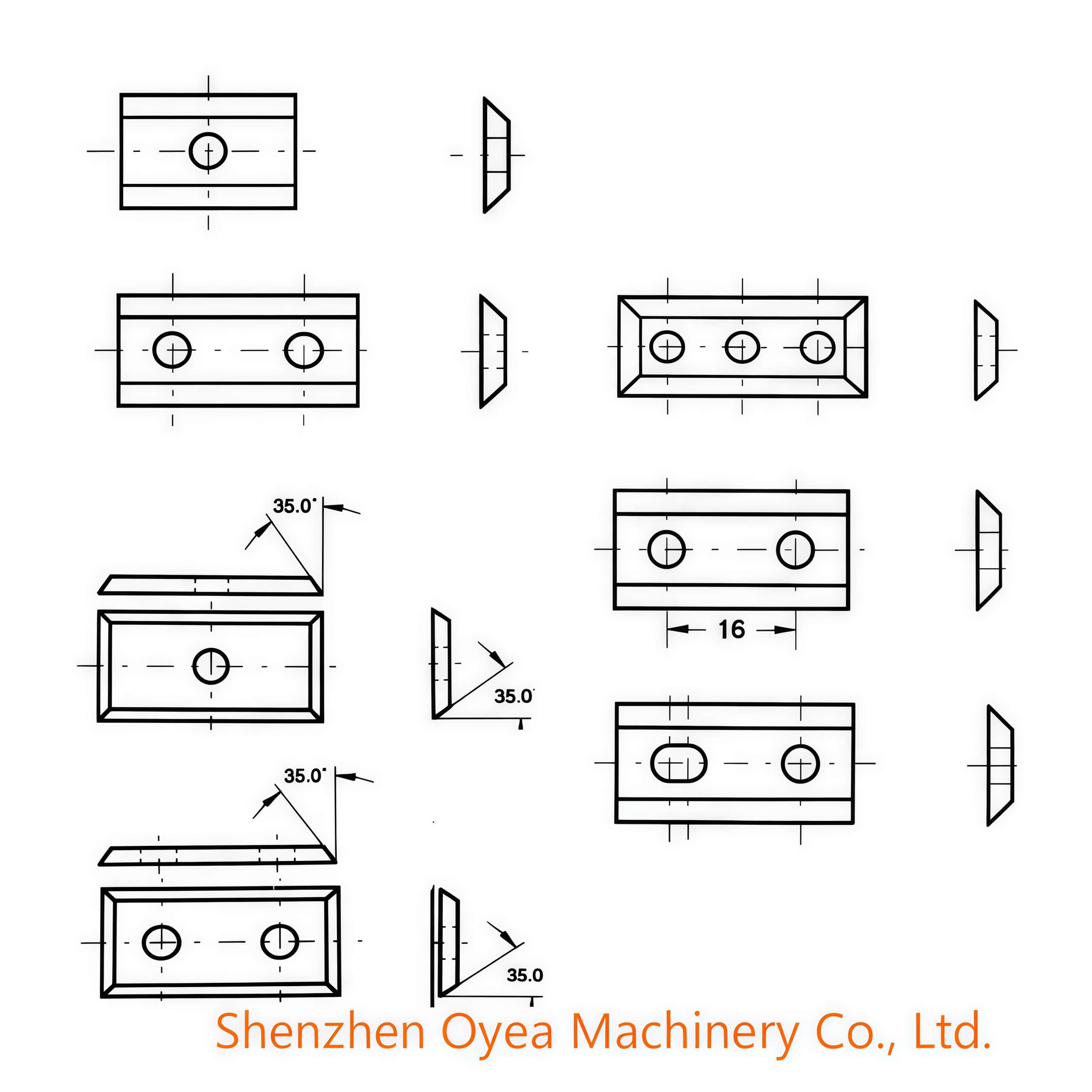

Cutting Angle	30°–45° (varies by insert geometry)
Surface Finish	Ra 0.2–0.4 µm (precision ground)

Key Features

Four cutting edges: Each insert has four sharp, precision-ground edges that can be indexed (rotated 90°) or reversed to extend tool life 4× compared to single-edge blades
Tungsten carbide construction: Made from C-2, C-4, FK07, FK08, or FK30UF grade cemented carbide for high hardness (91–94 HRA / 1750 HV10), wear resistance, and long service life
No sharpening required: Inserts are disposable/indexable—when one edge dulls, simply rotate or flip the insert to a fresh edge; no grinding or sharpening
High precision geometry: Manufactured to ISO standards with tight tolerances for outstanding surface finish and minimal tear-out on wood and board materials
Versatile applications: Suitable for particleboard, MDF, HDF, hardwood, softwood, melamine, laminates, and composite boards

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM cutting knives and blades. All of our standard cutting knives are manufactured to exceed the exact OEM standards
