Elitron 135602 Oscillating Knife Blades Supplies Wholesale Factory Manufacturer

Elitron 135602 is an oscillating knife blade in the Elitron 1356xx family, but the exact cut depth and geometry for this specific code were not fully exposed in the available source snippets. Enquire now

Description

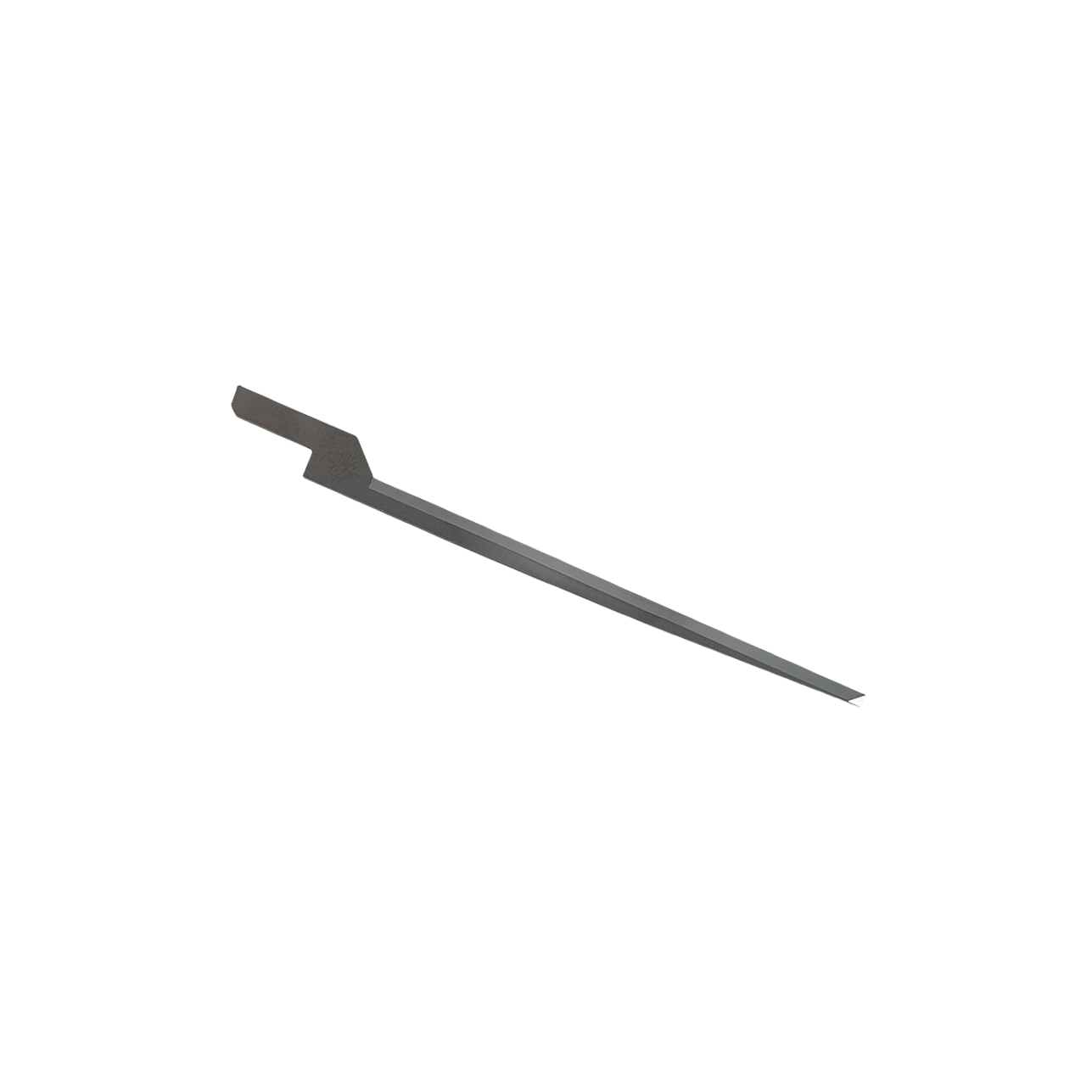

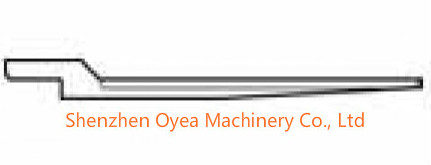

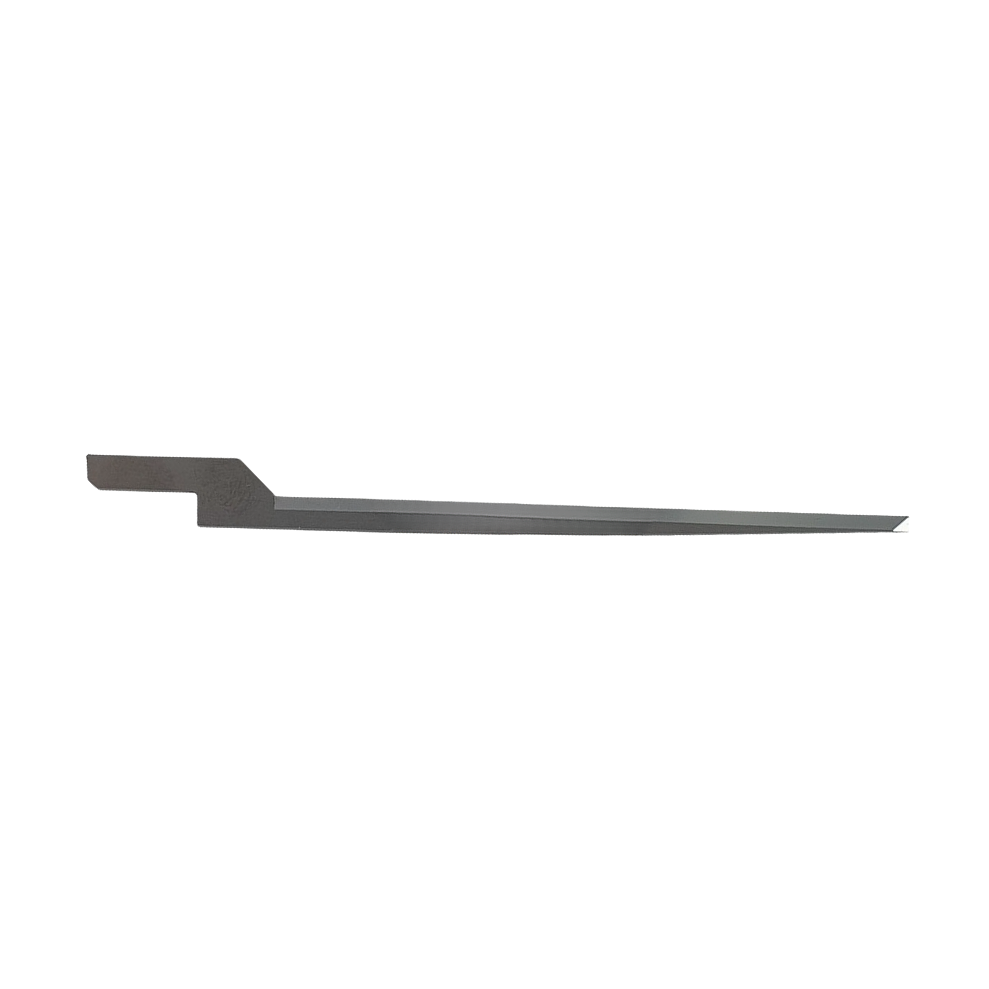

Elitron 135602 Oscillating Knife Blades

Elitron 135602,Elitron 135602 Blade,Elitron Blade,Elitron Knife,Elitron 602,Elitron Blades

Elitron 135602 is used in Elitron digital industrial plotters (such as the Kombo series and Dinamo series).Tungsten Carbide Extra-Long Vibrating BladeIt is specifically designed for penetrating deep cuts of thick, soft, and sandwich composite materials .

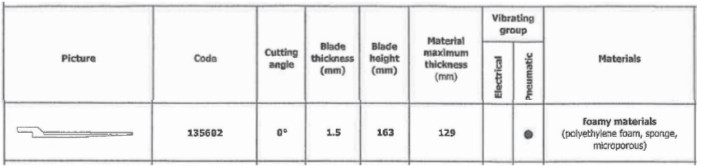

Brand:ELITRON
Product Code: 8MCLMA135602
Description:
Length: 129
Thickness: 1.5
Angle: 0°
KNIFE TYPE
Flat, Oscillating blade
MATERIALS
Folding Carton, Leather

Best-suited processing materials

Due to its extremely long cutting edge and 1.5mm reinforced thickness, 135602 cannot be used to process rigid thin cardboard; instead, it is specifically designed for thicker materials used in the packaging, cushioning, sound insulation, and advertising display industries .

Polyethylene foam (PE Foam / Pearl Cotton) – ultra-thick cushioning foam used for linings in electronic products, etc.
EVA foam/polyurethane foam (PU foam) – a thick, flexible packaging material.
Thick foam board (Foam board / KT board) – a thick plywood used for outdoor advertising and visual merchandising displays.
Honeycomb Board – Extra-thick heavy-duty honeycomb packaging interlayer for logistics.

On-site operation and process suggestions

Avoid hard impacts : Due to its excessive length (over 10cm), although the blade thickness has been increased to 1.5mm, it is still quite sensitive to lateral impacts during high-speed vibration and turning. Never use it to cut hard PVC, plexiglass (acrylic), or dense hard rubber at high speed, otherwise the long blade tip is prone to breaking off instantly when encountering strong resistance.
Feed rate control : When using the 135602 to cut foam thicker than 50mm, the feed rate should be appropriately reduced in the Elitron control software , and the "corner deceleration" function should be enabled to ensure the absolute perpendicularity of the cut surface and prevent dimensional errors between upper and lower layers caused by blade tip lag.
